Eaton ConnectUPS Web/SNMP Card Manual de programación

Eaton®ConnectUPS™Web/SNMP Card

Quick Start Instructions

Package Contents

lConnectUPS Web/SNMP

lUSB Cable

lQuick Start Instructions

COM

ConnectUPS-X Web/SNMP/xHub Card

RESET

100 10

POWER

STATUS

Uplink

COM

ConnectUPS-BD

SNMP/WEB Adapter

RESET

COM NETWORK

Help Desk Numbers

United States 1-800-356-5737 or 1-800-843-9433

Canada 1-800-461-9166 ext 260

All Other Countries Call your local service representative

Eaton, PredictPulse, and Power Xpert are registered trademarks and

ConnectUPS is a trademark of Eaton Corporation or its subsidiaries and affiliates.

Google Chrome is a trademark of Google Inc. Linux is a registered trademark of

Linus Torvalds. Microsoft, Internet Explorer, and Windows are registered

trademarks of Microsoft Corporation in the United States and in other countries.

Mozilla and Firefox are registered trademarks of the Mozilla Foundation. All other

trademarks are property of their respective companies.

part of this document may be reproduced in any way without the express written

approval of Eaton Corporation.

Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 3

TABLE OF CONTENTS

Section 1 Installation Checklist ........................................................................ 4

Section 2 Install the Card ................................................................................. 5

Section 3 Connect the Card to the Computer .................................................. 7

Section 4 Initialize the Card Configuration ...................................................... 9

Section 5 Obtain a DHCP-assigned IP Address ............................................. 12

Section 6 Assign an IP Address Manually ..................................................... 15

Section 7 Disable Browser Compatibility Mode ............................................ 17

Section 8 Register a PredictPulse Subscription ............................................. 19

Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 4

Section 1 Installation Checklist

1. Verify that the following items are available:

oConnectUPS Web/SNMP card package contents (card, cable, Quick Start

Instructions)

oPhillips®screwdriver

oAvailable USB port on a computer running Microsoft®Windows®

oWeb browser (Microsoft Internet Explorer® version 8.0 and higher,

Mozilla®Firefox®, or Google Chrome™ are recommended)

2. If you are going to use Dynamic Host Configuration Protocol (DHCP), provide

your local network administrator with the card's MAC address. The MAC

address is located on either the shipping box label or the label on this card.

oMAC Address _____________________________________________

3. If you are not going to use DHCP to provide any of the settings listed below,

contact your local network administrator for the settings.

In the table below, check the DHCP check box or enter the values for manual

configuration.You will reference this data later in the procedure.

4. If you need e-mail functionality, obtain the SMTP mail server's IP address or

host name. If using the SMTP host name, verify that you also have the

Name Server IP address (see Step 3).

oSMTP (mail server) IP Address

or Host Name _____________________________________________

Item DHCP* Manual Configuration

IPv4 oCard IP Address: ________________________

Netmask: ________________________

Gateway: ________________________

DNS – Name Servers oName Server #1: ________________________

Name Server #2: ________________________

Name Server #3: ________________________

DNS – Domain oDomain: ________________________

* The network administrator normally sets up the DHCP server to provide a static IP address each time

the card makes a DHCP request.

Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 5

Section 2 Install the Card

NOTE The hot-swappable ConnectUPS Web/SNMP cards can be

installed without turning off the UPS or disconnecting the load.

NOTE Two types of ConnectUPS Web/SNMP cards (X and BD) are

supported by PredictPulse.

To install a ConnectUPS Web/SNMP card:

1. Make sure you have the correct dip switch position:

- If you are going to enter an IP address manually, verify that both DIP

switches on the card are set to the 0 or OFF position, which is flipped up

(see Figure 1 and Figure 2).

- If you are setting up the ConnectUPS Web/SNMP card in a DHCP

environment, set DIP switch 2 to the 1 or ON position, which is flipped

down.

2. If not already done, record the MAC address from the label on the card for

future reference (see Step 2 in the “Installation Checklist”).

NOTE If another card is already installed with an attached

communication cable, disconnect the cable and then remove

the card.

3. To prevent electrostatic discharge (ESD), place one hand on a metal surface,

such as the UPS rear panel.

4. Remove the blank communication bay cover from the UPS. Retain the

screws.

5. Slide the card into the open slot and secure it with the screws removed in

Step 1 (see Figure 1 and Figure 2).

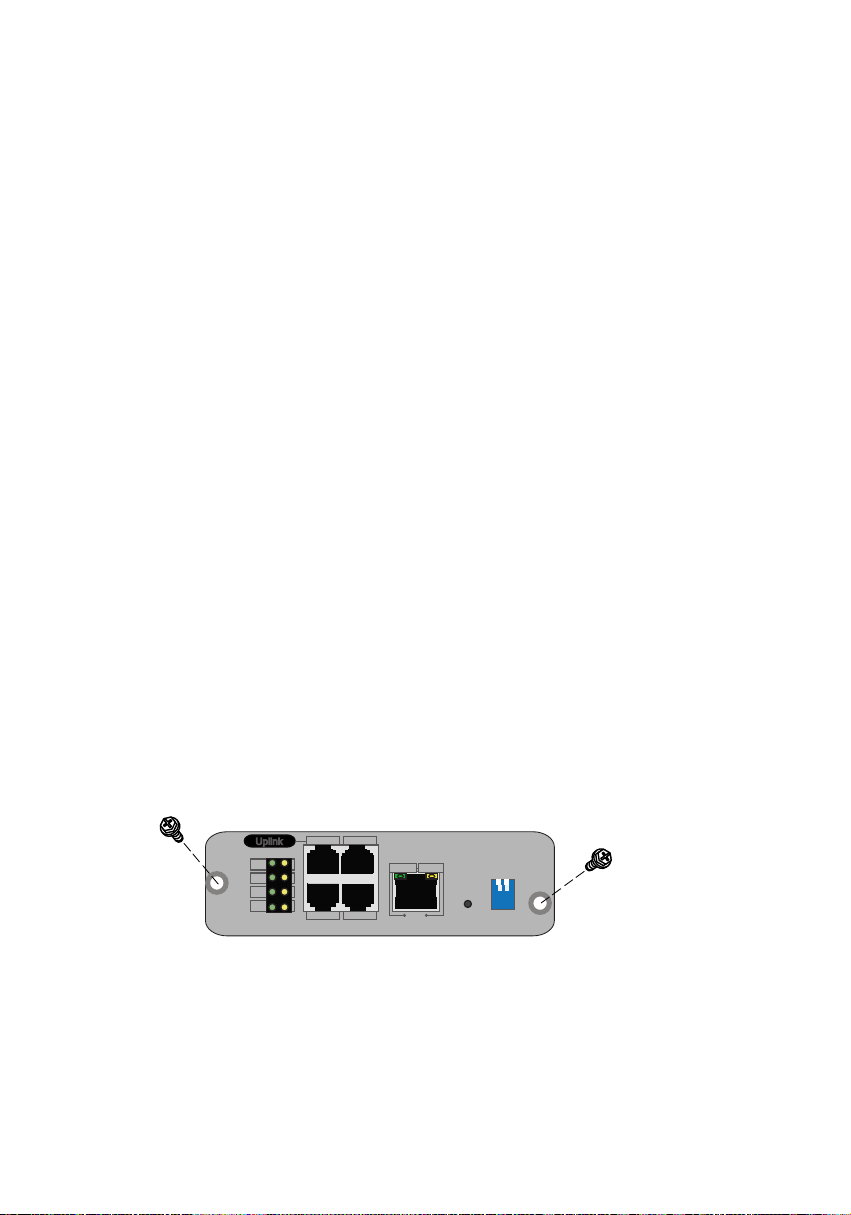

Figure 1. Installing the Card (UPS-X Card Shown)

COM

ConnectUPS-X Web/SNMP/xHub Card

RESET

100 10

POWER

STATUS

Uplink

COM

Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 6

Figure 2. Installing the Card (UPS-BD Card Shown)

ConnectUPS-BD

SNMP/WEB Adapter

RESET

COM NETWORK

Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 7

Section 3 Connect the Card to the Computer

NOTE You can set the card parameters through the COM port even if

the network is not connected.

NOTE You cannot use the Ethernet port for configuration.

NOTE When the card is not connected to the network, it continuously

attempts to connect. When the connection is established, the

LEDs indicate the status.

To connect the card to the computer and the network:

1. Verify that the UPS is on and in normal mode.

NOTE If you are not sure how to know if the UPS is in normal mode,

refer to the User’s Guide for your UPS.

2. Plug the RJ-45 end of the supplied serial configuration cable into the COM

port on the card.

3. Plug the other end of the serial cable into the serial COM port on the

computer. (Depending on your laptop, you may need an adapter for this

step.) See Figure 3 and Figure 4.

4. Connect an active Ethernet cable (not supplied) from the network

connection to the Ethernet port on the ConnectUPS Web/SNMP card (see

Figure 3 and Figure 4).

Figure 3. Connecting the Card (UPS-X Model Shown)

COM

ConnectUPS-X Web/SNMP/xHub Card

RESET

100 10

POWER

STATUS

Uplink

COM

Ethernet Cable

Conguration Cable

Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 8

Figure 4. Connecting the Card (UPS-BD Model Shown)

5. Wait approximately two minutes until the green UPS Data LED flashes

regularly, indicating normal operation.

ConnectUPS-BD

SNMP/WEB Adapter

RESET

COM NETWORK

Ethernet Cable

Conguration Cable

Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 9

Section 4 Initialize the Card Configuration

NOTE These instructions show HyperTerminal screen images, but you

can use the terminal emulation program of your choice, such as

PuTTY.

NOTE Before you start initializing the card configuration, you will need

to know which COM port you are using on your computer.

To initialize the card configuration:

1. Verify that the serial cable (supplied) connects the card’s COM port to the

computer’s COM port. Also verify that the UPS is on and in normal mode.

2. Click Start in the computer Start bar. Type Device in the search box. Select

Device Manager in the list above the search box. The Device Manager

opens.

3. Locate Ports (COM & LPT) in the list and click the adjacent “plus box” to

expand the selection. Make a note of the COM port you are using.

4. Open HyperTerminal.

5. Respond Ye s or No to the message asking if you want to make

HyperTerminal your default terminal emulation program. The New

Connection dialog opens.

6. Optional. When the Connection Description dialog box opens, enter a name

for this connection and click OK. Otherwise, click Cancel.

7. In the New Connection dialog, make the menu selection File > Properties.

On the screen that displays, select New Connection Properties.

8. Click the Connect To tab. From the “Connect Using...”drop-down list, select

the COM port that you are using (see Figure 5).

Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 10

Figure 5. Selecting the COM Port

9. Click Configure. The COM Properties dialog displays.

10. In the COM Properties dialog, click Restore Defaults to set the correct baud

rate, data bits, stop bit, and flow control.

11. C l i ck OK.

12. At the blinking screen, press Enter. You should be prompted to enter the

password (default is admin).

NOTE If the Password prompt does not appear, press Enter again. If it

still does not appear, check the following conditions:

lVerify the serial line is set to 9600 baud, no parity, 8 data bits, 1 stop bit,

and no flow control.

lIf the serial line settings are correct, check the cabling to verify all

connections are secure.

lVerify that your terminal program is set to the correct communication port

for the serial connection.

lVerify that the card has power (one or more LEDs on the card are

illuminated). The UPS should be turned on.
