Earth Way POLAR TECH 90365 Instrucciones de instalación

HELPFUL HINTS: READ THE DIRECTIONS BEFORE ASSEMBLY

THIS SPREADER COMES PARTIALLY ASSEMBLED, REQUIRING YOU TO INSTALL THE WHEELS, HANDLE ASSEMBLY AND

CONTROL ROD. IT SHOULD TAKE APPROXIMATELY 10 MINUTES WITH THE USE OF TWO 7/16” WRENCHES AND 1 PAIR

OF PLIERS.

Clean the impeller plate after each use. Material build up on the impeller blades will cause uneven spreading.

Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds

Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.

When using Rock Salt remove salt from the hopper daily. Rock Salt will reconstitute back into a solid block over night

lubricant to prevent corrosion.

1. Open carton and remove the handle assembly, wheels, and spreader from

carton.

2. Turn spreader upside-down on to the hopper.

90365 ICE MELT SPREADER

GEARBOX &

AXLE ASSEMBLY

Lower

Handle

Frame

Brace

Cross Brace

Axle Bushing

Axle

Bearing

3. Ensure that the axle bearings are pushed into the axle

bushing on both sides as shown. Install drive wheel (both

wheels are interchangeable) to axle using pin hole nearest to

lower handles as shown. Insert 2” cotter pin through wheel and through axle. Bend with pliers to prevent pin from falling

out.

4. Install coast wheel to axle, then using outside pin hole as shown, insert 1” cotter pin through axle (not thru the wheel).

Bend with pliers to prevent pin from falling out.

2” Cotter Pin

1” Cotter Pin

Coast Wheel

Drive Wheel

PLEASE CALL IF YOU ARE MISSING ANY PARTS, HAVE ANY DIFFICULTY IN ASSEMBLY, OR HAVE ANY QUESTIONS

REGARDING THE SAFE OPERATION OF THIS SPREADER.

SUPPORT: 574-848-7491 or [email protected]

ASSEMBLY & OPERATION

2019 OCT REV PAGE 1

1/4 - 20 Lock-nut

1/4 - 20 x 2” Bolt

Pivot Bracket

5. Install handle shaft to lower handles and pivot & bracket assembly as shown.

Using 2” bolts and locknuts. TIGHTEN BOLTS AND NUTS NOW.

1/4-20 x 2”

Hex Head

Bolt

Gauge &

Lever Assembly

Upper Handles

1/4-20

Locknuts

Handle Shaft

Long end

6. Insert 2” bolt through Gauge & Lever assembly, next through upper

handle, then the handle shaft and then the other upper handle and secure

with locknut.

TIGHTEN ALL HARDWARE NOW

Gauge & Lever

Control Rod

Tabbed Hole

Control Rod

Lever

Tension Nut

¼-20

Hex Nuts

Pivot

Bracket Control

Rod

Pivot

Rod

7. Install Control Rod by inserting

Lever on Gauge as shown. Turn to lock in place. {Make sure that there is a

plain 1/4-20 Hex Nut threaded about halfway up the threads}

Push lever forward to full OPEN setting. Align and push the Control Rod

through the angle attached to the Pivot Bracket. Now install 1/4-20 regular

nut on to control rod. {One nut on either side of the angled plate}

the full open position and adjust the Hex Nuts on the Pivot Bracket angle

to secure the angled bracket. Now tighten the nuts against the pivot angled

bracket to prevent change in calibration.

2019 OCT REV PAGE 2

1 YEAR LIMITED WARRANTY

Earthway Products, Inc. warrants this product free of defects in original workmanship and materials for a period of 1 year

to the end user with the original purchase receipt. If a manufacturing non-conformance is found, Earthway Products, Inc.

at its discretion will repair or replace the part(s) or product at no charge provided the failure is not the result of incorrect

installation, mishandling, misuse, tampering, or normal wear and tear as determined by Earthway. Earthway at its

discretion may require that the part(s) or product be returned along with the original purchase receipt at owners’ expense for

from Earthway Products, Inc. To seek remedy under this warranty, contact Earthway Products, Inc. at 574-848-7491,

support@earthway.com or write to Earthway Products, Inc.1009 Maple Street, Bristol, Indiana 46507. Describe the nature

of the manufacturing defect. SPECIFIC LIMITATIONS: This warranty covers only the part(s) or product; any labor

Clean and dry your spreader thoroughly after each use, as a

preventative measure, coat all metal parts (inside and outside of the steel tubing) with a light oil or silicon spray.

HOW TO ORDER SPARE PARTS

All spare parts listed herein may be ordered direct from

the manufacturer. Be sure to give the following informa-

tion when ordering.

Model Number

Part Number

Part Description

Call (574) 848-7491 to place an order

OPERATING INSTRUCTIONS

this spreaders because it is not intended for use with these materials. If you have any questions please contact Earthway.

Move stop bolt on gauge assembly to the proper position for the material being applied.

While pushing spreader forward, push control lever forward to stop bolt.

Thoroughly wash and dry your spreader and recoat with WD-40 before storing.

DO NOT RETURN TO DEALER FOR REPAIR

EARTHWAY PRODUCTS, INC.

1009 Maple Street

Bristol, IN 46507

FOR YOUR RECORDS

Date Purchased

Store Name

2019 OCT REV PAGE 3

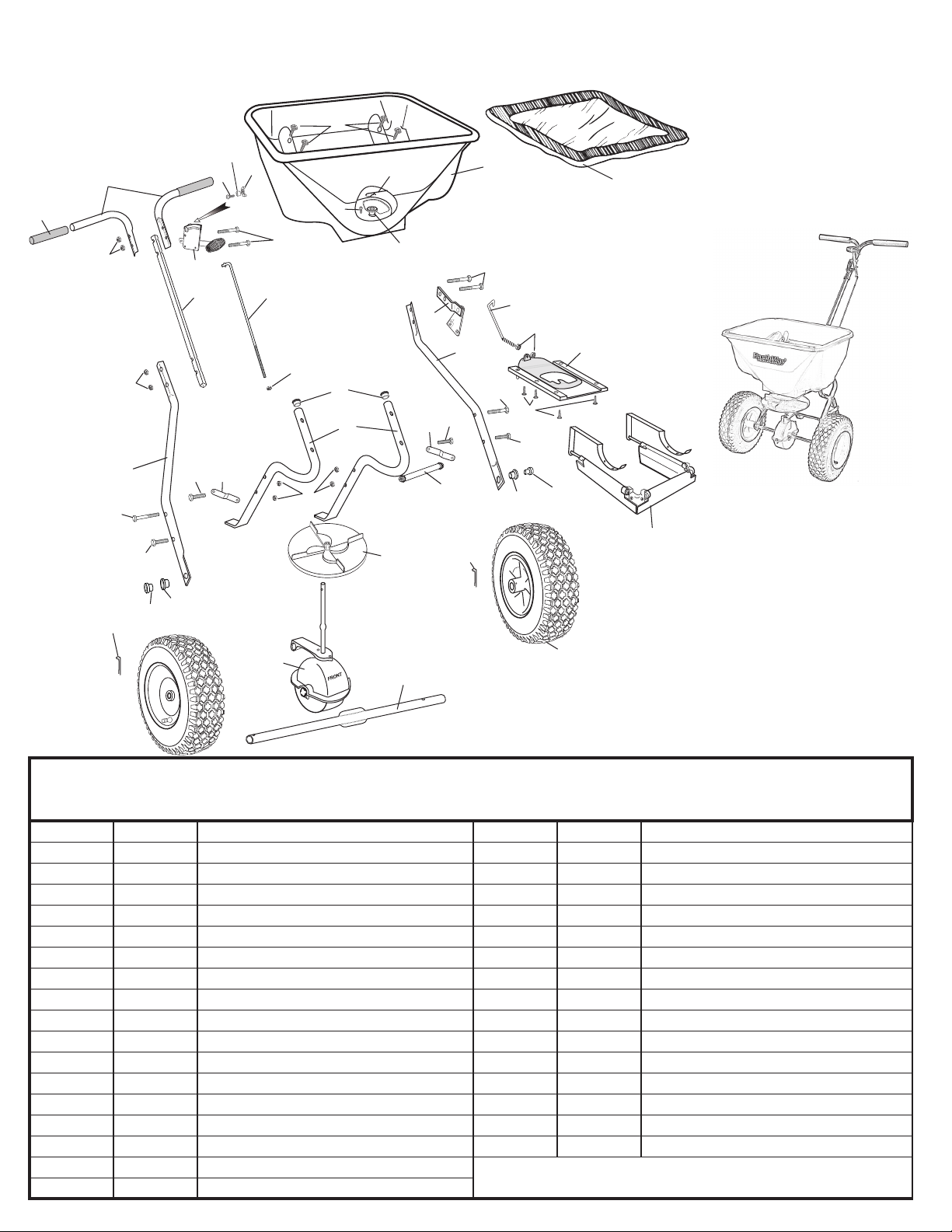

90365 ICE MELT SPREADER PARTS LIST

KEY # PART # DESCRIPTION KEY # PART # DESCRIPTION

1 60245 HOPPER ASSEMBLY 19 25222 LOWER HANDLE

2 33117 AGITATOR 20 25724 FRAME

3 31141 #14 X 3/4" TYPE "AB" HWHS ZINC 21 44292 FRAME BRACE

4 12220 HOPPER BUSHING 22 25228 CROSS BRACE

5 31122 #8 X 5/8" PHPS TYPE A BLACK 23 12110 IMPELLER 9" DIA DISHED

6 32100 1/4-20 HEX NUT ZINC 24 24500 AXLE

7 19132 7/8" TUBE PLUG 25 12274 GRIP 7.5" LONG

8 60300 PIVOT & BRACKET ASSEMBLY 26 60333 GEAR BOX

9 32103 1/4-20 NYLON INS LOCKNUT ZINC 27 12148 AXLE BEARING

10 42259 LOWER CONTROL ROD 2130 28 12152 AXLE BUSHING

11 60499 GAUGE & LEVER ASSEMBLY 2130 29 33109 3/16" X 2" COTTER PIN ZINC

12 60175 UPPER HANDLE W/GRIP 30 70138 PNEUMATIC DRIVE/COAST WHEEL

13 12147 SPACER 31 33108 3/16" X 1" COTTER PIN ZINC

14 31121 1/4-20 X 1 1/4" HHCS ZINC 32 60027 WING NUT ASSEMBLY

15 25223 HANDLE SHAFT 33 37100 1/4-20 X 1" CARRIAGE BOLT ZINC

16 42256 CONTROL ROD

17 31120 1/4-20 X 2" HHCS ZINC

18 12354 SHUTOFF ASSEMBLY

27 28

1414

77003

OPTIONAL

Heavy-Duty

Rain Cover

60184

OPTIONAL

Salt Deflector Kit

2019 OCT REV PAGE 4
