SETTING UP THE
MODEL 210-3, -4 , and -5 SRA
SAFETY PRECAUTIONS FOR THE
MODEL 210-3, -4, -5 SRA
System Under Pressure: Shut off air supply and disconnect air
hose before disassembling or disconnecting parts.
Flying Debris: During boring, chips may be ejected. Stay behind
control panel and wear safety glasses to prevent eye injury.
Pinch Points: Keep hand clear of carriage assembly. Hands or
fingers caught between carriage and frame may be seriously injured.
Moving Parts: When moving drill unit, use carriage lock to
prevent assembly from sliding onto hands or fingers.
Heavy Load: Use handles to reposition the drill unit. Weight of
the drill unit may cause back strain if improperly lifted.
SAFETY PRECAUTIONS FOR THE
MODEL 210-3, -4, -5 SRA (continued)
Loud Noise: Wear ear protection to prevent eardrum damage
from air compressor.
Dust: Wear a dust protection mask to protect from concrete dust.
High Pressure: High pressure from the air compressor can
damage the drill, and can void the warranty.
Lifting The Drill Unit: when using a lifting device to pick up the
drill unit, use a strap or chain which is rated for the proper weight,
and attach to the lifting bale on the drill unit. Be sure carriage lock is
in place.
SET UP FOR THE
MODEL 210-3, -4, -5 SRA
• Always keep the lever on the drill
motor shown at right in line with
the drill motor.
• If the lever is in the position shown
at right, the air will be shut off from
the drill motor and will not run.
1) ATTACHING THE HOSE THE DRILL
UNIT
• Check the specifications to make sure the correct hose
size is being used:
210-3 SRA 11/2” – 2” ID hose
210-4 SRA 2” ID hose
210-5 SRA 2” ID hose
• Make sure all safety precautions are followed with the
hose and all hose connections.
• IMPORTANT: AIR COMPRESSOR MUST MAINTAIN
120 PSI WHILE ALL DRILLS ARE DRILLING
ATTACHING THE AIR HOSE TO THE E-Z
DRILL UNIT
• Before attaching the air hose to
the drill, turn the air compressor
on and blow air through the hose
to clean out any debris that may
have accumulated inside the
hose. This prevents contaminates
from entering the drill system.
Secure hose before turning air on
to prevent the hose from whipping.
ATTACHING THE AIR HOSE TO THE E-Z
DRILL UNIT
• The E-Z Drill unit has a 1 ½”
female pipe thread on which the
proper hose fitting will need to be
installed.
• Connect the hose fittings, and
install safety pin.
ATTACHING THE AIR HOSE TO THE
E-Z DRILL UNIT
• It is recommended that a “whip
check” be installed as a safety
measure.
INSTALLING THE DRILL BITS
System Under Pressure: Shut off air
supply and disconnect air hose before
disassembling or disconnecting parts.
(to remove pressure from system, have air
supply disconnected from drill unit, and turn
the power switches to the “On” position)

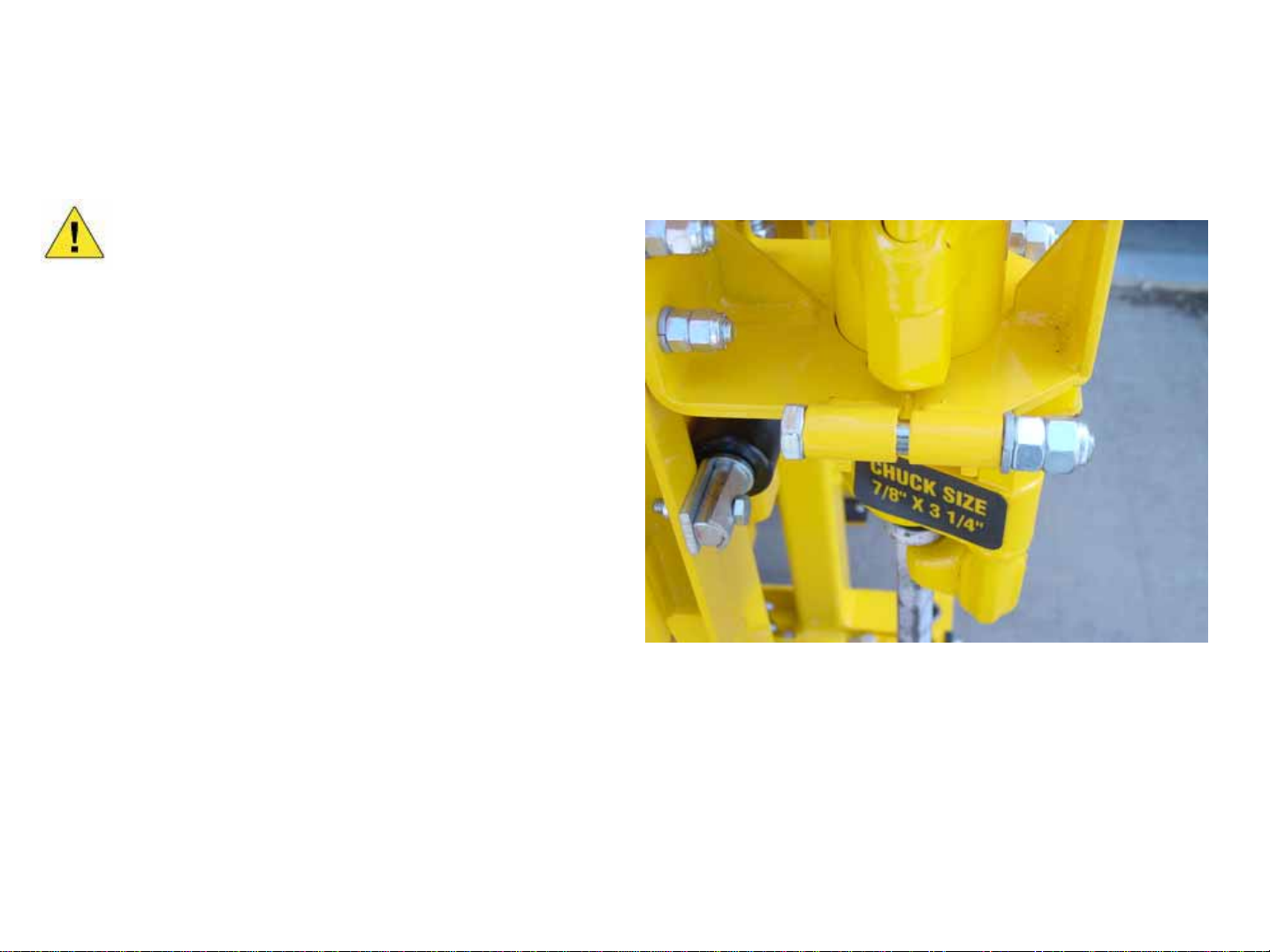

• IMPORTANT: The chuck size of the
drill bits must match the chuck size of
the drill. Look for the decal on the side
of the drill motor to confirm the chuck
size. Most E-Z Drill models come
standard with 7/8”x 3 ¼” chuck.
However, a 7/8” x 4 ¼” chuck and 1” x
4 ¼” chuck are available on request.
• All 210 series E-Z Drill models use 6”
of the usable length of the bit (i.e. a
24” bit will drill up to 18” deep; an 18”
bits will drill up to 12” deep.
INSTALLING THE DRILL BITS
• IMPORTANT: You must have the
correct bit guide bushing to match
the bit you will be using:
For drilling a:
5/8” diameter hole, use 1108 MCP
3/4” diameter hole, use 1109 MCP
7/8” diameter hole, use 1110 MCP
1” diameter hole, use 1111 MCP
1 1/8” or larger diameter hole, use
1112 MCP
• Part numbers above will fit bits
with either 7/8” x 3 ¼” or 7/8” x 4
¼” chucks. For 1” x 4 ¼” chucks,
see parts book.
