e-motion City+ Manual de usuario
2
Table of Contents:
Warnings
3
Definitions
6
Assembly instructions
Handlebar
6
Front wheel
6
Headlight & Front fender
9
Seat
10
Pedals
10
Brake adjustment
11
Handlebar adjustment
12
Mounting & dismounting of battery
13
Bike Inspection prior riding
14
The display
15
Settings
16
Error symbols
16
The battery & charger
17
Charging of battery
18
Preserving of battery’s lifespan
19
Tips for proper use
20
Bike maintenance
20
More info & contact us
21
3
Warning!
Cycling can be a hazardous activity even under the best of
circumstances. Proper maintenance of your bike helps reduce
the risk of injury.
Warning!
Ride the bike in a controlled environment away from cars,
obstacles, and other distractions at the first ride.
Warning!
Parental supervision is advised for use under the age of 16
Warning!
User must be aware and follow all traffic laws & regulations
Warning!
your bike is exposed to wear and tear as well as high
pressure. Various materials and components may react
differently to fatigue, wear or pressure. In case the life
expectancy of a certain component has expired, it may fail
unexpectedly and even cause injury to the user. !
Any form of cracking, deep scratching, discoloration etc.
are indications that the component integrity has expired,
and must be inspect by the dealer / manufacturer!
Warning!
Make sure that the brakes are well adjusted and work
perfectly before each ride. Check the brake pads before
each ride. Brake adjustment and maintaining must be
performed in a bike store, by qualified mechanic.
Warning!
Braking range influenced by many factors such as road
condition, weather, speed, carrying weight etc. plan your
stop accordingly.
4
Warning!
Accidents and falls may cause severe injuries and in
extreme cases even death!!
Read this user manual responsibly, with care and
judiciousness!!
Make sure that your bike is well assembled, well
maintained, and in a good condition according to this user
manual prior each ride!
Warning!
This model is equipped with automatic motor shut-off
system which controlled by the brakes. Make sure that the
system operates well before each ride. In case of system
failure, do not use the bike. have it repair at a certified
dealer.
Warning!
Cycling can be a hazardous activity even under the best of
circumstances. Wear protective gear such as a helmet and
other shields as well as closed shoes, even for a short ride!
Warning!
Avoid Storing of battery in extreme hot / cold temperature.!
Extremely low temperature may cause corrosion. and !
extremely high temperature may cause battery swell,!
which will make the battery dangerous, and even can cause
battery explosion!!
The recommended storage temperature for the battery is
between 50°-80°F.
Warning!
Do not leave the battery unattended in a closed vehicle!!
Such vehicle may warmed up by the sun and reach extremely
high temperature!
Warning!
Avoid exposing the battery to extreme temperatures (104°F or
higher) for prolonged period!
5
Warning!
The charger should be inspected before each charge.!
Inspect both electric cords for tears and make sure that the
inner wires aren’t exposed, check if charger’s body is melted,
and make sure that the output plug is not damaged!!
Do not use the charger if it’s damaged!
Warning!
DO NOT charge the battery without supervision!
DO NOT charge the battery overnight without supervision!!
Warning!
Improper assembly of the bike is dangerous, can cause bike /
component failure, resulting in injury to the rider! !
contact us for explanation if any of the instructions in this
manual are not clear to you or if you have any question. It is
highly recommended that a certified dealer will assemble the
bike.
Warning!
This bike model designed for roads and trails ride only. do not
use it for down-hills ride, jumps or decline stairs.
Warning!
This bike model designed to be used by a single grown rider
only. It is forbidden to use this bike by two users or more
together at the same ride. Child seat is suitable for this bike’s
rear rack as long as child weight not exceed 55 lbs. make sure
to use the child seat according to its manufacturer’s
Warning!
This bike model can carry up to 270 lbs total weight, rider &
belongings. Do not exceed this weight limit!
Definitions:
•PAS - Pedal Assist System - a sensor that located at the crank,
recognizes pedals movement and operates the motor accordingly to
the level which set on the display .
•TAG - Twist And Go - a throttle that located on the handlebar
activates the motor while twisted.
Assembly instructions:
Handlebar:
• Release handlebar stem's 4 bolts, remove the front plate, place the
handlebar in its position at the stem while centering it, replace the
plate and tighten back the screws.
Front wheel:
!
!
6
• Remove the guarding metal rod from the bottom of the fork, and pull
out the plastic spacer from the brake caliper.
• Place the front wheel in its place at the fork while the brake disc is at
the same side of the brake caliper.
• Slide in the wheel axis into the hub of the wheel while adding the
springs on hub’s both sides and screw its nut in.
7

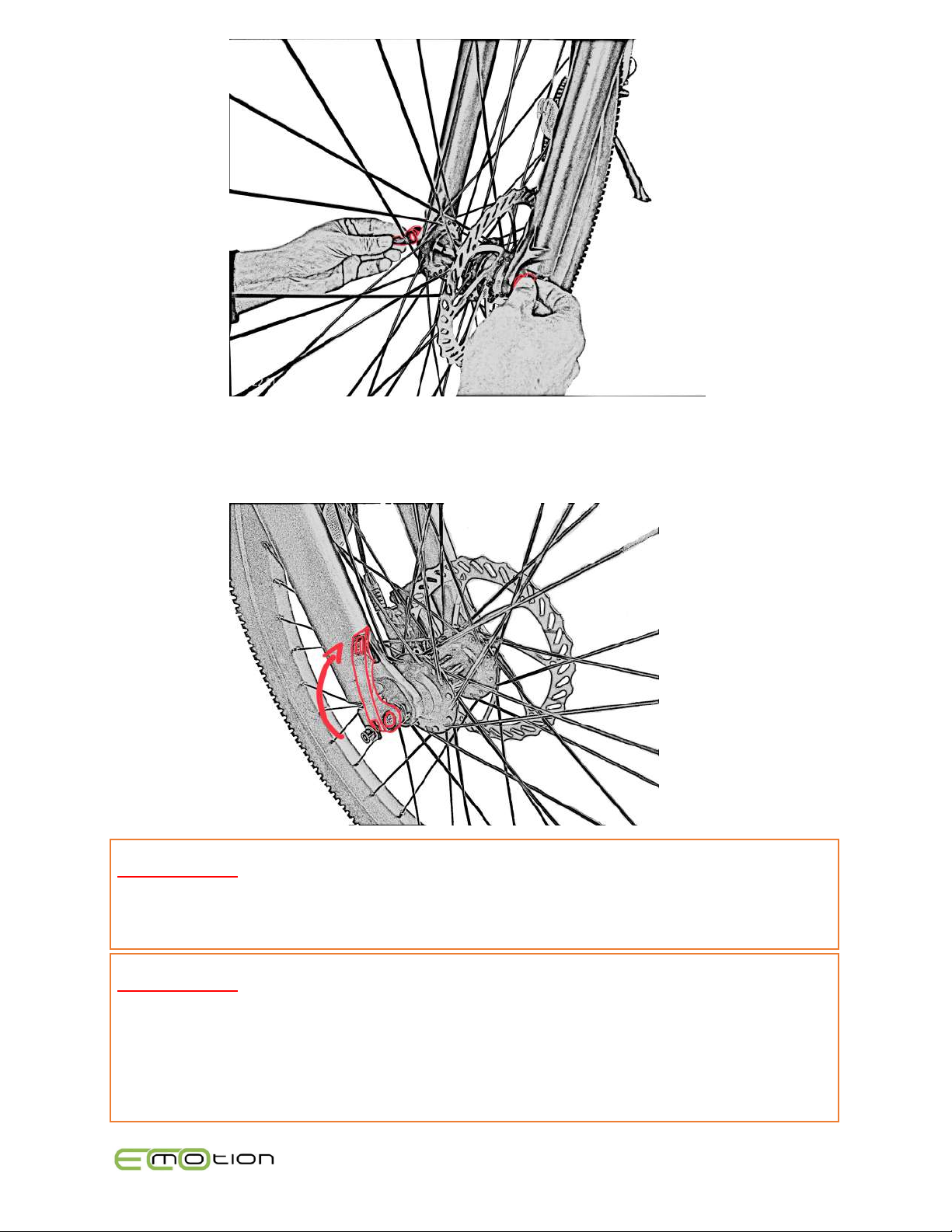

• Attach and locked the wheel to the fork by locking the axis lever.
8
Warning!
The fork must hold the wheel in a way that the wheel does not
move to its sides or can be removed without opening the lever.
Warning! !
Make sure that the front fork turns easily sideways and not
jammed while you steer the handlebar. Make sure that the
bike's wires and brake tubes are not jammed or stretched
during steering.
Headlight & Front fender:
• Connect the headlight and the fender to the fork’s bridge.!
!
!
!
• Connect both of fender support rods to the fork legs.
!
!
!
!
9
Seat:
• Open the Frame’s seat tube lock and slide-in the seat post into it.
Lock the seat post by closing the lever.!
Make sure that the seat post is well locked and can’t move
sideways or up and down.
!
!
!
!
!
!
Pedals:
• Assemble both pedals to the bike by screwing them to the crank &
crank’s leg. each pedal is marked with the correct side in which it
should be connected to the bike. Right pedal -clockwise, Left pedal-
counterclockwise.
10
Warning! !
In order to avoid frame breakage, make sure that seat post
safety line hidden by the frame seat tube.
Notice! !
For safe and comfortable riding, the rider should seat on the
bike while both feet toes touch the ground.
