E-LOK 7 Series Manual de usuario
705/707 User Manual
Keep the included mechanical keys in a convenient place
Replace the batteries when batteries are low voltage
Read this user manual carefully before installing your 7-
Series lock set
7 - S e r i e s
Please Note:
7 - S e r i e s
Contents Page:
Pg 3.
Pg 4.
Pg 5.
Pg 6.
Pg 7.
Pg 8.
Pg 9.
Pg 10.
Pg 11.
Pg 12.
Pg 13.
Pg 14.
Pg 15.
Pg 16.
Pg 17.
Pg 18.
Pg 19.
Pg 20.
Pg 21.
Pg 22.
Pg 23.
Pg 24.
Pg 25.
Pg 26.
Pg 27.
Pg 28.
7-Series Body & Mortice options
Packing List
7-Series Specifications
Adjusting the Handing
Installation Check List
Installation; Steps 1-3
Installation; Steps 4-6
FactoryReset; Methods 1 & 2
Factory Rest; Trouble Shooting
First Set-up
Bluetooth + Pincode Unlocks
RFID Card + Fingerprint Unlocks
RemoteUnlock + eKey
Admin Passcode + Unlock Records
Battery Percentage + Passage Mode
Use of Master Admin, Admin + User Pg. 1
Use of Master Admin, Admin + User Pg. 2
Use of Master Admin, Admin + User Pg. 3
7-Series Handle Functions
Unlockwith Mechanical Key
E-LOKGateway Pg. 1
E-LOKGateway Pg. 2
E-LOKGateway Pg. 3
Maintenance Guide
Important Notes
Contact

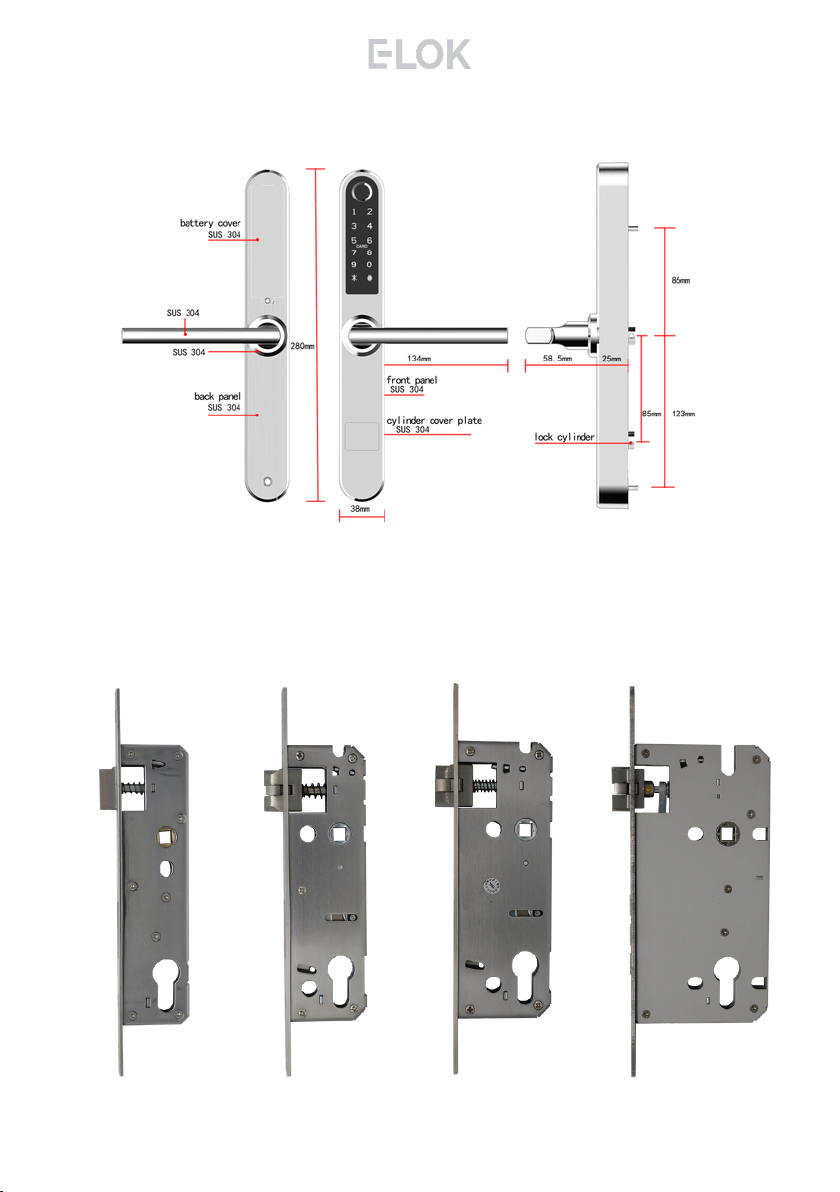

7-Series Body:
Mortise Options:
30mm 35mm
(Standard)
45mm 60mm
Back set:
Case Width:
45mm 52mm 62mm 86mm
240mm
243mm
240mm
240mm
Face Plate:
3
7 - S e r i e s
Packing List:
Front Panel
QTY 1
Back Panel
QTY 1
User Manual
QTY 1
Mortice lock
QTY 1
Strike
QTY 1
Pointed Screw
QTY 4
Mechanical Key
QTY 3
Card
QTY 3
Spindle
QTY 2
Pin
QTY 1
Fixing Screws 1
QTY 3
Screw Casing
QTY 3
Gasket
QTY 2
Sliding Screw
QTY 2
Fixing Screws 2
QTY 2
Gateway
(Optional)
4
7 - S e r i e s
Specs:
E-LOK 7-Series Smart Lockset
E-LOK App
304 Stainless Steel
Electroplate Black, Stainless Steel
Pin Code,
RFID Card,
E-LOK App,
Mechanical Key.
Fingerprint (707 Model Only)
Unlimited
Unlimited
200 RFID Cards
200 Fingerprints
6V (4*AAA Batteries)
10,000 Lock and Unlock Operations
—20°C — 70°C
10% - 95%
30mm - 80mm
Aluminium Door, Wooden Door
280mm(H)*38mm(W)*25mm(D)
35mm Back Set
30mm, 45mm, 60mm Back Set
2 Year Warranty
2 Year Warranty
Product Name:
Operating Application:
Manufactured Material:
Finish Styles:
Unlock Methods:
Max Num. Locks on App:
Max Num. Pin Codes:
Max Num. RFID Cards:
Max Num. Fingerprints:
Batteries:
Battery life:
Operating Temp:
Operating Humidity:
Suitable Door Thickness:
Suitable Door Types:
Product Size:
Standard Mortice lock Size:
Available Mortice lock Sizes:
7-Series Warranty:
E-LOK Gateway Warranty:
5
7 - S e r i e s
6
7 - S e r i e s

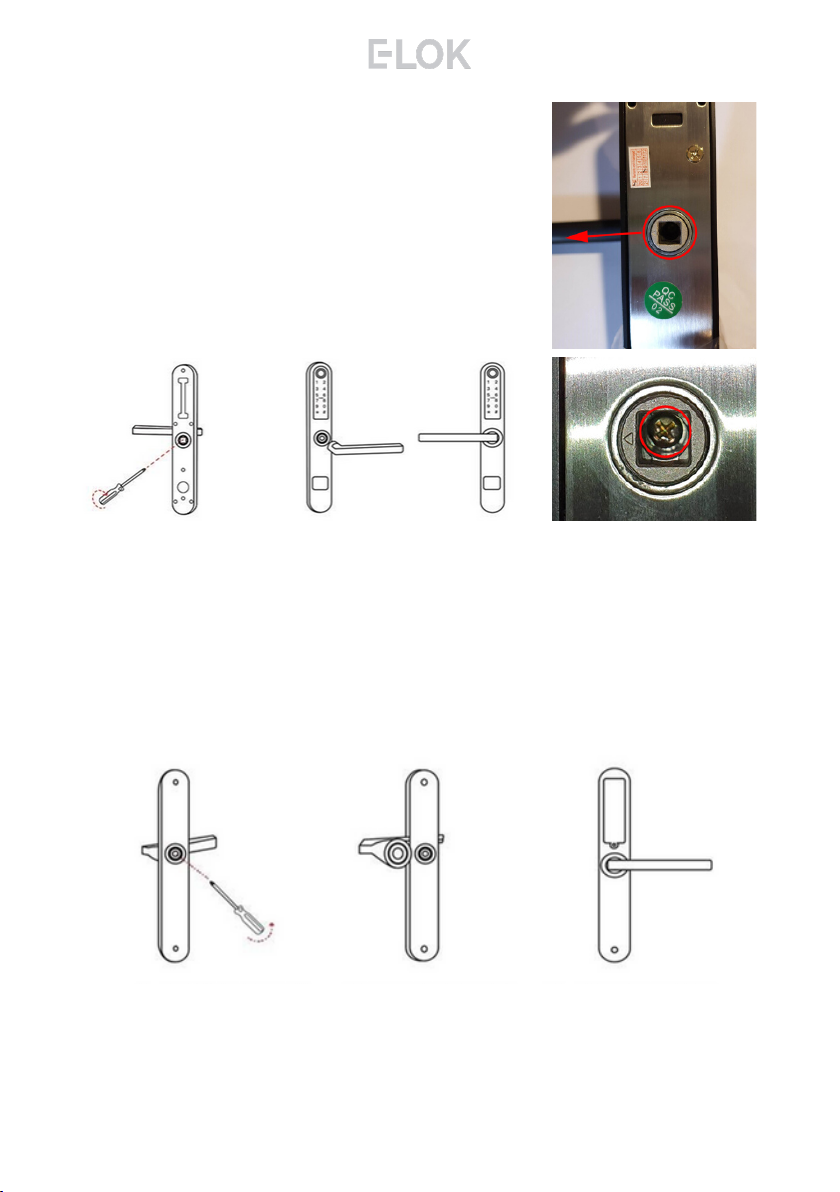

Adjusting The Handing:
Note: The arrow on the clutch must point in the
direction of the handle. Ensure when you are
installing your lock set or changing the handing
of the lock set that the arrow is pointing in the
correct direction.
Turn the handle on the front panel, loosen the inner screw.
Remove the handle.
After adjusting the direction of the handle, insert it into the handle seat, re-
tighten the inner screw and ensure arrow is pointing in the direction of the
handle (above image).
Check the inner-screw is tight before moving onto the rear panel.
Complete the same process for the rear handle. Ensure inner screw is tight
when re-attaching handle to the panel.
7
7 - S e r i e s
Installation Check List:
Hole for mortice lock is accurately measured and cut.
Mortice lock installed tightly with correct fixings.
Gasket is installed to lock set's front and rear panel.
Pin is used to secure spindle on front panel.
Arrow on clutch is pointing in direction of handle before fitting
to door.
Screw casings are installed tightly.
Data/Power cable is connected without kinks in wire.
Correct screws are used to fix back panel to front panel.
Batteries installed - check if lockset turns on before fully fixing
lockset to door.
Check all screws have been used to install lock set and are
tight.
7 - S e r i e s
Installation:

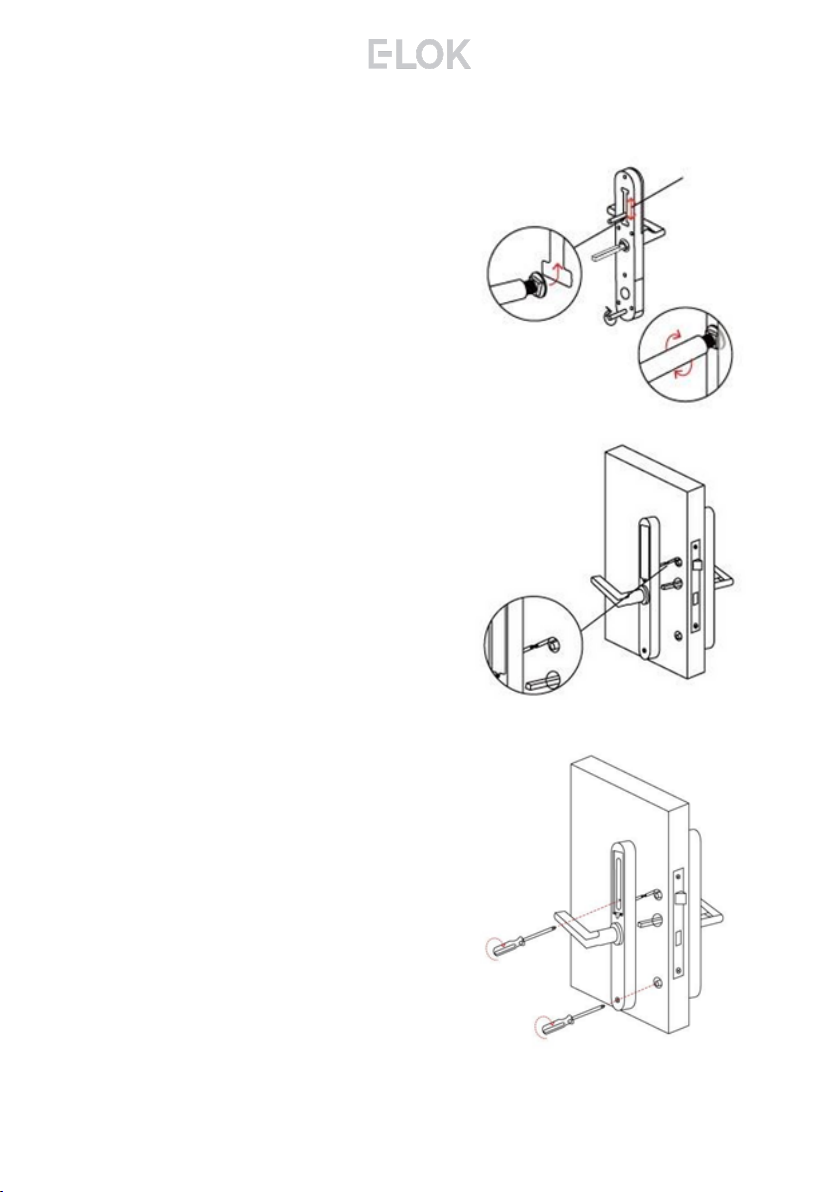

Step 1.
If you are retrofitting into anexisting mortice
hole, skip this step. If you are fitting the 7-
Series into a new hole, takethe including
mortice template and cut the holes into
your door. Your E-LOK 7-Series comes with
screws to both suit wooden and aluminium
doors.
Step 2.
Once you've created the holes for your
mortice lock, it is time to install it into your
door. Ensure the mortice lock is straight and
in the centre of your door. Also ensure to
use the correct screws when fixing it to your
door.
Step 3.
Once you've installed the mortice lock,
install the spindle into the outdoor handle.
Ensure that before you install, check the
clutch arrow is pointing in the direction of
the handle. Use the included pin to secure
spindle in place,
8
7 - S e r i e s
Installation:
Step 4.
Now install the adjustable height screw
casings on the outdoor handle and attach
the included rubber gaskets to both the
front and back handle.
Step 5.
Now you are ready to connect the front and
back panel. Connect the cable, ensure
there is space in the door for it. You may
have to create a hole in a wooden door for
this.
Step 6.
Remove the battery case from the back
panel. Screw the back panel to front panel.
Use the long fixing screw for the bottom
fixing point. Choose between the two
shorter fixing screws for the top hole
depending on your door width.
Install Batteries and screw the battery
case back into place.
E-LOK 7-Series should be ready to go.
9
