C100 Series IP Camera User Manual
E-lins Technology Co.,Limited
Add: Bld22., Longxi Garden, Nonglin Rd., Futian District, Shenzhen, 518000, China
V1.2
Wireless IP Camera Capture System
C100 Series IP Camera
User Manual
C100 Series IP Camera User Manual
E-Lins Technology Co.,Limited
This Series Products are designed and equipped for network video surveillance system,
including wired IP bullet camera, wireless IP bullet camera, IP IR dome camera, IP IR
waterproof camera etc. We adopt high performance chip to ensure high quality media
processor which processes audio and video collection, compression and transmission.
Standard MJPEG compression format ensures clear and streaming video performance. It
enables users to view via IE browser, centre management software client software;
C100 series product are applicable for big, medium-sized and small enterprises, chain
store, factory, home and all kinds of spots where remote network video transmission and
control supposed to be installed, They are easy to install and operate.
Before the installation of IP camera, please check if your product accessories in the
package are complete.
Product Components and Features:
IP camera ------------------------------------------------------------------1 PC
Bracket(optional)------------------------------------------------------1 PC
Power adapter -------------------------------------------------------------1 PC
Warranty card--------------------------------------------------------------1 PC
CD---------------------------------------------------------------------------1PC
CONTENTS
¾1 General Introduction ......................................................................5
C100 Series IP Camera User Manual
E-Lins Technology Co.,Limited
1.1 Applications....................................................................................5
1.2. Product Specifications...................................................................6
1.3 Parameters Form.............................................................................6
1.4 System Requirements.....................................................................7
¾2. Interface & Installation..................................................................8
2.1. Interface.........................................................................................8
2.2. Installation.....................................................................................9
2.2.1. Installation in LAN. .................................................................................................10
2.2.2. PPPoE Installation .................................................................................................10
2.2.3. IP Camera & PC connection.................................................................................11
¾3 Configure method.........................................................................12
3.1. WEB ............................................................................................12
3.2. Application ..................................................................................13
¾4. IE Browse to IP Camera.............................................................15
4.1. Use Finder ...................................................................................15
4.2. Logging and Active X Installation..............................................17
4.3. Operation Button.........................................................................19
4.3.1. Equipment Status ...................................................................................................19
4.3.2. Administrator Operation ........................................................................................19
4.3.3. Operation.................................................................................................................20
4.4. Basic Settings ............................................................................................................20
¾5. Brief Introduction to CMS (centre management software)...28
5.1. Installation and Registration........................................................28
5.2 Add Device...................................................................................28
5.2.1. Basic Information....................................................................................................29
C100 Series IP Camera User Manual
E-Lins Technology Co.,Limited
5.2.2. Device Parameters ................................................................................................30
5.2.3. Alarm ........................................................................................................................31
5.2.4. Recording ................................................................................................................32
5.2.5. Plan Action ..............................................................................................................34
5.2.6. Others ......................................................................................................................34
¾6. Platform Introduction...................................................................35
¾7. Mobile View ..................................................................................36
7.1. Download Program on Mobile....................................................36
7.2. Download Program on Computer ...............................................36
¾8. Others............................................................................................39
8.1. Linkage Alarm Host ....................................................................39
8.2. C series Production Specification (Part) .....................................40
C100 Series IP Camera User Manual
E-Lins Technology Co.,Limited
Chapter 1
1 General Introduction
IP Camera is a new generation product with the combination of analog camera & IP video
technology. Despite all functions which analog cameras have, IP camera can compress and
encrypt video and audio signal then send it to remote terminals through internet with its
built-in processor and web server. With its IP address, users can use standard PC IE
browser to visit IP camera, real time monitor targets, manage and store video or image,
PTZ control also is available through network.
As a new member in camera family, IP camera shares the same operation function with the
analog camera, such as, auto white balance, auto shutter speed, AGC, auto backlight
compensation etc. On the other hand, IP camera supports remote access through internet,
and support multi-user visit, some IP cameras are able to extend to both analog and digital
signal.
The core of C series IP cameras is 32Bit RSIC, adopts standard MJPEG compression
format, camera sensor is CMOS, support auto white balance and backlight balance,
support IE, cell phone browser, centralized monitor interface management. In general,
according to the function of audio simplex & duplex, infrared, wired, wireless, POE, PZT,
local storage, it has hundreds of products, to meet requirements of high, middle, low ranks
of users.
1.1 Applications
The series products usually are ideal for big department, supermarket, home, factory,
workshop Branches of financial institutions, monitoring, traffic monitoring, false alarms
identification, etc.
C100 Series IP Camera User Manual
E-Lins Technology Co.,Limited
1.2. Product Specifications
*- Adopt high Performance, strong function media processor 32Bit RSIC
*- High sensor CMOS
*-Adopt optimized MJPEG video compression algorithm, realize high-definition images
transmission in narrow bandwidth;
*-Maximum support 15 users viewing at the same time, no limit for users if using Forwarder Server
function;
*- Built in Web Server, it is convenient for users to use standard browse to realize the real
time monitoring and setting administration;
*-Support WIFI:802．11b/g wireless networking;
*-Support remote system update;
*-Support DDNS analysis, support LAN & Internet (ADSL,Cable Modem)
*-Support variety of network protocol: TCP/IP, UDP, SMTP, PPPoE, Dynamic DNS, DNS
Client, SNTP, BOOTP, DHCP, FTP, SNMP, WIFI/802. 11b/g
*-Parts of modes products support one/ two way audio talkback;
*-Support Motion Detection alarm function (set area & sensitivity);
*-Support image snap
*-Abnormal automatic recovery function, if Network Interruption can auto connection
*-Dynamic alarm function, set alarm period
1.3 Parameters Form
Communication
Image Compression
Format Standard M-JPEG
Sensor CMOS, 300,000 pixel
Image Resolution Rate VGA(640x480)/QVGA(320x240)
Network interface RJ-45/10-100 Base T , 802.11b/g
Network protocol TCP/IP,FTP,SMTP,HTTP,UDP,DHCP,NTP,DDNS,UPNP,DNS,
PPPOE
Image Max
Transmission Rate 30 frame/second(QVGA), 15 frame/second(VGA)
Alert control Output: 1 router(5VDC, 0.1A);
input: 1 router(closure Trigger)
Motion Detection Support
Software Update Users automatically upgrade
C100 Series IP Camera User Manual
E-Lins Technology Co.,Limited
Monitor Mode IE browse or special program
Playback Mode Microsoft Media Player
Security 3rd ranks password authority setting
Minimum illumination 2.0Lux@550nm
Auto White Balance Support
Working environment -10C°– 50C°, 20% - 80%PH
1.4 System Requirements
Minimum Hardware Configuration
CPU: Pentium 1.6 GHz
Memory: 256MB
Audio card: need audio monitor, two way talkback essential
Hard Disk: if it need video image, no less favorable than 40G
Operation System: 32 bit simple/ English
Windows2000,WindowsXP,Windows2003,Windows Vista & 64 bit simple Chinese/English
Windows2003,Windows XP,Windows Vista etc.
Software environment
IE 5.0 or above version
DirectX8.0 or above version
TCP／IP network protocol
C100 Series IP Camera User Manual
E-lins Technology Co.,Limited
Chapter 2
2. Interface & Installation
There are two kinds of F series IP camera interfaces: one is body guard
interface, the other is the extend line interface, set two representative products
as examples, to give explanation:

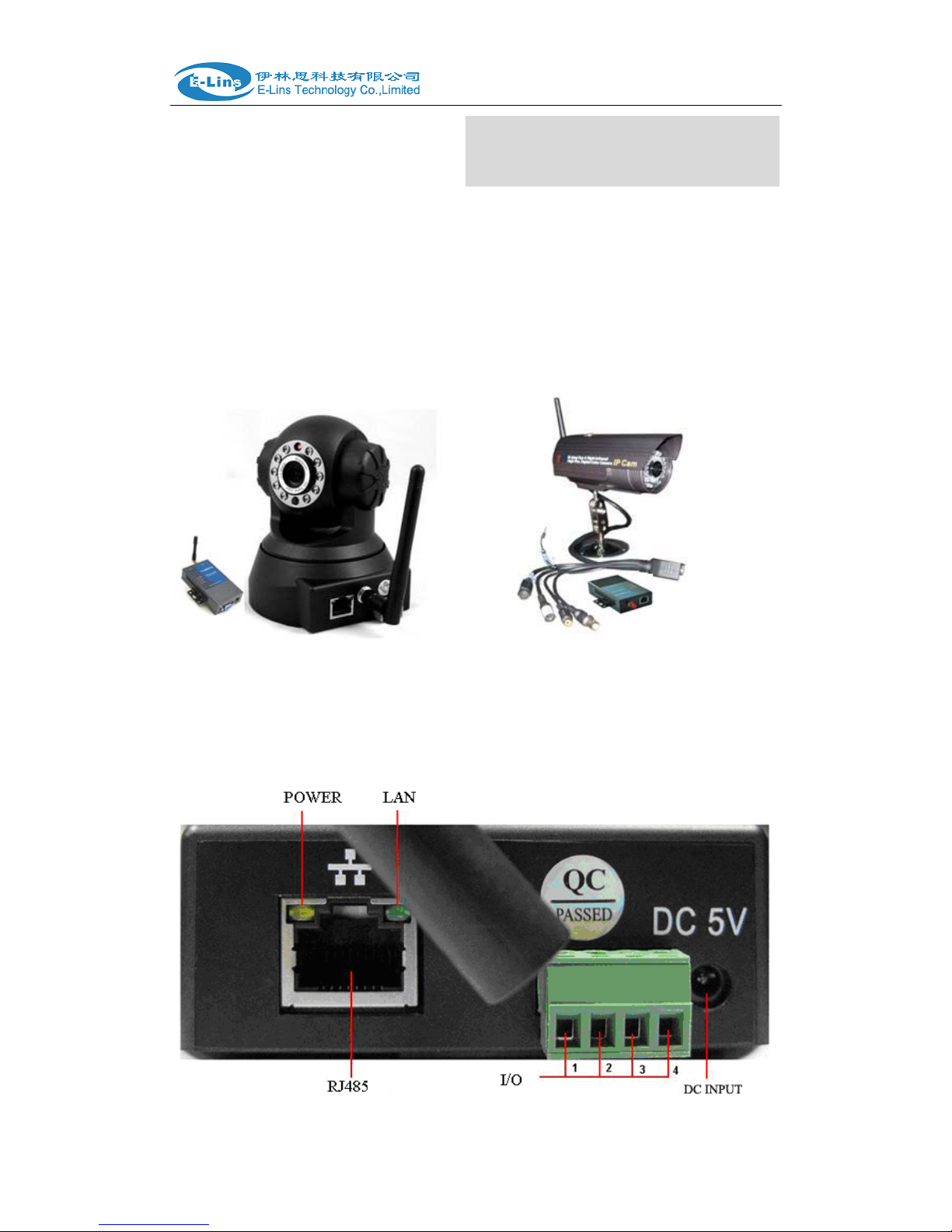

Non-extended line IP Camera icon Extended line IP Camera icon
2.1. Interface
Non-extended line IP Camera Tailgate
C100 Series IP Camera User Manual
E-Lins Technology Co.,Limited
Power Supply Light: constant on after power up
Network light: constant sparkle after power up data transmission.
Ethernet interface: RJ-45 interface.
I/O interface: 1 router alarm input, accept 3, 4 two terminals (input terminal
grounding, low level effective trigger); 1 router TTL control input,
connect 1, 2 two terminals (1, 2 terminals short connections).
Power input interface: connect direct current 5V Power
Extension line interface definition icon:
Power: direct current 12V.
GPIO alarm interface: accept external connection linkage alarm equipment (for
example: door magnet, infrared)
Reset line: two reset line short circuit, equipments restore to ex- factory
standards.
Ethernet interface: RJ-45 network interface.
Backup: follow-up product extend interface.
About GPIO alarm interface (S terminal)
definition:
1# +DC12V
2# RS485(A)
3# Earth(GND)
4# IO2 (OUT PUT)
5# RS485 (B)
6# IO1 (IN PUT)
GND: Ground, alarm input ground , RS485
ground
RS485:RS485 control interface, left
connection RS485 negative right connection RS485 positive. connect P/T
decoder, support variety P/T protocol.
2.2. Installation
IP camera process image transmission on network through the use of
Internet Technology, it offers DDNS function for static IP, dynamic IP, PPPoE
dialing users. IP Camera can connect to outer net through LAN, also
connect directly. 3 networking connecting ways are widely applied in IP
Camera:
C100 Series IP Camera User Manual
E-Lins Technology Co.,Limited
2.2.1. Installation in LAN.
This is the most popular network access way, as long as there is a router,
internet cable connect router directly to IP Camera, IP Camera can connect to
Internet as normal PC, as shows:
2.2.2. PPPoE Installation
Under the condition, users need set PPPoE dialing parameter on IP
Camera: input the username and password ISP supplier’ offer permit IP
Camera dialing connects to Internet. As to set the PPPoE dialing parameter,
you can connect device to network through the first way, then write parameter
to the device, also through following third way, direct process parameter
written to device. The way how to set PPPoE, please refer to 3.4.5.for detailed
steps
