User manual

Getting started

Assembling your machine

Connecting to the Dyson Link app

Filling the water tank

Power and continuous monitoring

Information menu

Auto purify mode

Auto humidify mode

Oscillation

SV12 JN.00000 PN.000000-00-00

00.00.00 VERSION NO.01

Airflow speed and direction

Sleep timer

Night mode

Deep cleaning your machine

Changing your HEPA+Carbon filter

Looking after your machine

Alerts

Dyson purifier humidify plus cool

Getting started

Deep clean cycle button

Stand-by button

Amplifier loop

Outer cover

release buttons

Outer cover

Water tank

release buttons

Stand-by

Auto purify mode

Airflow speed

Oscillation

Sleep timer

Information menu

Auto humidify mode

Humidity control

Airflow direction

Night mode

The layout of the remote control with the standby button on the top left, the Auto purify mode button below, then the

Airflow speed toggle up and down button. Below that is the Oscillation button and finally at the bottom is the Sleep timer

button. On the top right-hand side is the Information menu button, then going downwards, the Auto humidify mode

button, humidity control toggle button, Airflow direction and then Night mode button at the bottom.

Image of the machine with the location

of parts labelled.

The large oval loop making

up the top of the machine.

Two push down buttons

located either side of the

main body of the machine.

The mesh cover on the

bottom of the machine is

intwo parts, front and back.

The buttons to remove the

water tank are located on

both sides, just above the

bottom of the machine.

The top, of the two buttons

located on the main body of

the machine just below the

loop amplifier, is the Deep

clean cycle button.

Below the Deep clean

cycle button is the

standby button.

Assembling your machine

Use both hands to lift your machine out of the box, by its base.

Do not lift out by the loop amplifier.

Assemble your machine with the filters that are supplied.

Your machine comes with a HEPA+Carbon filter. If you

purchased the Dyson Purifier Humidify+Cool Formaldehyde™

your machine also comes with a permanent catalytic filter.

Push the HEPA+Carbon filter into the outer cover and position

on the base. Push firmly until both outer covers click into place.

SCONON-SCOSCONON-SCO

Scaled 81% for QSG to maintain minimum line weight

Original scale

clik

MAX

clik

MAX

Place the remote control on top of the machine with the buttons

facing down.

Plug in and switch on.

The purifying humidifying fan with the filter covers open showing a HEPA plus

carbon filter located in the filter covers and a catalytic filter. Arrows demonstrate

that the catalytic filter is fitted directly to the base of the machine and the filter

covers will need to be assembled onto the base of the machine.

Connecting to the Dyson Link app

Take full control with the Dyson Link app and access step-by-step set up and

support, control how and when your Dyson purifying fan operates, monitor

air quality with visual updates and automatically keep up to date with the

latest software updates.

Download the Dyson Link app from the App Store or Google Play.

Opentheapp and follow the on-screen instructions to create a new account.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.

App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

GooglePlayandthe Google Play logo are trademarks of Google Inc.

Filling the water tank

Before you remove the water tank, make sure humidification modes are

turned off and the water tank is empty.

Keep the cap dry

Keep the cap on the water tank dry when you run a Deep clean cycle or fill

the tank. It contains power connections and should not be washed. If wet,

wipe thoroughly with a dry cloth. Make sure the cap and connections are

completely dry before refitting.

Remove the tank

Push down the Water tank release buttons on the sides of your machine.

Slide the water tank out of your machine.

Carry the water tank by its handle to the tap, and unclip the cap.

Fill the tank

MAX level

Fill the water tank to the Max level with cold tap water.

Replace the tank

Replace the cap and secure the cap clips in place.

Make sure the cap is completely dry. If wet, wipe thoroughly with a dry cloth.

Slide the water tank back into your machine until it clicks securely in place.

The water tank cap has two lips either side that

can be pulled upwards to release the cap.

Power and continuous monitoring

Stand-by on/off

Press the Standby on/off button on your Dyson purifier humidifier fan or remote

control to stop your machine. It will continue to monitor the air quality.

Continuous monitoring

Continuous monitoring is turned off by default. Once turned on, it will always

be active until you turn it off again.

With continuous monitoring turned on, your Dyson purifier humidifier fan will

gather air quality, temperature and humidity information, which is displayed

on the LCD screen and in the Dyson Link app.

Continuous monitoring on/off

Press and hold the Auto mode button on the remote control for 5 seconds to

turn it on. The LCD screen will indicate when continuous monitoring is on or off.

Wi-Fi Connectivity

Wi-Fi is on by default. To turn the Wi-Fi on or off, press and hold the Stand-by

on/off button on your machine for 5 seconds.

Information menu

Press this button to scroll through the information being monitored by your

Dyson purifying humidifying fan.

Information about air quality, temperature, humidity. Filter and evaporator

levels are shown.

When a particular type of pollutant causes air quality to decrease,

aniconforthe pollutant will show on the LCD screen.

Indoor air quality - 12 seconds

Monitor the current air quality with a graph

showing the last 12 seconds of data.

Particulate matter (PM10)

Larger microscopic particles up to 10 microns

in size, suspended in the air we breathe. These

include dust, mold and pollen.

Nitrogen dioxide and other oxidizing gases

These potentially harmful gases are released

into the air by combustion, for example, the

burning gas when cooking and in vehicle

exhaust emissions.

Indoor humidity

The amount of water vapor in the air,

shown as a percentage.

Particulate matter (PM2.5)

Microscopic particles up to 2.5 microns in size,

suspended in the air we breathe. These include

smoke, bacteria and allergens.

Volatile organic compounds

VOCs are typically odors that may be potentially

harmful. These can be found in cleaning products,

paints and furnishings.

Indoor temperature

Monitor the ambient temperature to help maintain

a comfortable environment.

Indoor air quality - 24hrs

Monitor the current air quality with a graph

showing the last 24 hours of data.

Filters

The remaining filter life is shown on the

LCD screen and will indicate when your

filters need replacing.

Evaporator

The status will show how full the evaporator is

with mineral build-up and how soon a deep clean

cycle is required.

Wi-Fi

The current status of connection to

the Wi-Fi network.

The remote control with

the information button

on the top right.

Auto purify mode

Set your Dyson purifying humidifying fan to Auto purify mode and the on-

board sensors will intelligently adjust the settings of your machine according

to the air quality.

Air quality: your machine will pause when the target air quality has been

reached, switching on again when the air quality levels drop.

Airflow speed: the airflow speed will increase until the target air quality and

temperature have been reached.

Night mode: your machine will only run with airflow speeds from 1 to 4.

Auto humidify mode

Set your Dyson purifying humidifying fan to Auto humidify mode and the on-

board sensors will intelligently adjust the settings of the machine according to

the temperature and humidity of your room.

Room humidity: your machine will pause when the target room humidity has

been reached, switching on again when the room humidity levels drop.

Airflow speed: the airflow speed will increase until the target humidity level

has been reached.

To turn off Auto humidify mode or to change the humidity levels manually,

press the Humidity control button.

Oscillation

Press the Oscillation button and select the angle of oscillation to

0°,45°,90°or Breeze mode.

Pause the oscillation at any point by pressing the Oscillation button.

Press the Oscillation button again to resume.

To reset the Oscillation direction to the center, press and hold the

Oscillationbutton for two seconds.

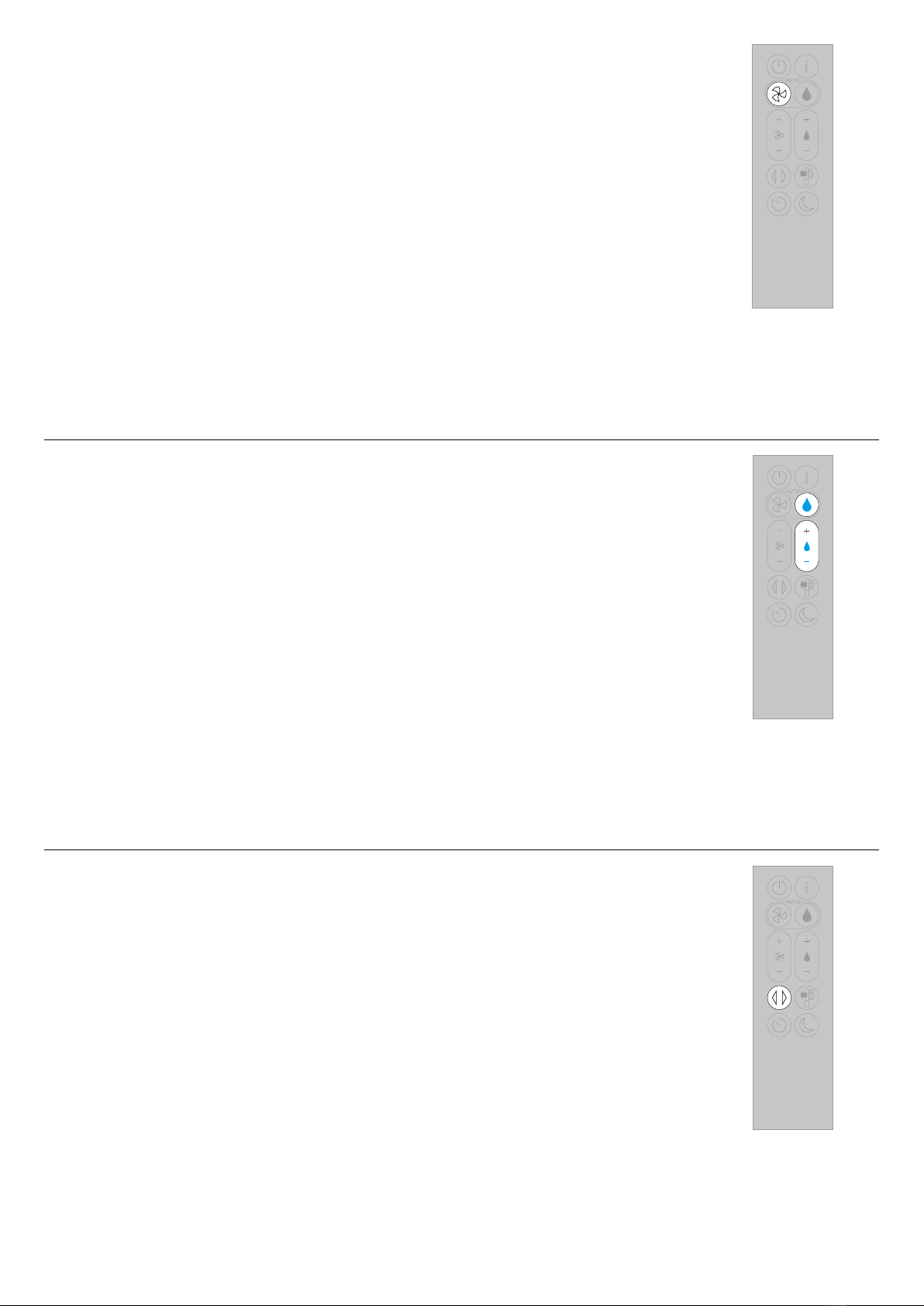

The remote control with

the Auto purify button

on the left hand side,

below the Standby

button.

The remote control

with the Auto humidify

button on the right

hand side, below the

Information button.

The remote control with

the oscillation button

on the left above the

sleep timer.

Airflow speed and direction

Press the Airflow speed button to increase and decrease the airflow speed.

Press the Airflow direction button to change the direction of airflow from front to back.

Change the airflow direction for your personal comfort.

Select the Airflow direction to Fan mode for airflow from the front for

purifyingandcooling.

Set the Airflow direction to Backwards airflow mode, for airflow from the

bock for purifyingwithoutcool air.

Your machine will continue to purify and humidify (if selected) in both

FanandBackwards airflow mode.

Use your Dyson Link app to personalize your settings for Airflow speed and direction.

Sleep timer

Your Dyson purifying humidifying fan will turn off automatically after the

selected amount of time.

To set the time: press the button to scroll through the time options. Once

activated, press the Sleep timer button once to see the time selected.

To cancel the Sleep timer: press the Sleep timer button to scroll through all

the options and select the cancel option.

Night mode

In Night mode, your Dyson purifying humidifying fan will continue to monitor

and respond to changes in air quality and temperature, but only using its

quietest settings - and with its LCD screen dimmed.

If Auto purify mode or Auto humidify mode hove been set, Night mode will

reduce the airflow speed to a range from 1 to 4.

Personalize your Night mode settings in the Dyson Link app.

The remote control with

the Night mode button

on the right at the

bottom.

The remote control with

the sleep timer button

on the bottom left.

The remote control

with the Airflow speed

toggle button on the

left hand side, below

the Auto purify button.

The Airflow direction

button is on the right

above the Night mode

button.

Deep cleaning your machine

To always get the best performance from your Dyson purifying humidifying fan,

it is important to carry out regular deep cleaning to remove any mineral build-up.

Before and after long periods where humidification is not used, we recommend

you run an additional Deep clean cycle.

In hard water areas you may need to run the Deep clean cycle more frequently.

We recommend you use filtered water to always get the best performance from

your machine.

Your machine will alert you when it needs you to carry out a Deep clean cycle.

If you are connected to the Dyson Link app, you will receive a notification

message.

If you are not using the Dyson Link app, the LCD screen on your machine will

alert you and the Deep clean cycle button will light up.

To cancel the Deep clean cycle at any point, press and hold the Deep clean cycle

button for five seconds.

Keep the cap dry

Keep the cap on the water tank dry when you run a Deep clean cycle or fill

the tank. It contains power connections and should not be washed. If wet,

wipe thoroughly with a dry cloth. Make sure the cap and connections are

completely dry before refitting.

Step 1

Remove the water tank

Press the Deep clean cycle button on the front of your machine and your

instructions will be shown on the LCD screen.

Push down on the Outer cover release buttons to remove the outer covers.

The inner door will spring open. Put the Outer covers to one side as you carry

out the Deep clean cycle.

Push down the Water tank release buttons on the sides of your machine.

Slide the water tank out of your machine and unclip the cap.

Step 2

Remove the evaporator

Remove the evaporator from your machine, place it in the water tank and

refit the cap.

The Deep clean cycle button

can be located above the

Standby button.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Purificador de aire de Dyson

Dyson

Dyson purehot+cool link Manual de usuario

Dyson

Dyson Pure Hot + Cool HP01 Manual de usuario

Dyson

Dyson pure hot+cool Manual de usuario

Dyson

Dyson Pure Cool Manual de usuario

Dyson

Dyson Pure Cool Manual de usuario

Dyson

Dyson pure hot+cool Manual de usuario

Dyson

Dyson Pure Hot + Cool Manual de usuario

Dyson

Dyson Pure Hot+Cool HP05 Manual de usuario

Dyson

Dyson purehot+cool link Manual de usuario

Dyson

Dyson Pure Cool TP00 Manual de usuario

Dyson

Dyson Pure Humidify+Cool Manual de usuario

Dyson

Dyson purifier big+quiet formaldehyde Manual de usuario

Dyson

Dyson Pure Cool Link Manual de usuario

Dyson

Dyson Pure Hot+Cool HP00 Manual de usuario

Dyson

Dyson Pure Cool Manual de usuario

Dyson

Dyson Pure Cool Link Manual de usuario

Dyson

Dyson Pure Cool DP04 Manual de usuario

Dyson

Dyson Purifier Cool Autoreact Manual de usuario

Dyson

Dyson Pure Cool Link Manual de usuario

Dyson

Dyson Pure Cool Manual de usuario

Dyson

Dyson Pure Cool me BP01 Manual de usuario

Dyson

Dyson HEPA Big+Quiet Formaldehyde Manual de usuario

Dyson

Dyson Pure Cool Manual de usuario

Dyson

Dyson purifier hot+cool gen1 Manual de usuario

Manuales populares de Purificador de aire de otras marcas

IKEA

IKEA UPPÅTVIND Manual de usuario

Nash

Nash AP-1 PureSmart Manual de usuario

LG PH-U450 Series Manual de usuario

DeLonghi

DeLonghi DDSX 220WFA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manual de usuario

Sharp

Sharp FU-40SE Manual de usuario

Philips

Philips AC2721 Manual de usuario

Hitachi

Hitachi EP-A3000 Manual de usuario

TruSens

TruSens Z-2000 Manual de usuario

Motorola

Motorola MBP87SN Manual de usuario

Beko

Beko ATP 7100I Manual de usuario

Carrier

Carrier INFINITY 1620 Manual de usuario

AtmosAir

AtmosAir P2002 Manual de usuario

Winix

Winix NK300 Manual de usuario

Friedrich

Friedrich C-90A Instrucciones de funcionamiento e instalación

Surgically Clean Air

Surgically Clean Air JADE2.0 Manual de usuario

Base aire

Base aire 555 Pro Manual de usuario

Champion

Champion CP25 Manual de usuario
