Durabrand 60 SECONDS ESP PLUS CD-89 Manual de usuario

IB-CD89(21B-60C9)-WM-E-010603

OPERATING INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE

MODEL CD-89

60 SECOND ESP PLUSTM

ELECTRONIC SHOCK PROTECTION

PROGRAMMABLE COMPACT DISC PLAYER

WITH CAR ADAPTOR KIT AND REMOTE CONTROL

INCLUDES CD FEATURE REMOTE CONTROL

PLAYS MUSIC COMPACT DISCS

BASS BOOST SYSTEM

6 DIGIT LCD VISUAL DISPLAY

TRACK REPEAT & DISC REPEAT

60 SECOND ESP (ELECTRONIC SKIP PROTECTION) PLUSTM SYSTEM

CAR POWER CORD AND CASSETTE ADAPTOR INCLUDED

DELUXE STEREO HEADPHONES INCLUDED

USES 2 SIZE AA BATTERIES (NOT INCLUDED)

LINE OUT JACK - CONNECTS TO YOUR STEREO SYSTEM

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM1

All manuals and user guides at all-guides.com

all-guides.com

IB-CD89(21B-60C9)-WM-E-010603

INTRODUCTION

Your new DURABRAND Model CD-89 portable compact disc player, uses the latest

technology to give you crisp clean sound from all your compact discs.

Please read these operating instructions completely to take advantage of all the features

of this set.

ACCESSORIES INCLUDED

REMOTE CONTROL

STEREO HEADPHONES CAR CASSETTE ADAPTOR

CAR CIGARETTE LIGHTER ADAPTOR

NOTE: Adaptor may look slightly different from

above illustration.

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM2

All manuals and user guides at all-guides.com

IB-CD89(21B-60C9)-WM-E-010603

LOCATION OF CONTROLS

1. CD DOOR OPEN BUTTON (slide to open)

2. CD DOOR

3. PROGRAM BUTTON (for programmed play)

4. BACKWARD SKIP/SEARCH BUTTON

5. STOP AND POWER OFF BUTTON

6. LCD DISPLAY

7. PLAY/PAUSE & POWER ON BUTTON

8. FORWARD SKIP/SEARCH BUTTON

9. REPEAT BUTTON

10. AC ADAPTOR JACK (AC ADAPTOR not included)

11. BASS BOOST SWITCH

12. LINE OUT JACK (for home stereo connection)

13. VOLUME CONTROL

14. PHONES/REMOTE JACK (headphones jack, also for REMOTE CONTROL connection)

15. BATTERY DOOR

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM3

All manuals and user guides at all-guides.com

IB-CD89(21B-60C9)-WM-E-010603

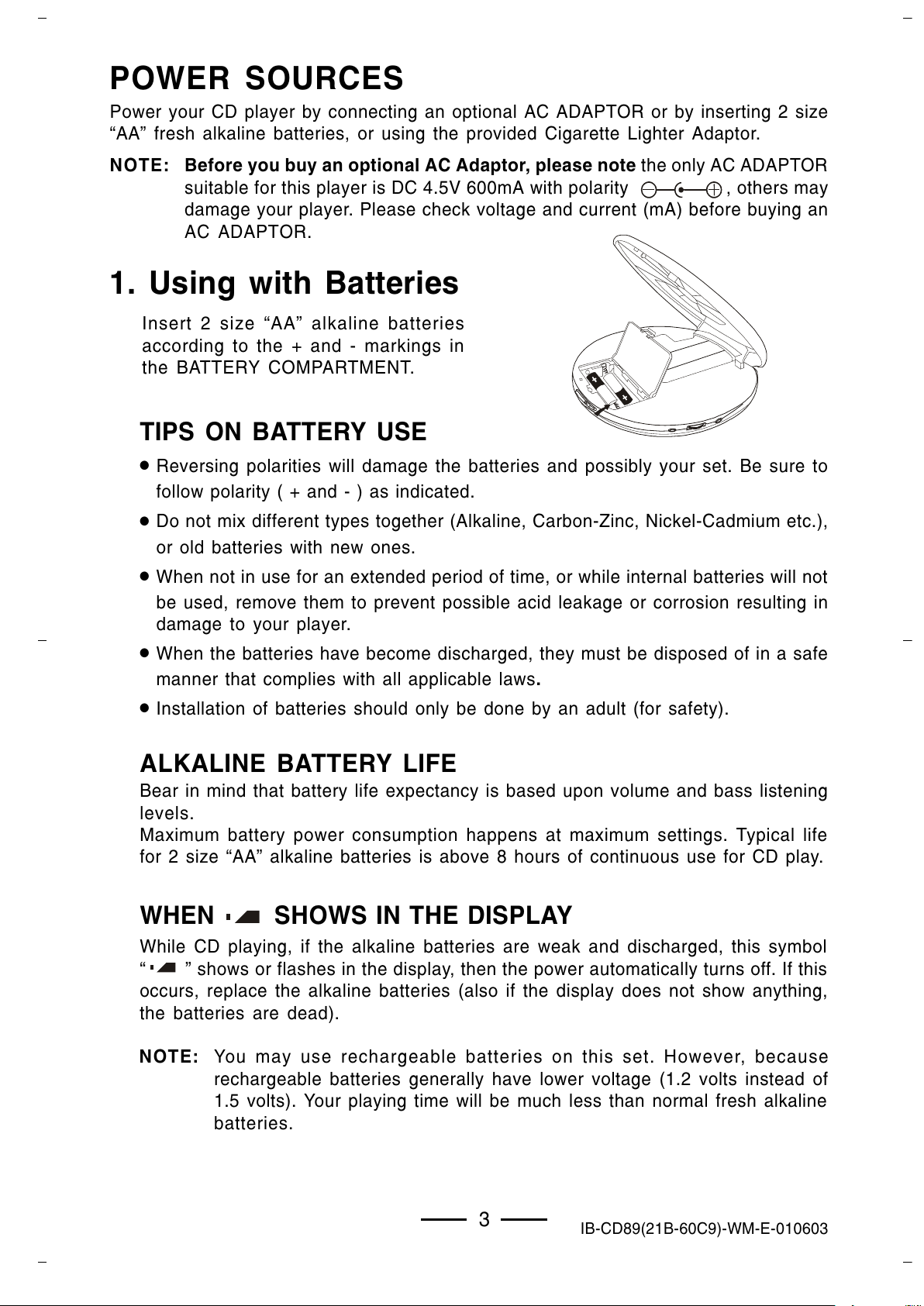

POWER SOURCES

ALKALINE BATTERY LIFE

Bear in mind that battery life expectancy is based upon volume and bass listening

levels.

Maximum battery power consumption happens at maximum settings. Typical life

for 2 size AA alkaline batteries is above 8 hours of continuous use for CD play.

NOTE: You may use rechargeable batteries on this set. However, because

rechargeable batteries generally have lower voltage (1.2 volts instead of

1.5 volts). Your playing time will be much less than normal fresh alkaline

batteries.

Power your CD player by connecting an optional AC ADAPTOR or by inserting 2 size

AA fresh alkaline batteries, or using the provided Cigarette Lighter Adaptor.

NOTE: Before you buy an optional AC Adaptor, please note the only AC ADAPTOR

suitable for this player is DC 4.5V 600mA with polarity , others may

damage your player. Please check voltage and current (mA) before buying an

AC ADAPTOR.

TIPS ON BATTERY USE

Reversing polarities will damage the batteries and possibly your set. Be sure to

follow polarity ( + and - ) as indicated.

Do not mix different types together (Alkaline, Carbon-Zinc, Nickel-Cadmium etc.),

or old batteries with new ones.

When not in use for an extended period of time, or while internal batteries will not

be used, remove them to prevent possible acid leakage or corrosion resulting in

damage to your player.

When the batteries have become discharged, they must be disposed of in a safe

manner that complies with all applicable laws.

Installation of batteries should only be done by an adult (for safety).

1. Using with Batteries

Insert 2 size AA alkaline batteries

according to the + and - markings in

the BATTERY COMPARTMENT.

While CD playing, if the alkaline batteries are weak and discharged, this symbol

  shows or flashes in the display, then the power automatically turns off. If this

occurs, replace the alkaline batteries (also if the display does not show anything,

the batteries are dead).

WHEN SHOWS IN THE DISPLAY

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM4

All manuals and user guides at all-guides.com

IB-CD89(21B-60C9)-WM-E-010603

2. Using Cigarette Lighter Adaptor

CAUTION:

Use this set only with the supplied cigarette lighter adaptor. Use with other cigarette

lighter adaptors could damage the set.

When the inside of the cigarette lighter socket is dirty with ashes, the plug section

may become hot due to poor contact. Be sure to clean your car cigarette lighter

socket before use.

After use, disconnect the cigarette lighter adaptor plugs from both the set and the

cigarette lighter socket.

The cigarette lighter adaptor may cause interference with reception to the car

radio. If this happens, disconnect the cigarette lighter adaptor from the cigarette

lighter socket.

Do not leave the cigarette lighter adaptor plugged in without your cars motor

running, your cars battery may drain in some models of cars that supply power

to the cigarette lighter adaptor even with the cars keys removed.

Use the cigarette lighter adaptor to supply

power to your player and conserve battery life

when using the CD player in a car (no batteries

are needed).

Plug the adaptor into the car cigarette

lighter. Insert firmly, and the cigarette lighter

indicator will light up.

Plug the other end into the DC 4.5V jack on

the right rear of the set.

If there is no power, your fuse may have

blown. To change fuse on cigarette lighter

adaptor, unscrew the tip. Replace only with

same 1A 250V fuse.

Cigarette Lighter

Indicator

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM5

All manuals and user guides at all-guides.com

IB-CD89(21B-60C9)-WM-E-010603

CONNECTING TO HOME STEREO SYSTEMS

The LINE OUT jack is made to accept a stereo mini plug (3.5mm). Simply connect the

cables mini plug to the LINE OUT jack on your player, and the other appropriate end

usually RCA JACKS to the CD/AUX INPUTS of your home stereo.

Remove two

large screws

with a dime or

screwdriver

Move cord to

desired position

(three cord

positions)

The car cassette adaptor allows you to use your CD player with your car stereo

cassette system.

1. Insert the car cassette adaptor in the same direction

as you would insert an audio cassette tape, with the

side marked THIS SIDE UP facing upwards.

2. If the car cassette adaptor cord is on the wrong side

of the tape, reposition the cord by following the

instructions below.

3. Insert the car cassette adaptor stereo plug into the

LINE OUT jack on the right side of the CD player.

4. Turn on the cassette player. Press the PLAY button

on the cassette player.

5. Press the PLAY button on the CD player.

6. Adjust the VOLUME control on your cassette player.

7. When done, leave the cassette player on and first

eject the adaptor, then turn off cassette player.

Reposition the cord

The cord should extend out from the cassette player

when the cassette is inserted (direction depending on

your tape player).

1. To reposition the cord, remove the top plate by

removing 2 screws with a dime (see Fig. 1).

2. Reposition the cord so that it comes out from other

positions (see Fig. 2).

3. Replace the cover and the screws.

TO LINE OUT JACK

CASSETTE ADAPTOR

Fig. 1 Fig. 2

OPTIONAL CABLE (3.5mm)

TO RCA JACKS

YOUR CD PLAYER

TO AUX IN JACKSTO LINE OUT JACK

YOUR STEREO

SYSTEM

NOTE: The car cassette adaptor has the play head on one side only. If the cassette

adaptor keeps ejecting out, or the sound is weak, press the REVERSE button on

your cassette player to change direction or reverse the adaptor.

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM6

All manuals and user guides at all-guides.com

all-guides.com

IB-CD89(21B-60C9)-WM-E-010603

REMOTE CONTROL

You can control the CD PLAYER with the provided remote control (including the functions

of PLAY/PAUSE AND POWER ON, STOP/OFF, SKIP/SEARCH and VOLUME CONTROL).

1. PLAY/PAUSE & POWER ON

2. STOP/OFF

3. SKIP/SEARCH BACKWARD

4. SKIP/SEARCH FORWARD

5. VOLUME CONTROL

6. BELT CLIP (at back)

7. HEADPHONES JACK

PLAYING WITH THE REMOTE CONTROL

The PHONES/REMOTE jack is made to play your set with the included REMOTE

CONTROL. Simply connect the REMOTE CONTROLs plug to the PHONES/REMOTE

jack on right side of your player, and plug the STEREO HEADPHONESs plug into the

PHONES jack on the top of the REMOTE CONTROL.

TO PHONES/REMOTE JACK TO PHONES JACK

(on top of the REMOTE CONTROL)

NOTE: You can only adjust the volume

by rotating the VOLUME CON-

TROL when you play the set with

the remote control.

CD PLAYER

STEREO

HEADPHONES

REMOTE CONTROL

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM7

All manuals and user guides at all-guides.com

IB-CD89(21B-60C9)-WM-E-010603

CD PLAYING

4Adjust the Volume.

1Load the Disc.

2Connect the Headphones.

3Press the PLAY/PAUSE button.

1234

Push

here

Disc

Label side up

Slide right to open

To PHONES jack

NOTE: The ESP PLUSTM function will turn on automatically when the PLAY/PAUSE

button is pressed.

Stereo Headphones

PLAY/PAUSE

button

VOLUME CONTROL

TOTAL TRACKS TOTAL PLAYING

TIME OF THE CD

TRACK NUMBER

CURRENTLY

PLAYING

ELAPSED PLAYING

TIME OF THE

CURRENT TRACK

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM8

All manuals and user guides at all-guides.com

IB-CD89(21B-60C9)-WM-E-010603

OTHER OPERATIONS

Operation Press Display window shows

To pause play

To release pause and resume

play

To stop

To skip to the next track(s)

To skip to the previous track(s)

SKIP(SEARCH) FORWARD button once (or

repeatedly).

SKIP(SEARCH) BACKWARD button once (or

repeatedly).

To go ahead at high speed

(search)

Keep SKIP(SEARCH) FORWARD button

depressed and release when the desired music

section of the disc is found.

To go back at high speed

(search).

Keep SKIP(SEARCH) BACKWARD button

depressed and release when the desired music

section of the disc is found.

BASS BOOST switch

This switch enhances the low frequency

(bass) sounds at low listening levels.

Switch the BASS BOOST switch ON or

OFF to suit your taste.

PLAY/PAUSE

button

PLAY/PAUSE

button

STOP button

To turn off the power STOP button once and wait 30 seconds, or press

STOP button twice.

BASS BOOST switch

TRACK NUMBER

CURRENTLY PLAYING

PLAYING TIME

FLASHES

TRACK NUMBER

CURRENTLY PLAYING

PLAYING TIME

ADVANCES

TOTAL TRACKS TOTAL PLAYING TIME

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM9

All manuals and user guides at all-guides.com

IB-CD89(21B-60C9)-WM-E-010603

Single Track Repeat

Plays one song over and over till you press STOP.

During play, select the song you want to repeat with

either of the SKIP/SEARCH buttons ( or ), then

press the REPEAT button once, the symbol

REPEAT

ONE

will appear in the display.

The song currently playing will repeat over and over,

until you press STOP.

All Tracks Repeat

Repeats all songs in order, till you press STOP.

During play, press the REPEAT button twice, the symbol

REPEAT ALL

will show in the display.

All songs will keep playing in sequence 1, 2, 3, etc., and

when finished, will start all over again until you press the

STOP.

REPEAT, INTRO AND RANDOM PLAY

You may have repeat, intro or random play using the REPEAT button. Press the REPEAT

button several times, and the display will show the followings in turn:

Intro Play

This plays the first 10 seconds of songs in sequential

order.

1. During play, press the REPEAT button three times,

the word INTRO will flash in the display.

2. Press the PLAY button, the word INTRO will stop

flashing and the first 10 seconds of each song on the

CD will play in sequential order.

3. When you find a song you like, press the PLAY button

again, the symbol INTRO will disappear from the

display, normal play will be resumed, that song (and

the following songs) will play NORMALLY.

Random Play

This plays the songs on the disc in a random order.

1. During play, press REPEAT button four times the word

RND

will flash.

2. Press the PLAY button, this will play all of the songs

in random order selected by the CD player. The word

RND

will stop flashing.

3. Press the SKIP/SEARCH button to skip to the

next random song.

X 1

REPEAT

REPEAT ONE --> REPEAT ALL --> INTRO --> RND --> NORMAL PLAY

REPEAT ONE

REPEAT ALL

INTRO

RND

X 2

REPEAT

X 3

REPEAT

X 4

REPEAT

IB-CD89(21B-60C8)-WM-E-010603.p65 1/17/03, 11:04 AM10

All manuals and user guides at all-guides.com

Otros manuales para 60 SECONDS ESP PLUS CD-89

Tabla de contenidos

Otros manuales de Reproductor de CD de Durabrand

Durabrand

Durabrand CD-203 Manual de usuario

Durabrand

Durabrand CD-56 Manual de usuario

Durabrand

Durabrand CD-896 Manual de usuario

Durabrand

Durabrand CD-965 Manual de usuario

Durabrand

Durabrand CD-916 Manual del operador

Durabrand

Durabrand CD-895 Manual de usuario

Durabrand

Durabrand CD-916 Manual de usuario

Durabrand

Durabrand CD-109 Manual de usuario

Durabrand

Durabrand CD-855 Manual de usuario

Durabrand

Durabrand CD-109 Manual de usuario

Durabrand

Durabrand CD-2086 Manual de usuario

Durabrand

Durabrand CD-96 Manual de usuario

Durabrand

Durabrand CDR-1902 Manual de usuario

Durabrand

Durabrand CD-2036 Manual de usuario

Durabrand

Durabrand CD-208 Manual de usuario

Durabrand

Durabrand CD-1095 Manual de usuario

Durabrand

Durabrand 60 SECONDS ESP PLUS CD-89 Manual de usuario

Durabrand

Durabrand CD-62 Manual de usuario

Durabrand

Durabrand CD-85 Manual de usuario

Durabrand

Durabrand CD-203 Manual de usuario

Durabrand

Durabrand CD-855 Manual de usuario

Durabrand

Durabrand CD-56 Manual del operador

Durabrand

Durabrand CD-56 Manual de usuario

Durabrand

Durabrand 60 SECONDS ESP PLUS CD-89 Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Sony

Sony MZ-R3 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Sony

Sony MZ-M10 Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario
