Dukane 9005 Manual de usuario
1
Projector
9005/9006W/9007WU
User's Manual
Quick Setup Guide
Thank you for purchasing this projector.
Install the projector according to the
environment and manner the projector will
be used in.
Projector top
Projector bottom
This manual is intended to explain only how to setup this product.
For proper use
of this product, please refer to this manual and the other manuals for this product.
Refer to tables T-1 to T-3 at the back of User's Manual (concise) as well as the
following to determine the screen size and projection distance. The values shown
in the table are calculated for a full size screen.
1 Setting up
2 Arrangement
3 Installing the lens unit
See the manual of the optional lens.
Please follow this manual step by step for a quick installation.
Ⓗ×Ⓥ : Screen size
ⓐ : Projection distance
(from the front of the
projector unit)
ⓑ,ⓒ: Screen height
430-9005-9006W-9007WU–QSG General-00
2
HDBaseT
TM
DVI
VIDEO OUT
Before connecting the projector to a device, consult the manual of the device to
con rm that the device is suitable for connecting with this projector and prepare
the required accessories, such as a cable in accord with the signal of the device.
Consult your dealer when the required accessory did not come with the product or
the accessory is damaged.
After making sure that the projector and the devices are turned off, perform
the connection, according to the following instructions. Refer to the gures in
subsequent pages.
Before connecting the projector to a network system, be sure to read User's
Manual - Network Quick Setup Guide too.
Computer
(Wired)
Remote
control
Monitor
4 Connecting with your devices
USB
wireless
adapter
(optional)
VCR/DVD/Blu-ray DiscTM
player Computer
Another
projector
Access
point
3
Use the supplied cable tie
to fasten the cables.
USB wireless adapter: USB-WL-11N
Temperature range: 0 ~ 45 °C (Operating)
Cable tie
1. Loosen the screw (marked with triangle) on the bottom left of the WIRELESS
port.
5 Fastening the cables
6 Fastening the adapter cover
Tab
2. Insert the tab of the cover into the hole at the upper right of the WIRELESS
port in the direction of the arrow.
3. Align the screw holes on the projector and the cover. Then insert the screw
removed from the projector into the hole and tighten the screw.
4

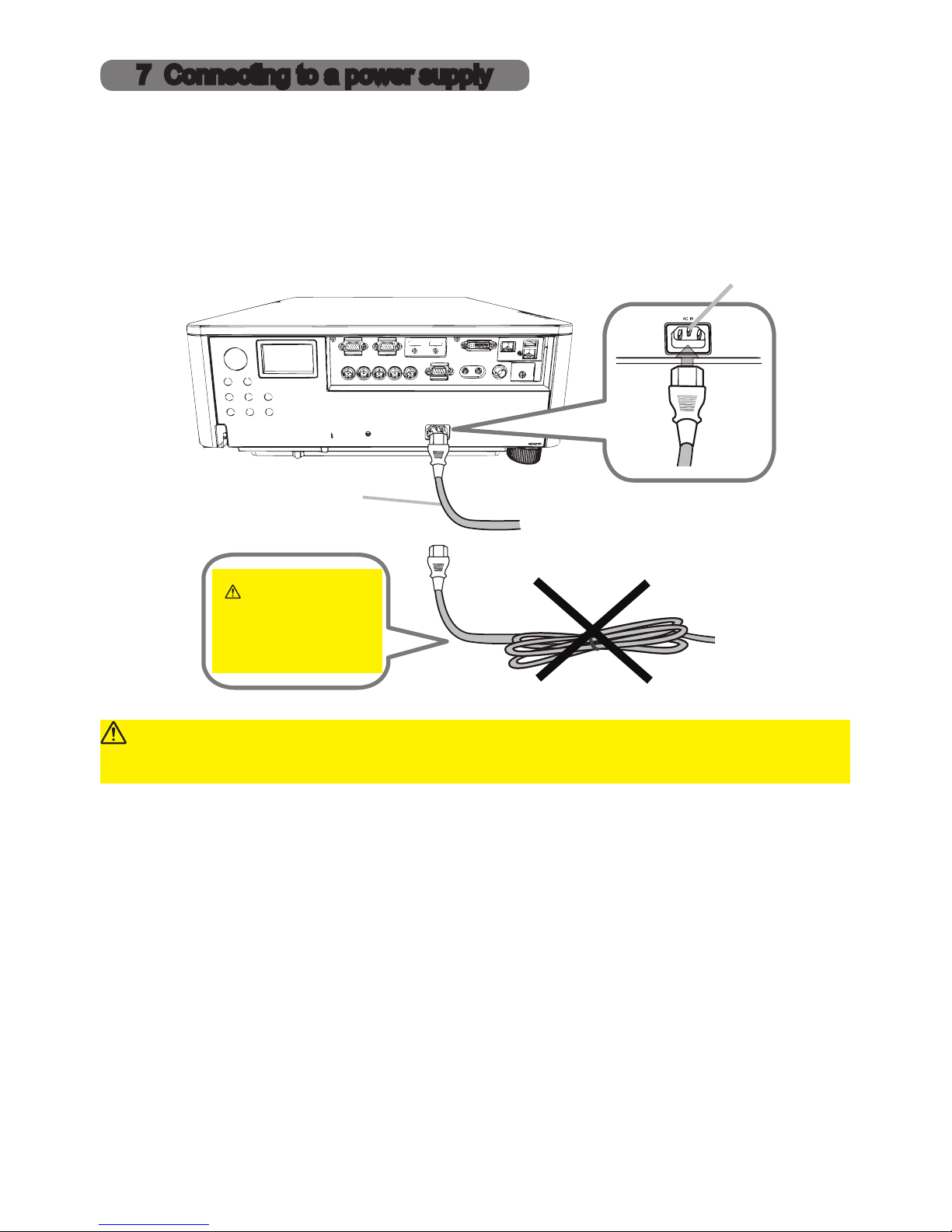

1. Insert the connector of the power cord into the AC (AC inlet) of the projector.
2. Firmly plug the power cord’s plug into the outlet. In a couple of seconds after
the power supply connection, the POWER indicator will light up in steady
orange.
WARNING ►Use the supplied power cable only.
►Do not use tied power cord.
7 Connecting to a power supply
AC
Powercord
WARNING
►Do not use
tied power cord.
5
Please insert the batteries into the remote control before using it.
21 3
1. Make sure that the power cord is rmly and correctly connected to the
projector and the outlet.
2. Make sure that the POWER indicator is lighted in steady orange.
3.
Press STANDBY/ON button on the projector or the ON button on the remote
control.
8 Installing the batteries
9 Turning on the power
The projection lamp will light up and POWER indicator will begin blinking in green.
When the power is completely on, the indicator will stop blinking and light in
steady green.
POWER
indicator
ON button
STANDBY/ON
button
6
Buttons for input ports
INPUT button
Press ASPECT button on the remote control.
10 Selecting an input signal
11 Selecting an aspect ratio
Press the INPUT button of the projector or the
input buttons of the remote control.
ASPECT
button
Please follow the on-screen display (OSD) for proper operation.
12 Changing the display language
1. Press the MENU button on the remote control or the control panel of the
projector.
2. From EASY MENU, select LANGUAGE.
Then, select your desired language.
7
1. To start the MENU, press the MENU button. The MENU you last used (EASY
or ADVANCED) will appear. EASY MENU has priority to appear just after
powered on.
2. (1) Use the ▲/▼ cursor buttons to select an
item to operate. If you want to change it to the
ADVANCED MENU, select the ADVANCED
MENU.
(2) Use the ◄/► cursor buttons to operate the
item.
In the EASY MENU
13 Using the menu function
(1) Use the ▲/▼ cursor buttons to select a
menu. If you want to change it to the EASY
MENU, select the EASY MENU. The items
in the menu appear on the right side.
In the ADVANCED MENU
3. To close the MENU, press the MENU button again or select EXIT and press
the ◄ cursor button or ENTER button. Even if you do not do anything, the
dialog will automatically disappear after about 30 seconds.
(2) Press the ► cursor button or ENTER
button to move the cursor to the right side.
Then use the ▲/▼ cursor buttons to select
an item to operate and press the ► cursor
button or ENTER button to progress. The
operation menu or dialog of the selected
item will appear.
(3) Use the buttons as instructed in the OSD to operate the item.
8
Wired or wireless connection is available for this projector.
For wired connection, use LAN cable to connect
(Refer to User's Manual - Network Quick Setup Guide too.)
Before connecting to the network, contact the network administrator.NOTE
15 Connecting to the network
14 Changing the Installation settings
1. Press the MENU button, then follow below.
2. Choose according to your settings.
EASY MENU > ADVANCED MENU > SETUP > INSTALLATION
FRONT / DESKTOP
REAR / DESKTOP
REAR / CEILING
FRONT / CEILING
hub
9
For wireless connection, use USB wireless adapter (USB-WL-11N).
(Refer to User's Manual - Network Quick Setup Guide too.)
Without an access point communication (Ad-Hoc)
With an access point communication (Infrastructure)
Before connecting to the network, contact the network administrator.NOTE
Use Projector Web Control or Crestron e-Control to adjust or control the projector
via a network from a web browser on a computer which is connected to the same
network.
Enter the projector's IP address into URL input box of the Web browser as the
example below, and then press the Enter key or button.
Example: If the IP address of the projector is set to 192.168.1.10:
Enter “http://192.168.1.10/” into the address bar of the web browser and press the
Enter key or click button.
16 Web Control
15 Connecting to the network (continued)
10
■Projector Web Control
Advanced controls are available on this web control.
Logon with your user name and password.
User name Administrator
Password <blank>
■Crestron e-Control
Basic controls are available on this web control.
This projector can be used with another projector of the same model to project an
image on the same screen.
■Instant Stack
Superimpose the image easily projected from the projectors.
■Intellectual Stack and Simple Stack
Intellectual Stack - Two projectors are connected with RS-232C cable.
Simple Stack - Two projectors are not connected with RS-232C cable.
To use this feature, setup both projectors as shown below.
●STANDBY MODE in SETUP menu: NORMAL
(EASY MENU > ADVANCED MENU > SETUP > STANDBY MODE)
●COMMUNICATION TYPE under COMMUNICATION in SERVICE menu: OFF
(EASY MENU > ADVANCED MENU > OPTION > SERVICE)
●STACK LOCK in SECURITY menu: OFF
(EASY MENU > ADVANCED MENU > SECURITY > ENTER PASSWORD)
16 Web Control (continued)
17 Using Instant Stack feature
