Dukane 8950W Manual de usuario
1
LCD Projector
8950W
User's Manual (detailed)
Operating Guide – Technical
Supported signals for COMPUTER IN
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA
1280 x 768 WXGA (60Hz) 47.7 60 VESA
1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz) 47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz) 60 60 VESA
*1 1400 x 1050 SXGA+ (60Hz) 65.2 60 VESA
*2 1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA
1600 x 1200 UXGA (60Hz) 75 60 VESA
1920 x 1080 Full HD (60Hz) 67.5 60 VESA
*1) Only for [XGA Model]
*2) Only for [WXGA Model]
8950W-Tech-00
2
Supported signals for HDMITM
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA
1280 x 768 WXGA (60Hz) 47.7 60 VESA
1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz) 47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz) 60 60 VESA
1400 x 1050 SXGA+ (60Hz) 65.2 60 VESA
1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA
1600 x 1200 UXGA (60Hz) 75 60 VESA
720(1440) x 480i 480i 15.7 60 CEA
720(1440) x 576i 576i 15.6 50 CEA
720 x 480p 480p 31.5 60 CEA
720 x 576p 576p 31.3 50 CEA
1280 x 720p 720p (50Hz) 37.5 50 CEA
720p (60Hz) 45 60 CEA
1920 x 1080i 1080i (50Hz) 28.1 50 CEA
1080i (60Hz) 33.8 60 CEA
1920 x 1080p 1080p (50Hz) 56.3 50 CEA
1080p (60Hz) 67.5 60 CEA
Supported signals
3
Supported signals
Supported signals for MHL
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
640 x 480 VGA (60Hz) 31.5 59.9 VESA
720(1440) x 480i 480i 15.7 60 CEA
720(1440) x 576i 576i 15.6 50 CEA
720 x 480p 480p 31.5 60 CEA
720 x 576p 576p 31.3 50 CEA
1280 x 720p 720p (50Hz) 37.5 50 CEA
720p (60Hz) 45 60 CEA
1920 x 1080i 1080i (50Hz) 28.1 50 CEA
1080i (60Hz) 33.8 60 CEA
1920 x 1080p 1080p (50Hz) 56.3 50 CEA
1080p (60Hz) 67.5 60 CEA
NOTE • Be sure to check jack type, signal level, timing and resolution before
connecting this projector to a PC.
• Some PCs may have multiple display screen modes. Use of some of these
modes will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some
cases. Refer to the number of display pixels above.
• The signal will be converted to the projector’s panel resolution before being
displayed. The best display performance will be achieved if the resolutions of
the input signal and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a
composite sync or a sync on G.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
4

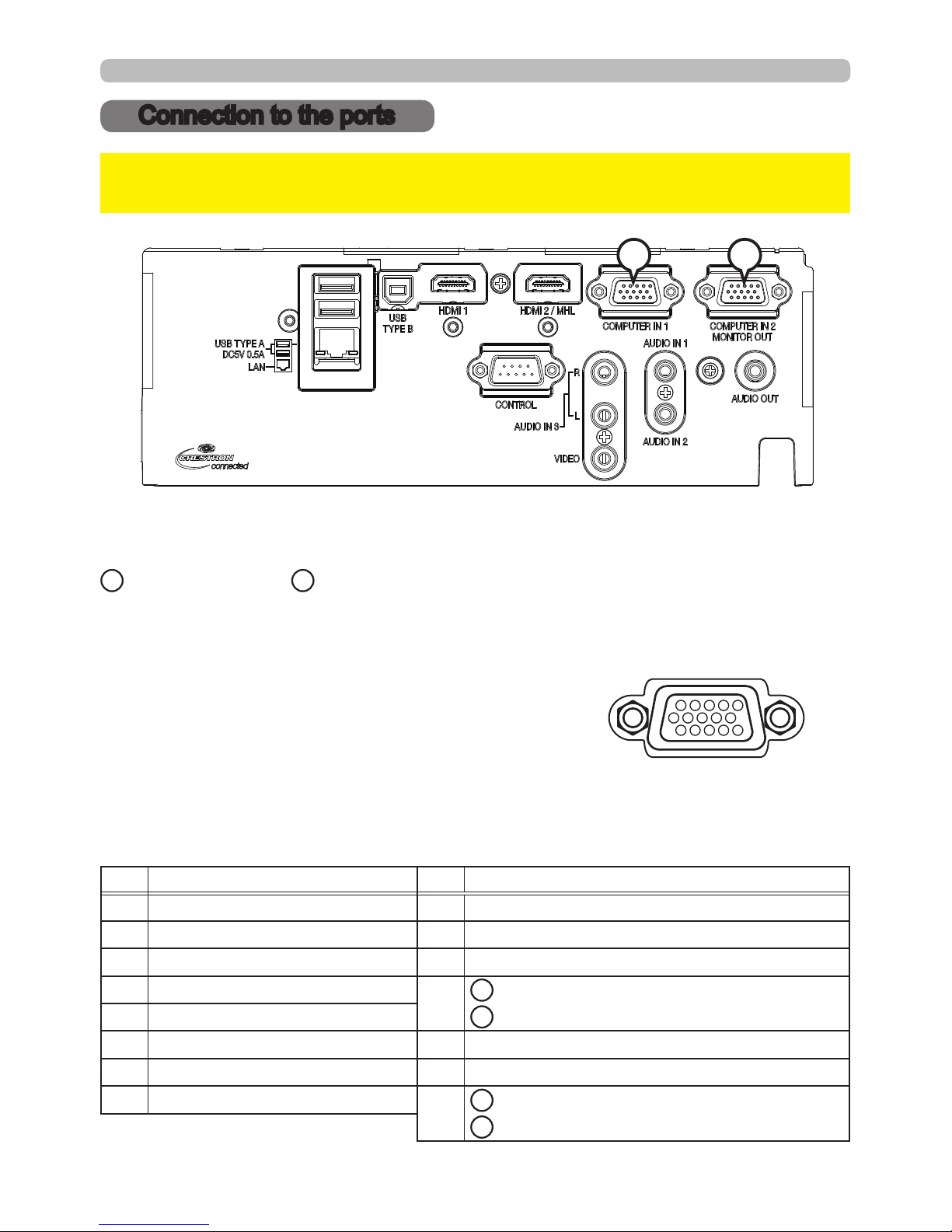

Connection to the ports
Connection to the ports
NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the
input ports of the projector are recessed.
ACOMPUTER IN1, BCOMPUTER IN2 / MONITOR OUT
D-sub 15pin mini shrink jack
<Computer signal>
• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
• Composite sync. signal: TTL level
<Component video signal>
• Video signal:
-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated
-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated
-C
r
/P
r
, Analog, 0.7±0.1Vp-p 75Ω terminated
System: 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60
Pin Signal Pin Signal
1Video Red, Cr/Pr 9(No connection)
2Video Green, Y 10 Ground
3Video Blue, Cb/Pb 11 (No connection)
4 (No connection) 12 A: SDA (DDC data), (No connection)
5 Ground B: (No connection)
6Ground Red, Ground Cr/Pr 13 H. sync / Composite sync., (No connection)
7Ground Green, Ground Y 14 V. sync., (No connection)
8Ground Blue, Ground Cb/Pb 15 A: SCL (DDC clock), (No connection)
B: (No connection)
A B
5
Connection to the ports (continued)
CVIDEO
RCA jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)
• 1.0±0.1Vp-p, 75Ω terminator
DHDMI1, EHDMI2/MHL
• Type :Digital audio/video connector
• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)
E
C
D
10 12 14 16 182468
911131517191357
Pin
Signal
(Top section : HDMI,
Bottom section : MHL)
Pin
Signal
(Top section : HDMI,
Bottom section : MHL)
Pin
Signal
(Top section : HDMI,
Bottom section : MHL)
1T.M.D.S. Data2 +
N.C. 8T.M.D.S. Data0 Shield
MHL_Shield 15 SCL
CD_PULLUP
2T.M.D.S. Data2 Shield
CD_SENSE 9T.M.D.S. Data0 -
MHL - 16 SDA
N.C.
3T.M.D.S. Data2 -
N.C. 10 T.M.D.S. Clock +
N.C. 17 DDC/CEC Ground
VBUS_CBUS_GND
4T.M.D.S. Data1 +
N.C. 11 T.M.D.S. Clock Shield
TMDS_GND
18
+5V Power
VBUS
5T.M.D.S. Data1 Shield
TMDS_GND 12 T.M.D.S. Clock -
N.C. 19 Hot Plug Detect
CBUS
6T.M.D.S. Data1 -
N.C. 13 CEC
N.C.
7T.M.D.S. Data0 +
MHL+ 14 Reserved(N.C. on device)
N.C.
6
Connection to the ports (continued)
FAUDIO IN1,
G
AUDIO IN2
Ø3.5 stereo mini jack
• 47kΩ terminator
AUDIO IN3
H
R,
I
L
J
AUDIO OUT
RCA jack x2 Ø3.5 stereo mini jack
• 47kΩ terminator • 1kΩ output impedance
HJ
F
I
G
7
Connection to the ports (continued)
K
CONTROL
D-sub 9pin plug
• About the details of RS-232C communication,
please refer to the next chapter.
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
6
5 4 3 2 1
987
M
USB
TYPE B
USB B type jack
Pin Signal
1 +5V
2- Data
3+ Data
4Ground
43
12
LUSB TYPE A (x2)
USB A type jack 432 1
Pin Signal
1 +5V
2- Data
3+ Data
4Ground
N
LAN
RJ-45 jack 87654
3
21
Pin Signal Pin Signal Pin Signal
1 TX+ 4 -7-
2TX- 5-8-
3RX+ 6RX-
L
N
M
K
8
Y CB/PBCR/PR
COMPONENT VIDEO OUT
To input component video signal to COMPUTER IN ports
ex.
Connection to the ports (continued)
To input component video signal to the COMPUTER IN1or IN2 port of the
projector, use a RCA to D-sub cable or adapter.
For about the pin description of the required cable or adapter, refer to the
descriptions about COMPUTER IN1and IN2 port (&4).
RCA plugs
D-sub plug
VCR/DVD/Blu-ray
Disc player
RCA connectors
9
RS-232C Communication
RS-232C Communication
When the projector connects to the computer by RS-232C communication, the
projector can be controlled with RS-232C commands from the computer.
For details of RS-232C commands, refer to RS-232C Communication / Network
command table (&18).
Connection
1. Turn off the projector and the computer.
2.
Connect the projector's CONTROL port and the computer's RS-232C port
with a RS-232C cable (cross). Use the cable that ful lls the speci cation
shown in gure.
3. Turn the computer on, and after the computer has started up turn the projector
on.
4. Set the COMMUNICATION TYPE to OFF. (&OPTION menu - SERVICE -
COMMUNICATION in the Operating Guide)
CD (1) (1) －
RD(2) (2) RD
TD (3) (3) TD
DTR (4) (4) －
GND (5) (5) GND
DSR (6) (6) －
RTS (7) (7) RTS
CTS (8) (8) CTS
RI (9) (9) －
CONTROL port
of the projector
RS-232C port
of the computer
1
2
43
8
9
5
7 6 6
5 4 3 2 1
987
RS-232C Cable
(cross)
CONTROL
RS-232C
10
RS-232C Communication (continued)
Communication settings
1. Protocol
19200bps,8N1
2. Command format ("h" shows hexadecimal)
Byte Number 0 1 2 3 4 5 6 7 8 9 10 11 12
Command
Action
Header Data
Header
code
Packet
Data
size
CRC
ag Action Type Setting
code
L H L H L H L H L H L H
<SET>
Change setting to
desired value [(bL)(bH)]
by [(cL)(cH)].
BEh EFh 03h 06h 00h
(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)
<GET>
Read projector
internal setup value [(bL)
(bH)] .
(aL) (aH) 02h 00h (bL) (bH) 00h 00h
<INCREMENT>
Increment setup value
[(bL)(bH)] by 1.
(aL) (aH) 04h 00h (bL) (bH) 00h 00h
<DECREMENT>
Decrement setup value
[(bL)(bH)] by 1.
(aL) (aH) 05h 00h (bL) (bH) 00h 00h
<EXECUTE> Run a
command [(bL)(bH)].
(aL) (aH) 06h 00h (bL) (bH) 00h 00h
[Header code], [Packet], [Data size]
Set [BEh, EFh, 03h, 06h, 00h] to byte number 0
~
4.
[CRC ag]
For byte number
5, 6,
refer to
RS-232C Communication / Network command
table
(&18)
.
[Action]
Set functional code to byte number 7, 8.
<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> = [04h, 00h]
<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]
Refer
to
the
command table above.
[Type], [Setting code]
For byte number
9
～
12
, refer to
RS-232C Communication / Network command
table
(&18)
.
