Liquid Crystal Projector
Model
28A8040
OPERATING GUIDE
English 1
Usage Notice
Precautions .......................................................................................... 2
Introduction
About the Product................................................................................. 3
Package Overview ............................................................................... 4
Installation
Product Overview ................................................................................. 5
Connecting the Projection Display ....................................................... 8
Powering On/Off the Projection Display ............................................... 9
Adjusting the Image Size ...................................................................... 10
User Controls
User Controls ....................................................................................... 12
OSD Menus ......................................................................................... 14
Appendices
Troubleshooting .................................................................................... 18
Maintenance......................................................................................... 20
Specifications ....................................................................................... 23
Compatibility Modes............................................................................. 24
Table of Contents
English
2
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user’s manual to maximize the life of your unit.
Do:
qTurn off the product before cleaning.
qUse a soft cloth moistened with mild detergent to clean the display housing.
qDisconnect the power plug from AC outlet if the product is not being used for a
long period of time.
Don’t:
qBlock the slots and openings on the unit provided for ventilation.
qUse abrasive cleaners, waxes or solvents for your cleaning.
qUse under the following conditions:
- Extremely hot, cold or humid environment.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
Warning- Do not look into the lens. The bright light may hurt your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Warning- Please do not open or disassemble the product as this may cause
electric shock.
Warning- When changing the lamp, please allow unit to cool down and follow
all changing instruction.
Warning- This product will detect the life of the lamp itself. Please be sure to
change the lamp when it shows warning messages.
Warning- After changing a new lamp, please reset the lamp life timer from
OSD menu.
Warning- Before switching off the product, please keep the cooling fan
running for a few minutes.
Usage Notice
!
!
!
!
!
!
!
English 3
About the Product
This product, designed with a high-powered UHP lamp, is an SVGA data/video
portable projection display. The outstanding feature of it are listed as follows:
q8.9 lbs. (4.0 kgs) lightweight compact design
qTrue SVGA, 800 x 600 addressable pixels
qWith XGA compression and VGA resizing
qMac / NEC PC-98 / FM Towns compatible
qNTSC / PAL / SECAM compatible
qDual Data Input
qReal plug and play with auto-image function
qUser-friendly multilingual on-screen display menu adjustment
qAdvanced electronic keystone correction function
qLuxurious carrying case with detachable wheels & handle
Introduction
English
4

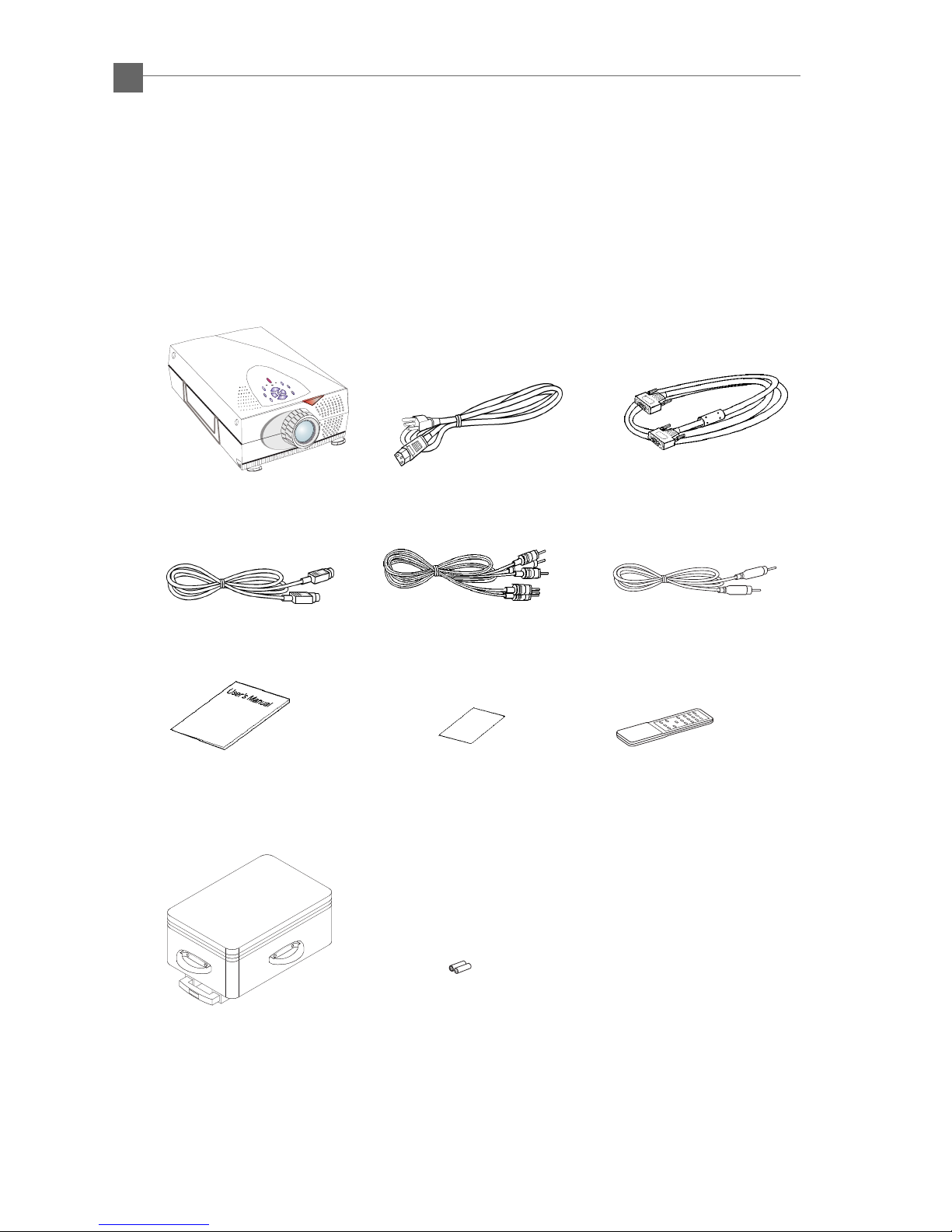

Package Overview
This projection display comes with all the items shown below. Check to make
sure your unit is complete. Contact your dealer immediately if anything is
missing.
LCD Projection Display
Hard Carrying Case
With Detachable Wheels &
Handle
S-Video Cable RCA Audio/ Video Cable Audio-in Cable for
Computer
Remote Control
User’s Manual Warranty Card
Power Cord VGA Cable
X 2
Batteries X 2
English 5
Product Overview
wMainUnit
Installation
* There are two elevator releasing buttons and elevator feet on both sides.
* There are also two remote control receivers on the front and the rear side.
RemoteControlReceiver
CarryingHandle Projection Lens
ElevatorFoot
Elevator
Releasing Button
Speakers
Panel Controls
Zoom Ring
Focus Ring
Air Filter Connector Ports
RemoteControl
Receiver
English
6
ww
ww
wPanelControls
Computer 1
Input Connector
Power Connector
Computer 2
Input Connector
Monitor Loop-Through
Connector
Audio Output Connector
Audio Input Connector
Audio Input
for Computer
Composite Video
Connector
S-Video
Connector
wConnectionPorts
Four Directional
Select Keys
Enter
English 7
wRemoteControl
Freeze/CLR
Zoom In / Zoom Out
Mute
Keystone
Power/Standby
Source
Volume
Four Directional Select Keys
Menu Enter
Reset
Resync
Tracking
English
8
Connecting the Projection Display
Power Cord
Audio Cable
S-Video Cable
VGA Cable
Audio Cable
Monitor Cable
RCA Audio
Video Cable
