DSPPA DSP203N Manual de usuario

[email protected] /www.dsppatech.com The specifications will be subject to change without prior notice.

DSP203N DSP403N

Network Indoor Column Speaker

This product is a network column speaker. It is made of high-quality birch, and the speaker unit adopts

primary color seaweed salvaged pulp drum paper and full-range double-cone speaker for wider frequency

response. It is equipped with mounting bracket for easy installation.

10/100M adaptive, support DHCP/static IP settings.

Support SIP2.0 (RFC3261) and related RFCs.

Support narrowband coding: G.711a/u, wideband coding: G.722.

Use primary color seaweed salvaged pulp drum paper and full-range double-cone speaker for wider

frequency response, and clear, bright and authentic sound.

The speaker box is made of high-quality fiberboard and birch cold-pressed veneer to effectively prevent

resonant sound.

Designed with main and sub speakers.

Equipped with mounting bracket, easy to install.

DSP203N RMS 2×15W, DSP403N RMS 2×30W.

With 1 LINE IN and 1 LINE OUT.

Items

Specifications

DSP203N

DSP403N

Acoustic System

Speaker Unit

4”×2

4”×4

Sensitivity (1m, 1W)

90±2dB

94±2dB

MAX. SPL. (1m)

99±2dB

108±2dB

Frequency Response

140Hz-12KHz

Description

Features

Specifications

[email protected] /www.dsppatech.com The specifications will be subject to change without prior notice.

Amplifier

System

Amplifier

Rated Power (RMS)

2×15W/4Ω

2×30W/8Ω

Frequency Response

80Hz-18KHz

S/N Ratio

≥71dB

Distortion

≤1%

LINE IN

Input Impedance

＞10kΩ

Input Sensitivity

1000mV

LINE OUT

Output Sensitivity

1000mV

Others

Network Interface

RJ45 (10/100M)

Audio Priority

Fire Alarm＞Paging＞Camera Trigger＞Chime＞

Timing＞Net Audio=Audio Collector＞AUX IN

Supported Protocol

DHCP, TCP/IP, UDP, ICMP, IGMP (multicast),

802.1x, HTTP, HTTPS, FTP, DNS, DDNS,

RFC3261, RTP, RTSP, RTCP, UPnP.

Power Input

~100-240V 50Hz/60Hz 1A

Dimensions (H×W×D)

390×138×120mm

682×138×120mm

Weight

3.0kg

5.0kg

Production Information

[email protected] /www.dsppatech.com The specifications will be subject to change without prior notice.

Technical Parameters

[email protected] /www.dsppatech.com The specifications will be subject to change without prior notice.

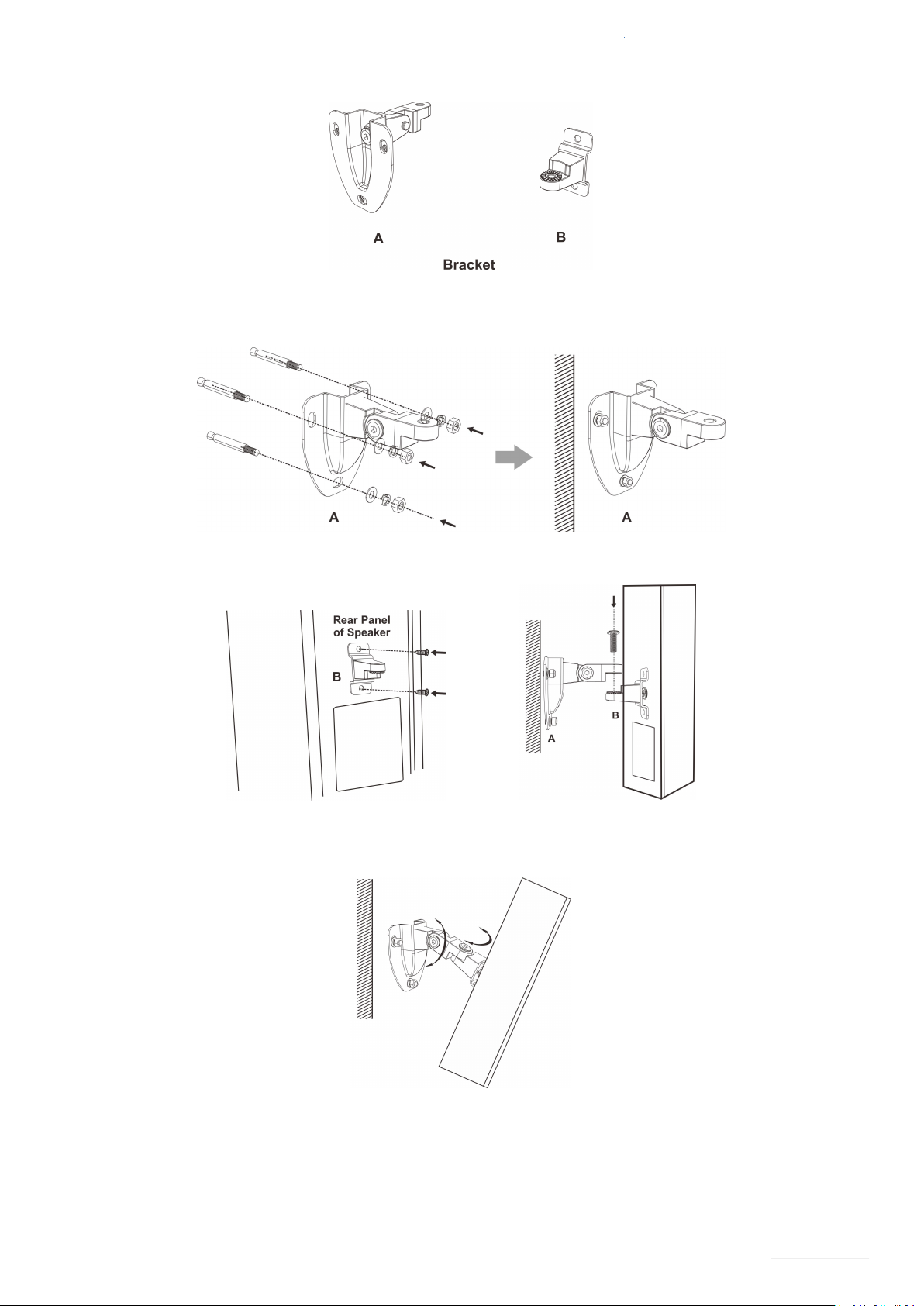

Installation (Take DSP203N for an Example)

① Assemble the bracket into two parts, A and B.

② Install 3 expansion screws in an appropriate position for installation, and fix A on the expansion screws

with nuts. (Please pay attention to the installation height! It is recommended that the height of the speaker

be 1.8m to 2m high from the ground.)

③ Attach B to the rear panel of the speaker with screws.

④ Connect B attached to the speaker to A fixed on the wall, and tighten the screw to fix it.

⑤ Connect the sub speaker, network cable, power cord, etc. as needed.

⑥ Finally, adjust the angle of the speaker, check whether the speaker is installed firmly, and complete the

installation.
