LOCOPUMP S3

Pneumatic Pump

User and Maintenance

Manual

Original text translation

Manual compiled in accordance with Directive CE 06/42 C2255IE WK 13/18

INDEX

1. INTRODUCTION

2. GENERAL DESCRIPTION

3. PRODUCT IDENTIFICATION

4. TECHNICAL CHARACTERISTICS

5. COMPONENTS

6. UNPACKING AND INSTALLING

7. OPERATING INSTRUCTIONS

8. TROUBLESHOOTING

9. MAINTENANCE PROCEDURE

10. DISPOSAL

11. ORDERING INFORMATION

12. DIMENSIONS

13. HANDLING AND TRANSPORTATION

14. OPERATING HAZARDS

15. PRECAUTIONS

http://www.dropsa.com

Via Benedetto Croce, 1

Vimodrone, MILANO (IT)

t. +39 02 250791

Dropsa products can be purchased from Dropsa branches and authorized distributors, visit

www.dropsa.com/contact or contact us [email protected]

2/9

1. INTRODUCTION

This user and maintenance manual relates to the “LOCOPUMPS3”.

The latest version may be obtained from the Technical-Commercial Office, or by consulting our web site

http://www.dropsa.com.

This user and maintenance manual contains important information about protecting the health and safety of the personnel

who intend to use this apparatus. You must read and look after it carefully, making sure that it is available at all times for the

operators who intend to consult it.

2. GENERAL DESCRIPTION

The pneumatic pump “LOCOPUMP S3” uses compressed air to control the grease quantity which is delivered from the pump.

Hence, it should be used on machines where compressed air is readily available.

It's a grease single effect pneumatic pump generally used in systems with single-line progressive dividers as SMX, SMO, SMP or

SMPM filling filter

In the standard version the pump is fitted of a 2kg reservoir spring loaded, whereby the pump can easily provide grease NLGI 2.

The transparent reservoir allows to see clearly the amount of remaining grease moreover there is a minimum level sensor. This

pump is designed to have a maximum level sensor and an adjustable delivery kit.

Loading connection is completed of a filter guaranteeing the input of clean lubricant into the reservoir.

It’s possible to use a filtered clean grease return in the reservoir.

The maximum level is available only on request, for more information contact Dropsa sales department.

3. IDENTIFICATION OF THE MACHINE

On the front part of the pump tank there is a plate which indicates the product code, the supply voltage and the basic

characteristics.

4. TECHNICAL CHARACTERISTICS

GENERAL CHARACTERISTICS

Pumping system

Single acting pneumatic piston

Air pressure

3÷6 bar

Compressed air inlet

G 1/8 UNI - ISO 228/1 with cone seating for 6mm tube

Reservoir refilling

Grease nipple with check valve type

UNI 7663 –“A“ – 1/8“ NPT

Lubricant outlet

G ¼ UNI –ISO 228/1

Reservoir return

G ¼ UNI –ISO 228/1

Compression ratio

50:1

Fixed delivery

2 cm3/stroke

Adjustment delivery (kit 3133390)

0.5 ÷2 cm3/stroke

Lubricants* Max. grease consistence

Grease max NLGI 2

Piston total stroke

36.5 mm

Piston working stroke

29.2 mm

Minimum level contact

V max.= 30 Vac

I max.= 0.2 A

P max.= 3 W

Operating temperature

+5 ÷ +50°C

Storage temperature

+5 ÷ +50°C

Relative humidity max. non condensing operating damp

90%

Sound pressure level

< 70 db (A)

Net Weight

4.5 Kg (2Kg) - 3.5 Kg (0,5 Kg)

*If a different product is used, please contact Dropsa S.p.A. to ensure it is suitable for use

3/9

5. COMPONENTS

The main parts of the pump are:

The reservoir constructed of transparent type plastic, compatible with commercially available greases.

The pump body, constructed of steel with capability of delivery up to 2 cm³ (0,12 cu.in) per stroke at a maximum pressure of

300 bar (4351 psi). There is an internal check valve mechanism for the grease output.

The level sensor, is and electric contact that indicates that the pump has reached its low level of grease. It's possible to set it to

either “Normally Closed” or “Normally Open” (see drawing for further instruction). As standard is set to “Normally Closed”.

PART NUMBER

DESCRIPTION

3044522

Reservoir 2 Kg. (4,4 lb)

3044525

Reservoir 0.5 Kg. (1,1 lb)

3045202

Support Bracket

3413502

Body pump

1655183

Minimum level sensor

712100

Refilling Filter

Reservoir 2 kg

Square support

Body pump

Refilling

filter

Minimum

level sensor

Air supply

Discharge

4/9

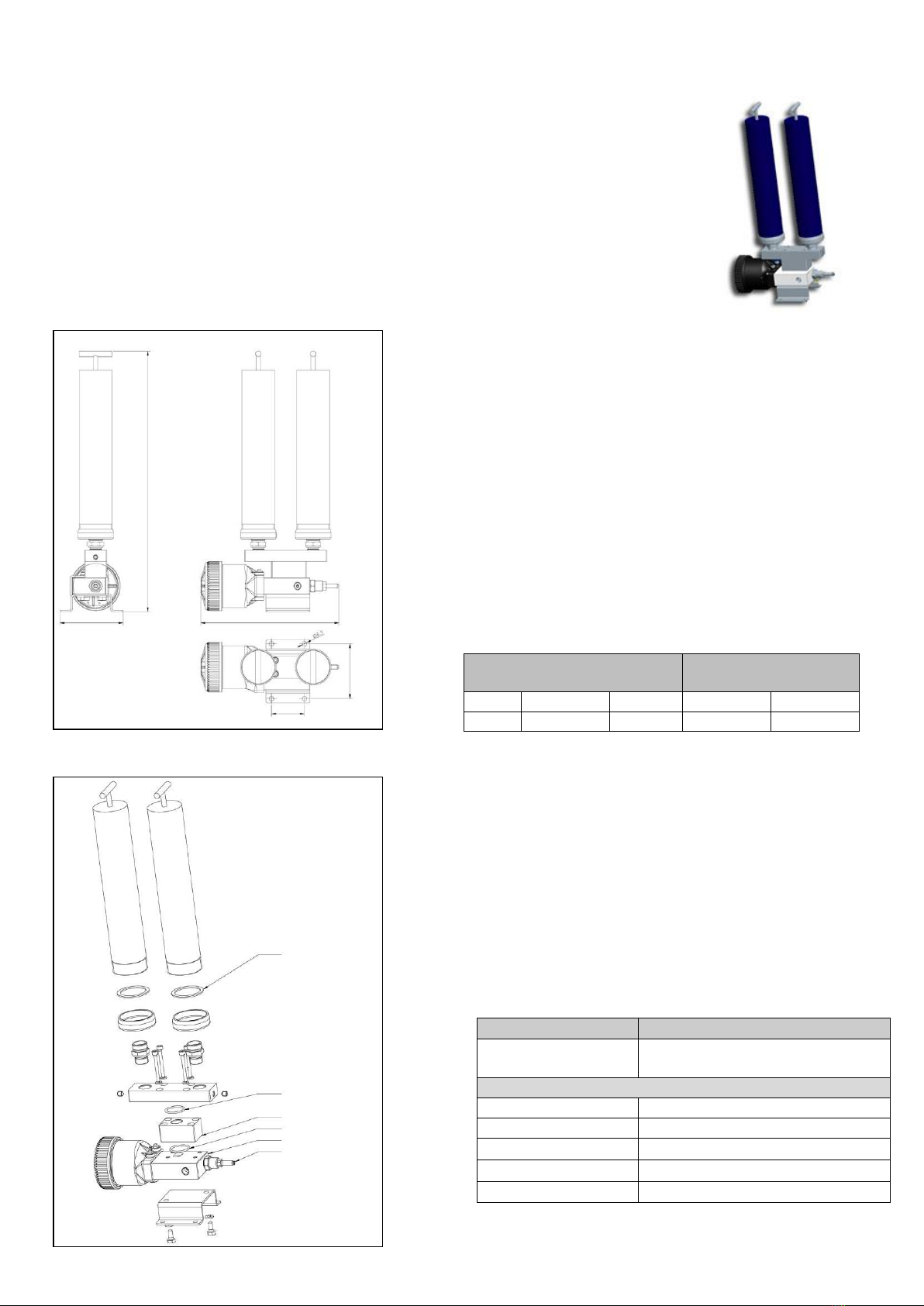

5.1 PNEUMATIC GREASE PUMP WITH STANDARDIZED 400CC LUBRICANT CARTRIDGE LOADING SYSTEM

The Pneumatic Pump with cartridge grease loading is a pump for general use in single line

progressive divider lubrication systems such as SMX, SMO, SMP or SMPM.

The pump is designed for all those applications where it is ideal to have grease supplied in readily

available cartridges.

The pump is equipped with a steel plate with a M57x1.5 mm thread that allows interfacing with up to

two 400cc lubricant cartridges.

High Reliability is guaranteed by the use of hardened steel in the construction in all the pumping

element components and the pump piston is manufactured in ground hardened steel.

5.1.1 DIMENSIONS

5.1.2 ORDER INFORMATION

PART NUMBER

DESCRIPTION

3414064

Pneumatic pump with cartridge

SPARES

3190372

Seal gasket

0061117

Gasket

3050564

Flange connection

3413500

Pneumatic pump grease R= 50:1

3133390

Pump delivery adjustment kit

OVERALL

DIMENSIONS

QUOTE OF FASTENING

115

~480

252

100

3190372

0061117

3050564

3413502

3133390

5/9

6. UNPACKING AND INSTALLATION

6.1 UNPACKING

Once a suitable installation position has been identified, unpack the pump and prepare for installation. It is important to inspect

the pump to ensure that there has been no damage during transportation. The packaging material used does not require any

special disposal procedures. You should refer to you regional requirements.

6.2 PUMP INSTALLATION

Allow sufficient space for install with 150mm clear space around the perimeter of the pump.

Mount the pump LocopumpSerie2 at “eye level” to avoid any risk of postural problems.

Do not install the pump in dangerous environments such as explosive/flammable areas or in areas subject to high vibration.

Only use the fixing holes on the support bracket which are intended for n°2 holes for screws Ø10 mm (0,4 in.)(use a flat washer

with the screw ). For more details of the fixing holes please verify the dimensions shown on the drawing in chapter 12.

6.3 ELECTRICAL CONNECTIONS

Ensure the electrical connection of the low level is connected before using the pump. See below drawing for connection details.

A label of this drawing is also on the pump’s reservoir.

Supply voltage 24 V max.

6.4 PUMP OUTLET CONNECTION

The hydraulic connection of the pump is on the front face of the pump. It is a standard 1/4” BSP ( see drawing in chapter 12 ).

6.5 AIR CONNECTION ON PUMP

Use an 1/8” BSP connection fitting. It also possible to use DropsA’s nut an cone fittings as the seating is already available.

Remember to use a 3/2 valve that allows the air to vent to atmosphere and the internal spring within the pump to reset.

6.6 HOW TO ADJUST THE PUMP OUTPUT OR PRESSURE

This can be done by: Regulating pressure: the output pressure has a 50:1 ratio with the inlet pressure. Therefore this can be

regulated depending on the requirements of the system. (See chapter 4 for min and max pressures).

Regulating pump: as standard the pump has a fixed output. For special requirements you can convert the pump by installing the

kit 3133390 –ordered separately to the pump –the kit is shown below.

To use this kit , mount the o-ring ( A ) then tighten the fitting ( B ) with a 27mm spanner. Loosen the counter nut (C) with a 13

mm spanner to unblock the screw (D), use the appropriate screw driver to screw IN for less output or screw OUT for more

output. After adjustments have been made you must tighten the counter nut (C) to block any further movements.

N.B.: After all connections have been made please ensure that they are safe and properly secured down.

WARNING: The unit is only to be opened and repaired by specialist personnel.

6/9

7. INSTRUCTIONS FOR USE

7.1 Start Up

The unit should only be used, opened and repaired by specialized personnel only.

It is prohibited to use the pump if it is submersed in fluid, in dangerous environments or explosive/flammable areas unless

pre-agreed with supplier and appropriate safety/protection measures have been put in place.

Use gloves and safety glasses as advised in the grease lubricant safety data sheet.

DO NOT use aggressive lubricants on the NBR seals, if in doubt consult DropsA Spa technical office who can offer advice on

lubricants and provide a pre-approved list of greases.

Ensure proper precaution to keep the pump clean and avoid and potential health hazards.

Always use suitably pressure rated tubing for the lubrication system.

7.2 Action to be taken before start-up.

Check the integrity of the pump.

Refill the tank with suitable lubricant.

Check that the pump is at working temperature and that there are no air bubbles in the pipes.

Check that the electric connection has been carried out correctly (CEI 64/8, IEC 364).

Ensure that the pump is properly connected to the control panel.

7.3 Use

Check the data sets imposed.

Press the start button on the machine to which the Sumo pump is connected.

Check pump start-up.

Check that the machine is adequately lubricated (if there are still some doubts about its correct functioning you can

contact the Dropsa S.p.A Technical Office and request a test procedure).

8. PROBLEMS AND SOLUTIONS

Below is a diagnostic table showing the main faults, the probable causes and the possible solutions.

In the event of doubts and/or problems which cannot be solved, do not proceed to look for the fault by dismantling parts of

the machine, but contact the Dropsa Technical Office.

DIAGNOSTIC TABLE

FAULT

The pump does not deliver grease or

does not deliver the correct amount of

grease

The pump does achieve required

pressure or does not maintain its

operating pressure.

CAUSE

The grease level is below minimum.

The solenoid valve on the inlet of the

pump does not vent.

The fittings are leaving/loose.

Regulation of air inlet pressure.

Internal Check valve is damaged or

contaminated.

SOLUTION

Add more grease into the reservoir without

surpassing the MAX level.

Verify it the solenoid vents. Vent the

solenoid manually and monitor if the

grease flows out.

Tighten the fittings and check for leaks on

all fittings.

Adjust the air pressure on the inlet of the

pump taking into account the pressure

ratio.

Clean or change the valve shown in kit

3133391.

7/9

9. MAINTENANCE PROCEDURES

Ensure the pump is positing so that it can be verified easily.

Ensure you have necessary personal protective equipment to avoid any contact with the grease.

The pump undergoes severe factory testing therefore no maintenance is forecasted with the pump.

DropsA recommends the use of lubricants that are free of any impurities as well as a regular cleaning of the pump’s

components.

The pump is dismantled as follows:

1. Before removing the reservoir is must be completely emptied of lubricant.

2. Disconnect the air inlet connection.

3. Disconnect all tubing on the pump.

4. Loosen the screws on the lid, remove the reservoir taking ABSOLUTE care of the spring inside the reservoir ( it may still be

under tension –if so remove more lubricant.)

5. Remove the pump and any filters if fitted.

6. Unscrew the plug on the pneumatic pump body, be careful of the load on the internal spring. At this point you can remove

the internal components of the pump body.

At this point all components are loose and allow the cleaning and verifying of each component possible.

All components must be clean with cleaning fluid and lubricated before re-assembly.

Periodically it is necessary to check:

CHECK

TOTAL NUMBER OF PUMP CYCLES

The lubrication status

100

Lubricant level

200

Clean refilling filter

400

Clean bottom of reservoir if deposits have formed.

600

The machine does not require any special equipment for any checking and/or maintenance activity, however the

recommendation is to use suitable equipment which is in a good condition (according to current regulation) in order to avoid

causing damage to persons or machine parts.

Make sure that the electric and hydraulic supply has been disconnected before carrying out any maintenance intervention.

10. DISPOSAL

In the course of machine maintenance, or if the machine is scrapped, do not dispose of polluting parts into the environment.

Refer to local regulations with regard to their correct disposal. When scrapping the machine the identification plate and any

other documents must be destroyed.

11. INFORMATION ABOUT ORDERING

PART NUMBER

FEATURES

3413050

Pneumatic pump R=50:1 Reservoir 2 Kg (4,4 lb)

3413060

Pneumatic pump R=50:1 Reservoir 0.5 Kg (4,4 lb)

3133936

Replacement gaskets Kit

3133390

Adjustable pump output kit

3413050 C

Preloaded pneumatic pump R=50:1 Reservoir 2 Kg (4,4 lb)

8/9

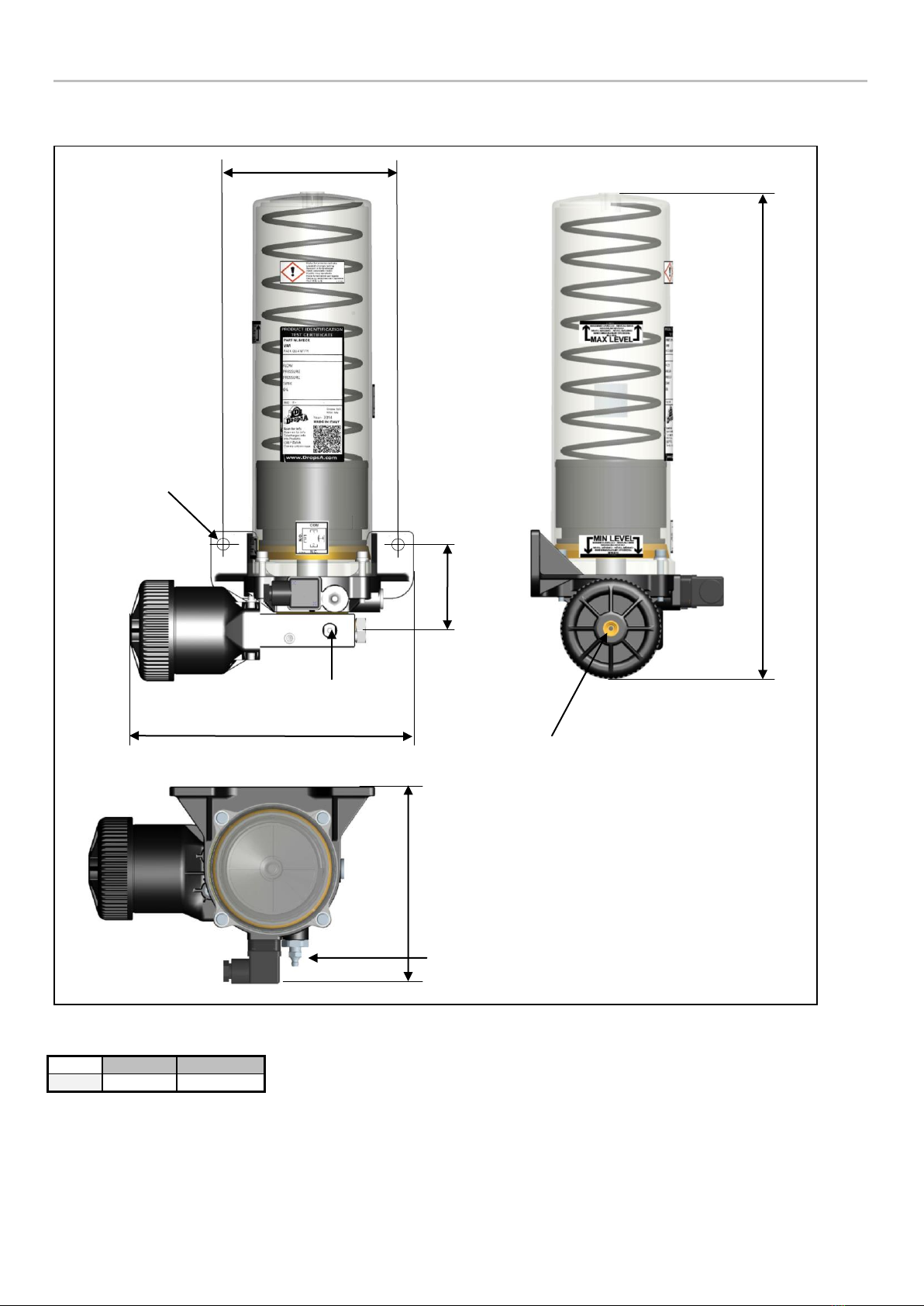

12. DIMENSIONS

To facilitate future maintenance, increase the spaces indicated by at least 100 mm.

2 Kg

0.5 Kg

433

272

AIR INLET

G1/8" BSP

Compression fitting for Ø

6 pipe

LUBRICANT OUTLET

G1/4" BSP

LUBRICANT INLET

Valved Greaser

UNI 7663-"A" - 1/8"

172

251

152

Ø11

9/9

13. HANDLING AND TRANSPORT

Prior to shipping, the equipment is carefully packed in cardboard package. During transportation and storage, always maintain

the pump the right way up as indicated on the box. On receipt check that package has not been damaged. Then, store the

machine in a dry location.

14. PRECAUTIONS FOR USE

It is necessary to carefully read the warnings and risks associated with using a lubricant pump. The operator must understand

how it works and must clearly understand the dangers by studying the user manual.

Power supply

Any type of intervention must not be carried out before unplugging the machine from power supply. Make sure that no one can

start it up again during the intervention.

All the installed electric and electronic equipment, reservoirs and basic components must be grounded.

Flammability

The lubricant generally used in lubrication systems is not flammable. However, it is advised to avoid contact with extremely hot

substances or naked flames.

Pressure

Prior to any intervention, check the absence of residual pressure in any branch of the lubricant circuit as it may cause oil sprays

when disassembling components or fittings.

Noise

Pump produces noise, not more than 70 dB(A).

15. OPERATIONAL HAZARDS

The check on compliance with the essential safety requirements and with the stipulations indicated in the machine directives

are to be carried out by means of compiling the checklists already made available and contained in the technical file.

Two types of lists were used:

List of dangers (section from UNI EN ISO 14121-1 relating to UNI EN ISO 12100)

Application of the essential safety requirements (Machine Dir.)

See below a list of dangers which have not been completely eliminated, but are considered acceptable:

During assembly/maintenance it is possible that there may be an oil splash (consequently this operation must be carried out

using appropriate individual protective devices);

contact with oil -> see instructions for using appropriate individual protective devices DPI;

Loaded springs, in the pump cylinder and in the reservoir.

Use of an inappropriate lubricant -> fluid characteristics indicated both on the pump and in the manual (if in doubt consult

our Technical Office);

protection against direct and indirect contact must be provided by the user;

The pump’s working logic requires it to operate at all times, so it is necessary to pay attention to the electric connection. If

there is no current the customer’s machine can only be restarted following a reset while the lubrication pump can restart

automatically.

Do not use alcohol or spirits to clean any components.

UNACCEPTABLE FLUIDS

Fluids

Dangers

Lubricant with abrasive additives

High consumption of contaminated parts

Lubricant with silicon additives

Jamming of the pump

Benzine –solvents –inflammable liquids

Fire –explosion –damage to gaskets

Corrosive products

Corrosion of the pump –injuries to persons

Water

Pump oxidation

Food substances

Contamination of these substances

Tabla de contenidos

Otros manuales de Bomba de agua de DROPSA

DROPSA

DROPSA 3417000 Series Manual de usuario

DROPSA

DROPSA Sumo Instrucciones de funcionamiento

DROPSA

DROPSA 201000 Instrucciones de funcionamiento

DROPSA

DROPSA 31070 Series Instrucciones de operación

DROPSA

DROPSA SMART2 Instrucciones de funcionamiento

DROPSA

DROPSA 3414 Series Manual de usuario

DROPSA

DROPSA 3413 Series Manual de usuario

DROPSA

DROPSA Mini-SUMO Instrucciones de funcionamiento

DROPSA

DROPSA SUMO II Series Instrucciones de funcionamiento

DROPSA

DROPSA Dragon Series Instrucciones de funcionamiento

DROPSA

DROPSA LOCOPUMP Instrucciones de funcionamiento

DROPSA

DROPSA 3415 Series Instrucciones de funcionamiento

DROPSA

DROPSA Minisumo II Manual de usuario

DROPSA

DROPSA Mini-SUMO Instrucciones de operación

DROPSA

DROPSA BRAVO Instrucciones de operación

DROPSA

DROPSA 3106000 Instrucciones de funcionamiento

DROPSA

DROPSA OmegaPUMP Manual de usuario

DROPSA

DROPSA 3420000 Manual de usuario

DROPSA

DROPSA Rollo 888 Manual de usuario

DROPSA

DROPSA 3414100 Manual de usuario

DROPSA

DROPSA Cannon Hydraulic Pump Instrucciones de operación

DROPSA

DROPSA SMART3 Instrucciones de funcionamiento

DROPSA

DROPSA 1524175 Series Manual de usuario

DROPSA

DROPSA 0400605 Instrucciones de funcionamiento

Manuales populares de Bomba de agua de otras marcas

Neptun

Neptun NPHW 5500 Manual de usuario

Sensidyne

Sensidyne Gilian BDX-II Instrucciones de instalación y funcionamiento

Draper

Draper 47808 Manual de usuario

Trolla

Trolla 12820 Manual de usuario

Sunfab

Sunfab SVH Series Manual de usuario

WilTec

WilTec 50740 Manual de usuario

Fieldmann

Fieldmann FVC 5015 EK Manual de usuario

Everbilt

Everbilt EFSUB5-122HD Manual de usuario

Graco

Graco Husky 3300e Manual de usuario

esotec

esotec 101018 Manual de usuario

moyno

moyno 2000 CC Manual de usuario

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manual de usuario

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guía de solución de problemas

DUROMAX

DUROMAX XP WX Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manual de usuario

Franklin Electric

Franklin Electric IPS Manual de usuario

Xylem

Xylem e-1532 Series Manual de usuario

Milton Roy

Milton Roy PRIMEROYAL Manual de usuario
