Drive Medical Ason Shower Commode Guía del usuario

Aston Shower Commode Chair

Owner’s Handbook

Aston Shower Commode (CWC003) Page 2 of 12

Introduction –Aston Shower Commode Chair

These instructions aid the user and/or carer about the safe and efficient

use of this product, including assembly, cleaning and maintenance, and

operation of the product.

Ensure that you fully read these instructions before using this product.

The product is a CE marked class 1 medical device. It can be used as aid

to showering or toileting. It comes with a potty and lid or can be wheeled

over most conventional and disabled toilets. It is suitable for a single

occupant up to 160kg (25 stone). As standard the device comes with 4

braked castors and a 24” rear wheel kit to allow a user to propel

themselves is available. It is constructed from aluminium and plastic with

stainless steel fasteners so is suitable for use in a bathroom environment.

Personal Safety

Read these instructions carefully before use.

Check all components are secured before use.

Only use on level ground.

When stationary apply the brakes on the wheels. Ensure the

brakes are released before the chair is moved again.

Always ensure that the device is stationary and braked applied

when transferring to and from the device. Swing away the leg

rests before getting in or out of the device. The user should

always remove their feet from the leg rests before swinging the

leg rests away.

Do not lean out of the device.

The maximum weight limit is 160kg (25 stone)

Ensure that all castors and wheels are set to the same height and

that there is not a significant tilt on the seat.

Be careful of pinch points when rising from or lowering on to the

seat, or when you are removing the potty.

When issuing or reissuing, a risk assessment of the user’s stability

for the device may be required. The chair should also be checked

as described in the care and maintenance section.

Aston Shower Commode (CWC003) Page 3 of 12

Parts Description

The model shown above is the standard Aston commode (without 24”

wheels fitted). The following spare parts are available for the Aston:

Z33301-16

Backrest knob

In addition, the following parts

Z33302-16BL

Armpad

are available for the 24” self-

Z33303-16

Potty with Lid

propel version:

Z33304-16

Castor (Braked)

Z33310-16

Quick Release Pin

Z33305-16

Footrest (RHS)

Z33311-16

Axle Bracket (RHS)

Z33306-16

Footrest (LHS)

Z33312-16

Axle Bracket (LHS)

Z33307-16BL

Seat

Z33313-16PU

24” Rear Wheel

Z33308-16BL

Aperture Cover

Z33314-16

Brake (RHS)

Z33309-16BL

Z33316-16

Backrest

‘E’ Clip

Z33315-16

Brake (LHS)

Aston Shower Commode (CWC003) Page 4 of 12

Assembly

1. Insert the backrest in to the

receivers on the chair base

(see photo)

2. Secure by installing the

backrest knobs (arrowed).

Install by screwing the knobs

in clockwise.

3. Attach the footrest by placing

the top bracket in to the

receiver tube at the top of

the frame, ensuring the

footrest is swung back.

Swing the footrest towards

the front of the chair until it

locks in position.

Repeat for the other footrest

and adjust the footplate

height and angle if required

(see instructions)

4. Locate the seat by sliding the back of the seat in to the frame. Then

press down on the whole of the seat until secure. Add the potty and

aperture cover if required (see instructions).

5. If required, install the castors. Follow the procedure on adjusting the

castors for installation and adjustment procedures.

Aston Shower Commode (CWC003) Page 5 of 12

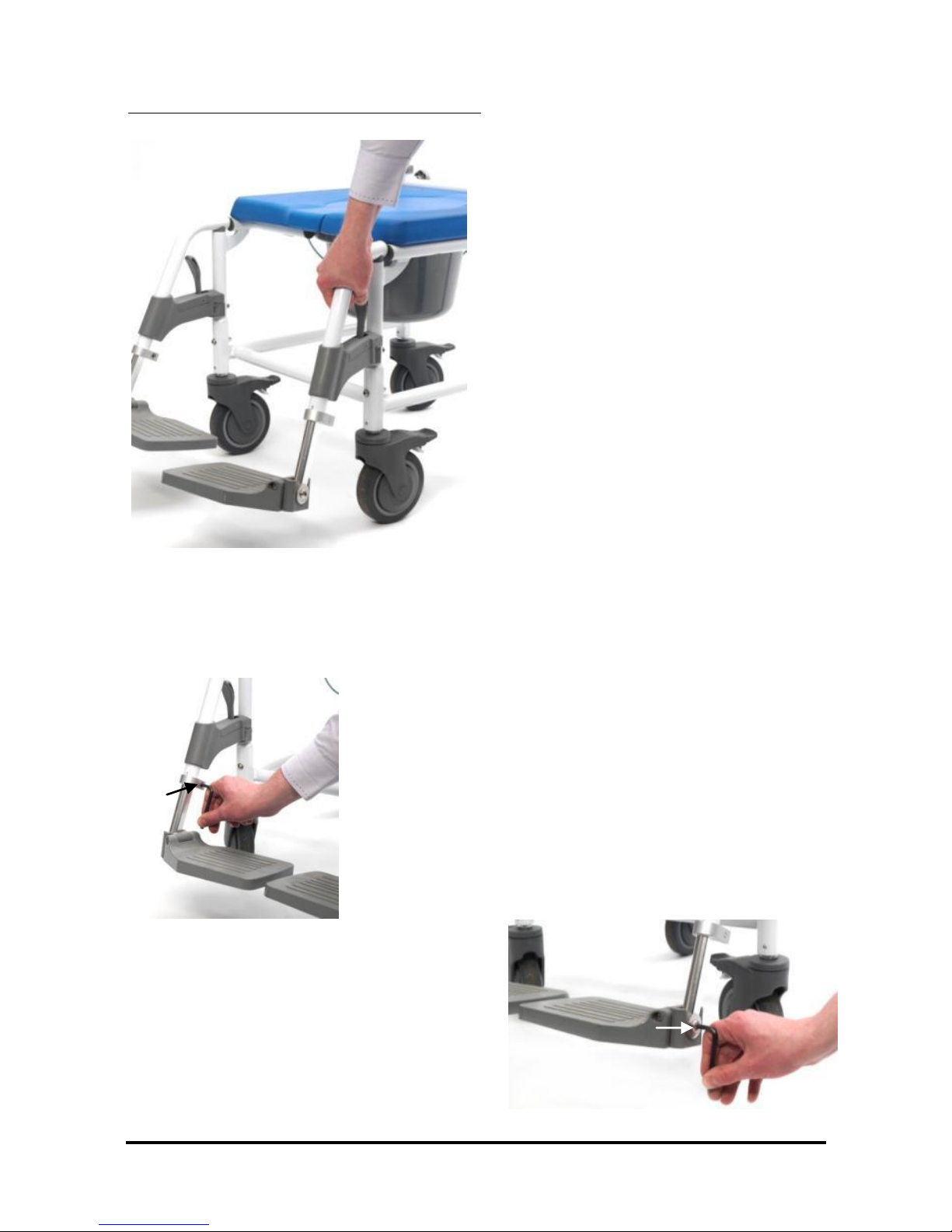

Footrest Operation and Adjustment

Swinging Footrests In and Out

The footrests can swing in and out

if the user requires this. If required,

first flip up the footplates.

Then, press the lever to unlock the

footrest whilst rotating the footrest

in the required direction.

When required, rotate the

footrests to the forward position

until they automatically lock in

position. Flip down the footplates

if required.

Footrest Installation and Removal Follow the Assembly instructions for

details on how to install the footrests. To remove the footrests, swing out

the footrest and lift up to remove.

Footplate Adjustment.

1. To adjust the height of the footplate,

slacken the bolt at the end of the white

tubing of the leg rest, using an allen key

and turning the bolt anticlockwise. Slide

the footrest to the required height and

secure the footrest by retightening the

bolt. Tighten the bolt by turning clockwise

with an allen key.

2. To adjust the footplate angle,

slacken the bolt near the bottom

of the inner tube (chrome). Adjust

the footplate to the required

angle and resecure the bolt.

Aston Shower Commode (CWC003) Page 6 of 12

Castor Operation

The castors can be locked so that

the wheel cannot move forwards or

reverse nor will the castor fork

swivel. To lock the castor press

down on the locking tab with a foot

(as shown). To release press the

other side of the locking tab with a

foot. Unless the chair is fitted with

24” wheels, it is recommended that

the castors are always locked when

the chair is stationary.

Note: If fitted with 24” rear wheels,

it is essential that the rear castors

are locked and pointing forward. If

unlocked or locked at an angle they

will interfere with the rear wheels.

Castor Adjustment

The height of the chair and seat can be

altered by adjusting the castor height. To

adjust the castor height, remove the ‘E’ clip

or nut and bolt (arrowed). Reposition the

castor stem to the required position and

reattach the ‘E’ clip or nut and bolt. Repeat

for the other 3 castors ensuring they are all

set at the same height.

Note:

If the chair is fitted with the 24” rear wheels, the axle

bracket height should also be altered so that the rear

castors are nearly touching the ground when the 24”

wheels are fitted.

Models will be supplied with either ‘E’ clips or a nut and

bolt to secure the castor. ‘E’ clips do not require any

tools for height adjustment, whereas the nut and bolt

solution requires a spanner and allen key.

LOCK

UN-

LOCK

Aston Shower Commode (CWC003) Page 7 of 12

Potty Installation and Removal

The potty is installed and removed

by sliding the potty in to the two

rails mounted to the underneath of

the seat. To install, slide the potty

underneath the seat from the rear

of the chair, ensuring the potty sits

on both rails of the seat. Ensure

nobody is sat on the chair when

installing or removing the potty to

prevent any trapping risk.

Cover the potty with the lid to reduce the risk of spillages and carefully

dispose of the potty contents in a sluice or WC. Do not dispose of in an

open drain or sink as this can cause serious health risks.

The potty can be cleaned and disinfected manually or in an autoclave. It

should be cleaned after each use. Replacement potties are available from

Drive Medical under product code Z33303-16.

Seat Operation and Removal

The seat is a horse shoe shape with removable cover for the aperture.

When used as a shower chair, it is recommended that the aperture cover

is removed to allow better access to the occupant for cleaning. Ensure

weight is not applied directly to the aperture cover as this can fall

through the seat.

The seat clips on and off the frame. To remove the seat for cleaning, first

remove the potty and aperture cover. Then lift up the front for the seat

to release and slide the seat away from the chair. To attach the seat first

locate the seat by sliding the back of the seat in to the frame, then press

down on the whole of the seat until secure.

Aston Shower Commode (CWC003) Page 8 of 12

Arm Operation

The arms can flip up to aid side

transfer. Simply lift the front of the

arms to flip up, and then push down

to lower. The brakes should always be

applied before transferring.

24” Rear Wheel Kit - Installation

There is an optional kit available for the Aston commode which adds two

24” wheels and brakes, to allow the commode to be propelled by either

an attendant or the commode user (part code CWC003KIT). To install:

1. Without the 24” wheels, set the castor height to suit to the user.

2. Swivel the two rear castors so they are pointing forward and then

lock. This is to prevent the castors interfering with the 24” wheels

when installed.

3. Install the two brackets which receive the axles for the 24”

wheels so that the rear castors will be approximately 3mm from

the ground when the 24” wheels are added.

4. The wheels have quick release pins as axles. Press the button on

the quick release pin and insert through the centre of the wheel

and then insert the wheel and axle into the bracket mounted to

the chair. After installing, release the button and check the

wheels are secured on to the frame. Repeat for the other wheel.

5. Install the brakes in the position shown overleaf, ensuring that the

brakes operate securely, correctly and easily.

Quick Release Wheel Operation

To remove or install the rear wheels without tools, press the button on

the quick release pin in the centre of the wheel whilst pulling or pushing

to insert or remove the wheel. Ensure the wheel is secure before use.

Aston Shower Commode (CWC003) Page 9 of 12

Brake Operation

Push the brakes forward to lock

the wheel. Pull the brakes back to

release the brake.

Ensure both brakes are applied

when the chair is stationary and

when the user is side transferring.

Operation –24” rear wheels

When the 24” rear wheels are installed, the chair can be propelled by

either the attendant or the chair occupant. If the attendant is propelling

the chair, they should propel the chair using the push handle at the rear

and apply the castor brakes when the chair is stationary. If the occupant

is propelling the chair, they should use the handrims mounted on the side

of the wheels to go, manoeuvre and stop and then apply the brakes

(above) when the chair is stationary.

LOCK

UN-

LOCK

Aston Shower Commode (CWC003) Page 10 of 12

Shower Commode Specification

Commode

Seat

Length

87cm (34”)

Depth

43cm (17”)

Width

56cm (22”)

Width

46cm (18”)

Height

97 –102cm (38-40”)

Height

48 –53cm (19-21”)

Backrest

Height

47cm (18.5”)

from seat

Aperture

17 (W) x 27cm (D)

7” (W) x 11” (D)

Armrest

Height

70 –75cm

28” – 30”

Underseat

Clearance

43 –48cm

17” – 19”

Total

Weight

13.4kg (29lb)

Weight

Limit

160kg

(25 stone)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Silla de ruedas de Drive Medical

Drive Medical

Drive Medical Cruiser II Manual de usuario

Drive Medical

Drive Medical Benny Manual de usuario

Drive Medical

Drive Medical Drive Manual de usuario

Drive Medical

Drive Medical S1 Manual de usuario

Drive Medical

Drive Medical Travelite TC005GY Guía del usuario

Drive Medical

Drive Medical IDSOFT Series Manual de usuario

Drive Medical

Drive Medical 12021-4 Manual de usuario

Drive Medical

Drive Medical Cirrus Plus EC Manual de usuario

Drive Medical

Drive Medical Silver Sport SSP218DDA-SF Manual de usuario

Drive Medical

Drive Medical RTL12061M Manual de usuario

Drive Medical

Drive Medical Wenzelite Relhab otter OT 8010 Manual de usuario

Drive Medical

Drive Medical RTL12004KD Manual de usuario

Drive Medical

Drive Medical MULTEGO Manual de usuario

Drive Medical

Drive Medical Drive Nitro Duet Manual de usuario

Drive Medical

Drive Medical 11148-1 Manual de usuario

Drive Medical

Drive Medical Sunfire General Manual de usuario

Drive Medical

Drive Medical 12440-2 Manual de usuario

Drive Medical

Drive Medical 2800GTBL-RCL Manual de usuario

Drive Medical

Drive Medical Travelite Chair In A Bag Guía del usuario

Drive Medical

Drive Medical IMAGE EC Manual de usuario

Drive Medical

Drive Medical SPGT-3C-BL SPGT-3C-R, SPGT-3C-G Manual de usuario

Drive Medical

Drive Medical Titan Manual de usuario

Drive Medical

Drive Medical Geo Manual de usuario

Drive Medical

Drive Medical 12203kd4 Manual de usuario

Manuales populares de Silla de ruedas de otras marcas

Otto Bock

Otto Bock Skippi plus Manual de usuario

Invacare

Invacare Action 4NG series Manual de usuario

SORG

SORG LoopSORG 802 Manual de usuario

Designability

Designability WizzyBug Instrucciones de instalación

Vermeiren

Vermeiren RAPIDO Manual de usuario

Excel

Excel G5 KIDS 0285 Manual de usuario

M. Bartels

M. Bartels SA-3 Manual de usuario

nino robotics

nino robotics NIno Manual de usuario

Vermeiren

Vermeiren Turios Manual de usuario

Invacare

Invacare MK5 EX Manual de usuario

Invacare

Invacare Solara Spree GT Manual

Nova

Nova TKW-12 Manual de usuario

BCW

BCW Advantage Manual de usuario

You-Q

You-Q Luca Manual de usuario

interco

interco Ortolight Standard Manual de instrucciones

Nova

Nova 7190L Manual de usuario

Vermeiren

Vermeiren EZ1 Manual de usuario

PaceSaver

PaceSaver Scout M-300 Manual de usuario
