Section 1 - Frame

Screen Assembly

1. Remove tarp from case and place on the ground.

2. Remove frame pieces from case and place in the appropriate locations on the tarp.

Please Note: For screens with Viewing areas of 18’ or larger Draper ships a special corner labeled “Large

Screen Corner”. If you did not order a complete screen do not use the standard “corner” for

the large screens. Contact Draper if needed.

Please Note: Each piece is color-coded: refer to FocalPoint™ Assembly Map included with screen for

correct layout (see reverse side).

Please Note: Frame pieces should be placed with “forks” running counter-clockwise and DuraLoop™

Attachment Lugs facing out.

3. Assemble frame by inserting “forks” of each piece into extrusions on the adjoining piece (see Fig. 1).

Tighten by turning color-coded attachment knobs (see Fig. 2).

4. Remove leg pieces from case and place in the appropriate locations on the tarp.

Modular

Frame Sections

Viewing

Surface

DuraLoop

™

Bungee

Attachment

Black

Border

Figure 1

Figure 2

FocalPoint™

Extremely rigid, durable, lightweight and modular framed projection screen.

INSTRUCTIONS

INSTALLATION & OPERATION

CAUTION

Caution

1. Read instructions through completely before proceeding;

retain for future reference.

2. Handle viewing surface with care; do not allow it to come

in contact with sharp or dirty objects.

3. These instructions are based on assembly by a minimum

of two people.

4. Make sure screen is level.

5. Do not write on viewing surface.

6. The ideal temperature range for assembling folding

screens to prevent damaging the surface is 68°-78° F

(20°-26° C). Assembling below recommended

temperatures may damage surface and void warranty.

7. Do not permit screen fabric to contact border material or

loops when folded. Store in pouch provided.

8. Please read the following installation guidelines

thoroughly and follow them carefully. Failure to do so

invalidates warranty.

Please Note: Custom products/installations may not be reﬂected

by this document. Call Draper, Inc. if you have questions about your

installation.

If you have any difﬁculties installing or servicing your

FocalPoint, call your dealer or Draper, Inc.

Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385

draperinc.com | 765.987.7999 | 800.238.7999

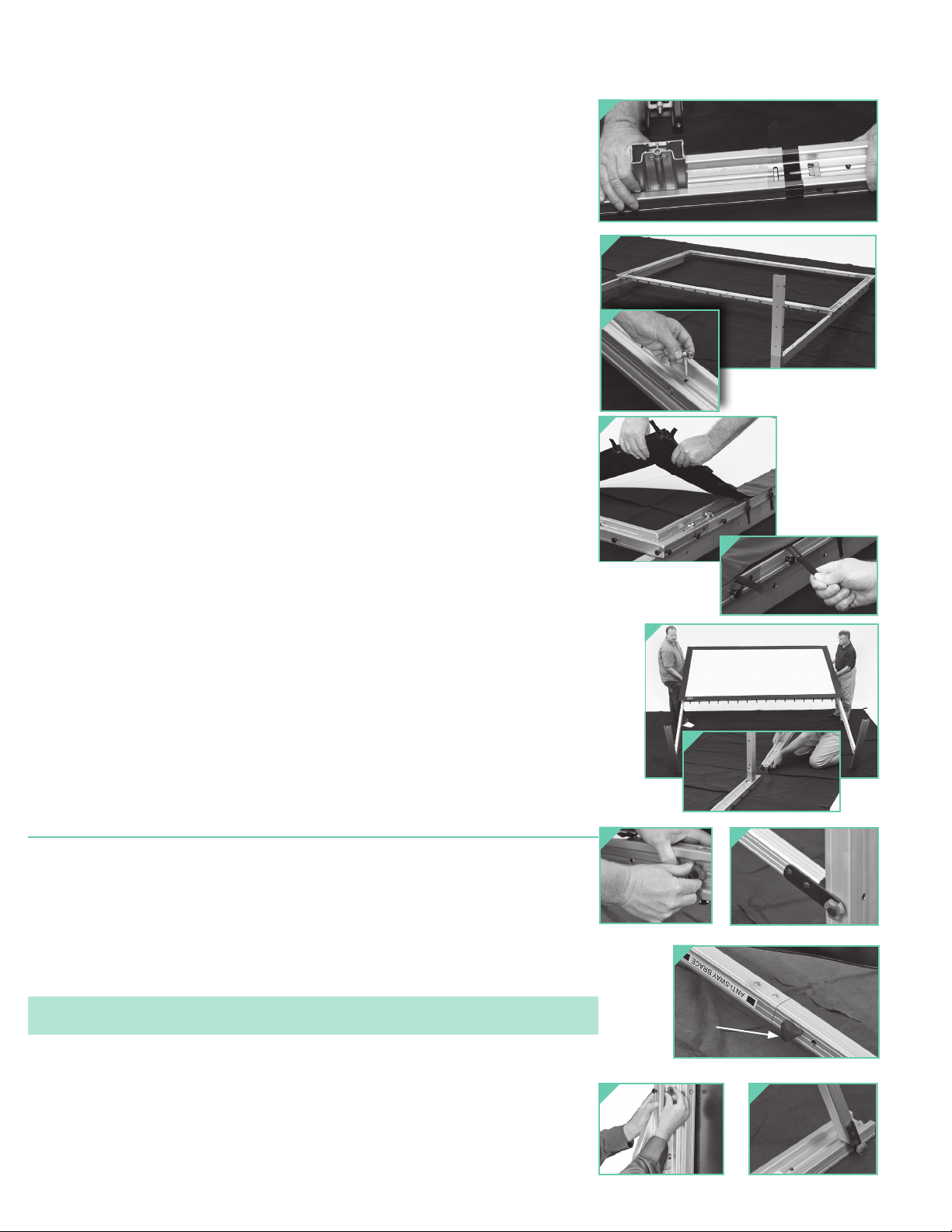

5. Assemble legs according to color-coded assembly map by inserting “forks” of front extension into

extrusion on the leg base and tighten color-coded attachment knobs.

Also, attach vertical frame members in the same manner.

Do not yet attach the back extension to the leg base (see Fig. 3).

6. Place the screen frame on top of the legs (see Fig. 4).

7. Attach legs to frame (see Fig. 4) using provided Leg Cranks as follows:

Package A: 3 cranks per leg;

Package B: 4 cranks per leg; and

Package C: 5 cranks per leg.

Leg Cranks should be placed as follows:

1 at the lowest attachment point, 1 at the highest attachment point,

and the rest evenly spaced between the two.

8 Attach viewing surface to frame (see Fig. 5).

9 Raise FocalPoint into place (this step requires at least two people) (see Fig. 6).

10. Attach the back extensions to the leg bases (see Fig. 7).

Section 2 - Attaching Anti-Sway Bars

If provided, attach Anti-Sway Stabilizers to the frame and legs.

1. Unhook the viewing surface from the bottom of the frame near the attachment points.

2.Attach ends with threaded hole through the square extrusion to the ﬁfth visible hole in from each

end of the screen.

3. Attach end with metal extension to the closest leg extrusion hole (see Fig. 8).

Please Note: You may need to use the built-in adjustment knob to shorten or lengthen the Anti-Sway

Stabilizer so it will reach holes (see Fig. 9).

4. If provided, attach HD Leg Braces to frame and legs. Attach ends with threaded hole through the

square extrusion to the frame. Attach end with metal extension to the back foot extrusion (see Fig. 10).

Figure 3

Figure 4

Figure 5

Figure 7

Figure 6

Figure 8

Adjustment

Knob

Figure 9

Figure 10

page 2 of 2
