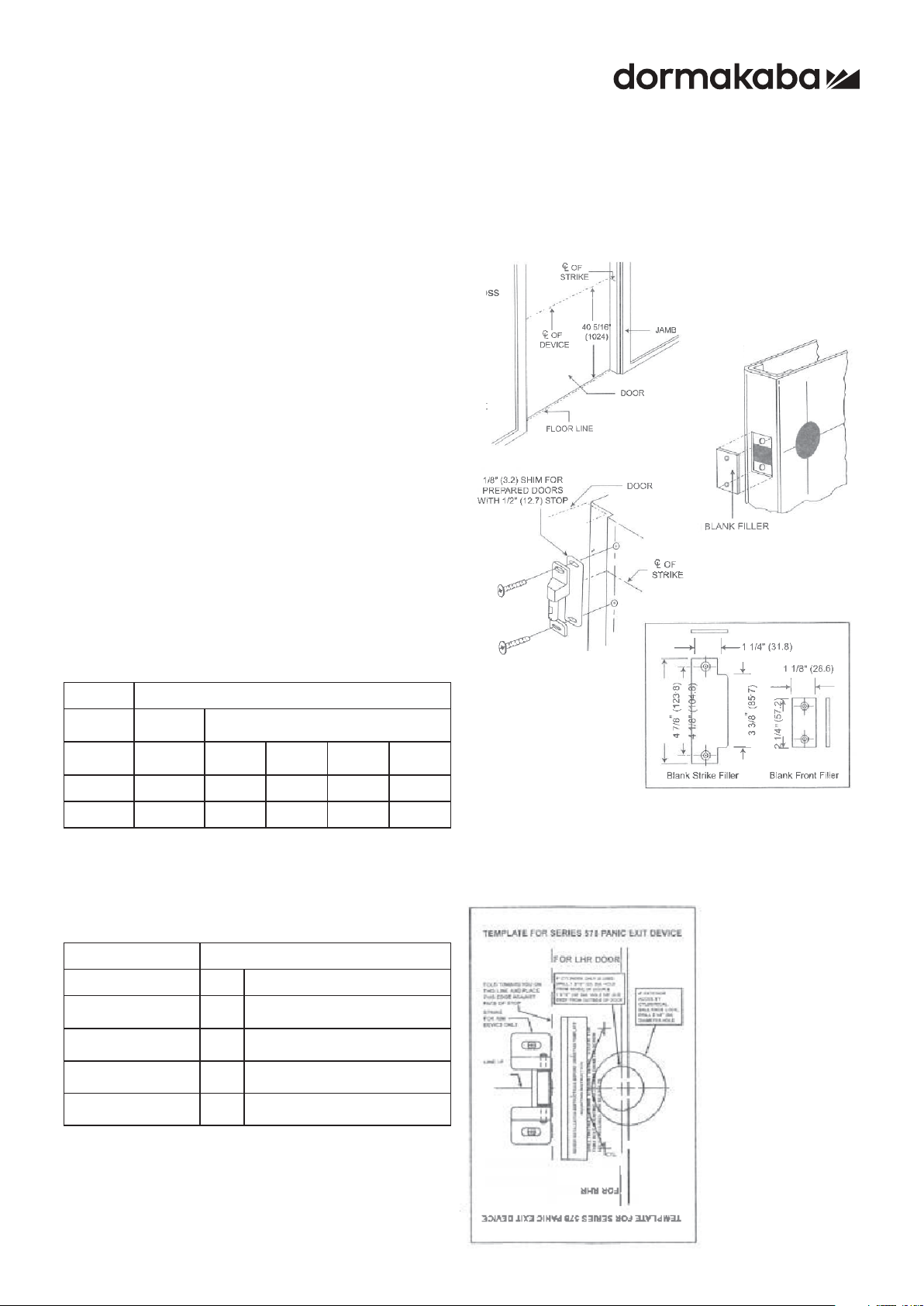

Door Preparation
Draw the center line of the device across the door and frame at
40 5/16” (1024) above the floor.
A. If door has preparation for 2 3/4” (70) backset cylindrical
lock, mount panic strike using center of 2 1/8” (54) diameter
lock hole.
B. If your door has cylindrical lock cut-out for ANSI A115.2 and
A115.3 prep doors:
B1. Extend horizontal and vertical center lines of cut-out
shown at right.
B2. If frame has 5/8” (16) stop, align center lines on template
with center lines on door. Drill template holes as
described above and follow steps three thru seven.
B3. If frame has 1/2” (12.7) stop, align center lines on
template with center lines on door and spot mounting
holes for latch assembly only. Then move template up
against stop and spot mounting holes for strike. Drill two
mounting holes. Now follow steps three thru six.
Note special shim shown at right, which is mounted
beneath strike.
02
Lock and Drill template Holes:
Locate and drill mounting holes for trim, device and strike using
furnished template.
Dim Inside ( ) are in mm
dormakaba ED22
ED22 Rim Exit Device
Installation Instruction - Reversible (Non Handed)
Twist Drill Sizes
Screw
Diameter
*Machine
Screws Self Tapping Screws
All Door
Gauges GA GA GA GA
# # (.) /” (.) /” (.) # (.) # (.)
# # (.) # (.) # (.) # (.) # (.)
Screw Chart
Item Q’ty Fastener
Front plate assembly and
rear bracket # x /” Lg. pan head tapping
screws type “A”
Strike # x /” Lg. pan head tapping
screws type “A”
Edge Filler #- x /” machine screw,
# x ” pan head tapping scew
Strike Filler #- x /” flat hd. machine screw,
# x /” pan hd tapping scew
*Machine screws are intended for use with doors having
sufficent metal thickness for proper tapping (reinforced doors)
or sex bolts.
Drill sizes for screws are recommended but various factors, such
as type of door and frame construction, thickness and type of
metal, etc, can affect the final hole diameter and resulting
holding strength of the fastener.
2
03
Trim Installation
Cut off length of cylinder connecting bar so that 1/2” (12.7)
projects beyond inside of door.
CAUTION
When using the Ansi Cylinder plate, be sure the bosses on the
latch assembly fit into the cutouts on the cylinder plate so that
the latch assembly lies flat on the door.
ALWAYS refer to the
template packed with trim
before proceeding with
installation.
Dim Inside ( ) are in mm
3
dormakaba ED22
04
Bar Length Adjustments
A. Calculate the length to be cut (A).
B. Remove the rear cover and rear mounting bracket.
C. Depress push bar and cut off to desired length.
D. Replace the rear cover and rear mounting bracket.
*RL (Required length) = Door width minus 4” (101.6)
**A = Length of device- Required length (RL)
05
Mounting the device
Attach latch to door but do not tighten screws. Assemble rear mounting bracket to push bar (see nesting arrangement
in exploded view). Use rear mounting bracket as a template to spot holes for mounting screws. Push bar should be
level. Drill screw holes and attach rear mounting bracket and plate to door. Secure latch screws and attach front and
rear covers.
Dim Inside ( ) are in mm
4
06
How to Test Push Bar and Dogging Device
A. Latch bolt is retracted by the push bar inside.
B. Latch bolt is retracted by the push bar inside and the key outside. Turning the key in either direction will retract the
latch. Return ket to the horizontal position to remove key and project latch,
C. Latch bolt is retracted by the push bar inside and the key or knob outside.
To lock knob: Insert key in cylinder and turn counter clockwise as far as ket will turn. Then return key to its vertical
position and withdraw key.
To unlock knob: Insert key in cylinder and turn clockwise as far as key will turn (the latch will retract during this
procedure). Then return key to its vertical position and withdraw key.
D. Dogging: Depress push bar. Insert dogging wrench and turn clockwise 90°. The push bar will remain depressed and
the latch will remain retracted.
07
How to remove & Reinstall cyclinder in lock
A. Removing the knob:
A1. Insert ket in cylidner and turn 90° clockwise.
A2. Insert knob removing tool into the hole in the knob and depress the knob catch button
A3. While knob catch button is depressed pull knob off
B. Removing cylinder from knob:
B1. Remove sleeve
B2. Remove key
B3. Slide cyclinder our of knob
C. Reinstalling cylinder in knob:
C1. Slide cylinder into knob
C2. Replace sleeve
D. Reinstalling the knob:
D1. With ket inserted part way into cylinder slide knob onto knob shank.
D2. Depress knob catch button and push knob onto the knob shank as far as it will go.
D3. Insert key completely into the cylinder and turn the key while pushing on the knob until it engages the knob
catch button.
D4. Return key to its vertical position and remove it.
D5. Pull on knob to be certain it is properly engaged to the knob catch button.
5
