Dorma TS93 GSR/EMF Manual de usuario

Tool List:

Tape Measure #10-32 Tap & Holder No. 21 (.159”) & 1/8” Drill Bits and Drill Hacksaw

Center Punch & Hammer 1/2” Box Wrench #2 Cross-Point Screw Driver

3/16” Slotted Driver 10” Adjustable Wrench 2.5mm, 3mm & 5mm Hex Wrench (supplied)

INSTRUCTIONS

INS NO: 08281031 PAGE: 1 of 11 REV: 09/11

TS93 GSR/EMF PT

LEFT HAND INACTIVE

RIGHT HAND ACTIVE

RIGHT HAND INACTIVE

ATTENTION!!!

Before you begin, determine installation type (RIGHT HAND ACTIVE OR INACTIVE).

Door coordinator suitable for door from 59” to 98” in width. Inactive door width in the case of unequal doors

is a 23” minimum. Also, you will need the tools listed below.

LEFT HAND ACTIVE

CAUTION: Sex nuts are required for attachment of components to unreinforced, wood or plastic faced com-

posite type fire doors, unless an alternative method is identified in the individual door manufacture’s listings.

Make sure door efficiently operates prior to installing the closer. When Installing main arm, observe direc-

tions closely. .

Prepare door and frame using the template (TMP No. 08281030) provided in the back of the instructions.

Attach both closer mounting plates to the doors using 8 flat head screws, 4 ea. Arrows on plate pointing upwards.

Attach left hand mounting angle to the frame with 3 flat head screws.

Attach right hand mounting angle to the frame with 3 flat head screws.

TS93 GSR EMF PT

Left Hand

Right Hand

#10-32 Metal Door Screw

Wood Door Screw

INS NO: 08281031 PAGE: 2 of 11 REV: 09/11

Parts List:

No. Description

1) Closer Mounting Plate

2) Track Mounting Angle

3) Middle Filler Angle (cut)

4) Wood Door Screws

5) #10-32 Metal Door Screws

Qty

Cut middle filler angle as shown below

Attach Middle Filler Angle with 2 flat head screws.

Cut

When cutting filler angle be sure to plan for the

conduit hole 5/16 DIA [8mm].

INS NO: 08281031 PAGE: 3 of 11 REV: 09/10

M5 Metal Track Screws

Parts List:

No. Description

1) Active Track Assembly

2) Inactive Track Assembly

3) M5 Metal Track Screws

4) Plastic End Cap

5) TS93 Closer

6) M5 Closer Mounting Screws

Right Hand Inactive Door

Attach active track assembly with two M5 flat head machine screws, be sure to insert the end cap as shown below.

Attach the Inactive Track Assembly with two M5 Flat Head Machine Screws, be sure to insert the end cap. The following de-

scribes the process for a left-handed active leaf. The procedure for right-hand active leaf should be adapted

accordingly.

TS93 GSR EMF PT

Left Hand Active Door

Attach closers with eight (8) M5 flat head machine screws.

M5 Closer Mounting Screws

Qty

1 2

Left Hand Right Hand

INS NO: 08281031 PAGE: 4 of 11 REV: 09/10

Parts List:

No. Description

1) Hex Key

2) M6 Socket Head Screw

3) Track Arm

4) Slide Shoulder Bolt

Qty

M6 Socket Head Screw

Slide Shoulder Bolt

TS93 GSR EMF PT

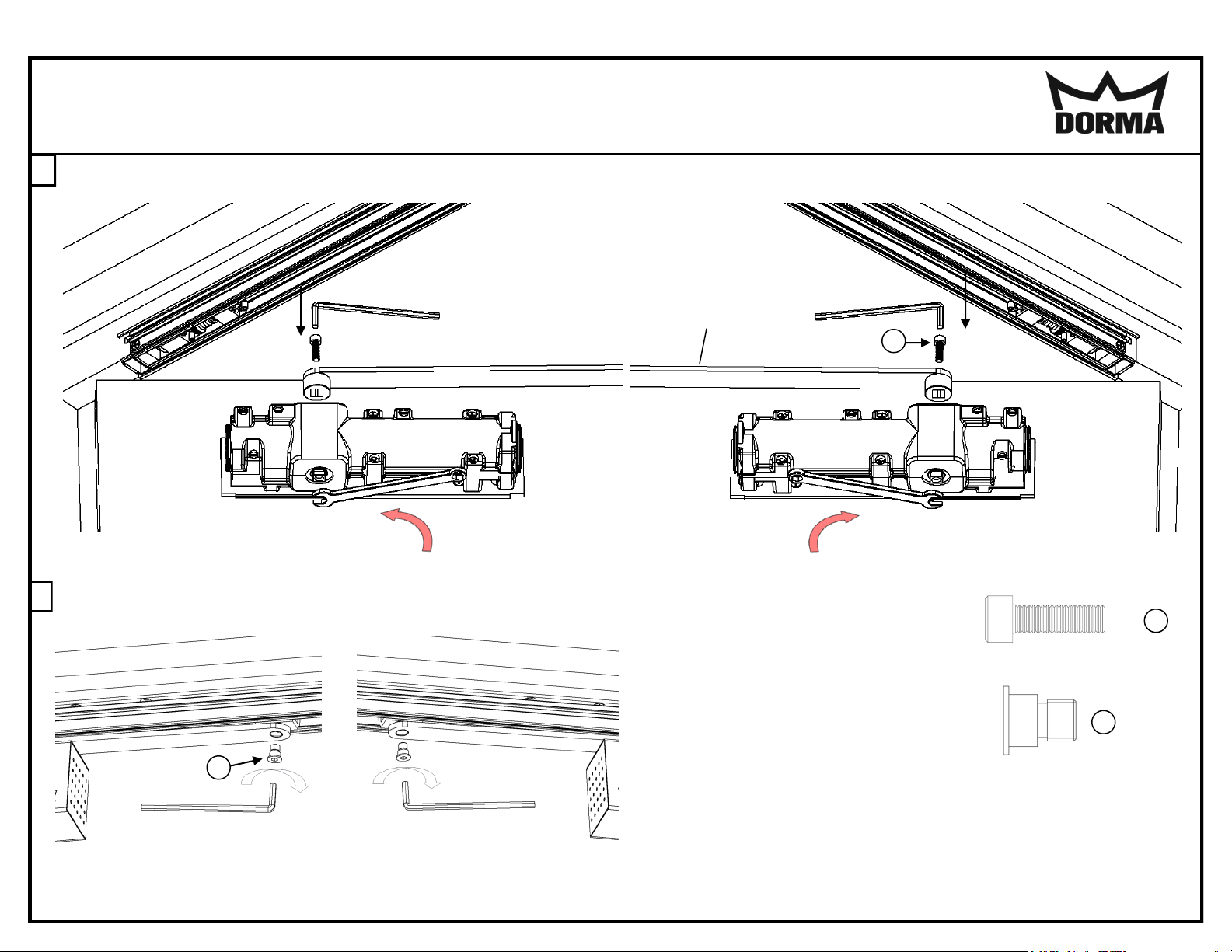

Place wrench on bottom of pinion square and rotate approximately 5 degrees as shown. With the main arm parallel to the door.

Place the main arm hub on to the top pinion square and fasten securely with pinion screw.

6 Attach arm to slide shoe. Continue to rotate arm until parallel to

track (door closed). Insert screw and tighten securely.

Note: Depress trigger dial, (see page 5) to allow the active slide shoe

to move freely. Locking pin may fall out, (see page 6) and can be dis-

carded after installation is complete.

Track Arm

Hex Key

M6 Socket Head Screw

Slide Shoulder Bolt

INS NO: 08281031 PAGE: 5 of 11 REV: 09/10

Close both door leaves. Press lever with roller against the door (A)

and tighten the hex screw (B). Remove Alignment screw (C).

TS93 GSR EMF PT

Mark and cut the length of the connecting channel as shown. In doing so, it will ensure that the plastic guide element is pushed up

against the slide shoe, and the trigger dial has been fully turned in (clockwise). Cut the connecting channel at the cut mark. Remove

burrs and set the connecting channel in place by opening both doors leaves. Move arm with roller to maximum degree, in the direction

of the open door leaf. Insert the channel into the trigger dial of the active leaf and then place into the plastic guide of the inactive leaf.

ROLLER

DOOR

Side view of

Connecting Channel

Plastic

Guide

Trigger Dial

SIDE VIEW

Pin can be discarded once the

system has been installed.

INS NO: 08281031 PAGE: 6 of 11 REV: 09/10

TS93 GSR EMF PT

The clamping rod will only operate smoothly if the clamping

plate has been properly adjusted. Only then will the active

leaf swing freely with the inactive leaf closed.

Close both door leaves. Unwind the trigger dial (counter clockwise)

by hand until the pin drops out. The active door will starts to close.

Ensure that the clamping plate remains perpendicular (90 deg) to

the clamping rod. Tighten set screw to secure trigger dial.

WIRING

10 Attach plug-in side of wire harness to 4 pin terminal block on active track assembly.

Attach wire to hold open screw terminal on inactive track.

Make sure power is off while making connection. Connect to incoming

24 VDC power supply. Connect plug-in side of incoming

power wire harness to final 2 terminals of 4 pin terminal block on

active track assembly.

WIRING

DIAGRAM

S- Sweep speed from 70 deg opening to close (0 deg).

L- Latch speed from approximately 7 deg to close (increase speed only).

BC -Backcheck cushion effect (IMPORTANT Do NOT close valve completely)!

DA -Delay speed from approximately 135 deg to 70 deg.

INS NO: 08281031 PAGE: 7 of 11 REV: 09/10

Adjust spring power (IMPORTANT: Adjust clockwise according to chart).

Barrier free openings should be adjusted to use the minimum closing force required to

close and latch the door.

TS93 GSR EMF PT

Adjust sweep (S), latch (L), backcheck (BC) and delay action (DA) valves. CAUTION: DO NOT REMOVE VALVE!!!

Adjust Sweep (S), Latch (L) valves.

Adjust Backcheck (BC) and delay action (DA) valves.

L BC

DECREASE SPEED

INCREASE SPEED

DECREASE (BC INTENSITY)

INCREASE (DA TIME)

Setting the hold open point. Open the door leaf ` until engaged in hold open. If another degree of hold open is desired, loosen

adjustment screws. Slide the electric hold open assembly in the appropriate direction for an increased or decreased degree of hold

open and retighten adjustment screws.

INS NO: 08281031 PAGE: 8 of 11 REV: 09/10

TS93 GSR EMF PT

GREATER

DOOR

ANGLE.

INS NO: 08281031 PAGE: 9 of 11 REV: 09/10

TS93 GSR EMF PT

GSR/EMF - ACTIVE DOOR HOLD OPEN ONLY or ACTIVE & INACTIVE DOOR HOLD OPEN TOGETHER

Incorporates an electric hold open device in both leaves. This enables both leaves to be held open when inactive leaf is placed in the pre-

selected hold open position and also enables the active leaf to be held open independently when the inactive leaf is in the closed position.

Both doors will close in sequence (inactive first) from any point upon signal from the fire alarm system or when an electrical current is inter-

rupted. The doors will close from any point upon signal from the fire alarm system or when an electrical current is interrupted.

Setting the release force. Adjust the release force to suit the door width and size of the door.

Note: If the release force is set too high, damage might occur to door hinges or the GSR system.

INCREASE FORCE

DECREASE FORCE INCREASE FORCE

DECREASE FORCE

INS NO: 08281031 PAGE: 10 of 11 REV: 09/10

TS93 GSR EMF PT

Clip on end cap trims.

Break out marked recess in the active and inactive leaf track cover and clip cover into position

Determine the required length of centre cover and saw to

size. Clip on cover. Break out marked recess on plastic

trim for inactive leaf. Fit plastic jointing elements.

INSTALL END CAP TRIM AND COVERS

ACTIVE LEAF COVER

INACTIVE LEAF COVER

INSTALL CENTER COVER AND CENTER CAPS

CENTER COVER JOINTING

ELEMENTS

JOINTING

ELEMENTS

End cap

trim
