Dometic 9 SERIES Manual de usuario

RMLT9430, RMLT9431, RMLT9435

Absorber-refrigerator with oven

Operating manual

REFRIGERATION

9 SERIES

RMLT94xx-O-AUS.book Seite 1 Montag, 24. Juli 2017 12:57 12

RMLT94xx

Please read this instruction manual carefully before first use, and store it in

a safe place. If you pass on the product to another person, hand over this

instruction manual along with it.

Table of contents

1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

8 Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

10 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

11 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

12 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

13 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

RMLT94xx-O-AUS.book Seite 2 Montag, 24. Juli 2017 12:57 12

RMLT94xx Explanation of symbols

1 Explanation of symbols

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

2.1 General safety

!WARNING!

•Never open the absorber unit. It is under high pressure and can cause

injury if it is opened.

•Do not operate the refrigerator if it is visibly damaged.

•If the power cable for this refrigerator is damaged, it must be replaced

by the manufacturer, customer service or a similarly qualified person in

order to prevent safety hazards.

•This refrigerator may only be repaired by qualified personnel. Inade-

quate repairs may cause serious hazards.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

RMLT94xx-O-AUS.book Seite 3 Montag, 24. Juli 2017 12:57 12

Safety instructions RMLT94xx

•This refrigerator can be used by children aged 8 years or over, as well

as by persons with diminished physical, sensory or mental capacities

or a lack of experience and knowledge, providing they are supervised

or have been instructed how to use the refrigerator safely and are

aware of the resulting risks.

•Cleaning and user maintenance must not be carried out by unsuper-

vised children.

•Children must be supervised to ensure that they do not play with the

refrigerator.

•Do not store any explosive substances, such as spray cans with propel-

lants, in the refrigerator.

!CAUTION!

•Danger of crushing! Do not put your fingers into the hinge.

•Food may only be stored in its original packaging or in suitable con-

tainers.

ANOTICE!

•Do not open the refrigerant circuit under any circumstances.

•The refrigerant in the refrigerator circuit is highly flammable.

In the event of any damage to the refrigerator circuit (smell of ammo-

nia):

– Switch off the refrigerator if applicable.

– Avoid naked flames and sparks.

– Air the room well.

•Check that the voltage specification on the type plate is the same as

that of the power supply.

•The refrigerator is not suitable for storing substances which are caustic

or contain solvents.

•Keep the drainage outlet clean at all times.

•Do not use a high-pressure cleaner near the ventilation grille when

cleaning the vehicle.

•Never pull the plug out of the socket by the connection cable.

•The refrigerator lighting may only be replaced by customer service.

•The refrigerator may not be exposed to rain.

RMLT94xx-O-AUS.book Seite 4 Montag, 24. Juli 2017 12:57 12

RMLT94xx Safety instructions

2.2 Safe operation

!CAUTION!

•Close the refrigerator door before beginning a journey.

•The refrigerator unit at the back of the refrigerator gets very hot during

operation. Protect yourself from coming into contact with hot parts

when removing ventilation grilles.

•Only store heavy objects such as bottles or cans in the refrigerator

door, in the vegetable drawer or on the bottom shelf.

ANOTICE!

•Do not use electrical devices inside the refrigerator unless they are rec-

ommended by the manufacturer for that purpose.

•Danger of overheating!

Always ensure sufficient ventilation so that the heat generated during

operation can dissipate. Make sure that the refrigerator is sufficiently

far away from walls and other objects so that the air can circulate.

•Ensure that the ventilation openings are not covered.

•Do not fill the inner container with ice or fluid.

•Protect the refrigerator and the cable against heat and moisture.

•Make sure that foodstuffs do not touch the walls of the cooling area.

2.3 Safety when operating with DC power

ANOTICE!

•Only select DC operation (battery mode) if you are using a battery

monitor or if the alternator in your vehicle provides sufficient voltage.

2.4 Safety when operating with AC power

ANOTICE!

•Check that the voltage specification on the type plate is the same as

that of the power supply.

•Only use the cable supplied to connect the refrigerator to the

AC mains.

•Never pull the plug out of the socket by the connection cable.

RMLT94xx-O-AUS.book Seite 5 Montag, 24. Juli 2017 12:57 12

Scope of delivery RMLT94xx

2.5 Safety when operating with gas

!WARNING!

•Only operate the refrigerator at the pressure shown on the type

plate. Only use pressure controllers with a fixed setting which comply

with the national regulations (in Europe EN 12864).

•Never store liquid gas cylinders in unventilated areas or below

ground level (funnel shaped holes in the ground).

•Keep liquid gas cylinders away from direct sunlight. The temperature

may not exceed 50 °C.

•Never operate the refrigerator with gas

– at petrol stations

– while driving

– while transporting the caravan or mobile home with a transport

vehicle or tow truck

•Never use a naked flame to check the refrigerator for leaks.

•If you smell gas:

– Close the gas supply cock and the valve on the cylinder.

– Open all windows and leave the room.

– Do not press an electric switch.

– Put out any naked flames.

– Have the gas system checked by a specialist.

ANOTICE!

•Only use propane or butane gas (not natural gas).

3Scopeofdelivery

•Refrigerator-oven combination

•Ice-cube tray

•Operating manual

•Installation manual

RMLT94xx-O-AUS.book Seite 6 Montag, 24. Juli 2017 12:57 12

RMLT94xx Accessories

4Accessories

Available as accessories (not included in the scope of delivery):

All the accessories are available from specialist dealers. If you have any questions,

please contact the dealer or your service partner directly.

5 Intended use

The refrigerator-oven combination is designed for installation in caravans or motor-

homes. The refrigerator is only suitable for cooling, freezing and storing foodstuffs.

The refrigerator is not intended for the proper storage of medicine.

The refrigerator is designed to be operated on a DC power supply and an AC socket

and can be independently powered by liquid gas (propane or butane). The

refrigerator may not be run on natural gas or city gas.

The oven is only suitable for cooking and baking food.

The oven is designed to be run on liquid gas (propane or butane). The oven may not

be run on natural gas or city gas.

Description

Fan kit for boosting the cooling capacity at high ambient temperatures

Winter cover for the ventilation grille

Door shelf locking

Bottle holder for door shelf locking

Shelf locking

CAUTION! Health hazard!

Please check if the cooling capacity of the refrigerator is suitable for

storing the food you wish to cool.

RMLT94xx-O-AUS.book Seite 7 Montag, 24. Juli 2017 12:57 12

Technical description RMLT94xx

6 Technical description

6.1 Description

The unit is a combination of refrigerator and oven which are firmly screwed together.

The refrigerator and the oven can be operated independently of one another. The

oven uses the gas connection of the refrigerator and does not need to be separately

connected.

The refrigerator is an absorption refrigerator. The refrigerator is designed to operate

with different types of power and can be run on an AC power supply, a DC power

supply or with butane/propane gas. For DC operation, the vehicle battery or a solar

system built on the vehicle can be used. For with AC and gas operation, the thermo-

static control ensures that the refrigerator temperature is kept constant and as little

power as possible is consumed.

The refrigerator has a locking mechanism to protect it during transport.

The refrigerator has a defrost water drain. The drain opening is located on the rear

panel of the refrigerator.

The refrigerator is equipped with an automatic pilot light which automatically inter-

rupts the gas supply after approx. 30 seconds if the flame goes out.

The RMLT9435 refrigerator has an automatic operating mode which selects the

most economical power mode connected.

Food can be cooked or baked in the oven at 110 – 220 °C.

RMLT94xx-O-AUS.book Seite 8 Montag, 24. Juli 2017 12:57 12

RMLT94xx Technical description

6.2 Components of the refrigerator-oven combination

No. in fig. 1Description

1Oven

2 Oven control element

3 Refrigerator controls

4 Ice compartment

5 Secondary evaporator for refrigerator

6Shelves

7 Vegetable compartment

8 Bottom tray with bottle holder

9 Upper trays

RMLT94xx-O-AUS.book Seite 9 Montag, 24. Juli 2017 12:57 12

Technical description RMLT94xx

Inside the refrigerator, you can see the type plate of the refrigerator. There you can

see the model name, product number and serial number. You will need this

information whenever you contact the customer service or order spare parts:

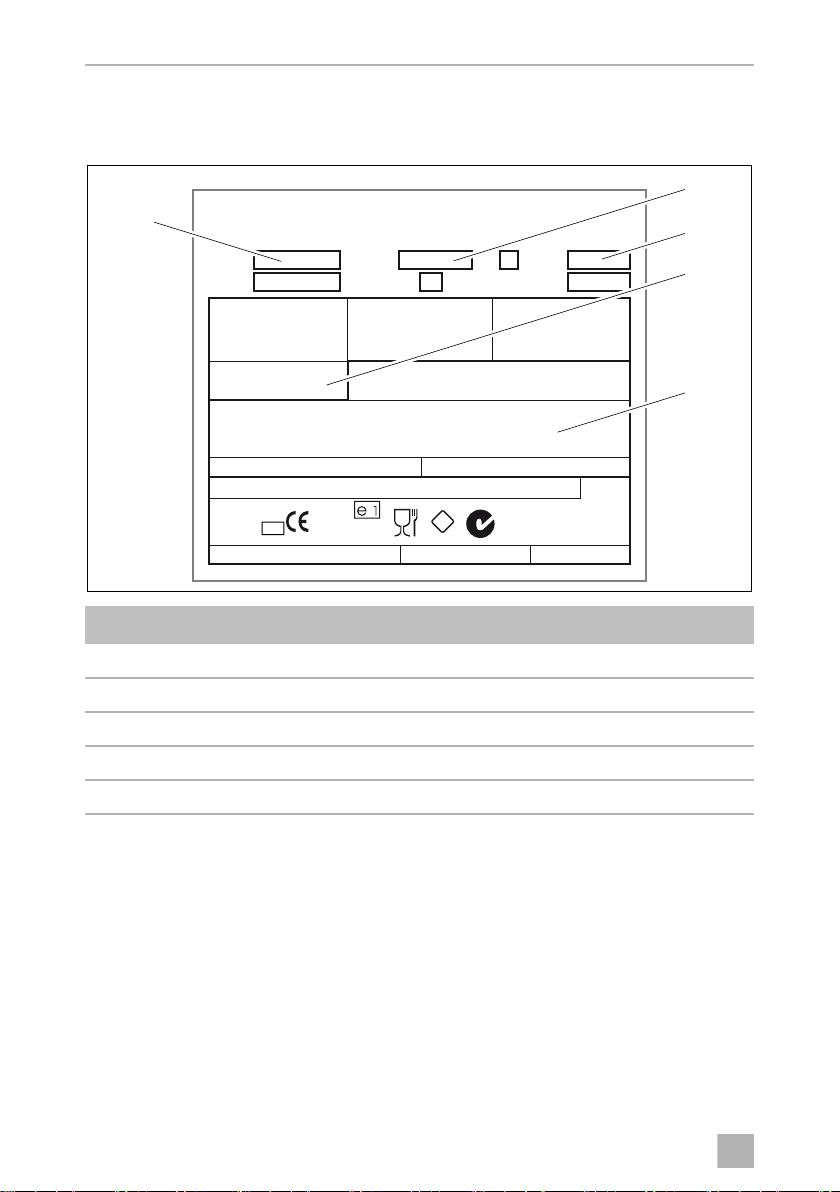

On the back of the oven, you can see the type plate of the refrigerator.

No. in fig. 2Description

1 Model number

2 Product number

3 Serial number

4 Electrical connection value

5 Gas pressure

BRUTTOINHALT

TOTAL CAP.

VOLUME BRUT

VERDAMPFERFACH

FREEZER COMP.

VOLUME COMPT BT

MADE IN GERMANY

MLCPROD. NO.MOD. NO.

TYPE

C 40/110

CLIMATE CLASS SKU

SER. NO.

00094200762

Z 660

031654

008512

NUTZINHALT

USEFUL CAP.

VOLUME NET

RMLT94xx-O-AUS.book Seite 10 Montag, 24. Juli 2017 12:57 12

Otros manuales para 9 SERIES

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Dometic

Dometic

Dometic NDA1402 Manual de usuario

Dometic

Dometic Waeco CoolFun CD-030 Manual de usuario

Dometic

Dometic RMS 8400 Manual de usuario

Dometic

Dometic RM 4223 Manual de usuario

Dometic

Dometic RC 1200 EGP Manual de usuario

Dometic

Dometic HIPRO CRUISE N30GCL Manual de usuario

Dometic

Dometic WAECO CF18 Manual de usuario

Dometic

Dometic NEA1402 Manual de usuario

Dometic

Dometic RM2191 Manual

Dometic

Dometic HiPro 3000 Manual técnico

Dometic

Dometic RMS 8465 Manual de usuario

Dometic

Dometic REFRIGERATION 10-Series Manual de usuario

Dometic

Dometic DS 200 Manual de usuario

Dometic

Dometic RM2612 Instrucciones de montaje

Dometic

Dometic REFRIGERATION 10-Series Manual de usuario

Dometic

Dometic RGE 2100 Manual de usuario

Dometic

Dometic A552 Manual de usuario

Dometic

Dometic RM2604 Manual de usuario

Dometic

Dometic HiPro 3000 Manual de usuario

Dometic

Dometic RML9430 Manual de usuario

Dometic

Dometic RM 7801 L Manual de usuario

Dometic

Dometic RMD10 Manual de usuario

Dometic

Dometic RH 423 LDA Manual de usuario

Dometic

Dometic RM1350 Elite Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
