Doheny's 5166 Guía
Cartridge
Filters
Item #s 5166 & 2609
10411 80th Avenue Pleasant Prairie,WI 53158|Orders and Customer Care: 1-800-574-7665|Fax: 1-800-323-5932|Doheny.com
▲WARNING
This equipment must be installed and serviced by a qualied technician in accordance with all applicable codes
and ordinances. Improper installation can create hazards which could result in property damage, serious injury
or death. Improper installation will void the warranty. The NOTICE label indicates special instructions that are
important but not related to hazards.
Notice to Installer
This manual contains important information about the installation, operation and safe use of this product. Once
installation is complete, this manual must be given to the owner / operator of this equipment.
INSTALLATION, OPERATION & PARTS
®
10411 80th Avenue Pleasant Prairie,WI 53158|Orders and Customer Care: 1-800-574-7665|Fax: 1-800-323-5932|Doheny.com
CHAPTER 1:
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
1. The installation should be carried out in accordance
to the safety instructions of swimming pools and
the specic instructions for each facility.
2. The user should make sure that the installation is
carried out by qualied authorized persons and that
these persons have rst carefully read the following
instructions. Incorrectly installed equipment may
fail, causing sever injury or property damage.
3. The operating safety of the lter is only guaranteed if
the installation and operation instructions are
correctly followed.
4. To reduce the risk of injury, do not permit children
to use this product.
5. Chemical spills and fumes can weaken Swimming
Pool or Spa. Corrosion can cause lters and other
equipment to fail, resulting in severe injury or
property damage. Do not store pool chemicals near
your equipment.
6. Any modication of the lter is not authorized. The
supplier assumes no liability for the damage and
injuries caused by unauthorized replacement parts
and accessories.
CHAPTER 2: INSTALLATION INSTRUCTIONS
▲WARNING This product should be installed and
serviced only by a qualied professional.
It is important to rst determine where your pump and
lter will be located. If above the water line, a self-
priming pump must be used. Self-priming pumps have
the ability to lift water from a lower level and prime
automatically.
1.
Position the lter next to the Swimming Pool or Spa.
2. The lter should be placed on a level concrete
slab, very rm ground, or equivalent. Ensure that
the ground will not subside, preventing any strain
from the attached plumbing.
3. Position the lter so that the piping connections,
Multi-Port Valve and winter drain is convenient and
accessible for operation, servicing and winterizing.
4. Ensure that the compliance label is facing the
front to allow easy identication in the case of
service difculties.
5. If practical, place pump and lter in the shade to
shield it from continuous direct heat from the sun.
Plumbing
1.
Use 1-1/2 inch or 2 inch piping. When making
permanent connections, be sure to provide unions
for easy servicing.
2. Refer to the diagrams for basic suggested valving.
Ball valves are recommended where needed. While
all systems vary, the main consideration is to provide
the desired control of water ow from the pool to the
pump and lter, and back to the pool. When the lter
is located below water level, provide valves to
prevent back ow of water to the lter during cleaning
and routine servicing.
3. All plumbing on these cartridge lters are 1-1/2 inch or
2 inch Male and Female National Pipe Threading
(NPT). Use plastic adapters when making threaded
connections to the lter. Take the Teon tape and
wrap the male threads three times in a clockwise
direction. Screw the male adapter into the female
adapter with your hand till its tight. Don’t tighten too
tight as the adapters are plastic and can break.
4. Connect the pool suction plumbing between the
skimmer, pool outlet, and the pump.
5. Install the pool return plumbing.
6. If pressure gauge is not installed, apply the Teon
tape to the gauge threads (just like you did to the
male adapter) and carefully screw the threaded hole
into the lter head.
7. A lter drain is furnished with each lter and is
needed for complete lter draining. A manual air
relief valve is furnished to aid in bleeding off unwanted
when starting the lter. The auto air relief valve
provides air removal during operation.
8. All electrical connections should be made in
accordance with local codes and done by a qualied
authorized person.
9. Check for joint leaks before operating.
10. Refer to pump manual for pump information.
Starting the Filter
1.
Make sure lter drain is closed. Open the manual air
relief valve by turning it counter-clockwise a few
times and open the suction and return valves.
▲
CAUTION All suction and discharge valves must
be open when starting the system. Failure to do so
could cause severe personal injury and/or property
damage. Make sure locking ring is secure (hand
tighten, only slight pressure is required).
2. Stand clear of the lter, prime and start the pump,
following the manufacturer’s pump manual.
3. Air trapped in the system will automatically vent to
the pool and out the air relief valve. Close air relief
valve as soon as air is vented by turning the valve
counter-clockwise.
10411 80th Avenue Pleasant Prairie,WI 53158|Orders and Customer Care: 1-800-574-7665|Fax: 1-800-323-5932|Doheny.com
CHAPTER 3: FILTER MAINTENANCE
Filtering
1.
Filtration starts as soon as ow is steady through the
lter. As the lter cartridge removes dirt from the pool
water, the accumulated dirt causes a resistance to
ow. As a result, the gauge pressure will rise and the
ow will decrease.
2. Clean or replace the cartridge lter element when the
pressure rises 7-10psi above the starting pressure,
or when ow decreases below desired rate.
Remove/Reinstall Cartridge Filter Element
1. Removing Cartridge Filter Element: Shut the
pump off.
2. If lter is located below water level, close valves to
prevent backow of water from the pool.
3. Open air relief valve by turning it counter-clockwise
until loose.
4. Loose drain plug so water will drain.
5. Open locking ring counter-clockwise and remove
the lter element.
6. Lift out the cartridge lter element and clean or
replace if needed.
1. Reinstalling Cartridge Filter Element: Clean any
collected debris from the bottom of lter body.
2. Carefully place the cartridge lter element over
the tie rod and into lter body ensuring that the
cartridge sits evenly on the collector hub in bottom
of lter body.
3. Tighten locking ring by turning it clockwise. (Hand
tighten only.)
4. Now go back to the Starting the Filter section and
follow the remaining steps.
Cleaning Cartridge Filter Element
1. The cartridge lter element can be cleaned by
pressure washing with a garden hose. You can also
use attachments such as a Filter Flosser Cartridge
Cleaner (item #6304) or a Magic Filter Cleaning
Wand (item #1734). Note: The cartridge is easier
to clean when dry.
2. Allow the cartridge lter element to fully dry and
carefully brush pleated surface areas to remove
the ne dirt and particles.
3. Algae, suntan oil and body oils can form a coating
on the cartridge lter element pleats which may
not be thoroughly removed by hosing. To remove
such materials, use Doheny’s Cartridge Cleaner
(item #4848) solution to soak the cartridge
lter element in. Follow the PRECAUTIONARY
STATEMENTS and the DIRECTIONS FOR USE
on the back label of the cleaning solution.
5. Note: Having a spare cartridge lter element on hand
ensures that your lter will always be ready to
operate at peak efciency.
Winterizing the Filter
1. The lter should be drained and/or removed
from its operating location and stored in a cool, dry
place where temperatures are expected to fall
below freezing.
2. Remove and clean the cartridge lter element by
following the Remove/Install and Cleaning sections
of this manual. Reinstall cartridge lter element in
the lter tank.
3. Tighten locking ring by turning clockwise by hand.
Filter Specications
MODEL NO. 5166 5215
EFFECTIVE
FILTRATION AREA 150FT2200FT2
DESIGN-FLOW RATE 130GPM 150GPM
MAXIMUM WORKING 50PSI 50PSI
PRESSURE 3.5BAR 3.5BAR
REF PART DESCRIPTION No.
No. NUMBER REQ’D
1 47310303080 Locking Ring 1
2 47310304080 Locking Ring Latch 1
3 48860105 Drain Plug with Gasket 1
4 5432002080 Gasket 1
5 5024002000 Pressure Gauge 1
6 47310302080 Seal Cover 1
7 5431093080 O-Ring 1
8a 5022035000 Cartridge Element for 5215 1
8b 5022037000 Cartridge Element for 5166 1
9 473103010804 Body 1
10 9102607080 Plug with O-Ring 2 inch 1
11 5431030080 O-Ring 1
10411 80th Avenue Pleasant Prairie,WI 53158|Orders and Customer Care: 1-800-574-7665|Fax: 1-800-323-5932|Doheny.com

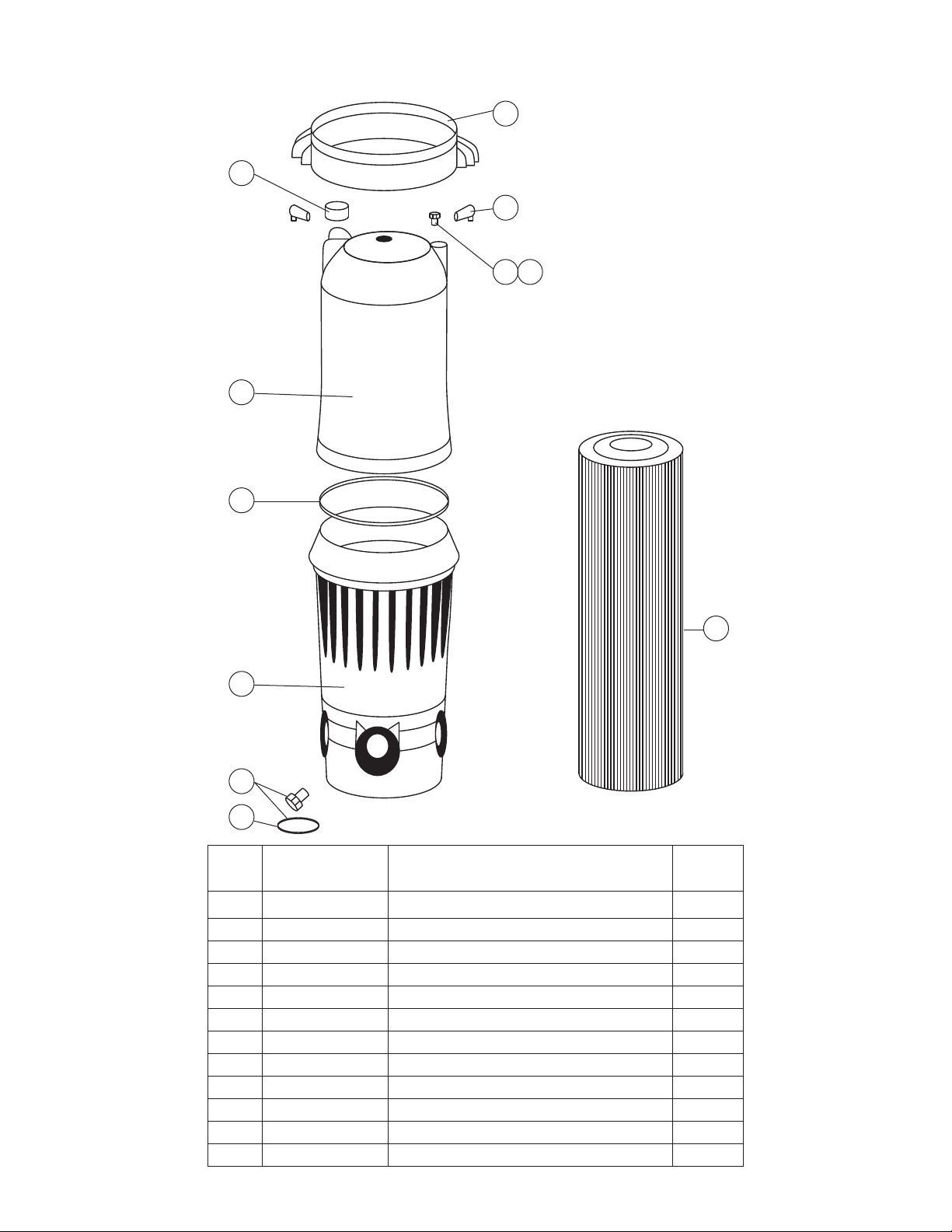

Inground Cartridge Filter Item # 5166 & 5215
2
1
5
6
7
9
10
11
3 4
8a
b
