USER MANUAL

Copyright 2014 DOD Tech

All Rights Reserved

C

1

CONTENTS

IMPORTANT SAFETY INSTRUCTION ................................................... 2

PACKAGE CONTENTS........................................................................... 3

CONTROLS AND FUNCTIONS............................................................... 4

INSTALLATION AND CONNECTION....................................................... 6

GETTING STARTED................................................................................ 7

INTRODUCTION OF OTHER FUNCTIONS............................................12

ON-SCREEN DISPLAY (OSD) MENUS ..................................................14

ADDITIONAL INFORMATION..................................................................16

2

IMPORTANT SAFETY INSTRUCTION

About the Product

Please do not install the product in places that may cause interference while driving.

Please do not install the product in a highly humid environment.

Due to high temperatures during summer, please do not expose the product to long

period of time, because it may reduce the product's lifespan.

Please avoid fierce impact upon the product.

About the car charger

To avoid damage, please do not constantly plug in and remove the car charger.

Ensure it is connected to a proper power source. The voltage requirements are

described on the car charger.

Please do not touch the car charger with wet hands.

If the car charger is damaged, it should be replaced immediately. Please do not try

to fix it on your own.

About the Battery

Only use the battery approved by the manufacturer.

There is a built-in battery, please avoid usage in high-temperature environments.

If the unit is damaged or malfunctions, don’t open it and don’t attempt to repair it.

Please contact DOD or DOD authorized local dealer.

Please keep the device dry and store it at lower temperature if it is not in use. When

the device couldn’t be turned on, please connect to power supply for a few minutes

before turn on the device.

Only use the car charger provided by manufacture, others might cause malfunctions

or danger.

3

Host computer User manual Stand

Car charger USB Data cable(optional)

HDMI Cable(optional)

1 2 3

456

*Supplied accessories may vary by region.

PACKAGE CONTENTS

4

5

1

9

7

8

10

11

2

3

4

6

CONTROLS AND FUNCTIONS

5

CONTROLS AND FUNCTIONS

1

2

3

4

5

6

7

8

9

Record/Shutter/OK/[ ]

When the unit is on Recording, press it for stop

Recording.

When it is at Camera Mode, press it for photo

shooting.

When it is at Playback Mode, press it for

playback pause and play.

When it is at Menu Setting, press it for

activating the selected OSD menu item.

Power/ [ ]

Turn on/off the unit.

AV Output Port

USB Port

Speaker

Reset Key

Reset to Manufacture Settings.

Micro SD Slot

Required a micro SDHC card, class 6 or above

Support 8~32GB.

Menu/SOS Emergency File Lock/[ ]

Turns on the On-Screen Display (OSD) menu,

Exits and saves menu setting. It is not activated

when the unit is on recording.

Please press [ ] to stop recording and back

to Standby Mode.

When the unit is on recording, press it for file

lock.

Mode/Mute/[ ]

It is not activated when the unit is on recording.

Please press [ ] to stop recording and back

to Standby Mode.

Toggle the unit among “Camera Mode”

“Playback Mode” and “Standby Mode”.

Press and hold [ ] until icon appears

during recording, the record audio turns off.

When the unit is on recording, Press [ ]

once to turn off the screen; Press any

buttons to wake up the screen.

Arrow Keys/[ ] , [ ]

When the On-Screen Display (OSD) menu is

activated, it is used as directional arrows to

select the desired menu items.

HDMI Output Slot

11

10

6

INSTALLATION AND CONNECTION

NOTE:

● Assemble the unit on to the bracket and mount the bracke on to the windshield glass.

● Only use the car charger proivided by manufacture,others might cause malfunctions or

danger.

● Please cautiously select the location where the unit weill be mounted,do not mount the

unit in places that may obstruct the driver's view or affect the normal operation of the

airbag.

● If grease,fingerprints,or blots are found on the external/internal windshield of the car,

please wipe it clean or install the unit on an unaffected area.Blots may worsen the

recording quality or may cause the bracket to be unstable.

7

Micro SD

GETTING STARTED

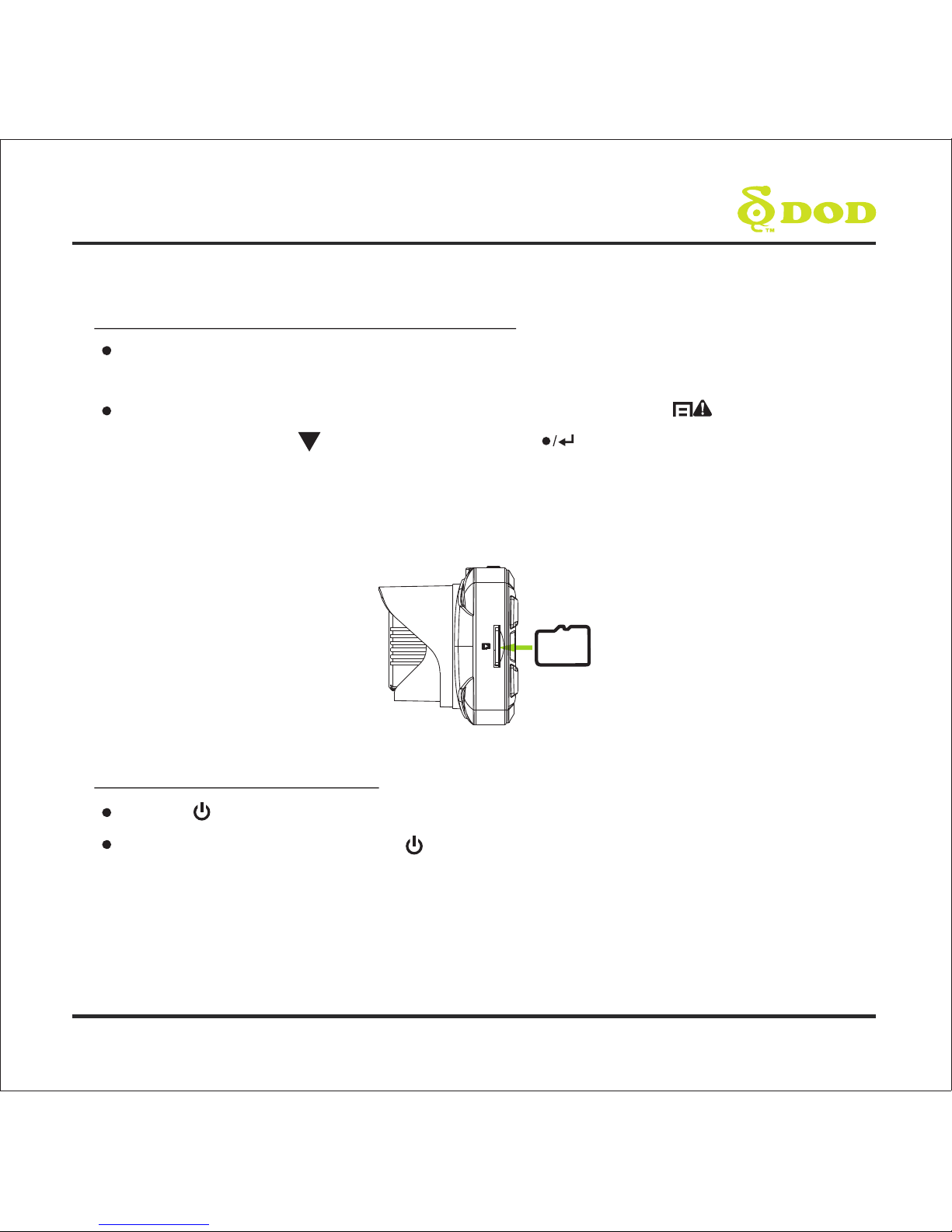

1. Insert a memory card (sold separately)

Please insert a micro SDHC card with class 6 or above, into the slot located on

the side of the unit.

Be sure to format the SD card before the initial use. Press [ ] twice to enter

System Settings, [ ] to Format, and press [ ] to start format.

* This Camera supports to 32GB Micro SD Card. Please contact with your local deal for

purchase information.

* Do not remove the memory card during recording and firmware update.

2. Turning the power on / off

Press [ ] button to turn the unit on.

To turn the unit off, press the [ ] button again.

* After the unit has been installed in your car, connect the car power adapter and start the engine;

the unit will automatically turn on.

8

3. Select language

Press[ ] twice to enter system settings,[ ]to Language.

Press[ ].

Press [ ]or[ ] to move to Language, and then press [ ] to select the desired

language.

* [ ] is not activated when the unit is on Recording Mode, please press [ ] to stop recording

and return to Standby Mode.

GETTING STARTED

4. Setting the date and time

Press [ ] Twice to enter System settings, [ ] to Date/Time.

Press [ ] .

Press [ ] / [ ] , then select [ ] to set Year, Month, Day, Time, and Format

fields.

Press [ ] .

* Automatically time calibration once GPS signal connected. (Activated by GPS mouse)
