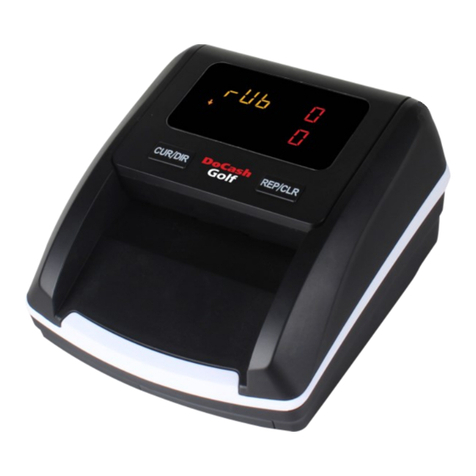

DoCash Golf Manual de usuario
Banknote detector
Детектор банкнот
DoCash Golf
User manual
Руководство по эксплуатации
РУССКИЙ
ENGLISH
DISCLAMER
Gamma-Center Company (hereinafter also referred to as the Company) makes all
reasonable provisions for correspondence of the contents of this document to the actual
version of the equipment and/or software of such equipment described. Nonetheless, the
description can differ from the real configuration and/or version, as constant
improvement and alteration of the equipment and/or software of such equipment is
possible to be carried out by the manufacturers.
During this document drawing up, all reasonable measures for excluding mistakes and
misprints in its text were taken; however, Gamma-Center Company accepts no
responsibility for possible inaccuracies, mistakes and/or misprints, which can be
contained in the text of this document.
Neither this document nor any of its parts, both in total and separately, shall not be
reproduced in written, electronic, or any other form without a special written permission
of Gamma-Center Company. The use of this document, as well as of any part thereof,
both in total and separately, is prohibited for any purpose except for operation,
maintenance, repairs, installation, commissioning, or modification of the equipment
described in this document and according to the information contained in it.
Gamma-Center Company, as well as each and any of its directors, partners, employees,
affiliates, workers, advisers or agents do not provide any statements or warranties,
explicit or implied, neither regarding the accuracy or completeness of this document
contents, nor any other associated information, which can be provided by the company
any time, nor regarding opinions and/or estimates expressed in this document or with
regard to it.
Gamma-Center Company, as well as each and any of its directors, partners, employees,
affiliates, workers, advisers or agents unconditionally disclaim any liability or obligations
regarding any loss, damage, expenditures, costs, or charges, direct or implicit, non-
recurrent or repeated, arising in any way out of the use of this document and/or
information contained hereby, as well as regarding any discrepancy of any declared
specification or functionality of the equipment and/or software from any personal
expectations of the user even in case the Company was informed about, or anticipated the
possibility of, the occurrence of loss, damage, expenditures, costs, or charges.
Neither this document nor the information contained hereby can be deemed a contract
between Gamma-Center Company and/or any other parties using this document, or a
basis of such a contract.
Further use of this document or equipment and/or software for any purposes
means complete agreement of a third party, including, without limitation, the user, with
the conditions expressed in this document.
2
TABLE OF CONTENTS
The present user manual contains a section with warranty certificate and warranty
terms and conditions. Please keep the present manual at least until the end of the
warranty period of the device.
www.docash.de
3
1. Safety instructions 4
2. Purpose of the detector 6
3. Declaration of Conformity 6
4. Specifications 7
5. Machine Overview 8
6. Operation and Function Introduction 9
6.1 Power Supply 9
6.2 Turn on/off the machine 9
6.3 Exit Banknotes Direction 10
6.4 Rules of Feeding Banknotes 10
6.5 Banknote Detection 11
6.6 Report 12
6.7 Operating Modes 12
6.8 Sleep (Power Saving) Mode 12
7. Maintenance 13
7.1 Maintenance instructions 13
7.2 Software Updates 13
8. Troubleshooting 14
8.1 Self Test Error Code Display 14
8.2 Error Codes After Calibration 15
8.3 Detective Error Code Display 15
8.4 Important Notices 17
9. Operation and Function Introduction 18
10. Transportation and storage 18
11. Complete Set 18
1. Safety instructions
Please read the safety instructions before use. Please read all warn-
ings and cautions carefully to avoid damage to the machine and
personal injury.
CAUTION!
1. Do not operate the machine in areas with high temperature or high
humidity since it may cause the unit to malfunction.
2. Do not disassemble this product. Incorrect re-assembly can cause
electric shock. Take it to qualify personnel if repair is required.
3. Before turning on the power, please make sure that there are no ob-
jects obstructing the operation of the rollers and wheels.
4. Unplug this product from the outlet before cleaning. Do not use liq-
uid cleaners or aerosol cleaners. Use a damp cloth for cleaning the cov-
er.
ELECTRICAL SAFETY!
1. To prevent shock hazard, do not disconnect the plug of the AC/DC
adapter when hands are wet.
2. To prevent fire or short circuit, unplug the unit if you want to move it
to another position.
3. Hold the plug disconnecting the unit from the power outlet, do not
pull the cord as it can be damaged.
4. Keep the AC/DC cord from damage. Avoid placing heavy objects on
the cord. Do not recommended load of the power supply.
5. The unit should be connected to a power supply through this type of
AC/DC adapter.
4
CAUTION!
1. The battery storage shall be in the clean and dry ventilation room at
the temperature of -5～35°C and shall keep out of fire or heat and avoid
touching corrosion elements.
2. When the battery is unused for a long period, please take the battery
out from the machine, and need to be recharged once every 6 months.
3. When the power is low, it will take 15 hours to be fully charged.
CAUTION!
Do not change the position of the optical sensors.
Thank you for choosing DoCash equipment.
DoCash offers a wide range of equipment for trade, service
and finance enterprises, including reliable and easy to use
banknote and coin counters, multifunctional and automated
currency detectors, vacuum and non-vacuum banknote
packagers and more. Detailed information on the whole range of
DoCash equipment is available at www.docash.de.
5www.docash.de
2. Purpose of the detector
DoCash Golf detectors are designed for simplifying your daily work
with banknotes and make it easier to recognize counterfeit money. The
currency detection techniques include infrared, ultraviolet,
magnetism, paper quality, thickness, spectrum, optics, etc.
3. Declaration of Conformity
The detector conforms to the following requirements:
CU TR 004/2011 «On safety of low-voltage equipment»;
CU TR 020/20112011 «Electromagnetic compatibility of technical
equipment».
6
4. Specifications
If the machine has some faults that you can’t solve, please contact the
Technical support of our company or our agent for services.
Products subject to change without further notice.
Types of detection Magnetism, Infrared, Anti Stokes (for RUB
only), UV, Paper quality, Thickness, Spec-
trum, Optics.
Dimensions 155x134x79 mm
Power supply 100~240 V AC 50/60 Hz
Operating tempera-
ture 0~40°C
Storage temperature -20~65°C
Display LED
Battery (optional) Rechargeable lithium battery 11,1 V
Power consumption <10 W
Speed 100 banknotes/min
Weight 0,57 kg
7www.docash.de
5. Machine Overview
8
6. Operation and Function Introduction
6.1 Power Supply
◆ DC Power: Connect the power adapter to a 110V or 220V out-
let, then connect the terminal to machine’s DC12V input socket.
◆ Lithium Battery (optional): When the battery was fully charged,
the machine can work without power adapter.
6.2 Turn on/off the machine
Turn the power switch on from the rear, machine will start self testing.
If the test is successful, the sheets display window will show the soft-
ware version. Next two “0” will respectively be showed on display win-
dow. In this mode, the detector is ready for using. (see Figure 1)
Turn the switch off to turn off machine.
Figure 1
9www.docash.de
6.3 Exit Banknotes Direction
If you want to change the output direction of the genuine notes, press
"CUR/DIR" button and hold it for about 2 seconds. The denotation of
direction will be shown on the left part of the display.
A means the genuine banknote will exit from the front while a
means genuine banknotes will exit from the rear.
Pressing the "CUR/DIR" button does not affect the output direction of
suspicious banknotes. The machine can memorize the last setting.
6.4 Rules of Feeding Banknotes
There is no limitation on side and direction of the banknotes to be de-
tected.
You could feed the banknotes by either side in any orientation. In case of
rejected banknote, please repeat testing three times.
If a note guide is not installed in the detector, the feeding of banknotes is
performed as follows: please insert the banknotes in left side as shown in
below pictures. If a banknote was incorrectly inserted, the machine will
refuse it and alert.
10
