QUICK REFERENCE

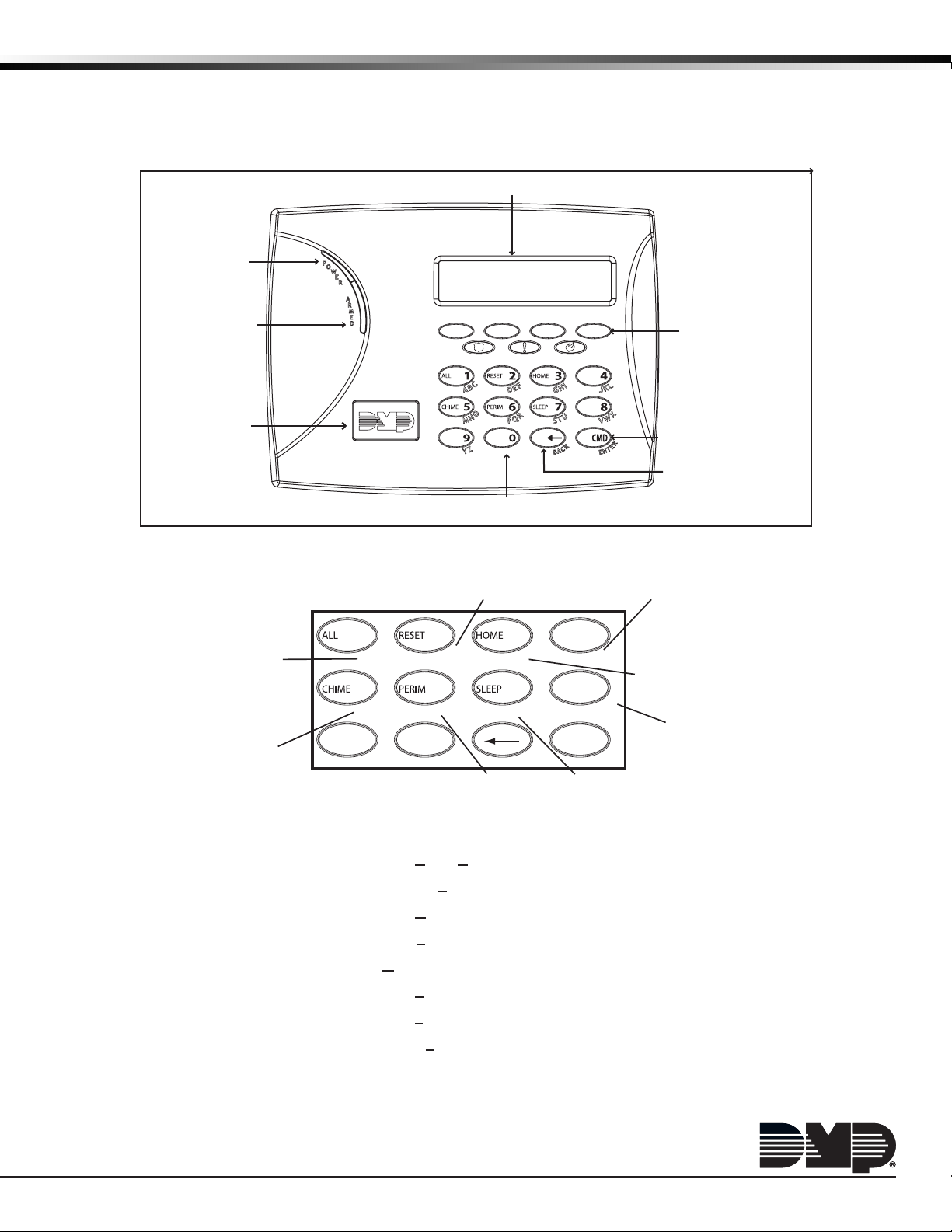

32-Character Display

Armed LED

Power LED

Data Entry Digit keys

COMMAND Key

Back Arrow Key

Select Keys

JONES RESIDENCE

FRI 12:51 PM

Backlit Logo

and Proximity

Antenna

1 2 3 4

9 0 CMD

5 6 7 8

Away

All Home

Monitor

(Chime)

Perimeter Sleep

Check-in Report

(Latch Key)

Sensor Reset

(Fire Reset)

Easy Exit

Keypad Key Arming System Operation

Press Key 1 Arm All or Away for Home/Sleep/Away systems

Press Key 2 Sensor (Fire) Reset on all systems

Press Key 3 Arm Home for Home/Sleep/Away systems

Press Key 4 Check-in Report on all systems

Press Key 5 Monitor (Chime) on all systems

Press Key 6 Arm Perimeter for All/Perimeter systems

Press Key 7 Arm Sleep for Home/Sleep/Away systems

Press Key 8 Easy Exit for Home/Sleep/Away systems

This quick reference guide is for use with DMP XT30/XT50 Series, XRSuper6, XR20 and XR40 panels.

800-641-4282

INTRUSION • FIRE • ACCESS • NETWORKS

www.dmp.com 2500 North Partnership Boulevard

Designed, Engineered and

Assembled in U.S.A. Springeld, Missouri 65803-8877

9101

Checking Zone status before

ARMING

If one or more zones are not in a normal condition, the keypad displays SYSTEM

NOT READY. Pressing any Select Key during this display shows the zone names that

are NOT READY.

ARM System 1. Enter your user code. The keypad displays ALL PERIM or HOME SLEEP AWAY

2. Select HOME or PERIM to arm the Perimeter only

3. Select SLEEP to arm the Perimeter and Interior (except bedroom areas).

4. Select ALL or AWAY to arm the Perimeter, Interior, and Bedroom.

5. If a problem exists on any zones, the zone name and problem display followed

by: OKAY BYPASS STOP.

a. Select OKAY to force arm the zone(s) before arming.

b. Select BYPASS to bypass the zone(s) before arming.

c. Select STOP to stop the system from arming. Correct and return to step 1.

6. The keypad next displays EXIT: ## INSTNT and begins to count down the number

of seconds remaining for you to exit.

7. You can select INSTNT while EXIT: ## INSTNT displays to immediately arm all

zones and remove entry/exit delay.

DISARM All Areas Enter your user code to disarm the system.

DISARM All Areas

(while in alarm)

1. Enter your user code

2. Keypad displays CANCEL VERIFY

3. If alarm is false, press Select key under CANCEL to cancel alarm.

4. If the alarm is valid or you are unsure of the cause of alarm, press the Select

key under VERIFY to alert the Monitoring Center that you verify the alarm they just

received.

Quick Arm HOME or PERIM Press Key 3 for 2 seconds to arm the perimeter.

Quick Arm AWAY or ALL Press Key 1 for 2 seconds.

Quick Arm SLEEP Press Key 7 for 2 seconds to arm the perimeter and interior areas and leave the

bedroom area off.

Turn Chime (monitor) on/off. Press Key 5 Chime (Monitor)

Sensor Reset

Press Key 2 for 2 seconds, then enter your user code if required to reset the system.

Your keypad may be congured to manually send a Panic, Emergency, or Fire alarm to the central station:

Police Alarm Press and hold the two Select keys adjacent to the Police button for 2 seconds,

until a beep from the keypad is heard.

Emergency Alarm Press and hold the two Select keys adjacent to the Emergency button for 2

seconds, until a beep from the keypad is heard.

Fire Alarm Press and hold the two Select keys adjacent to the Fire button for 2 seconds, until

a beep from the keypad is heard.

Top Row Select Keys

Police Emergency

Fire
