HOW-TO GUIDE:

ECP PASSTHRU

TABLE OF CONTENTS

ECP Passthru Overview .......................................................................................... 1

Procedure............................................................................................................................................................. 1

Required Materials............................................................................................................................................ 1

Step 1: Mount the Communicator......................................................................... 2

Step 2: Wire the Communicator........................................................................... 2

Step 3: Program the Vista Keypad....................................................................... 4

Step 4: Conﬁgure ECP Settings ........................................................................... 4

Remotely (Dealer Admin).............................................................................................................................. 4

Locally (Keypad)............................................................................................................................................... 5

Troubleshooting................................................................................................................................................. 5

Step 5: Remote Programming .............................................................................. 6

Set up Remote Link.......................................................................................................................................... 6

Add the VISTA Panel in Compass............................................................................................................... 7

Set Up Communication in Compass.......................................................................................................... 8

Conﬁgure TCP/IP Settings in Compass.................................................................................................... 9

Reference ................................................................................................................. 10

Virtual Keypad.................................................................................................................................................... 10

VISTA Panel Compatibility ............................................................................................................................ 11

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 1

ECP PASSTHRU OVERVIEW

CellCom and DualCom Universal Communicators enable you to take over and manage ECP panels with

connection to the ECP Bus. This feature is called ECP Passthru.

This guide is designed to walk you through ECP passthru installation and setup. For more complete

information, refer to the CellCom Installation Guide (LT-1817) or the DualCom Installation Guide (LT-1859).

Procedure

The installation must follow this procedure:

Step 1: Mount the communicator.

Step 2: Wire the communicator.

Step 3: Program Vista keypad device address 20

Step 4: Configure ECP settings (remotely or locally)

Required Materials

The following software and hardware components are required to perform system takeovers:

• Compatible Honeywell VISTA panel (refer to “VISTA Panel Compatibility”)

• CellCom or DualCom with minimum ﬁrmware Version 202

• (Optional) Programming keypad with Model 330 or Model 330-24V programming cable

• (Optional) Cat 5 Ethernet cable

• 18-22 AWG unshielded wire (RYGB)

• Remote Link minimum Version 2.02

+DC- Z1 Z2 Z3 GT R

+Z4- O1 O2

PROG

RESETLOAD

+DC- Z1 Z2 Z3 GTR

+Z4- O1 O2

CellCom or DualCom

DC Power

Zones 1 - 4

Tip 1

Output 1

Output 2

Ring 1

ETHERNET

Mounting Holes

Cellular Antenna

SMA Connector

Cell Modem

Tamper

Programming Connection

Terminal Block

Load and Reset Buttons

IPower and Armed LEDs

JEthernet (DualCom only)

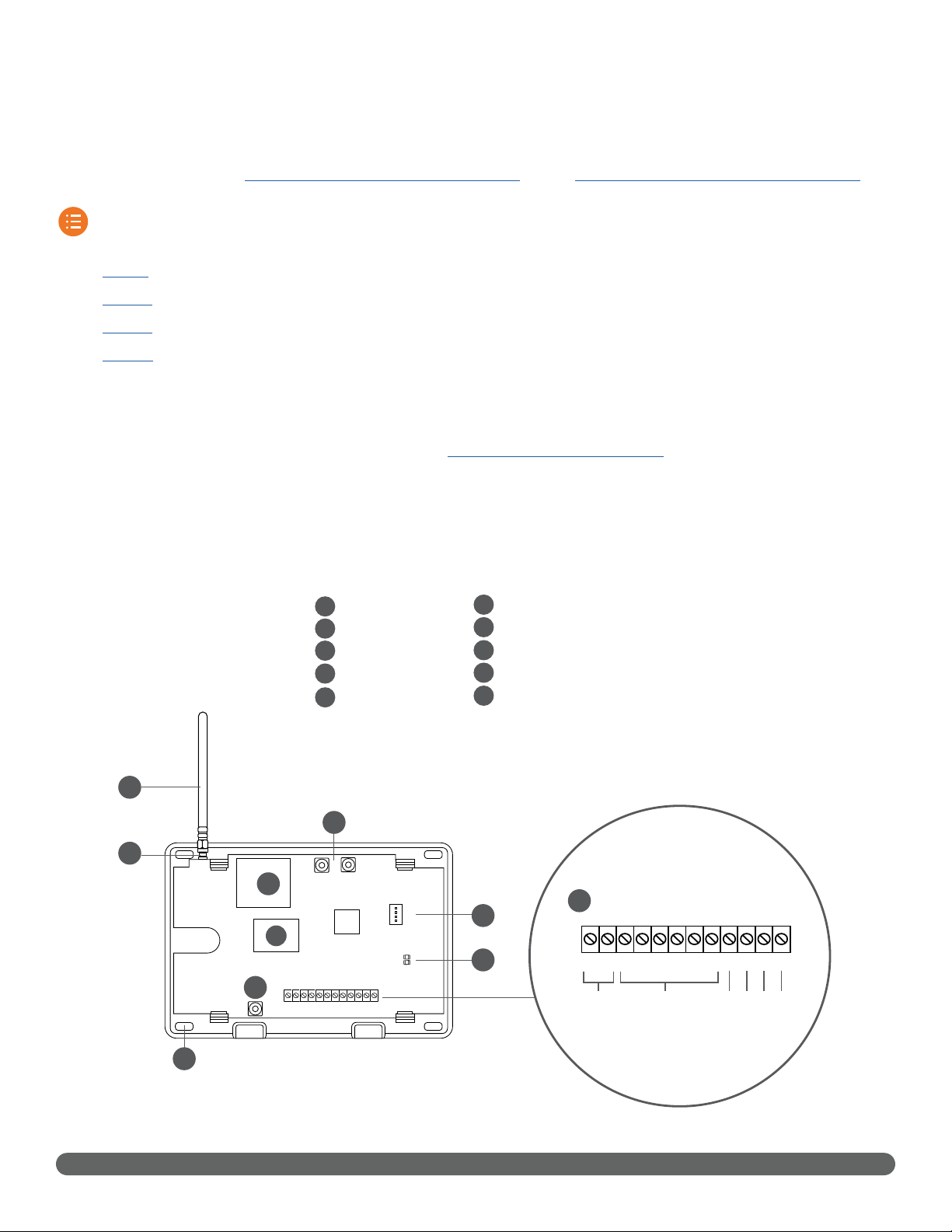

Figure 1: CellCom and DualCom Components

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 2

STEP 1: MOUNT THE COMMUNICATOR

It is not necessary to remove the PCB from the housing when installing the communicator.

The communicator should be mounted to a wall using the included #6 screws in the mounting holes. Refer

to Figure 1 for mounting hole locations.

Mount the communicator in a secure, dry place to protect it from tampering and weather damage. If using a

685 Series Conduit Backbox, refer to the 685 Installation Sheet (LT-1431) for mounting instructions.

STEP 2: WIRE THE COMMUNICATOR

The communicator can be connected to the ECP Bus of a VISTA panel. See Table 1 and Figure 2 for the

necessary wiring connections.

Caution: Remove all AC and battery power from the panels before wiring.

1. Attach the antenna to the SMA connector. Refer to Figure 1.

2. Connect system batteries as needed, then connect the panels to an appropriate power source.

3. Connect a programming keypad to the communicator.

a. For 12VDC applications, connect the keypad to the communicator PROG header with a Model330

programming harness.

b. For 24VDC applications, connect the keypad to the communicator PROG header with a

Model330-24V programming harness with an in-line resistor.

4. After programming is complete, remove the keypad and replace the housing cover on the mounted base.

Note: Address 1is reserved by the system for programming keypads.

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 3

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

++–

TIP

(BROWN)

RING

(GRAY)

TIP

(GREEN)

RING

(RED)

BLACK

RED

SYNC

COM

DATA

(USE SA4120XM-1

CABLE)

1 2 3 4 5 6 7 8

OUT 17

+12 AUX

GND

OUT 18

VISTA 20P ONLY

VISTA-20P

From DC+

From DC–

From Z4+

From Z4-

To Data In (6)

To Data Out (7)

To Negative (4)

To Positive (5)

+DC- Z1 Z2 Z3 GTR

+Z4- O1 O2

CellCom or DualCom

RED

BLACK

GREEN

YELLOW

RED

BLACK

GREEN

YELLOW

RED

BLACK

GREEN

YELLOW

Figure 2: ECP Wiring

Communicator to ECP Wiring

Com Series ECP Bus Typical Color

+DC Keypad Power Red

-DC Keypad GND Black

Z4+ Data Out Green

Z4- Data In Yellow

Table 1: Wire Connections

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 4

STEP 3: PROGRAM THE VISTA KEYPAD

In this step, you will program VISTA Keypad 5 Device Address 20. This enables the VISTA panel to

communicate with a CellCom or DualCom. This step must be performed locally at the VISTA panel.

1. Power down and then power up the VISTA panel.

2. Within 1 minute of powering up the VISTA panel, simultaneously press and hold the #and *buttons on

the keypad.

3. The keypad displays INSTALLER CODE. Enter the installer code (default is 4112), followed by 800.

4. Enter *193, then enter 1 0.

5. To save and exit programming, enter *99.

STEP 4: CONFIGURE ECP SETTINGS

For the communicator to properly process data from the VISTA panel, keypad input must be set to ECP. You

can perform this programming remotely with Dealer Admin or locally with a programming keypad.

Remote programming requires communicators with firmware Version 212 or higher. Local configuration

requires communicators with firmware Version 202 or higher.

During configuration, refer to “Troubleshooting” for programming messages and troubleshooting steps.

Remotely (Dealer Admin)

Before programming, ensure the ECP panel’s IP address is set as default.

1. Go to Customers.

2. Find and select the system name.

3. Go to Full Programming > System Options.

4. In Keypad Input, select ECP.

5. In ECP Partition, enter the number of the partition where you want the communicator to operate.

6. Press Begin ECP Setup.

7. If the host panel is a VISTA 128, turn on VISTA 128.

8. Enter the host panel’s installer code in VISTA Installer Code.

9. Press Begin.

10. After setup is complete, Dealer Admin automatically retrieves zones from the host panel. If you need to

retrieve zones again later, open System Options and select Get Zones.

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 5

Locally (Keypad)

To advance through the programming menu, press CMD. To go back, press the Back Arrow key. To enter a

menu, press any select key or area. To select an option, press the select key or area under that option.

Before programming, ensure the ECP panel’s IP address is set as default.

1. Power up or reset the communicator.

2. At the communicator keypad, enter 6653 (PROG) and press CMD.

3. Advance to SYSTEM OPTIONS, then press any select key or area to enter the menu.

4. Advance to KYPD INPUT, then press any select key or area.

5. Select ECP by pressing the third select key or area under that option.

6. At ECP PARTN NBR, enter the number of the partition where you want the communicator to operate.

Range is 1 - 8. Default is 1.

7. To save programming, advance to STOP and press any select key or area.

8. At the communicator keypad, enter 2313 (DIAG) and press CMD.

9. Advance to ECP SETUP and press any select key or area.

10. At ECP SETUP VISTA 128?: If the panel is a VISTA 128, select YES. Otherwise, select NO.

11. At INST CODE, enter the ECP panel installer code and press CMD.

12. After configuration is finished, the keypad advances to GET ZONES. Press any select key or area.

As the communicator retrieves zones from the ECP panel, the number of zones is displayed and incremented

as ZONE CT (zone count).

Troubleshooting

Message Meaning Next Steps

PROGRAMMING The communicator is attempting to

configure ECP panel programming

settings for ECP Passthru.

Wait for the configuration attempt to complete.

Afterward, a programming status message is

displayed (success, fail, or busy).

PROGRAM SUCCESS The ECP panel has been successfully

configured.

Finish configuration at GET ZONES.

PROGRAM FAIL The ECP panel could not be

programmed.

Check wiring connections and communication

settings, then retry programming.

BUS IS BUSY The ECP panel could not be

programmed due to high ECP bus

traffic.

Wait and retry programming or reduce traffic on the

ECP bus, then retry programming.

Table 2: Programming Messages and Troubleshooting

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 6

STEP 5: REMOTE PROGRAMMING

Starting with Remote Link™ Version 1.93, you can connect a customer’s Honeywell VISTA® panel with

CellCom, DualCom, or iComSL Series communicators using Honeywell’s Compass® software and Remote

Link.

Set up Remote Link

The following instructions assume that you already have a basic communicator account added to your

Remote Link accounts. To enable ECP Passthru for that account, complete the following steps.

1. Right-click Remote Link and select Run as administrator.

2. Double-click the communicator account to open it.

3. Go to Program > System Options.

4. To enable communication, go to Keypad input and select ECP. Press OK.

5. Go to File > Panel Information.

6. In Connection Information, enter the VISTA account number in Ecp Acct.

7. Press OK.

8. Go to ECP Passthru > ECP Start/Stop Server.

9. Minimize Remote Link.

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 7

Add the VISTA Panel in Compass

1. Open Compass.

2. In the lower right corner of the Customers page, select Add. The Customer Detail window opens.

3. In Subscriber Data, enter a Receiver number and Account number.

4. In the Panel Data section, select the VISTA panel model and revision number.

5. In Network Device MAC Addr, enter FFFFFF.

6. Press OK.

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 8

Set Up Communication in Compass

1. In Customers, double-click the account that you created in the previous section.

2. The Panel Editor opens. Go to Tools > Communications.

3. Go to File > Communication Settings.

4. Select TCPIP Port Settings.

5. To ensure that Compass uses a TCP/IP connection, select a TCP/IP port.

6. Press Add.

7. Back in Communication Settings window, select Apply.

8. Press OK.

478

Otros manuales para Com Series

Tabla de contenidos

Otros manuales de Teléfono móvil de DMP Electronics

DMP Electronics

DMP Electronics iComSL Manual de usuario

DMP Electronics

DMP Electronics CellCom-LTE-V SERIES Manual de usuario

DMP Electronics

DMP Electronics 263CSMX Instrucciones de montaje

DMP Electronics

DMP Electronics CellCom-LTE-V SERIES Guía de instalación

DMP Electronics

DMP Electronics DUALCOM Series Manual de usuario

DMP Electronics

DMP Electronics CELLCOMSL SERIES Guía de instalación

DMP Electronics

DMP Electronics 464-263H Instrucciones de montaje

DMP Electronics

DMP Electronics 263LTE-FN Manual de usuario

DMP Electronics

DMP Electronics 263LTE X1 Series Instrucciones de montaje

DMP Electronics

DMP Electronics XR500 SERIES Manual de usuario

DMP Electronics

DMP Electronics 263H HSPA+ Instrucciones de montaje

DMP Electronics

DMP Electronics CellCom SLC Manual de instalación y funcionamiento

DMP Electronics

DMP Electronics CellComSLCF Instrucciones de instalación y funcionamiento

DMP Electronics

DMP Electronics CellCom LTE Series Manual de usuario

DMP Electronics

DMP Electronics CELLCOMEX Com Series Guía del administrador

DMP Electronics

DMP Electronics 263LTE-V Manual de usuario

DMP Electronics

DMP Electronics 265HCAN Manual de usuario

DMP Electronics

DMP Electronics DUALCOM Series Manual de instalación y funcionamiento

DMP Electronics

DMP Electronics 464-263C Instrucciones de montaje

DMP Electronics

DMP Electronics iComSL Series Guía de instalación

DMP Electronics

DMP Electronics 265LTE-V Manual de usuario

DMP Electronics

DMP Electronics Com Series Guía del administrador

DMP Electronics

DMP Electronics CellComRT Manual de usuario

DMP Electronics

DMP Electronics 263LTE-V5 Manual de usuario

Manuales populares de Teléfono móvil de otras marcas

Zte

Zte BLADE A520 Manual de usuario

Nokia

Nokia Lumia 620 Manual de usuario

Blackbe;rry

Blackbe;rry KEYone Manual de usuario

Bea-fon

Bea-fon X5 Premium Manual de usuario

Blackbe;rry

Blackbe;rry 8707 Series Manual de usuario

Blackbe;rry

Blackbe;rry Storm Instrucciones de funcionamiento

LG LM-X420QN Manual de usuario

LifeWatch

LifeWatch V Manual de usuario

Bea-fon

Bea-fon SILVER LINE SL860 Manual de usuario

IKI Mobile

IKI Mobile KF4.5i Manual de usuario

Hitech

Hitech HT-850 Manual de usuario

Yezz

Yezz Fashion F10 Manual de usuario

Point Mobile

Point Mobile PM60 Manual de usuario

Blackbe;rry

Blackbe;rry Q10 Manual de usuario

Blackbe;rry

Blackbe;rry Bold 9900 Manual de usuario

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manual de usuario

LG LM-K420EMW Manual de usuario

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manual de usuario
