DLab MX-T6-Pro Manual de usuario

Tube Roller

User Manual

MX-T6-Pro LCD Digital Tube Roller

MX-T6-S Classic Tube Roller

Please read the User Manual carefully before use, and

follow all operating and safety instructions!

Technical specifications and outline are subject to change

without prior notice.

www.dlabsci.com

Contents

Preface................................................................................. 1

Service................................................................................. 1

Warranty.............................................................................. 1

1. Safety Instructions....................................................... 2

2. Proper Use................................................................... 3

3. Inspection.................................................................... 3

3.1 Receiving Inspection.............................................. 3

3.2 Listing of Items ...................................................... 3

4. Control and Display.................................................... 4

4.1 Control................................................................... 4

4.2 Display ................................................................... 5

5. Operation..................................................................... 6

6. Faults........................................................................... 6

7. Maintenance and Cleaning.......................................... 7

8. Associated standards and regulations.......................... 7

9. Specifications.............................................................. 8

10. Ordering Informations................................................. 9

Preface

Welcome to the “Tube Roller User Manual”. Users should

read this manual carefully, follow the instructions and

procedures, and beware of all the cautions when using this

instrument.

Service

When help needed, you can always contact the service

department of manufacturer for technical support in the

following ways:

Please provide the customer care representative with the

following information:

·Serial number ( on the rear panel )

·Certification

·Description of problem ( i.e., hardware or software )

·Methods and procedures adopted to resolve the

problems

·Your contact information

Warranty

This instrument is warranted to be free from defects in

materials and workmanship under normal use and service,

for a period of 24 months from the date of invoice. The

warranty is extended only to the original purchaser. It shall

not apply to any product or parts which have been damaged

on account of improper installation, improper connections,

misuse, accident or abnormal conditions of operation.

For claims under the warranty please contact your local

supplier. You may also send the instrument directly to

manufacturer, enclosing the invoice copy and by giving

reasons for the claim.

2311 E. Locust Court, Ontario, CA 91761 United States.

Office: +1-747-230-5179

Fax: +1-909-230-5275

Sales contact: [email protected]

Service contact: [email protected]

www.dlabsci.com

DLAB Scientific Instrument Inc.

1. Safety Instructions

Warning!

•Read the operating instructions carefully

before use.

•Ensure that only trained staff works with the

instrument.

Protective ground contact！

•Ensure the socket must be grounded

(protective ground contact) before use.

•When working wear personal safety guards to avoid

the risk of:

-Splashing liquids

-Broken glass containers

•Follow the safety instructions, guidelines and accident

prevention regulations.

•Do not touch the running parts, moving instrument

care not rolling your fingers.

•Set up the instrument in a spacious area on a stable,

clean, non-slip, dry and fireproof surface. Do not

operate the instrument in explosive atmospheres, with

hazardous substances or under water.

•If the instrument does not run smoothly, please

decrease the motor speed.

•Firmly secure the accessories and vessels in place to

avoid damage or risk.

•Preparation of samples may lead to dangerous

flammable. Only process samples that will not react

dangerous.

•Use the standard accessories listed in the “accessories”

section, and follow the instructions to use accessories

to ensure safety. Please switch off the power before

assembly of accessories, confirm the instrument and

accessories are intact before switch on each time.

•The instrument only be opened by expert，please

switch off before use.

•The voltage stated on the nameplate must correspond

to the mains voltage.

•Do not cover the instrument during running. Prevent

the collision and extrusion to instrument and

accessories.

•Keep away from high magnetic field.

2. Proper Use

The instrument is designed for mixing sticky substance in

schools, laboratories or factories. It can be installed on a

variety of impeller, for different viscosity of the medium.

This instrument is not suitable for using in residential areas

or other constraints mentioned in Chapter 1.

Do not use the accessories recommended by the

manufacturer, or failure to use the instructions, may be

caused unsafe situation.

3. Inspection

3.1 Receiving Inspection

Unpack the instrument carefully and check for any damages

which may have arisen during transport. If it happens,

please contact manufacturer/supplier for technical support.

Note:

If there is any apparent damage to the system,

please do not connect to the power line.

3.2 Listing of Items

Items

Qty

Main unit

Power cable

User manual

Table 1

4. Control and Display

4.1 Control

Power switch

Rollers

LCD display Speed / Timer control knob

Figure 1

Power switch

Speed /timer

control knob

LCD display

Mode switch button

Power/Overload

protection light

Speed/timer

light

Figure 2

Items

Default settings

Mode switch

button Mode

Shift speed and time display.

Speed /timer

control knob

Set speed and time by rotating

speed/timer control knob. Push on/off

to start/stop rotating function.

Speed/timer light

Speed/Timer

Green/Red LED display light. Different

colors of LED light show the value for

speed or time that LCD screen

currently displays. Green LED light

shows that LCD screen currently

displays speed. Red LED light shows

that LCD screen currently displays

time.

Power/Overload

protection light

Power/Overload

Green/Red LED display light.

LED light shows green when switch

on, LED light shows red when starts

overload protection. When the torque

reaches limited value, overload

protection function will be started. At

the same time overload protection light

flashes, while the system stops running.

LCD display

LCD displays the real working state

and all setting values.

Power switch

I/O

Switch ON or OFF the instrument.

Table 2

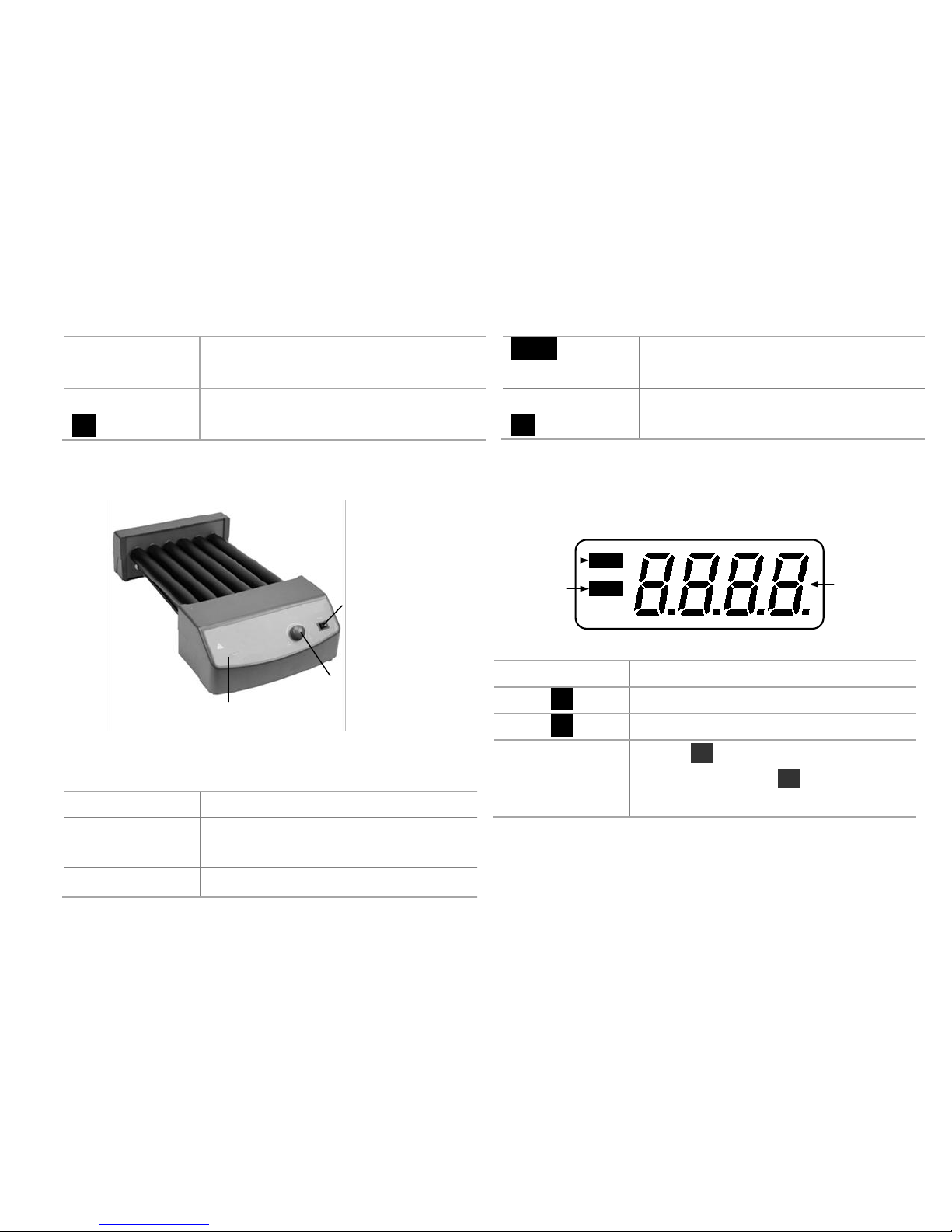

Power switch

Speed control knob

Power light

Figure 3

Items

Default settings

Speed control

knob

Rotating speed control knob to

start/stop rotating function.

Power light

Green LED display light.

Power

LED light shows green when switch

on.

Power switch

I/O

Switch ON or OFF the instrument.

Table 3

4.2 Display

Set

Err Display

Faults

Set

Figure 3

Display

Descriptions

Set

Display when set target value.

Err

Display in case of error happening.

Display area

When Set display, this area shows

setting value; When Set disappears, this

area shows running value.

Table 4

5. Operation

•Place the Rotator in safe and stable surface, ensure the

required operating voltage and power supply voltage

matched, and the socket must be earthed reliably.

•Connect the power cable.

•Switch ON instrument.

•The instrument begins self-checking.

•When initialization is over, LCD displays the last

running values of speed.

•Rotate the speed/timer control knob to set target speed.

a. Press the speed/timer control knob to start

rotating function. Press the speed/timer control knob

again to stop rotating function.

b. Press the mode switch button, LCD displays time,

and then rotating the speed/timer control knob to set

target time. Press the speed/timer control knob to start

rotating function at the set time. During operation,

motion can be stopped at any time by pressing the

speed/timer control knob. If the knob is pressed again,

motion will start again and the timer will restart

countdown. When the timer reaches zero, the unit will

be automatically halted and an alert will sound.

If these operations above are normal, the instrument is

ready to operate. If not, the instrument may be damaged

during transportation, please contact technical support of

manufacturer/supplier.

Note:

The set values can be altered at any time.

6. Faults

•Instrument cannot be powered ON when start rotating

function.

Check whether the power cable is connected.

•Rotating function suddenly stop

Power/overload protection light changed to red,

LCD displays “Er 03”, indicate the current failure

is “overload protection”.

Pressing the speed/timer control knob first to

close rotating function, and then restart rotating

function after lowered load. If rotating function

cannot start, then repeat the process and gradually

reduce load.
