Dji Phantom 2 Vision + Manual de usuario

Place the Phantom on its head

(make sure battery is removed)

Remove jack plug out of the camera

Pull the frame careful out of the rubber holders

(Careful: there is a wire connected to the camera)

Manual DJI Phantom 2 Vision Dronexpert Gimbal

All manuals and user guides at all-guides.com

all-guides.com

Disconnect the camera connector

Remove the frame for the Phantom body

You will have now removed camera and frame:

All manuals and user guides at all-guides.com

Remove white rubber cover and loosen (remove) the screw

Remove the vision camera from the frame

Remove the plastic inlay

All manuals and user guides at all-guides.com

Place screw back screw with the inlay in the frame so you do not lose it.

Place the outside rubber cover back on the Vision camera.

Overview photo

All manuals and user guides at all-guides.com

Now take the gimbal and included parts out of the case

Put rubber tubes in the camera (where screws are located). Press the

tubes all the way down to the end.

Place the camera (jack) connector as show on the images

All manuals and user guides at all-guides.com

Place the screws in the rubber tubes as shown on the image

All manuals and user guides at all-guides.com

all-guides.com

All manuals and user guides at all-guides.com

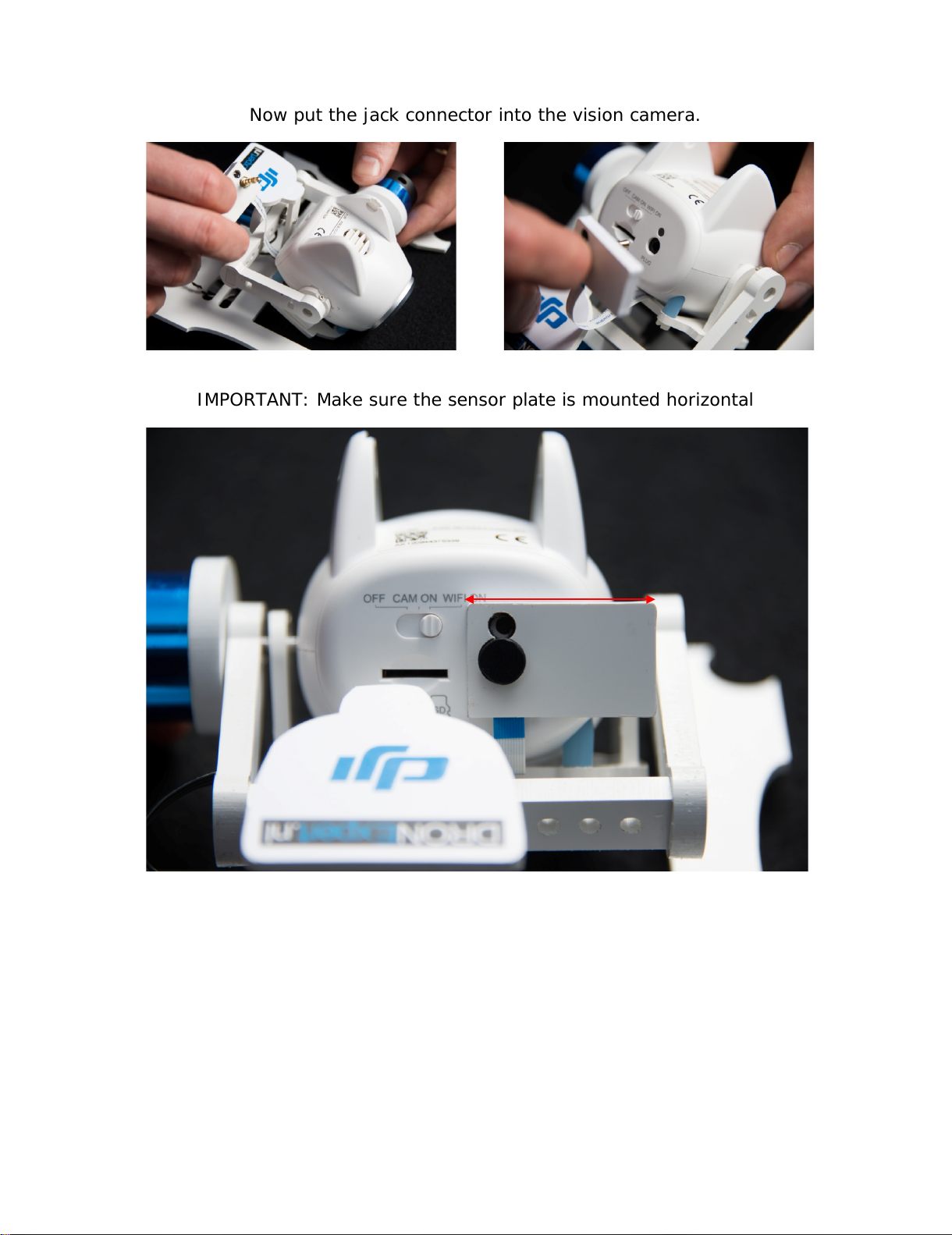

Now put the jack connector into the vision camera.

IMPORTANT: Make sure the sensor plate is mounted horizontal

All manuals and user guides at all-guides.com

Paste the cable extender on the belly of the Phantom as shown on the

image and connect it. Make sure you keep enough space for you Phantom

battery.

Move your compass to a lower position

All manuals and user guides at all-guides.com

Paste dampers in the corners of the landing gear as shown below

Now place the gimbal mount between the landing gear, first one side then

the other side. The landing gear of the Phantom is quite flexible. The right

landing gear and pull it with fixed-close strength aside and place the

mount on its place as shown on the image below

All manuals and user guides at all-guides.com
