Dji S800 Manual de usuario

Spreading Wings S800

User Manual

V 1.6

2012.10.25 修改

www.dji-innovations.com

Disclaimer

Read this disclaimer carefully before using Spreading Wings S800. By using this product, you hereby

agree to this disclaimer and signify that you have read them fully. Spreading Wings S800 is an excellent

multi-rotor. With a good autopilot, it will offer tremendous flight features. Despite the controller of DJI

autopilot operate in the safest manner when the main power battery is connected, we strongly

recommend customers to remove all frame arms, and keep children away during system calibration and

parameter setup.

As DJI Innovations has no control over use, setup, final assembly, modification (including use of

non-specified DJI parts i.e. motors, ESCs, propellers, etc.) or misuse, no liability shall be assumed nor

accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all

resulting liability.

DJI Innovations assumes no liability for damage(s) or injuries incurred directly or indirectly from this

product usage.

DJI Spreading Wings is registered trademark of DJI Innovations. Names of product, brand, etc.,

appearing in this manual are trademarks or registered trademarks of their respective owner companies.

product or manual shall be reproduced in any form without the prior written consent or authorization of DJI

Innovations. No patent liability is assumed with respect to the use of the product or information contained

herein.

S800 Profile

DJI Spreading Wings S800 is a multi-rotor designed for AP. It simplifies users’ installation and enables

quick disassembling. Frame arm integrates with ESC and motor. With DJI WKM autopilot system, it can

achieve hovering, cruising and other flight elements. S800 can be applied for aerial photography and

other aero-modeling activities.

350mm(Lenghth)

320mm(Height)

415mm(Width)

145mm

(Top Width)

240mm(Diameter)

500mm(Length)

Contents

Disclaimer.......................................................................................................................2

S800 Profile....................................................................................................................3

Contents.........................................................................................................................4

Product Usage Cautions.................................................................................................5

In Box.............................................................................................................................6

Tools Needed .................................................................................................................6

Center Frame Wiring......................................................................................................7

Mount Center Frame ......................................................................................................8

Mount Frame Arms.........................................................................................................9

Mount Bi-pod................................................................................................................11

Assembly......................................................................................................................13

ESC Sound...................................................................................................................14

Specifications ...............................................................................................................14

Appendix ......................................................................................................................16

Mount Battery Bracket...........................................................................................16

Trouble Shooting...................................................................................................17

Spare Parts Listing................................................................................................18

Product Usage Cautions

When flying, the fast rotating propellers of S800 may cause serious damage(s) and injuries.

Therefore, please fly with a high safety in mind at all time.

Mount Attention

Mount GPS with a bracket, to avoid interference from the power board of center frame.

For IMU position, make sure the arrow direction marking is pointing to the aircraft nose.

The receiver is recommended strongly to be installed under the bottom board of center

frame, and the head of antenna is downward without any obstacle. The aircraft will be out of

control, since the wireless signal may be lost by the obstacle.

Mount the arms correctly.

Center frame Arm

For removing screws in the bottom board, please proceed with cautious, avoiding

damages. Do not remove any other screws fixed with glue.

Notice matching the indications is very important, please pay attention to them.

Flight Attention

With DJI WKM autopilot system, make sure the output signal of WKM F1~F2 and M1~M6 are

all normal, to avoid serious damage(s) and injuries.

Keep flying multi-rotor a distance from people, building, high-voltage lines, etc.

Make sure to use 6S LiPo power battery.

Do not get close to or touch the working motors and propellers, which will cause serious

injury.

Do not over load the multi-rotor.

Make sure the propellers and the motors are installed correctly and firmly before flying.

Make sure all parts of S800 are in good condition before each flight. Do not fly with wore or

broken parts.

Strongly recommend you use DJI parts as much as possible.

Others

If you have any problem you cannot solve, please contact agents or DJI customer service.

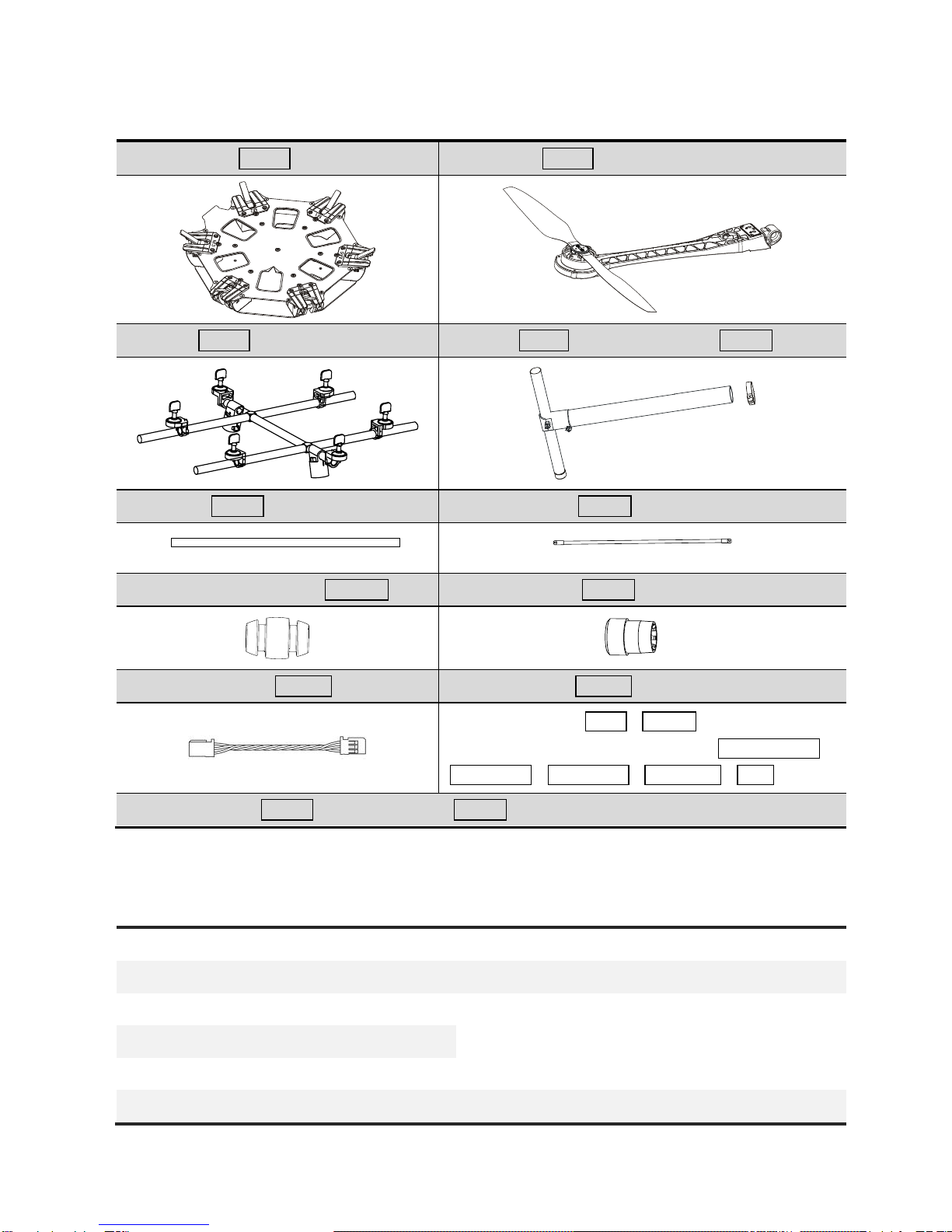

In Box

Center Frame 800CF×1

Frame Arm 800FA×6

H Frame 800HF ×1

T Frame 800TF×2,Aluminum Ring 800AR×2

Base Pipe 800BP×2

Bi-pod Drawbar 800BD×4

Silicone Rubber Damper 800SRD×4

Nonslip Damper 800ND×4

3-PIN Servo Cable 800SC ×1

Screw Package 800SP ×1

Hexagonal screws: M3×8、M2.5×5

Hexagonal socket head cap screws: HC-M3.0×22 、

HC-M2.5×5、HC-M2.5×8、HC-M3×8、T2×9

Adhesive Velcro 800AV ×1, Battery Band 800BB ×2

Tools Needed

2.0mm Hex Wrench, 2.5mm Hex Wrench

For mounting screws.

Screw Glue

For fastening screws.

Nylon Cable Tie

For binding devices and wires.

Scissors

Diagonal Cutting Pliers

Foam Double Sided Adhesive Tape

For fixing receiver, controller and other modules.

Center Frame Wiring

Top board is power distribution board, and the bottom board is for loading autopilot system components.

Top Board

Bottom Board

Buckle

Slot

BATT

GIMBAL

IMU Front

Aircraft Nose

To Battery

To PMU

XT60 Male

XT60 Female

To Gimbal

Motor clock-wise

ESC signal outlet

To main controller

Mark

IMU mount position

Circuit line

Parallel

Motor number

Mark

Motor count clock-wise

Mark

Top Board

Notices:

For IMU position, make sure the arrow direction marking is pointing to the aircraft nose.

Connect the motor 3-pin connector (M1~M6) from WKM M.C. to ESC signal socket (M1~M6) on

center frame markings accordingly.

(WKM M.C. M1 ESC signal socket M1, …… , WKM M.C. M6 ESC signal socket M6)

Tips:

Main battery power leads, gimbal and PMU leads are on the bottom surface of the top board.

Markings and stand for the propeller rotation direction. means clock-wise, and means

counter clock-wise.

If you need other lead connector, please cut the original connector and solder on the new connector.

(But not Recommend)

Mount Center Frame

Remove Screws

Fix Screws

Step1: Mount IMU module into IMU position in the center frame. Ensure IMU casing is out of touch the

top board edge, as vibration can cause IMU mal-function.

Step2: Please mount DJI Autopilot System parts onto the bottom board (not including GPS modules).

Please remove all the screws from the bottom board first if necessary.

Step3: ConnectAutopilot System and receiver. Please refer to DJI WKM User Manual for details.

Step4: Please mount the screws to bottom board, and use adequate screw glue.

Step5: Mount the GPS on the top board with a bracket.

Step6: Configure Autopilot System. Please refer to DJI WKM User Manual.

Notices:

Make sure to mount the IMU module at the IMU position first.

Mount the GPS with a bracket, to avoid interference from center frame power board.

Ensure the USB port of the M.C. outwards for easy access.

Please wire neatly. Make sure wires will not be cut by the edge of frames.

Tips:

Install screws with appropriate strength to prevent damage threads.

Mount Frame Arms

Step 1

Step 2

Motor rotation direction

Clock-wise

Counter clock-wise

Motor

ESC

LED

Red

Green

Copper contacts

Cover

Screw

Propeller

(1)

800CF　×1

800FA　×6

Step 3

Step 4

Step 5

(2)

800CF　×1

800FA　×6

800CF　×1

800FA　×6

35o

Horizontal

Vertical

Horizontal

Step1: Check arms.

(1) Make sure copper contacts are in good condition without bend or severe wear.

(2) Make sure propellers are without crack, and screws in propeller cover tight.

(3) Make sure motors are mounted firmly, and rotate freely.

(4) Distinguish LED indicator on the ESC bottom. With a red point in is red LED, others are

green LED. We recommend you mount arms with red LED to M1 and M2.

(5) Distinguish marks and on the arms.

Arm Center frame

Step2: Insert frame arm into center frame vertically.

Step3: Slowly rotate the frame arm upward until positioned completely.

Step4: Press down the buckle to lock the arm. Make sure the arm does not move.

Step5: Make sure the buckle is pressed down correctly, about 35o under normal circumstances.

Notices:

Please add some lubricant at the position (1) if it is hard to press down the buckle.

Slowly rotate the frame arm to prevent from breaking the copper contacts.

Please refer to (2) to ensure the arm is perfectly positioned.

Make sure use appropriate strength to press down the buckle correctly.

Do not hot plug arms.

If the motor mount loosens, please tighten it by following the procedures in trouble shooting of

Appendix.

Tips:

LED is on after motor start.

Examination

Arms①②are aircraft nose direction, arms④⑤ are aircraft tail. See from top, motors on arms①③⑤

rotate counter clockwise; motors on arms②④⑥ rotate clockwise.

Aircraft Nose

①

②

③

④

⑤

⑥
