Dj power WP-2 Manual de usuario

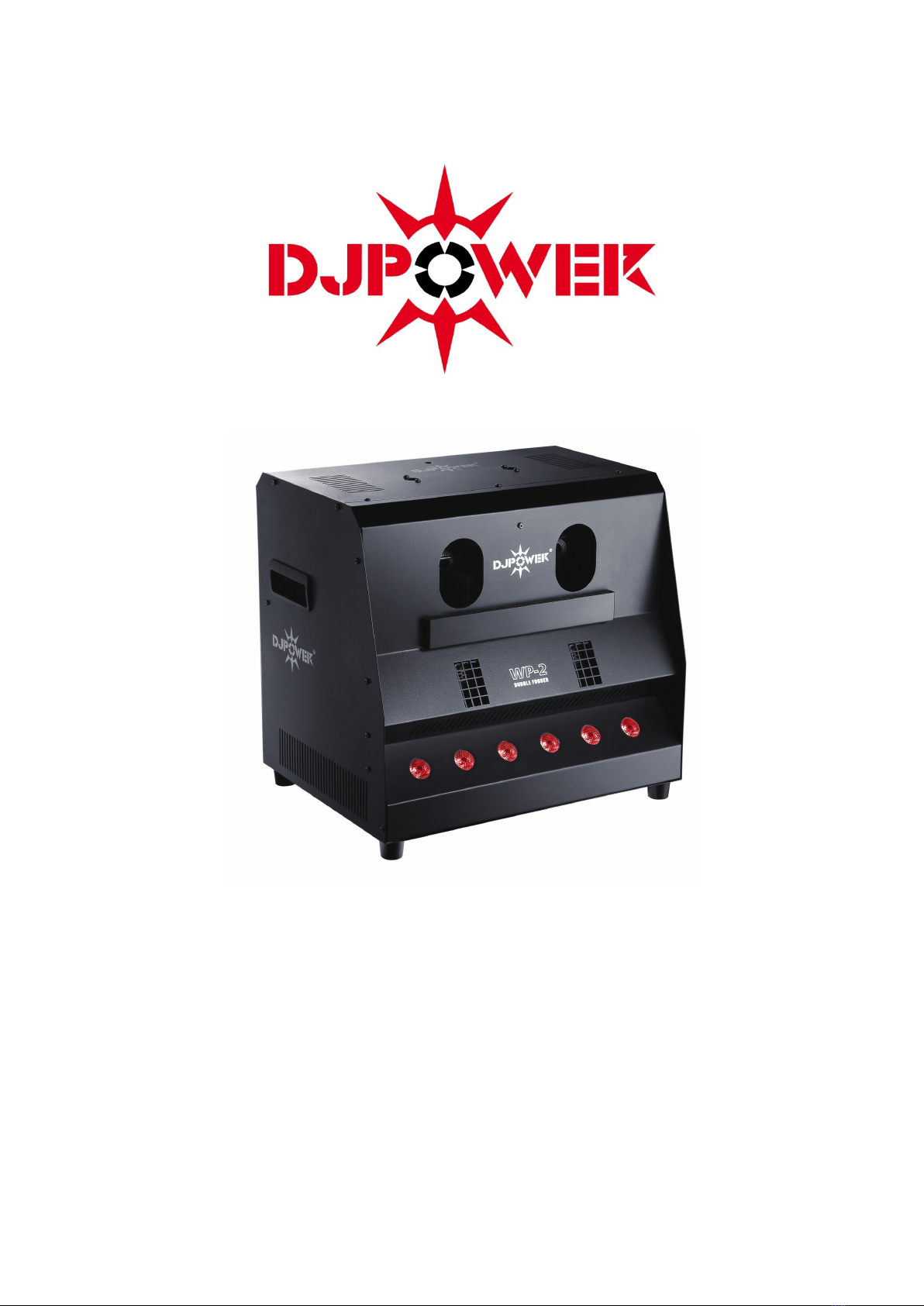

Bubble Fogger WP-2

USER MANUAL

WP-2 Bubble Fog Machine

2 / 16

1. Safety Instructions

•This device is only for use in closed rooms (not outdoors).

•The warranty claim expires if the device is modified by the user.

•The device may only be repaired by trained specialists.

•Only use fuses of the same type and only original parts as spare parts.

•To prevent fire and electric shock, protect the device from rain and

moisture..

1.1.Hinweise für den sicheren und einwandfreien Gebrauch

Beware of heat and extreme temperatures!

Do not place the device in a location subject to extreme temperatures. Only

operate the device in an ambient temperature between 0°C (32°F) - 40°C

(104°F). Do not expose the device to direct sunlight or heat sources.

Protect the device from moisture, water and dust!

When setting up the device, avoid locations with high humidity or

excessive dust. Do not place liquids on or near the system.

Always place the device on solid ground!

Place the device on a solid surface to avoid vibrations.

Do not use chemical agents for cleaning!

Use a clean, dry cloth to remove dust. Metal parts can be cleaned with a

slightly damp cloth. Before cleaning the device, always pull out the mains

plug!

If the device does not work properly!

If problems arise, unplug the power cord. The user should not attempt to

service the device on his own. All repairs and service must be performed by a

qualified technician.

Be careful with the power cord!

Never pull the mains cable to disconnect the device from the power supply,

but hold the plug housing in your hand. If you do not use the device for a long

period of time, pull out the mains plug

CAUTION!

The warranty claim expires in the event of damage caused by non-

observance of the instructions. The manufacturer and importer assumes no

liability whatsoever for consequential damage. Only qualified specialists may

WP-2 Bubble Fog Machine

3 / 16

establish the correct electrical connection. All electrical and mechanical

connections must be installed in accordance with European safety standards

1.1. Intended use of the device

This device is a device that was developed for professional use on stages, in

discotheques, theatres, etc. The device is only approved for connection to a

maximum of 230V, 50/60 Hz AC voltage and is only intended for indoor use.

Regular breaks in use increase the service life of your device.

Avoid physical shock or any form of violence when installing or starting up the

device.

Make sure that cables are not lying around freely. This would endanger your

own safety and the safety of third parties.

The device must not be operated or stored in an environment in which

splashing water, rain or moisture is to be expected. Moisture or high humidity

can reduce the insulation of the device and lead to fatal electric shocks.

When using fog machines, it must be ensured that the fog saturation of the

room must allow a good visibility of at least 10 m.

Do not operate the device during thunderstorms. Overvoltage could destroy

the device. In the event of a thunderstorm, completely disconnect the

device from the mains by pulling out the mains plug.

Surrounding objects or surfaces must not be touched by the housing.

Make sure that when assembling and dismantling the device, the area below

the assembly site is cordoned off. This also applies to the performance of

service work.

Familiarize yourself with the functions of the device before putting it into

operation. Do not allow the device to be operated by persons who have no

experience in it. The most common cause of malfunctions is improper

operation of the device.

Keep the device away from children and never operate it unsupervised.

Never aim the nozzle at people and keep 50cm away from the nozzle.

ATTENTION! The emitted mist is very hot.

Keep a minimum distance of 50cm to other objects.

Use only the recommended high quality water-based fluid from your dealer.

Other fluids can cause damage. Do not use flammable additives such as oil,

gas, perfumes, etc. in your fluid.

Never point the nozzle at an open flame or flammable objects.

Make sure to fill up the fluid in time. Running the machine without fluid can

damage the pump and heater block. Unplug the power cord when topping

up the fluid.

WP-2 Bubble Fog Machine

4 / 16

Never drink the fog fluid. If it did happen, contact a doctor immediately. If the

fluid comes into contact with the eyes and mucous membranes, rinse the

areas immediately with water.

Only operate the device in a horizontal position.

Never use solvents or aggressive cleaning agents to clean the device.

Instead, use a soft, slightly damp cloth.

When transporting the device, please use the original packaging or the

accessories provided to prevent transport damage.

Unauthorized changes to the device are prohibited for safety reasons!

1.2.Any use of the device that deviates from the use described in these

operating instructions can lead to damage to the device. In this case,

the warranty claim expires. In addition, it should be noted that any

other use is associated with dangers and can lead to short circuits, fire,

electric shock and falls, for example.

Overhead mounting

Risk of death!

During installation, the provisions of BGV C1 (formerly VBG 70)

and EN 60598-2-17 must be observed! The installation is to be

carried out exclusively by authorized specialist personnel.

The suspension devices of the device must be constructed and dimensioned

in such a way that they can carry ten times the payload for one hour without

causing permanent damaging deformation.

The installation must always be carried out with the help of a second,

independent suspension. This can, for example, be a suitable safety net. The

secondary suspension must be designed and installed in such a way that in

the event of a failure of the main suspension, no part of the installation can

fall.

During assembly, conversion and dismantling, staying unnecessarily in the

area of movement areas, on lighting bridges, under high workplaces or in

other hazardous areas is prohibited.

The commercial user has the following responsibilities for safety-related and

mechanical equipment:

•Check by an expert before the first start-up or after decisive changes

before the start-up again.

WP-2 Bubble Fog Machine

5 / 16

•Review in the scope of the acceptance test at least every four years by

an expert.

•Inspection by an expert at least once a year

How to proceed with overhead attachment:

Ideally, the device should be installed outside of the area where people are.

IMPORTANT! A high level of experience is required for overhead mounting. This

includes knowledge of working load calculations, knowledge of the

installation material used and knowledge of safety inspections of the material

used and the equipment, but the experience required is not limited to this

alone. Under no circumstances should you attempt the installation yourself

unless you are suitably qualified. Instead, hire a professional installer. Please

note that improper installation may result in personal injury and/or property

damage.

The device must not be installed within the reach of persons.

If the device is to be suspended from the ceiling or from high supports, work

must be carried out with truss systems. The device must never be installed in

such a way that it can swing freely in space.

Please note: Devices can cause serious injuries if they fall! If you have doubts

about the safety of a possible form of installation, then do NOT install the

device!

Before mounting the device, ensure that the mounting surface is capable of

supporting at least ten times the point load of the device's own weight.

Mount the device with the mounting bracket on a truss system using suitable

lifting gear.

When installing overhead, ensure that the device is always secured with a

safety rope that can carry twelve times the weight of the device. Only safety

arrester ropes with screw links are to be used. Hang the safety catch rope in

the catch rope hole in the mounting bracket or on the device. Route the

rope over the truss or other secure attachment point. Hook the end into the

screw link and tighten the locking nut securely.

The maximum fall distance of 20 cm must not be exceeded!

A safety arrester rope that has been subjected to the stress of a fall or that has

been damaged must no longer be used as a safety arrester rope. Adjust the

angle of inclination using the mounting bracket and tighten the locking

screws.

WP-2 Bubble Fog Machine

6 / 16

2. Connection

2.1.1. Electrical Connection

Connect the device to the mains using the supplied power cable! The

protective earth must always be connected!

Cable (EU) Cable (US) Pin International

Brown Black Live L

Blue White Neutral N

Green/ Yellow Green Earth

2.1.2. DMX connection

Make sure you always use shielded cables. 3pin or 5pin XLR cables are

suitable for this.

2.1.3. DMX connection with terminator

For installations where the DMX signal has to bridge a large distance or where

the device is to be operated in an environment with increased

electromagnetic radiation, such as a discotheque, we recommend using a

DMX terminator. This prevents the digital control signal from being corrupted

by electrical noise. The DMX terminator is simply an XLR connector with a

120Ωresistor between pins 2 and 3, which is then plugged into the XLR output

jack of the last fixture in the chain.

WP-2 Bubble Fog Machine

7 / 16

3. Introduction

Thank you for purchasing the Bubble Fog Machine WP-2.

We recommend reading this user manual before using the device. Please

follow the instructions in this user manual. This is the only way to ensure safe

operation, proper use and a long service life for the device.

The Bubble Fog WP-2 is an effect machine with patented DJ Power

technology, which can create fog-filled soap bubbles. The WP-2 is designed

in such a way that unused soap bubble fluid is returned to the appropriate

tank and therefore cannot drip onto the floor.

DJ Power's WP-2 is suitable for larger stages, halls or bars.

3.1.Features

•Jet design, produces many bubbles with mist.

•Efficient heating system for even fog output

•Separate mist and bubble tanks.

•Unused bubble fluid is returned to the tank.

•Integrated LED bar with 6x8W RGBY/ 15° beam angle

•1.3 liter bubble fluid/ 1.3 liter hazer fluid tank (lasts approx. 90 minutes at

maximum output)

•Operation via DMX, remote control or manual

•Built-in control LCD

•Please only use DJPower fog and bubble fluids.

3.2.Lieferumfang

-1x WP-2

-1x power cable

-1x W-2 wireless controller

-1x Quicklock hook

-Operation manual

WP-2 Bubble Fog Machine

8 / 16

3.3.Product description

WP-2 Bubble Fog Machine

9 / 16

4. First time setup

ATTENTION!

Before using the device for the first time, remove all packaging materials.

1. After checking that the device is intact and complete, please place it

on a flat surface.

2. Fill the tanks with fluid! Please only use the recommended fluids,

otherwise the device may be damaged and the guarantee will be

void.

3. Make sure that there is always enough fluid in the tanks.

4. Connect the device to the mains.

5. The device starts to heat up. This process takes about 3 minutes, during

which time "Warming up" is shown on the display.

6. The heating process is complete. "Ready TO Work" appears on the

display.

4.1.Control

It is operated via the display, the remote control or via DMX.

MENU Calling up the menu structure to make

individual settings.

UP / TIMER Select a menu item or increase a value.

Activate the timer.

DOWN / VOLUME Select a menu item or decrease a value. Start

manual ejection.

ENTER / STOP Confirm the selection or the setting made. Stop

manual ejection.

WP-2 Bubble Fog Machine

10 / 16

4.1.1. Menu

Menü Value Function

Interval Set 5 – 200s Here you can set the interval for the timer

function.

Duration Set 5 – 200s Here you can set the ejection duration for

the timer function.

Timer Out 1 – 100% Here you can set the output quantity for the

timer function.

Volume Out 1 – 100% Here you can set the output quantity for

manual fog output.

DMX512

ADD 1 – 512 Setting the DMX address.

4.1.2. DMX Table

If the device is controlled with a DMX signal, the display shows the set DMX

address.

Kanal Value Range Function

Bubble Output 0 10 No function

11 255 Bubble ON

Nebel Output 0 10 No function

11 255 Fog ON

Fan Output 0 10 No function

11 255 Fan ON

Clean Up

(selfclean)

0 10 No function

11 255 Cleaning ON

LED Dimmer 0 10 No function

11 255 dimmer function

Tabla de contenidos

Otros manuales de Equipo de DJ de dj power

dj power

dj power djv DC-2 CO2 CONFETTI FALL Manual de usuario

dj power

dj power XUN V-5 Manual de usuario

dj power

dj power Hazer DHZ-660 Manual de usuario

dj power

dj power R-4 Manual de usuario

dj power

dj power H-8 PRO Manual de usuario

dj power

dj power V-1 Manual de usuario

dj power

dj power H-S6 Manual de usuario

dj power

dj power V-4 Manual de usuario

dj power

dj power V-1 Manual de usuario

dj power

dj power djv DC-3 Manual de usuario

dj power

dj power DSK 2000 Manual de usuario

dj power

dj power LED Flame Light F-6 Manual de usuario

dj power

dj power R-7 Manual de usuario

dj power

dj power FLAME MACHINE HF-210 Manual de usuario

dj power

dj power S-2 Manual de usuario

dj power

dj power TOPCAT HF-90 Manual de usuario

dj power

dj power X-4LED Manual de usuario

dj power

dj power djV PRO STAGE EFFECTS DC-1 Manual de usuario

dj power

dj power DFZ 700 Manual de usuario

dj power

dj power R-6 Manual de usuario

dj power

dj power V-3 Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario

dj power WP-2 Manual de usuario

Manuales populares de Equipo de DJ de otras marcas
