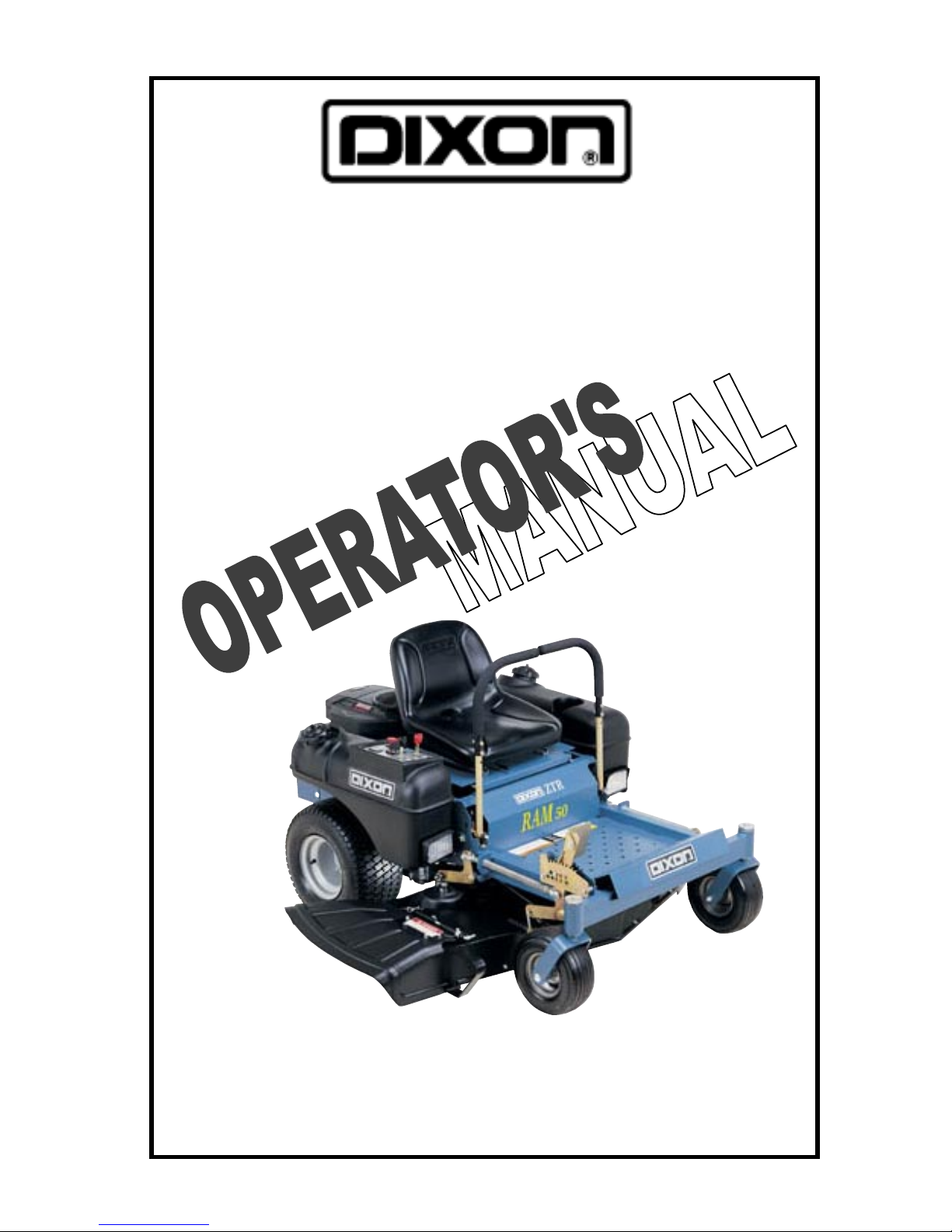

Dixon RAM Series Manual de usuario
RAM Series
ZTR®
Model Year 2004
IMPORTANT - READ CAREFULLY
The Dixon® ZTR® mower is both easy and
fun to operate. However, any power mower
must be operated properly to be safe. It is
not a toy or a recreational vehicle. Before
you start to use the mower, read the
operator’s manual carefully and become
completely familiar with the controls.
The information contained in this manual
applies to all Dixon® ZTR® RAM Series
mowers. Your Dixon dealer will gladly
answer any questions.
See your dealer for warranty service, parts
and repairs.
3
INDEX
Page
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Warranty Policy. . . . . . . . . . . . . . . . . . . . . . . . . . .13
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Seat Adjustment Instructions. . . . . . . . . . . . . . . . .15
Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-19
Operation Instructions. . . . . . . . . . . . . . . . . . 20-30
Care & Maintenance. . . . . . . . . . . . . . . . . . . .31-42
Standard Service Parts List. . . . . . . . . . . . . . . 43-44
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 45-46
RAM Series
Part No. 17411-1103
4
Blade Contact
Tip Over
Run Over
Back Over
SAFETY
RIDING LAWN MOWERS,
IF IMPROPERLY OPERATED
CAN CAUSE SERIOUS INJURY OR DEATH
The most common causes of injury to the operator or bystander...
...readandunderstandthismanualtopreventinjuries.
5
Safety Alert Symbol
When you see this symbol, BE ALERT
to the potential for injury.
Follow recommended safety precautions
and safe operating practices.
DANGER
(highlighted in red)
indicatesanimminentlyhazardous
situationwhich,ifnotavoided,willresultin
deathor seriousinjury.
WARNING
(highlighted in orange)
indicatesapotentially
hazardoussituationwhich,ifnot
avoided, could result in death or
seriousinjury.
CAUTION
(highlightedinyellow)
indicatesapotentially
hazardoussituationwhich,
ifnotavoided,mayresult inminor
or moderate injury. It may also
be used to alert against
unsafepractices.
SAFETY
6
Failure to observe the following safety instructions
could result in serious injury or death.
GENERAL OPERATION:
Read, understand, and follow all instructions in the
manual and on the mower before starting.
Only allow responsible adults, who are familiar with the
instructions, to operate the mower.
Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the blade.
Be sure the area is clear of other people before mow-
ing. Stop mower if anyone enters the area.
Never
carry passengers.
Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while braking.
Be aware of the mower discharge direction and do not
point it at anyone.
Do not operate the mower without either the entire
grass catcher or the deflector in place.
Slow down before turning.
Never leave a running mower unattended. Always turn
off blades, set parking brake, stop engine and remove
key before dismounting.
Turn off blades when not mowing.
SAFETY
7
GENERAL OPERATION (continued):
Stop engine before removing grass catcher or
unclogging chute.
Mow only in daylight or good artificial light.
Do not operate the mower while under the influence
of alcohol or drugs.
Watch for traffic when operating near or crossing
roadways.
Use extra care when loading or unloading the mower
into a trailer or truck. Do not ride the mower when
loading and unloading.
Always wear safety goggles or safety glasses with
side shields when operating mower.
Data indicates that operators, age 60 years and
above, are involved in a large percentage of riding
mower-related injuries. These operators should
evaluate their ability to operate the riding mower
safety enough to protect themselves and others
from serious injury.
Follow the manufacturer’s recommendation for
wheel weights and counterweights.
Maintain or replace safety & instruction labels as
needed.
The engine exhaust from this product contains chemicals known to
the State of California to cause cancer; birth defects or other
reproductive harm.
Warning:
SAFETY
8
SLOPE OPERATION:
Slopes are a major factor related to loss-of-control
and tip-over accidents,
which can result in severe injury or death.
All slopes requires extra caution.
If you cannot back up the slope or if you feel uneasy on it,
do not mow it!
DO
Mow across the slope with your Dixon ZTR - never
up or down.
Remove obstacles such as rocks, tree limbs, etc.
Watch for holes, ruts or bumps. Uneven terrain
could overturn the mower. Tall grass can hide
obstacles.
Use slow speed. Tires may lose traction on slopes
even though the brakes are functioning properly.
Use extra care with grass catchers or other
attachments. These can change the stability of the
mower.
Keep all movement on the slopes slow and
gradual. Do not make sudden changes in speed or
direction.
SAFETY
9
SLOPE OPERATION (continued):
DO (continued):
Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
down the slope.
If front wheels lift off the ground, pull the levers
back to stabilize the mower.
DO NOT
Do not turn on slopes unless necessary, and then,
turn slowly and gradually downhill, if possible.
Do not mow near drop-offs, ditches, or embank-
ments. The mower could suddenly turn over if a
wheel is over the edge of a cliff or ditch or if an
edge caves in.
Do not mow on wet grass. Reduced traction could
cause sliding.
Do not try to stabilize the mower by putting your
foot on the ground.
Do not use grass catcher on steep slopes.
SAFETY
10
SERVICE:
Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.
Use only an approved container.
Never remove fuel cap or add fuel with engine
running. Allow engine to cool before refueling.
Do not smoke while refueling.
Never store the mower or fuel container inside
a building where there is an open flame.
If fuel is spilled on clothing, change clothing
immediately.
To prevent fire and explosion caused by static
electricity:
Never fill containers inside a vehicle or on
a truck or trailer bed with a plastic liner.
Always place containers on the ground
away from your vehicle before filling.
When practical, remove fuel powered
equipment from the truck or trailer and
refuel it on the ground. If this is not
possible, refuel such equipment on a trailer
with a portable container, rather than from
a fuel dispenser nozzle.
If a fuel dispenser nozzle must be used,
keep the nozzle in contact with the rim of
the fuel tank or container opening at all
times until fueling is complete. Do not use
a nozzle lock-open device.
SAFETY
