User Manual

DUAL TV STAND

WITH TWO

ROTATING

BRACKETS FITS

TVS32” – 70”

SKU: DSTAND2BK, CDSTAND2BK

Scan the QR

code to visit the

product page.

Safety and Warning

• Tighten screws ﬁrmly, but do not over-tighten. Over-tightening can cause damage to the items,

which greatly reduces their holding power.

• Make sure that the supporting surface will safely support the combined weight of the equipment

and all attached hardware and components.

• This product is intended for indoor use only. Using this product outdoors could lead to product

failure and personal injury.

• Always use an assistant or mechanical lifting equipment to safely lift and position the equipment.

• Do not use this product for anything other than the original design.

• This product contains moving parts, please use with caution.

• The manufacturer disclaims any liability for the modiﬁcations, improper installation, or

installation over the speciﬁed weight range. The manufacturer will not be liable for any

damages arising out of the use of, or inability to use, the product.

CAUTION: Severe personal injury and property damage can result from improper installation

or assembly. Read the following warning carefully before assembly. If you have any questions

regarding any of the instructions or warnings, please contact Displays2go.

Base Assembly

Parts List (Base Package)

PART QUANTITY

A: User Manual..........................................................................................................................................1

B: Metal Base.............................................................................................................................................1

C1: Lower Tubing (Left) ............................................................................................................................1

C2: Lower Tubing (Right)...........................................................................................................................1

D1: Upper Tubing (Left).............................................................................................................................1

D2: Upper Tubing (Right).........................................................................................................................4

E: Tubing Connector .................................................................................................................................2

F: Pan Head Screw .................................................................................................................................. 12

*Hex Wrench for Part F can be found inside the TV Bracket box. (DUOPOLEBK, DUOPOLESL)

If you have any questions regarding our products, please visit us at www.displays2go.com or

contact Displays2go customer service at 844-221-3388.

CAUTION: Heavy metal base can cause muscle strain or back injury! Two people required for

assembling and moving unit.

Identify Parts

1. Identify all parts and lay out 4 tubings (C1, C2, D1, D2) on a ﬂat surface. See picture below to

identify position of each tubing (upper or lower, left or right).

• Conﬁrm each tubing has at least one pair of 2 holes facing outward (see detail 2).

• Arrange tubings with one pair holes (see detail 3a), then sort tubings with two pairs holes

(see detail 3b).

i bc q=s f bt

_^` h=s f bt

Lower Left Tubing

i bc q=s f bt

_^` h=s f bt

Upper Left Tubing

Lower Right Tubing

_^` h=s f bt

of de q=s f bt

Upper Right Tubing

_^` h=s f bt

of de q=s f bt

3a 3b

NOTE: One or more upper/lower tubing may have holes on both sides.

4. Secure lower tubings to base using

screws (F). Tighten with hex wrench.

Place Lower Tubings

Fasten Lower Tubings

C1 C2

2. Carefully place the metal base (B) on

hard, ﬂat ground.

3. Insert left and right lower tubings (C)

into the left and right upright slot on

the metal base. Holes at top of lower

tubings should face outward to align

with the holes of tubing connectors later

in assembly.

5. Insert tubing connectors (E) into the lower

tubings, aligning screw holes.

6. Secure tubing connectors to lower tubings

using screws (F). Tighten with hex wrench.

Place Upper Tubings

Upper Tubings with Connectors

7. Insert left and right upper tubings (D) into tubing

connectors, aligning screw holes.

8. Secure to tubing connectors using screws (F). Tighten

with hex wrench.

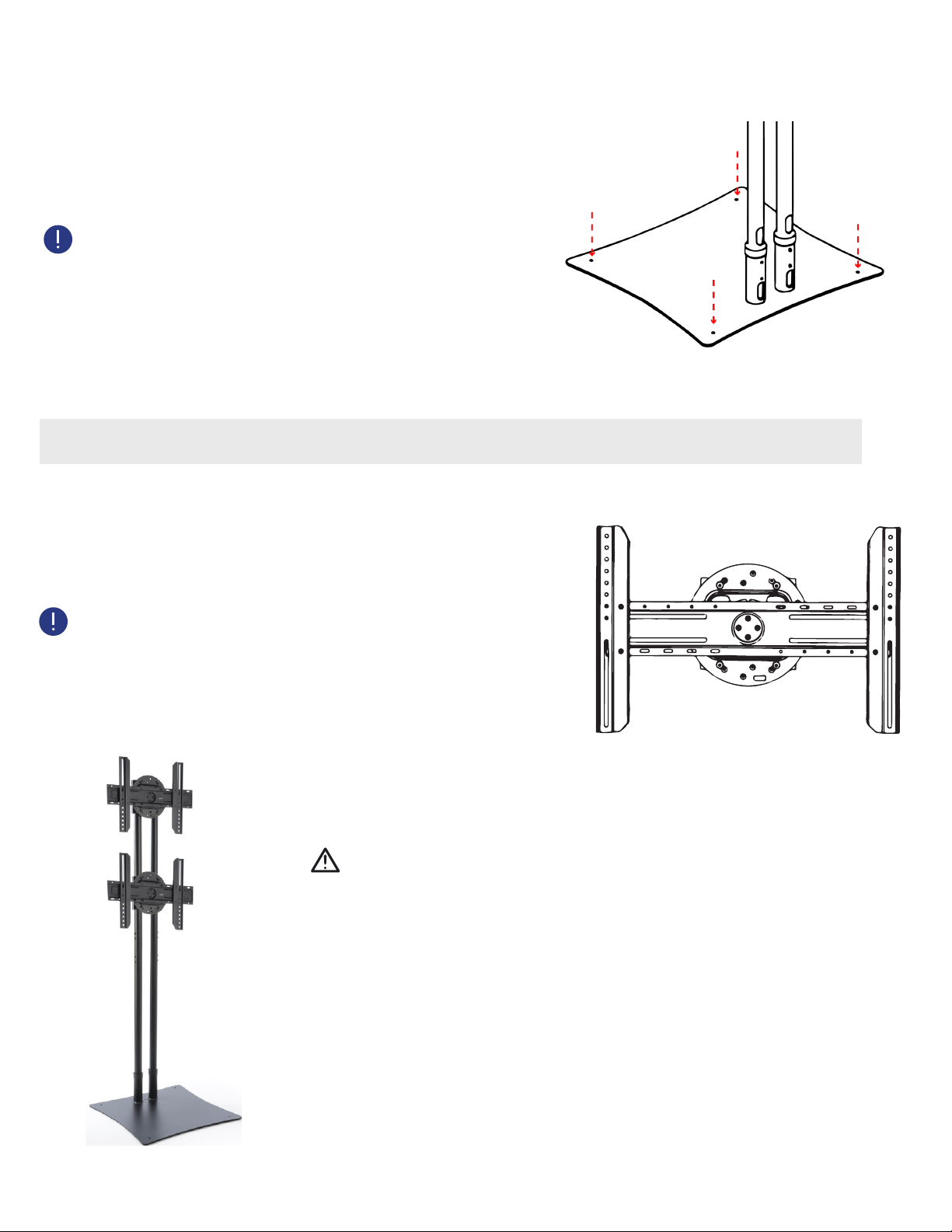

Secure Mount to Floor

The metal base must be bolted to the ﬂoor to safely

support the weight of both TVs.

NOTE: Do not use casters. Holes in the base are for

mounting to ﬂoor only.

To install rotating bracket, refer to assembly instructions

enclosed in the Mounting Bracket package (DUOPOLEBK).

NOTE: The bracket locks the weight of all compatible

TVs in horizontal orientation. The bracket will only

support TVs in portrait mode if the weight is under 15

pounds (6.8 kg).

Installing Dual Rotating Brackets

CAUTION

• DSTAND2BK can hold dual ﬂat TVs up to 70”, depending on

different layouts and orientation. TVs cannot be rotated while 2

TVs are mounted at the same time.

• Be careful when using ladders or standing above the ground.

• Do not adjust the position of extrusion while TV is on the bracket.

Lay the TVs in their intended position and

measure the distance between the ﬁrst VESA

mount holes of each unit. This measurement

is the minimum distance between each

connector to ensure TVs will not interfere with

each other.

Measure TVs

Add Dual Connectors

Use your measurements to determine

position of 2nd connector set and attach the

additional connectors at the marked location.

NOTE: Do not place connectors

over screws on poles.

Screws

Connector

Distance between TVs

Mount the lower TV to the lower bracket. Feed

power cord into pole and pull out through

bottom slot.

(Refer to complete instructions in Mounting

Bracket User Manual.)

Adjust spacing of upper bracket as necessary, then

mount upper TV. Feed power cord into pole and pull out

through bottom slot.

Mount Lower TV

Mount Upper TV

If you have any questions regarding our products, please visit us at www.displays2go.com or

contact Displays2go customer service at 844-221-3388.

NOTE: The bracket can be

adjusted up and down on the

TV to best ﬁt the location of

both TVs on the stand.

Do NOT adjust the bracket

position while the TV is

mounted to the pole.
