displayit 1010D-01 Manual de usuario
10 Foot Ensemble Kit 1010D-01
Diagram of Frames
Hardware is labeled as seen in diagram below:
13
2
4
5
6
7
8910
11
12
13
14
B5
13
2
4
5
6
7
8910
11
12
13
14
B5
1
Z05
Foot push button holes
face forward
Foot push button holes
face forward
Updated 7/30/2018
Ensemble Display
General Assembly Instructions
Updated 4/27/2017
Note: Assembly is the same for all shapes and sizes of Ensemble frames
displayit.com 800.207.0311 After-Hours Emergency: Call or Text 678.723.5343

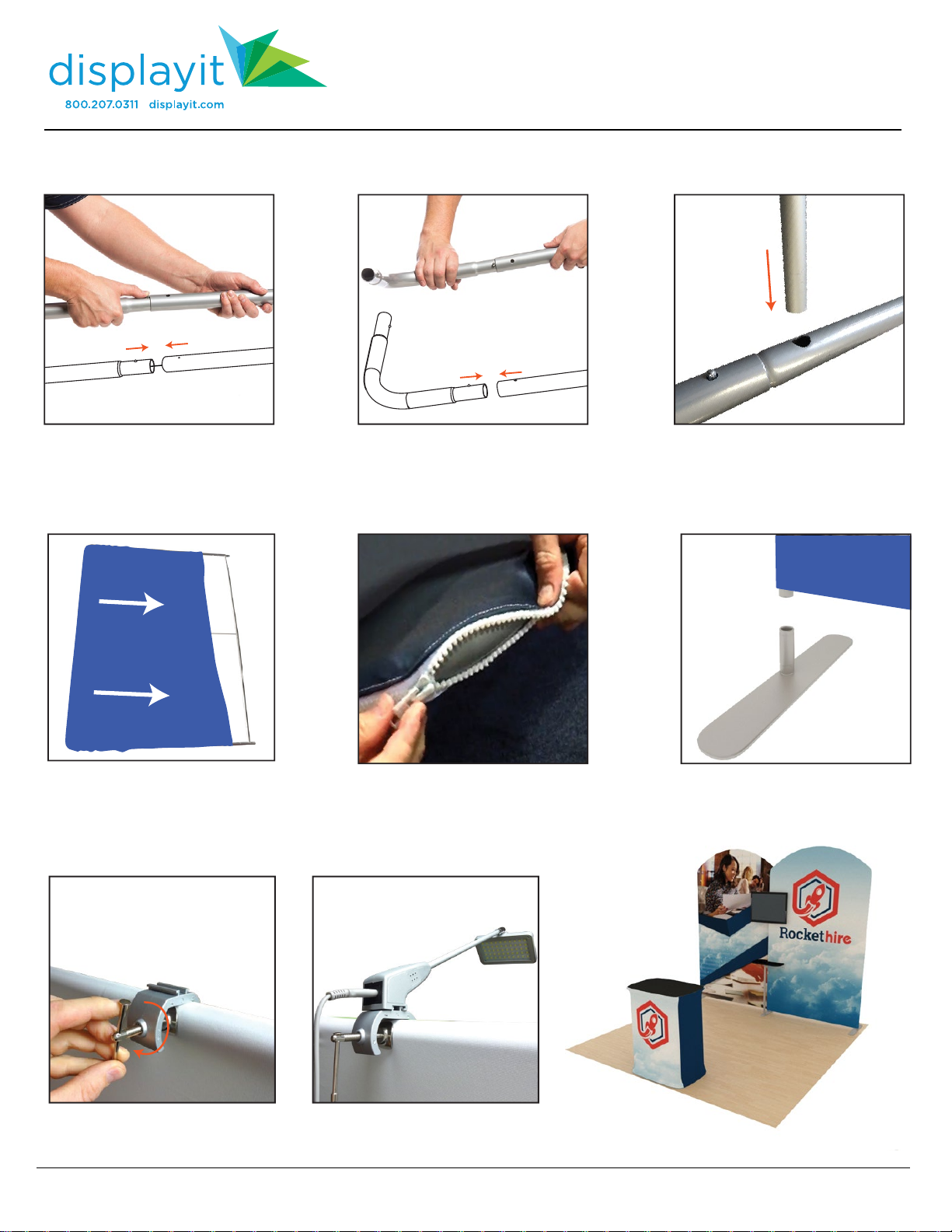

1. Straighten and assemble all
bungeed poles.
2. Connect poles to corners.
(See diagram to on next page)
5. Zip up the bottom graphic. 6. Using the frame diagram, attach
corresponding feet to frames.
4. Lay frames down. Pull pillowcased
graphic over frame and zip closed.
3. If your kit includes a center or
horizontal support pole, insert it into
the corresponding holes.
2. Slide light onto clamp and
connect power cable.
1. Clamp light clamp on top bar.
Tip: Put lights on before standing the display up.
LED Lights
