Dirty Hand Tools 101571 Manual de usuario

15” Front Tine Tiller

is safety alert symbol identies important safety messages in

this manual. Failure to follow this important safety information

may result in serious injury or death.

MODEL # 101571

Operation Manual

Part # 101790 Rev A

510 Pierce Avenue • Suite B

Louisville, CO 80027 • 720-287-5182

For Service or Questions

Call 1-877-487-8275

720-287-5182

www.dirtyhandtools.com

Dirty Hand Tools is a brand of

Table of Contents

Important Safety Information

Intended Use ..............................................................................4

Personal Protective Equipment ..................................................4

General Safety ............................................................................5

Safety Decals ..............................................................................6

Unpacking and Assembly Instructions

Unpacking ...................................................................................7

Overview of Components.............................................................8

Tine Assembly.............................................................................9

Wheel/Depth Regulator Assembly ...........................................10

Handlebar Assembly .................................................................11

Driver Safety Control Lever Mounting ....................................12

rottle Contol Lever Mounting ..............................................12

Safety Shield Assembly .............................................................13

Operating Precautions................................................................14

Operating Instructions

Preparation for Operation .........................................................15

Pre-Start Inspection ..................................................................15

Adjusting the Depth Regulator.................................................15

Starting Up................................................................................16

Shutting Down..........................................................................16

Tilling........................................................................................17

Tilling Tips................................................................................17

Alternative Tine Position ..........................................................18

Maintenance

Lubrication................................................................................19

Cleaning the Tine Axle Shaft....................................................19

Transmission Oil .......................................................................19

Engine Maintenance .................................................................19

Storage.........................................................................................20

Troubleshooting..........................................................................21

Warranty & Specications .........................................Back Cover

Important Safety Information

WARNING: Read and thoroughly understand all instructions

and safety information before assembling or operating this tiller.

Failure to do so may cause serious injury or death. Do not allow

anyone to operate this tiller who has not read this manual. As

with all power equipment, a tiller can be dangerous if assembled

or used improperly. Do not operate this tiller if you have doubts or

questions concerning safe operation.

Call our customer service department at 720-287-5182,

1-877-487-8275, or visit www.dirtyhandtools.com if you have any

questions or concerns about the safe operation of this equipment.

Intended Use

Do Not Use the tiller for any purpose other than tilling garden soil

for which it was designed. Any other use is unauthorized and may

result in serious injury or death.

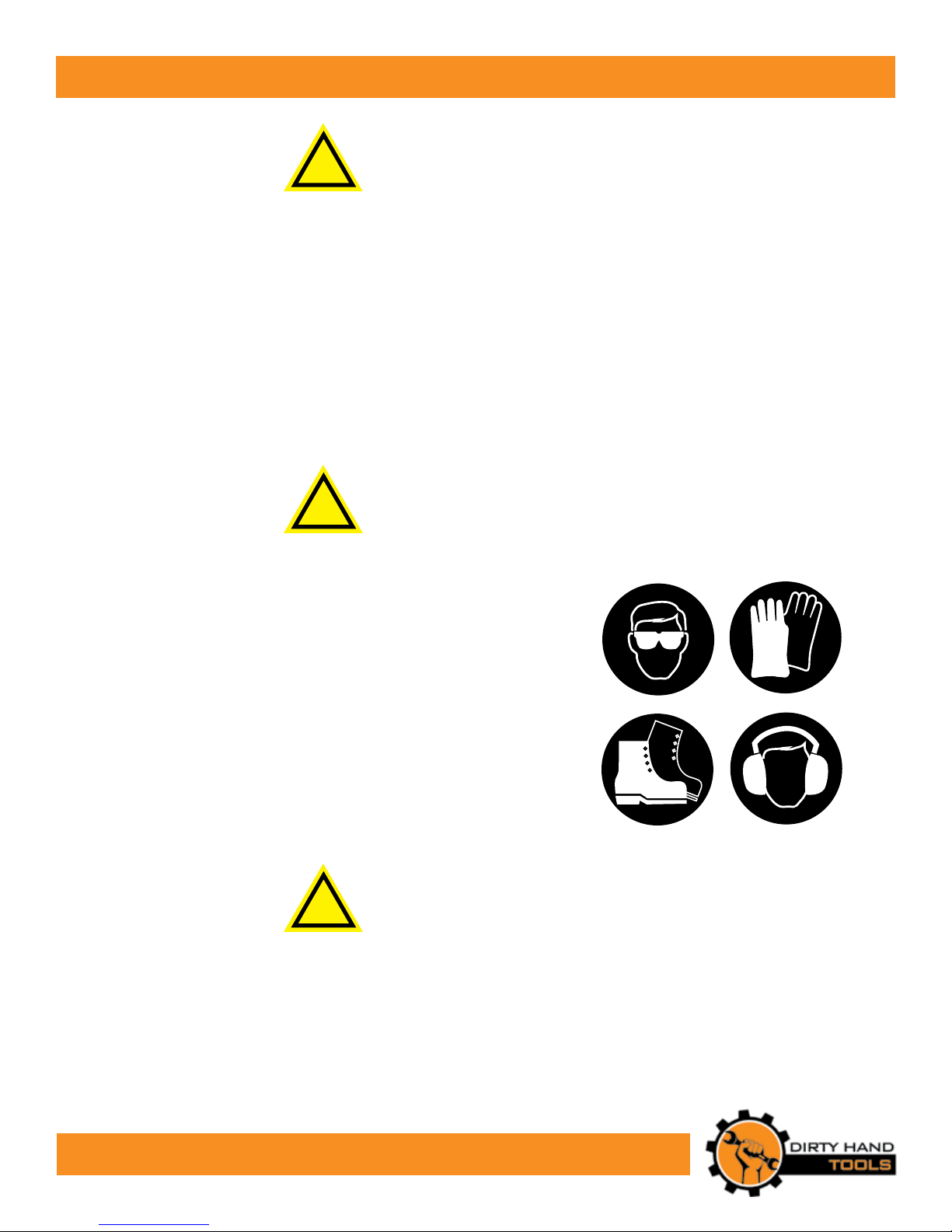

Personal Protective Equipment

When operating this tiller it is essential that you wear safety gear

including goggles or safety glasses, steel toed shoes and tight ﬁtting

gloves (no loose cuﬀs or draw strings). Always wear ear plugs or

sound deafening headphones to protect against hearing loss when

operating this tiller. Always wear sturdy footwear. Never wear

sandals, sneakers or open shoes, and never operate the tiller with

bare feet. Do not wear loose clothing that might get caught in

moving parts.

YOUR TILLER IS EQUIPPED WITH A SAFETY

CONTROL LEVER THAT ENABLES YOU TO STOP

THE TINES QUICKLY IN AN EMERGENCY.

Learn how the drive safety control lever operates and how to

control the tiller at all times.

Read the entire Operation Manual before using this equipment!

WARNING

DANGER

CAUTION

Important Safety Information

General Safety

Failure to follow warnings, cautions, assembly and operation

instructions in the Operation Manual may result in serious injury

or death.

READ THE OPERATION MANUAL BEFORE

OPERATION.

• Do not permit children to operate this equipment at any time.

•Do not permit others that have not read and understood the

complete Operation Manual to operate this equipment.

• Keep all people and pets a minimum of 10 feet away from the

work area when operating this tiller.

• Do not operate the tiller when under the inﬂuence of alcohol,

drugs or medication.

• Do not allow a person who is tired or otherwise impaired or not

completely alert to operate the tiller.

CAREFULLY INSPECT THE AREA TO BE TILLED AND

REMOVE ALL FOREIGN OBJECTS.

Do not till above underground water lines, gas lines, electric cables,

or pipes. Do not operate the tiller in soil with large rocks and

foreign objects which can damage the equipment.

• Leave control lever in the neutral position before starting the

engine.

• Handle fuel with care; it is highly ﬂammable. Use an approved

fuel container. Never add fuel to a running engine or hot engine.

• Fill fuel tank outdoors with extreme care. Never ll fuel tank

indoors.

• Replace gasoline cap securely and clean up spilled fuel before

restarting.

• Never attempt to make any adjustments while the engine is

running.

DANGER

Important Safety Information

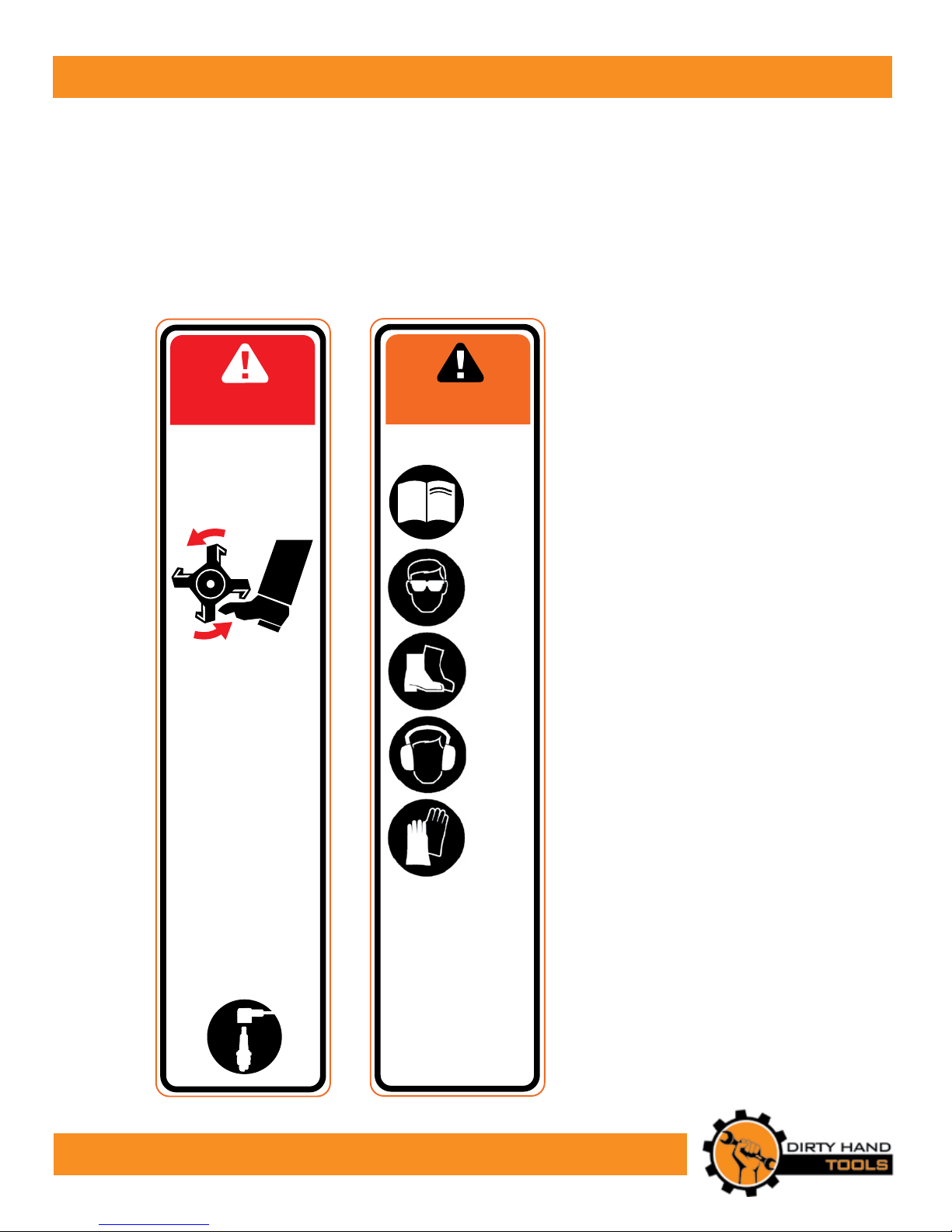

Safety Decals

Safety labels on the tiller are to remind you of important

information while you are operating the unit. Make sure all

safety warning decals are attached and in readable condition.

Replace missing or defaced decals. Contact Dirty Hand Tools

at 1-877-487-8275 for replacement decals.

AVOID INJURY

FROM

ROTATING

TINES!

Keep hands,

feet and

clothing away!

• Tines rotate when the

safety latch is flipped up

and the drive control

lever is depressed

towards the handle bar.

• To stop tines from

rotating release the

drive control lever.

The safety latch

automatically snaps

into locked position.

• Stop the engine, wait

for tines to stop

rotating and disconnect

the spark plug before

removing debris or

doing any maintenance.

DANGER

101573

AVOID INJURY

• Know the function and

location of all controls.

• Never allow children to

operate the tiller.

• Check area to be tilled

and remove rocks or

obstacles.

• Check for underground

utilities before using.

WARNING

Read the

Operator’s

Manual

Before

Operating

Wear

Safety

Goggles or

Eyewear

Wear

Boots or

Protective

Footwear

Wear

Protective

Noise

Reduction

Gear

Wear

Gloves and

Protective

Clothing

101846

Unpacking and Assembly

Your tiller will require some assembly. e following instructions will

help you unpack your tiller, assemble and adjust the depth regulator

lever, cable tension and handlebar height. You will need two 9/16”

wrenches.

Unpacking

Open top of carton and remove the tiller components.

Tiller Components

Upper Handlebar left

Upper Handlebar right

Lower Handlebars left and right

Handlebar Face Plate

Handlebar

Wheels/Depth Regulator

Safety Shields

Tine Blades (16)

Engine Assembly

Driver Safety Control Lever (with cable)

rottle Assembly (with cable)

Hardware

DO NOT ADD ENGINE OIL TO THE

TRANSMISSION GEAR CASE

e tiller transmission is lled at the factory.

DO NOT ATTEMPT TO START ENGINE

BEFORE ADDING OIL TO ENGINE

e engine is shipped from the factory without oil. You must add

engine oil before starting the engine. Use only the recommended

weight of oil for a 4-cycle engine (See Engine Operation Manual).

CAUTION

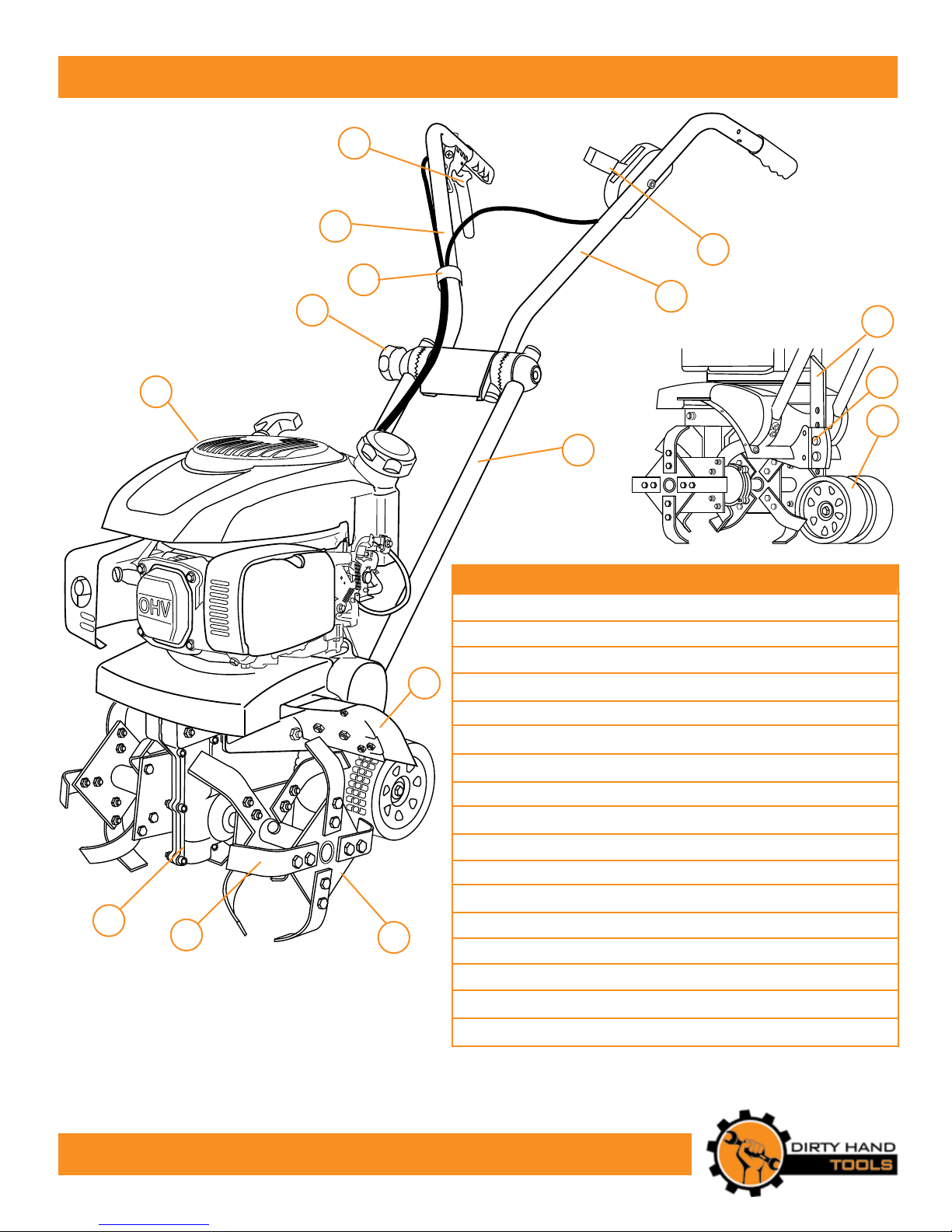

Overview of Components

11 12

Item # Part # Description Qty.

1 101829 Driver Safety Control Lever 1

2 101838 rottle Control Lever Assembly 1

3 101831 Handlebar Adjustment Assembly 1

4 101832 Upper Handlebar Left 1

5 101833 Upper Handlebar Right 1

6 101835 Lower Handlebar Left/Right 2

7 101136 Engine 1

8 101836 Safety Shield Kit 1

9 101837 Depth Regulator 1

10 101838 Wheels 2

11 101839 Tine Blade 16

12 101841 Tiller Axle Sleeve 2

13 101842 Tiller Gearbox 1

14 101843 Engine Belt (not shown) 1

15 101845 Locking Pin 2

16 102893 Plastic Cable Clip 2

17 102894 Flat Lead Clevis with R-Clip 2

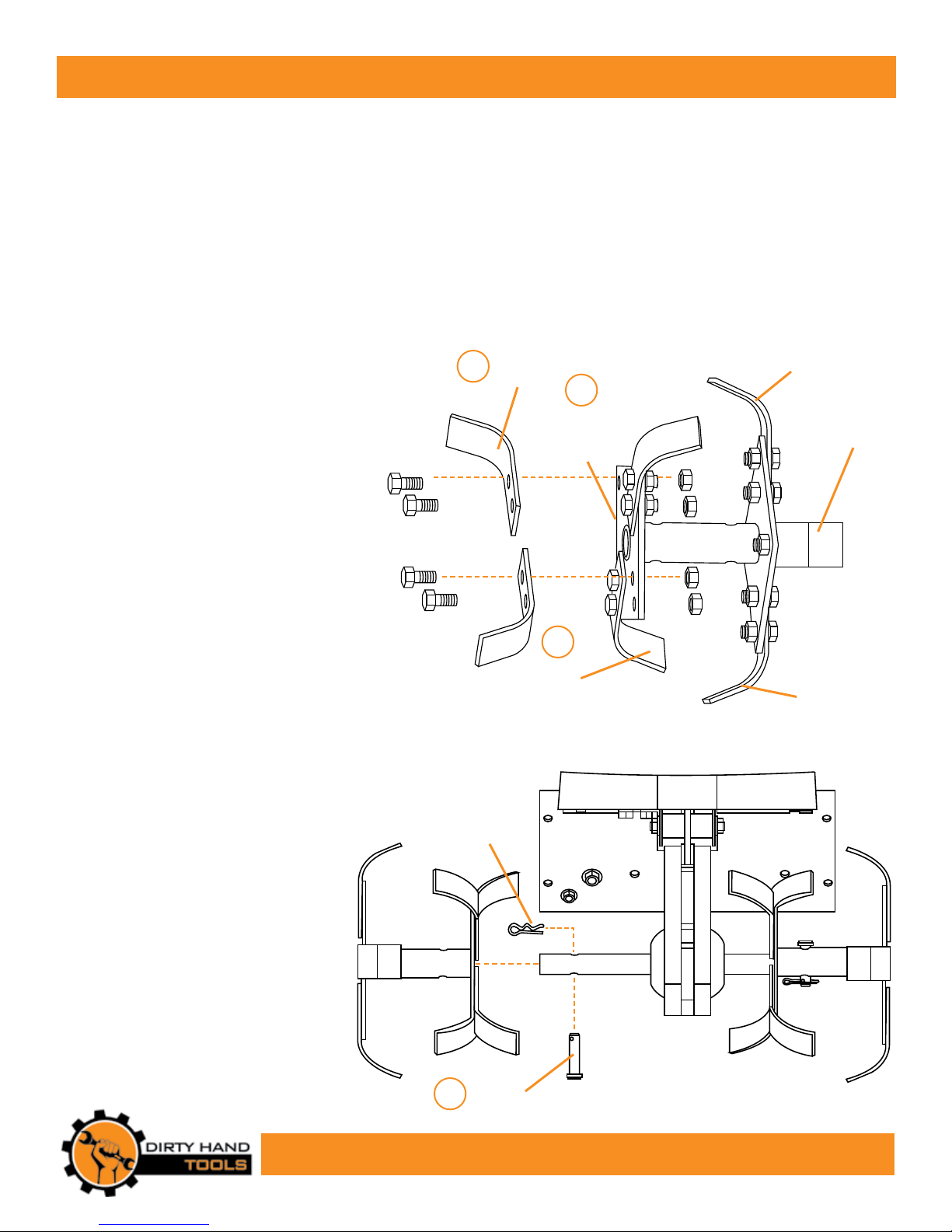

Tine Assembly

Mounting the Tine Blades

1. Attach tine blades to the tine axle sleeve with a hex nut and hex bolt

(see Figure 1). Blades should alternate direction diagonally, one pair

facing in, one pair facing out on each sleeve.

2. Slide the assembled tines onto the tiller’s axle. Align the connection

holes and secure the tines to the tiller axle with a clevis pin and a

R-clip (see Figure 2).

TINE

BLADE

Figure 1

TINE

BLADE

TINE

AXLE

SLEEVE

Figure 2

R-CLIP

CLEVIS

TINE

BLADE

TINE

BLADE

AXLE

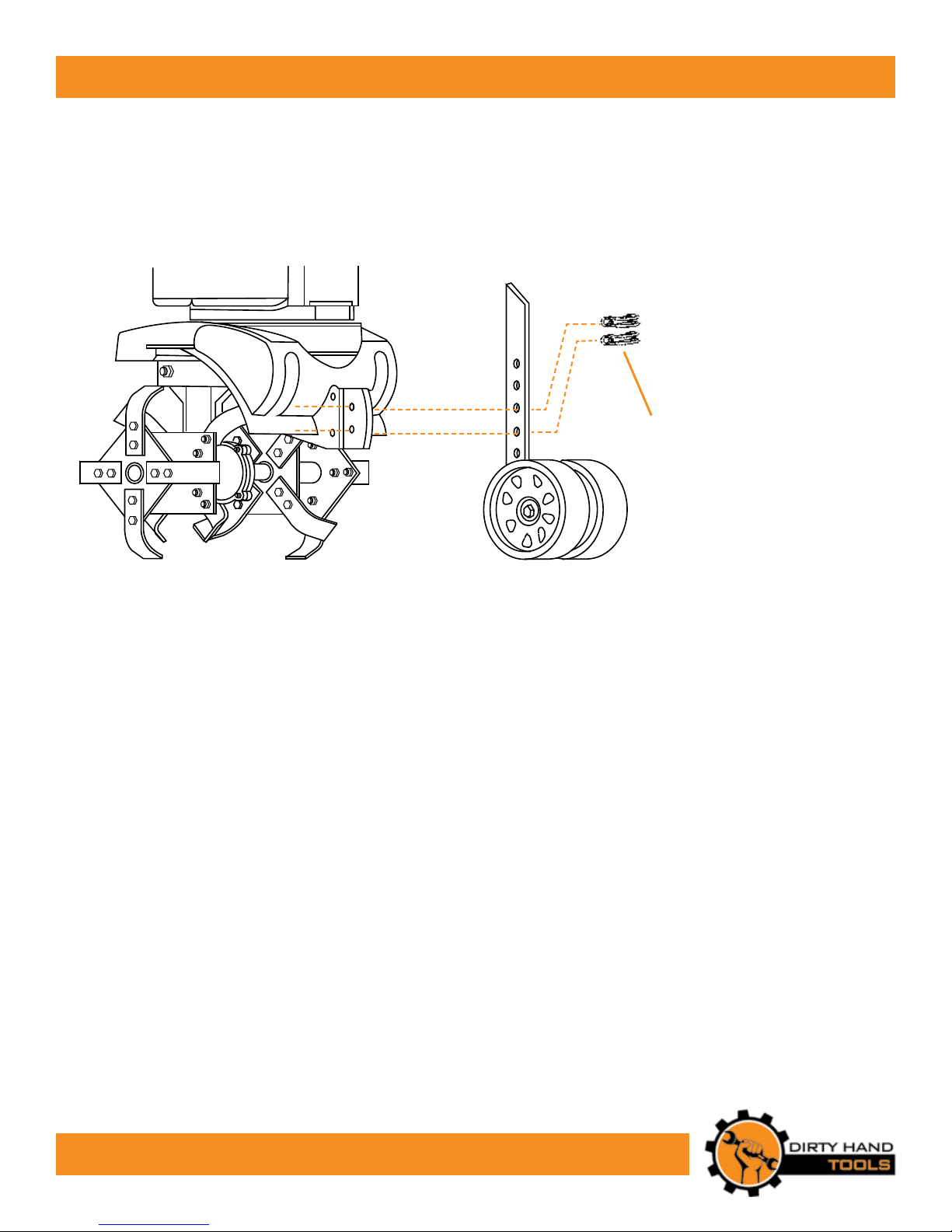

Wheel/Depth Adjuster Assembly

Mounting the Wheels/Depth Adjuster

1. Align two holes on the tiller wheel bracket at the desired height on the

wheels/height adjuster.

2. Push two locking pins through the holes and secure (see Figure 3).

LOCKING

PINS

Figure 3
