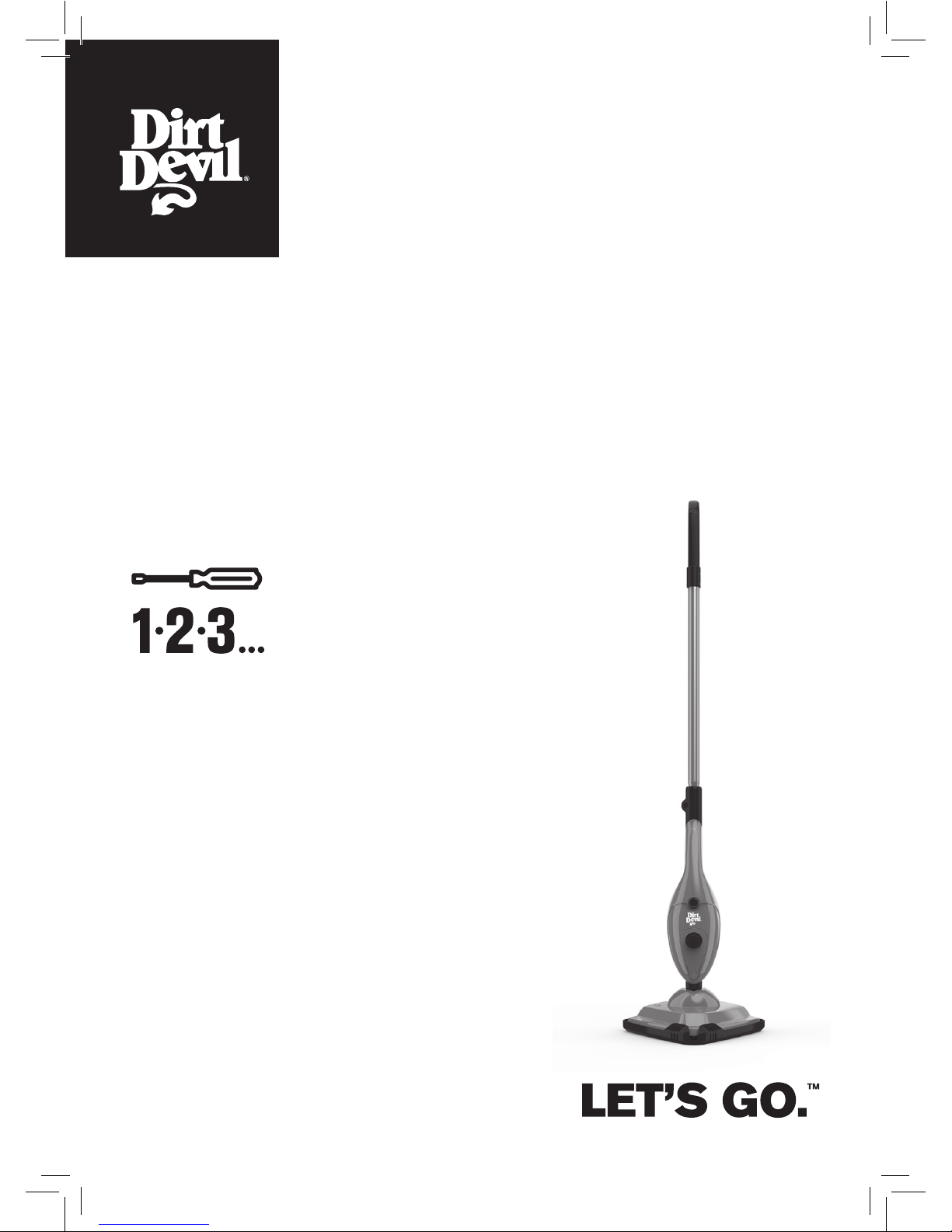

Dirt Devil SM08 Manual de usuario

(5-in-1 and 11-in-1)

MULTI-FUNCTION

STEAM CLEANER

USER GUIDE

DDS04-E01/DDS04-P01

WARNING

BASIC SAFETY PRECAUTIONS

This steamer is intended for

household use only and NOT for

commercial or industrial use.

• Only use the steamer indoors and

keep the area you’re cleaning well lit.

• Keep ngers, hair and loose

clothing away from moving parts

and openings whilst using

the steamer.

• This steamer can be used by

persons with reduced physical,

sensory or mental capabilities or

lack of experience and knowledge

if they have been given supervision

or instruction concerning use of

the appliance in a safe way and

understand the hazards involved.

• Children shall not play with the

steamer. Cleaning and user

maintenance shall not be

performed by children without

supervision

• Please refer to oor manufacturer’s

care recommendations before use,

and test your ooring/carpet/rugs

by running the steamer over a small

hidden area, if no pile distortion or

no damage occurs continue

cleaning. Not suitable for use on

wax polished oors or furniture,

acrylic surfaces and synthetic,

velvet or steam/water sensitive

materials

• This steamer should not be used to

clean electrical appliances such as

microwaves, televisions and

electrical heating systems etc.

• Only Dirt Devil recommended

cloths and accessories should

be used with this steamer. This

steamer is a water only product,

using detergents will invalidate the

guarantee.

• Don’t touch any hot areas/

accessories on your steamer.

It’s normal for the steamer and

accessories to heat up during use,

always allow them to cool down

before handling.

• Don’t leave the steamer turned on

when unattended.

• Don’t use the steamer if it has been

dropped, damaged, immersed in

water or left outdoors.

• Don’t run over the power cord or

use steamer if the power cord or

plug is damaged. Please contact

our Customer Care Line.

• Don’t handle the plug or use the

steamer with wet hands. Don’t pull

or carry the steamer by the power

cord.

• Don’t use the power cord as a

handle, don’t pull the power cord

around corners or sharp edges or

close a door over the power cord.

DON'TS

WARNING

• Don’t unplug the steamer by pulling

on the power cord.

• Don’t attempt to remove blockages

with sharp objects as this may

cause damage to the steamer,

remove blockages only as

instructed in this guide.

• Don’t aim the steamer at people,

animals, plants and electrical

components or wires. Never

touch the steam jet (there is a risk

of scalding).

• Don’t use the steamer with

incorrect voltage as this may result

in damage or injury to the user. The

correct voltage is listed on the

ratings label.

• Don’t use the steamer to clean or

refresh any items of clothing that

are still being worn on the body.

DON'TS CONTINUED...

• Always ll the water tank with

water only. Never add perfume,

stain remover or products

containing alcohol. Filling the water

tank with hot or boiling water will

damage the steamer and invalidate

the guarantee.

• Always vacuum your carpets

thoroughly and ensure hard oor

areas are free from grit and debris

before using your steamer.

• Always unplug the steamer and

allow to cool before carrying out

any maintenance.

• Turn off all controls on the steamer

before disconnecting or

connecting the power cord, after

use always wrap the power cord

around the cord clips.

• Take extra care when cleaning on

the stairs.

• Always replace the fuse in the plug

with a British 13amp fuse. Always

protect the power cord from

heated surfaces and open ames.

• Use only CE approved 13amp

extension cords, non-approved

extension cords can overheat.

Care should be taken to arrange

the extension cord as it could be a

trip hazard.

• Store the steamer in a cool, dry

area away from children. Before

storing the steamer please make

sure the water tank is thoroughly

clean and empty.

DO'S

HI. WElCOmE.

PRODUCT

REgISTRATION

For quick reference, please record your product information below.

Model #:

Serial number:

(serial number located on the back or bottom of product)

Guarantee Registration

Be sure to register your product online at www.DirtDevil.co.uk

Hint: Attach your sales receipt to this User Guide. Veriﬁcation of date of purchase may be

required for warranty service of your Dirt Devil®product.

Congrats on purchasing your new MULTI

FUNCTION STEAM CLEANER. Inside, you’ll ﬁnd

everything you want to know from tools to how to.

So what are you waiting for? LET’S GO.™

TABlE OF

CONTENTS

Let's talk safety 3

Overview 6

Before use 8

Assembly 9

How to 10

Care & Maintenance 16

Troubleshooting 16

Guarantee 19

Handle

Handheld steam

trigger (hidden)

Handle release button

Handheld handle

On / off and steam

control dial

Power indicator

Water tank cap

Water tank (Part of unit)

Floorhead

Carpet glider

Quick cord

release hook

Quick cord

release hook

Accessory ﬂoorhead

release button

OVERVIEW

TECHNICAL

DATA

Type of appliance:

Multi function steam cleaner

Model name:

5-in-1 / 11-in-1

Model number:

DDS04-E01 / DDS04-P01

Voltage:

220-240V ~, 50 Hz

Power:

1500W

Water capacity:

330ml

Power cord length:

Heat up time:

30secs

Steam time:

15mins

Weight:

2.1kg

INCLUDED WITH

YOUR MACHINE

5-in-1

x1 Microﬁbre Pad

x1 Carpet Glider / Cooling Tray

x1 Concentration Nozzle

x1 Small round brush

x1 Grout brush

11-in-1

x2 Microﬁbre Pad

x1 Carpet Glider / Cooling Tray

x1 Concentration Nozzle

x1 Small round brush

x1 Grout brush

x1 Utility Head

x1 Utility Head Pad

x1 Window Squeegee

x1 Measuring Cup

x1 Hose

x1 Metal Brush

x1 Microﬁbre Pad

x1 Carpet Glider / Cooling Tray

x1 Concentration Nozzle

x1 Small round brush

x1 Grout brush

x2 Microﬁbre Pad

x1 Carpet Glider / Cooling Tray

x1 Concentration Nozzle

x1 Small round brush

x1 Grout brush

x1 Utility Head

x1 Utility Head Pad

x1 Window Squeegee

x1 Measuring Cup

x1 Metal Brush

x1 Hose

We reserve the right to make changes to

technical and design speciﬁcations in the

interest of continuous product improvement.

BEFORE YOU BEGIN CLEANING

1. Test for colour fastness in a small hidden area of upholstery/fabric to

check for colour removal before use.

2. When using the steamer, basic safety precautions should always be

observed.

3. Don’t aim the steamer at people, animals, plants and electrical components

or wires. Never touch the steam jet or ﬂoorhead from a short distance

(there is a risk of scalding).

4. The steamer is equipped with a thermostat and a thermal cut-out. If for any

reason the steamer overheats it will switch off. If this happens turn off and

unplug the steamer, allow to cool for at least 2 to 4 hours and re-try.

5. Don’t use hot or boiling water to ﬁll or clean water tank.

IMPORTANT: Please refer to ﬂoor manufacturer's care recommendations before use and test the

steamer on a hidden area of ﬂooring/surface to begin with.

The steamer head gets very hot during use. Always switch off the

steamer before emptying the water tank or changing the cleaning

pads/accessories.

CAUTION

BEFORE USE / ASSEmBlY

The steamer head gets very hot during use. Always switch off the

steamer before emptying the water tank or changing the cleaning

pads/accessories.

ASSEMBLING YOUR STEAMER

Push the main body

down into the

ﬂoorhead until it clicks

into place.

Push the handle into

main body until it

clicks into place.

Stand the steamer

upright by pushing the

main body forward to

lock into position.

YOUR

MULTI FUNCTION

STEAM CLEANER IS

READY TO CLEAN! NEED HELP?

Go to www.DirtDevil.co.uk or

contact our Customer Service

Department at 0330 026 2626

(Mon-Fri 9:00am to 5:00pm)

FILL THE WATER TANK

1. Remove ﬂoorhead and

handle and place steamer on

ﬂat surface. Twist water tank

cap anti clockwise and lift

to remove.

2. Do not ﬁll directly from tap

or over sink. Keep steamer

on ﬂat surface. Use the

measuring jug and ﬁll the

tank with 330ml (2 x 165ml)

of ﬁltered water.

3. Replace cap, align tabs

and twist clockwise to

tighten.
