IImmppoorrttaannttNNootteess
1. Before operating your LCD Monitor system, please read these instructions carefully.
2. Retain this manual for future reference.
3. Do not use any chemical solvent, cleaning agent or corrosive detergent to clean
away dirt on the surface of the screen. Doing so may cause irreversible dam-
age to the surface of the LCD screen. To clean off dirt or fingerprints, it is rec-
ommended that a soft-damp lens-cleaning cloth be used.
4. Using spare parts from another manufacturer may cause permanent damage to
the unit.
5. Avoid installing the monitor screen in a position that is exposed to direct sun-
light and hot air vents.
6. Install the unit in a dry location, avoid condensation.
7. Ensure that all wiring is properly connected before operating the unit.
8. Should the LCD panel break, avoid contact with the broken glass or fluid leaking
out from the enclosure. If you come into contact, flush and clean the affected
areas with plenty of water. Seek medical attention immediately.
9. When operating the monitor, avoid touching or pressing on the LCD screen.
Excessive force will damage the LCD screen.
10. When installing this unit in a vehicle, ensure that the installation and use of
this unit is in compliance with local vehicle rules and regulations.
11. Before replacing a blown fuse, turn the unit off and disconnect all power. Ensure
the replacement fuse is of the same rating (2A) of the fuse being replaced.
12. If during operation the unit overheats or malfunctions, turn off the power and
contact your dealer. Do NOT disassemble the unit, there are no user servicea-
ble parts in the unit.
13. The battery in the remote control (CR2025) has a useful lifetime of approxi-
mately 6-months. To ensure proper and reliable operation, replace the battery
in a timely manner.
14. The rated operating temperature range of the unit is 32º–122º F (0º–50º C). Cool
or warm the vehicle to within this temperature range prior to unit operation.
15. The picture viewing quality of this LCD is dependent on the installed location.
Adjust the brightness control and/or the angle of the screen to achieve the
optimum visual quality.
44© 2005 Directed Electronics—all rights reserved
IInnttrroodduuccttiioonn
Congratulations on your purchase of the world’s finest video entertainment system.
At Directed we are committed to bringing you the most technologically advanced
products available. We are pleased that you chose a Directed Video product. Through
years of critical testing and hand craftsmanship, we have created a wide range of
video entertainment products for your viewing pleasure.
This system incorporates the use of on screen display menu controls that allows you
to configure the system to suit your own personal preferences.
To view other great products from Directed Electronics, please visit the Directed
Video page at www.directed.com.
WWhhaattiissIInncclluuddeedd
QQuuaannttiittyyIItteemm
17” Monitor HVM700
1Din connector interface cable 1.2m
1Instruction Manual
1Remote Control (with CR2025 battery)
1Mounting Shroud
1Spacer Trim Ring
© 2005 Directed Electronics—all rights reserved 55
IInnssttaallllaattiioonn——SSeeaattHHeeaaddRReesstt
The kit includes a protective trim ring and an optional spacer ring for use when the
mounting surface is uneven.
1. Select appropriate locations in your vehicle for the monitor.
2. Be sure there is sufficient depth for the trim ring. Add the spacer ring for
shallow locations with uneven curved surfaces such as upholstery. Be sure
there is enough space for both the trim ring and for any excess interconnect
cable.
3. Ensure that the interconnect cable will reach from the monitor location to the
power supply module.
4. Create the required opening for the monitor and trim ring. Be sure it is not
too large, and that there is enough space behind the trim ring to store any
excess interconnect cable. Excess cable does not fit within the trim ring.
5. Route the cable through the opening in the trim ring:
6. Mount the trim ring with the screws provided.
7. Connect the cable to the monitor.
8. Securely snap the monitor into place.
CABLE
BLACK
66© 2005 Directed Electronics—all rights reserved

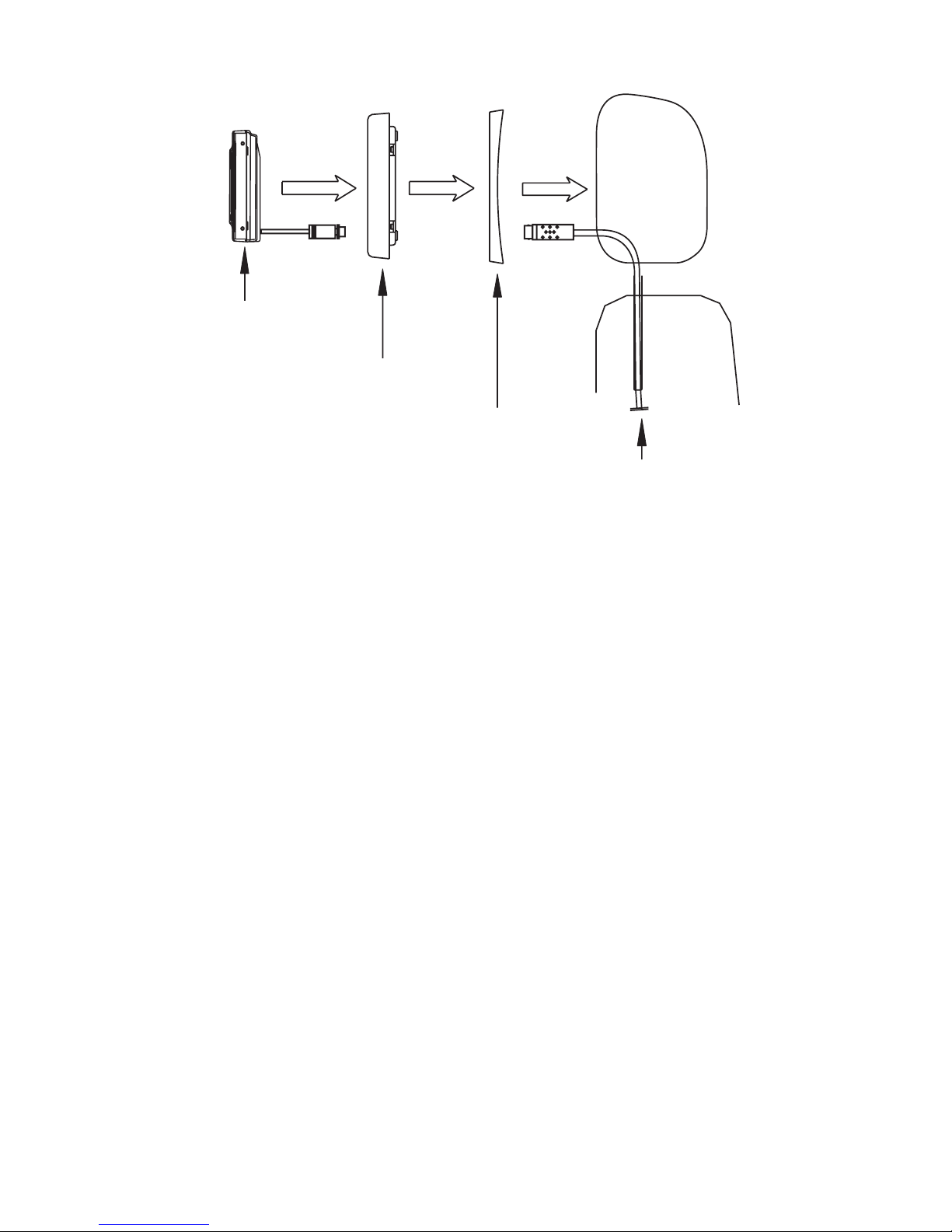

If you need to remove the monitor from the trim ring, insert a credit card or thin
plastic ruler between the monitor and the trim ring to release the monitor from the
flexible locking retainer tabs. Gently pull the monitor from the trim ring.
TRIM RING SHROUD
HEADREST SHROUD
MONITOR
WIRE IN TUBE
© 2005 Directed Electronics—all rights reserved 77
EElleeccttrriiccaallCCoonnnneeccttiioonnss——GGeenneerraall
The following diagram shows the common connections for this system.
WIRING SYSTEM:
YELLOW WIRE -- BATTERY (+)
RED WIRE -- ACC
BLACK WIRE -- GROUND
BLACK
YELLOW FUSE
BLACK
RED
V-IN2
V-IN1
VIDEO-1
INPUT
VIDEO-2
INPUT
BLACK
88© 2005 Directed Electronics—all rights reserved
MMoonniittoorrCCoonnttrroollss
LCD PANEL
HEADREST SHROUD
POWER ON/OFF/MODE SELECTION
AND ENTER BUTTON
(PRESS AND HOLD BUTTON TO POWER OFF)
UP—POSITIVE AND NEGATIVE ADJUSTMENT
MENU—DISPLAYS MENU
DOWN—POSITIVE AND NEGATIVE ADJUSTMENT
INFRA-RED REMOTE
RECEIVER
© 2005 Directed Electronics—all rights reserved 99
RReemmootteeCCoonnttrrooll
OOPPEERRAATTIIOONN
The remote control includes the following buttons for use with this monitor:
Monitor Menu, Mode, Up, Down,Left, Right and Power.
MMAAIINNTTEENNAANNCCEE
NNOOTTEE::Before using remote after installation, remove the battery plastic protective
slip.
1. Move the small latch to the right and slide out the battery holder.
2. Remove old battery and replace it with a new battery (CR2025) with the posi-
tive “+” sign facing as shown above.
Remote Controller
Battery
Battery Holder
Latch
+ side
POWER ON/OFF
CHANNEL SELECTION
SYSTEM SELECTION
FUNCTION SETTING
1100© 2005 Directed Electronics—all rights reserved
