PARTS AND SERVICE MANUAL

FOR THE MILANOef STOVE

MODEL NUMBER:

EDS7001F

TABLE OF CONTENTS

OPERATION PAGE1

PARTS DRAWING PAGE 3

PARTSLIST PAGE4

WIRING DIAGRAM PAGE 5

UPPER LIGHT BULB REPLACEMENT PAGE 6

LOWER LIGHT BULB REPLACEMENT PAGE 7

MAIN ON/OFF SWITCH REPLACEMENT PAGE 8

FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 9

HEATER ON/OFF SWITCH REPLACEMENT PAGE 11

HEATER THERMOSTAT CONTROL PAGE 12

POWER CORD REPLACEMENT PAGE 13

HEATER ASSEMBLY REPLACEMENT PAGE 14

EDS7001F

OPERATION

To access the controls go to the back of the stove.

A. MAIN ON/OFF SWITCH

The On/Off switch supplies power to all unit functions (heat/flame)

B. HEATER ON/OFF SWITCH

The HEATER ON/OFF SWITCH supplies power to the heater fan and the heater element.

C. HEATER THERMOSTAT CONTROL

To adjust the temperature to your individual requirements, turn the thermostat control

clockwise all the way to turn on the heater. When the room reached the desired

temperature, turn the thermostat knob counter clockwise until you hear a click. Leave in

this position to maintain the room temperature at this setting. For additional heat, turn

clockwise until you hear the click again and the heater will turn on. To turn the heater off,

switch the HEATER ON/OFF SWITCH to the OFF position.

NOTE

When the heater is switched ON, the heater fan will operate. The heater element may or

may not be on, depending on the thermostat control setting (SEE “HEATER

THERMOSTAT CONTROL”).

RESETTING THE TEMPERATURE CUTOFF SWITCH

This unit is equipped with a thermostat that controls the temperature of the room. It

does this by turning the heater on and off. The heater is protected with a safety device

to prevent overheating. Should the heater overheat, an automatic cut out will turn the

heater off and it will not come back on without being reset. To reset the temperature

cutoff switch turn the main power switch to the OFF position and wait five minutes

before switching the unit back on.

EDS7001F

OPTIONAL REMOTE CONTROL

The remote control has a range of approximately 50ft. (15.25m) it does not have to be

pointed at the fireplace and can pass through most obstacles (including walls). It is

supplied with one of 243 independent frequencies to prevent interference with other

units. The frequency designation is indicated on the back of the transmitter (FIGURE 3)

REMOTE CONTROL INSTALLATION

1. Plug fireplace cordset into the outlet located on the side of the receiver. (FIGURE 2)

2. Plug receiver into the wall outlet.

3. Install a 9 volt battery into the transmitter. (FIGURE 3)

4. Turn the stove main power switch to the on position prior to using the remote control.

5. The remote control works up to 50 feet away.

6. Push the ON button to turn stove on, push the OFF button to turn the stove off.

NOTE

To prevent the risk of fire, the stove plug must be inserted fully into the receiver.

NOTE

• Fireplace MAIN on/off switch must be in the

ON position prior to using the Remote Control.

• ON/OFF Remote Control may be used to

control most other electrical devices including

T.V.’s, stereos and lamps.

CAUTION

• For indoor use in dry areas only

• For use on electrical devices with 15 amp

resistive load or 1/3 HP inductive load

• 120 volt AC only

FIGURE 2

Receiver

Outlet

OPEN

Frequency

Code

Battery

Cover

FIGURE 3

EDS7001F

REPLACEMENT PARTS

STOVE- MILANO STYLE - GLOSS BLACK

PART NO. 6900830100 6900830100

MOD LEVEL NONE A

REPLACEMENT PART REPLACEMENT PART NO.

1. LOG SET 0438270100RP 0438270100RP

2. FRONT DOOR 0438390100RP 0438390100RP

3. TOP PANEL 1103740104RP 1103740104RP

4. MOTOR, ELECTRIC 2000140300RP 2000140300RP

5. HEATER ASSEMBLY 6902420100RP 6902420100RP

6. LOWER LIGHT HARNESS 2500170100RP 2500170100RP

7. HEATER ON/OFF SWITCH 2800070200RP 2800070200RP

8. MAIN ON/OFF SWITCH 2800070200RP 2800070200RP

9. CORDSET 4100040300RP 4100040300RP

10.REFLECTOR ASS’Y, ROTATING 5900080600RP 5900080600RP

11.FRONT DOOR GLASS 5900200100RP 5900200100RP

12.MIRROR 5900210100RP 5900210100RP

13.THERMOSTAT KNOB 8800000300RP 8800000300RP

14.FRONT DOOR KNOB 8800320100RP 8800320100RP

EDS7001F

WIRING DIAGRAM

EDS7001F

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

Light bulbs need to be replaced when you notice a dark section of the flame or when the

clarity and detail of the log exterior disappears. There is one bulb at the top of the

opening that illuminates the log set exterior and two bulbs under the log set which

generate the flames and embers.

It is a good idea to replace all of the light bulbs at one time if they are close to the end of

their rated life. Group replacement will reduce the number of times you need to open

the unit to replace the light bulbs.

TO REPLACE THE UPPER LIGHT BULB

1. Unscrew the two black knobs on the front of the unit by turning counterclockwise.

2. Grasp onto the front door, gently lift up and pull the door off of the unit.

3. Unscrew the bulb counter clockwise.

4. Insert new bulb.

5. Install the front door over the rods, gently lifting up to engage the door into the slot

in the roof.

6. Screw the two black knobs clockwise until tightened.

UPPER LIGHT BULB REQUIREMENTS

Quantity of 1 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 7

watt rating.

EDS7001F

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

Light bulbs need to be replaced when you notice a dark section of the flame or when the

clarity and detail of the log exterior disappears. There is one bulb at the top of the

opening that illuminates the log set exterior and two bulbs under the log set which

generate the flames and embers.

It is a good idea to replace all of the light bulbs at one time if they are close to the end of

their rated life. Group replacement will reduce the number of times you need to open

the unit to replace the light bulbs.

TO REPLACE THE LOWER LIGHT BULBS

1. Unscrew the two black knobs on the front of the unit by turning counterclockwise.

2. Grasp onto the front door, gently lift up and pull the door off of the unit.

3. Remove the screw from the logset located in the center of the emberbed and

remove the logset from the unit.

4. Locate and examine the bulbs to determine which bulb(s) required replacement.

5. Unscrew the bulb(s) counter clockwise.

6. Insert new bulb(s).

7. Install the logset into the unit, pushing firmly against the glass. Replace the logset

retaining screw into the ember bed.

8. Install the front door over the threaded rods, gently lifting up to engage the door

into the slot in the roof.

9. Screw the two black knobs clockwise until tightened.

LOWER LIGHT BULB REQUIREMENTS

Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60

watt rating. Example GE 60BC of Philips 60 CTC.

EDS7001F

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

TO REPLACE MAIN ON/OFF SWITCH

1. Unscrew the two black knobs on the front of the unit by turning counterclockwise.

2. Grasp onto the front door, gently lift up and pull the door off of the unit.

3. Remove the upper light bracket mounting screws from the top and remove the light

bracket assembly from the unit.

4. Locate the four cam locks on the side panels inside the upper corners of the

stove and turn with a large slot screwdriver so the triangle on the cam lock is

pointing up towards the top of the stove.

5. Grasp the top at both sides and gently pull to release the top.

6. Locate the main on/off switch mounted on the rear panel and disconnect the

wiring clips and connections noting their original locations.

7. Depress the retainer clips on the rear of the switch and push the switch out of the

rear cover.

8. Properly orientate the new switch and connect all of the wiring clips and

connections.

9. Reassemble in the reverse order as above.

Otros manuales para MILANOef EDS7001F

Tabla de contenidos

Otros manuales de Cocina de Dimplex

Dimplex

Dimplex Opti-myst Cassington CSN20 Manual de usuario

Dimplex

Dimplex DS7420 Guía de inicio rápido

Dimplex

Dimplex Opti-V 360 Manual de usuario

Dimplex

Dimplex ELECTRALOG CS2307 Manual de usuario

Dimplex

Dimplex Willowbrook WLL20-INT Manual de usuario

Dimplex

Dimplex Opti-myst Gosford Guía de inicio rápido

Dimplex

Dimplex EOSM-2007 Manual de usuario

Dimplex

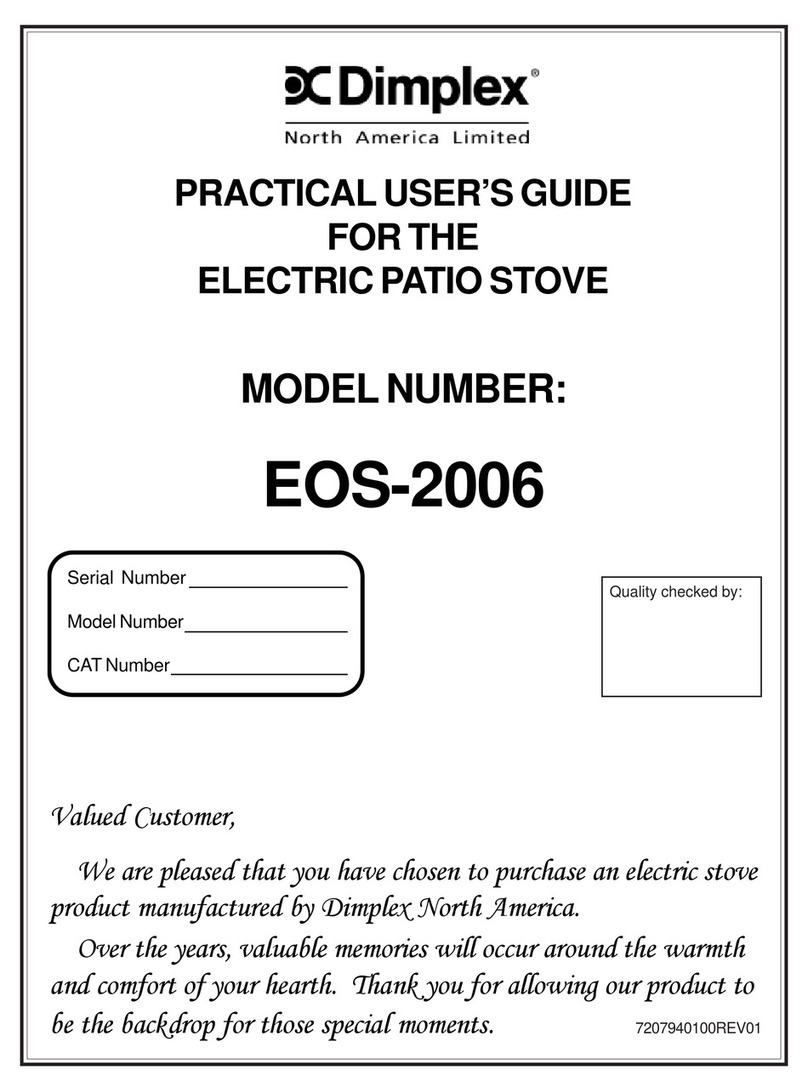

Dimplex EOS-2006 Manual de usuario
