Dimplex XLF60 Manual de usuario
7215520100R00
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual to
prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com
Better solutions through innovation
Owner’s Manual
Model
XLF60
2 www.dimplex.com
Table of Contents
Always use a qualied technician or
service agency to repair this replace.
!NOTE: Procedures and techniques
that are considered important
enough to emphasize.
CAUTION: Procedures and
techniques which, if not carefully
followed, will result in damage to
the equipment.
WARNING: Procedures and
techniques which, if not carefully
followed, will expose the user to the
risk of re, serious injury, or death.
Welcome & Congratulations ...................... 3
IMPORTANT INSTRUCTIONS .....................4
Quick Reference Guide ......................... 6
Fireplace Installation ........................... 7
Framing ..............................................7
Permanent Heat Disable ................................9
Electrical ............................................10
Bathroom Use ........................................13
Final Assembly .......................................13
Wiring Diagram ............................... 16
Operation ................................... 17
Maintenance ................................. 22
Warranty .................................... 23
Technical Support ............................. 25
3
Welcome & Congratulations
Thank you and congratulations for purchasing an electric replace from
Dimplex. Please use our convenient online registration page to record
your model and serial numbers for future reference at
www.dimplex.com/register
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
In order to better serve you, please have your model and serial number
ready or register your product online before calling (See above)
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in
a possible electric shock, re hazard and will void the warranty.
Model and Serial
Number Label
4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
① Read all instructions before
installing or using this electric
replace.
② This replace is hot when in
use. To avoid burns, do not let
bare skin touch hot surfaces.
The trim around the heater outlet
becomes hot during heater
operation.
DANGER: High temperatures
may be generated under
certain abnormal conditions.
Do not partially or fully cover
or obstruct the front of this
heater.
③Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④Young children should be
supervised to ensure that they do
not play with the appliance.
⑤ The appliance is not intended
for use by young children
or inrmed persons without
supervision.
IMPORTANT INSTRUCTIONS
⑥Do not operate the unit after
it malfunctions. Disconnect power
at the service panel and contact
Dimplex Technical Service for
service 1-888-346-7539.
⑦ Do not use outdoors.
⑧Never locate replace where
it may fall into a bathtub or other
water container.
⑨ To disconnect the replace,
turn the controls off, then
disconnect the circuit at the main
disconnect panel.
⑩ Do not locate the heater
immediately below a xed socket-
outlet.
⑪Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑫ To prevent a possible fire, do
not block air intakes or exhaust in
any manner.
⑬ All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored.
5
SAVE THESE INSTRUCTIONS
⑭Use this heater only as
described in this manual. Any
other use not recommended by
the manufacturer may cause re,
electric shock or injury to persons.
⑮Do not burn wood or other
materials in the electric replace.
⑯ Do not strike the replace
glass.
⑰ Always use a certied
electrician should new circuits be
required.
⑱ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
⑲When transporting or storing
the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
WARNING: Remote control
contains small batteries.
Keep away from children.
If swallowed, seek medical
attention immediately.
WARNING: Do not install
battery backwards, charge, put
in re or mix with used or other
battery types - may explode or
leak causing injury.
!NOTE: Changes or
modications not expressly
approved by the party
responsible for compliance
could void user's authority to
operate the equipment.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICABLE PARTS INSIDE
IMPORTANT INSTRUCTIONS
6 www.dimplex.com
Quick Reference Guide
Figure 1
1. The electrical information
regarding your electric replace
can be found on the rating label
located on the top of the unit.
Please use our convenient online
registration page to record your
model and serial numbers for future
reference at:
www.dimplex.com/register
2. If you have any technical
questions or concerns regarding
the operation of your electric
replace, or require service
contact customer service at
1-888-346-7539.
3. For dimensions of your
replace, refer to Figure 1.
16.49 in
419 mm
15.82 in.
402 mm
15.00 in.
381 mm
5.79 in.
147 mm
4.34 in.
110 mm
XLF60 60.31 in [1532 mm]
XLF60 61.41 in [1560 mm]
7
CAUTION: Ensure installation
does not allow replace to be
in direct contact with building
vapor barrier or insulation and
meets all local building code.
!
NOTE: A dedicated, properly
fused 15 Amp circuit is required,
rated for the appropriate voltage
(120V, 240V).
WARNING: Construction
and wiring must comply with
local building codes and other
applicable regulations to
reduce the risk of re, electric
shock and injury to persons.
WARNING: To reduce the risk
of re, electric shock or injury to
persons, always use a licensed
electrician.
WARNING: To reduce the
risk of re, do not store
or use gasoline or other
ammable vapors or liquids
in the vicinity of the heater.
1. Select a location that is
not susceptible to moisture
and is away from drapes,
furniture and high trafc.
2. Unpack the replace and
hardware from the box.
Fireplace Installation
!NOTE: Leave the front glass
and partially reective glass,
safely, in the box until the time
you are ready to install it.
3. Store the replace in a safe, dry
and dust free location until you
are ready to install the replace.
Framing
CAUTION: Two people will be
required for various steps of this
procedure.
This design of this unit allows
three options for installation:
partial recess, ush mounted or
sub-surface mounted.
2” x 6”
5 1/2" (14.0 cm)
16"
(40.6 cm)
2” x 4”
3 1/2" (9.0 cm)
XLF60: 60 5/8" (154.0 cm)
Figure 2
8 www.dimplex.com
Fireplace Installation (continued)
CAUTION: Sub-surface
mounting should be limited
to ½ in. (10 mm) to ensure
adequate air ow of heated air
out of the rebox area.
To frame the replace:
1. Prepare a wall with a framed
opening of 16 in. (40.6 cm)
high, 60 ⅝ in. (154.0 cm) wide,
with a bottom sill that is a
minimum of 3.5 in. (9.0 cm)
deep (Figure 2). The sill can
be constructed to support the
front of the unit to allow the
power supply wires to easily
be run behind or ush with the
back of the unit and a pass
thru hole drilled for electrical
wire routing.
WARNING: The top of the
replace is to be a minimum of
8 in (20.4 cm) from the ceiling.
!NOTE: It is recommended
that the bottom of the unit be
mounted between 30 in. (76.2
cm) and 40 in. (101.6 cm)
from the ground to maintain an
optimized viewing angle of the
ame.
WARNING: Do not attempt
to wire your own new circuits.
To reduce the risk of re,
electric shock or injury to
persons, always use a licensed
electrician.
WARNING: Ensure that the
circuit on which the replace is
to be installed has the power
cut off at the service panel
until installation is complete.
2. The unit is provided with an
installed ¾ in. (2.0 cm) trim.
Depending on the installation,
this trim can be removed by
removing the securing screws
and the 4 trim pieces.
3. Ensuring a minimum of 18 in.
(46.7 cm) of slack, route the
supply power wire through a
cable clamp (not included) and
in the opening in the back of the
unit. (Figure 3)
Figure 3
Grounding
Screw
Cable Clamp
9
Fireplace Installation (continued)

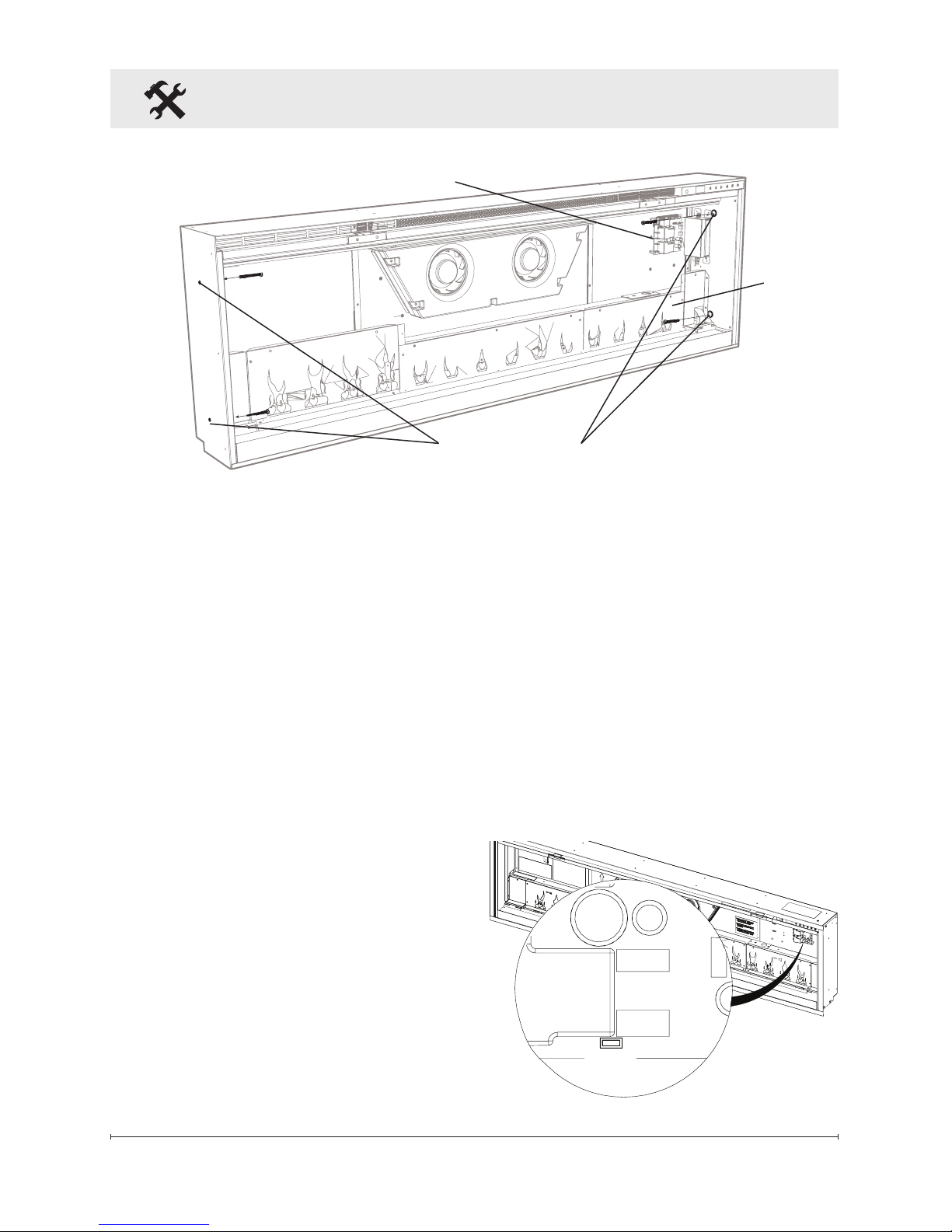

4. Lift replace, from the bottom
and the handles located on the
back, and insert into opening to
the desired depth.
5. Using a bubble level (supplied)
ensure that the replace is level
within the framing. Adjust as
required.
6. Drive four supplied mounting
screws through the four
mounting holes located on the
inside surface of the replace
chassis, into wall studs
(Figure 4).
Permanent Heat Disable
The replace heater can be
permanently disabled by removing
the electronic jumper on the main
control board. Disable the heater
before any other installation takes
place.
Figure 4
Mounting Holes
To disable the heater:
1. Locate the main control board
(Figure 4).
2. Pull out the electronic jumper
(shunt). The marking beside the
jumper is "HT EN" (Figure 5).
Use two conductor, non-metallic
sheath cable with ground wire
(3 wires total) for the incoming
power supply.
HT EN
Figure 5
Flame
Panel
Main Control Board
10 www.dimplex.com
Fireplace Installation (continued)
Electrical
120V Installation - Direct
Wire
CAUTION: Use the appropriate
wire to meet local and national
electrical codes for rated power
consumption.
To 120V direct wire:
1. Cut the wire to an appropriate
length.
2. Connect the L wire from the
unit to the live wire from the
power supply with a wire nut.
3. Connect the N wire from the
unit to the neutral wire from the
power supply with a wire nut.
4. Connect the G wire from the
unit to the ground wire from the
power supply with a wire nut
or attach the grounding wire
to the cover with the provided
grounding screw, by placing the
wire in-between screw and lock
washer and tighten (Figure 3).
5. Ensure that all wires are secure
and do not protrude past the
ame panel, so as not to be
visible after nal assembly.
6. Continue to the nal assembly
instructions.
120V Installation - Wall
Switch
!NOTE: Use a single pole, single
throw (On/Off) wall switch that is
rated for a minimum of
15 amps.
CAUTION: Use the
appropriate wire to meet local
and national electrical codes
for rated power consumption.
FIREPLACE JUNCTION BOX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
BLACK – L1
WHITE – N
BLACK – L1
GROUND - G
WALL
SWITCH
GROUND - G
Figure 6
Tabla de contenidos
Idiomas:
Otros manuales de Chimenea de interior de Dimplex
Dimplex
Dimplex JUNEAU Manual de usuario
Dimplex
Dimplex Prism BLF5051 Manual de usuario
Dimplex
Dimplex Opti-V PGF10 Manual de usuario
Dimplex
Dimplex Revillusion RBF30 Manual de usuario
Dimplex
Dimplex Revillusion RBF24DLX Manual de usuario
Dimplex
Dimplex Rome Manual de usuario
Dimplex
Dimplex Charlotte CRT20AB Manual de usuario
Dimplex
Dimplex Ignite 50" Manual de usuario
Dimplex
Dimplex Montclair Manual de usuario
Dimplex
Dimplex BELLINI CONCRETE BLN15C Manual de usuario
Dimplex
Dimplex DF2608 Manual de usuario
Dimplex
Dimplex Optiflame Gorstan GST20 Manual de instrucciones
Dimplex
Dimplex DFI2309 Manual de usuario
Dimplex
Dimplex 3-STEP Optimyst Manual de instrucciones
Dimplex
Dimplex DWF-1326 Manual de usuario
Dimplex
Dimplex MULTIFIRE DF3215 Manual de usuario
Dimplex
Dimplex Indoor Fireplace Manual de usuario
Dimplex
Dimplex BLF50-UK Manual de usuario
Dimplex
Dimplex Ravello RVO20 Manual de usuario
Dimplex
Dimplex Revillusion RLG20 EU Manual de usuario
