PRACTICAL USER’S GUIDE

FOR THE DIMPLEX

ELECTRIC FIREPLACE

MODEL NUMBER:

DF2608

CONTENTS

PAGE Important Instructions

PAGE Fireplace Installation

PAGE Operation

PAGE Maintenance

PAGE Warranty

Quick Reference Guide for the Dimplex

Electric Fireplace

1. Prior to the first use of the fireplace verify the

following:

•Are the circuit breakers for the socket the

unit uses on?

•Are the light bulbs in your fireplace

loose? (to check, follow the instructions

for replacing the light bulbs under the

maintenance section of this manual)

2. The heater on your fireplace may emit a slight,

harmless odor when first used. This odor is a

normal condition caused by the initial heating of

internal heater parts and will not occur again.

3. The information regarding the model of your

fireplace can be found on the rating plate. See

Page 2 for location.

4. If you have any technical questions regarding

the operation or service of your fireplace have

your Model and Serial Number ready, and

contact Dimplex North America technical

support at 1-888-DIMPLEX (1-888-346-7539) before

returning the product to the point of purchase.

IMPORTANT INSTRUCTIONS

Please Retain This User’s Guide for Future Reference

1. Read all instructions before using the electric fireplace.

2.This fireplace is hot when in use. To avoid burns, do not let

bare skin touch hot surfaces. The trim around the heater

outletbecomes hot during heateroperation.

3. Extreme caution is necessary when any heater is used by

ornear children or invalidsand whenever the unitis left

operatingand unattended.

4. Young children should be supervised to ensure that they do

not play with the appliance.

5.The appliance is not intended for use by young children or

infirmedpersons withoutsupervision.

6. The appliance must be positioned so that the plug is

accessible.

7.Always unplug the electric fireplace when not in use.

8. If the supply cord is damaged, it must be replaced by the

manufacturer, or itsservice agent, or aqualified person in

orderto avoid a hazard.

9. Do not operate any unit with a damaged cord or plug, or if

the heater has malfunctioned, or if the electric fireplace has

beendropped or damagedin any manner. ContactDimplex

TechnicalService1-888-346-7539.

10. Do not use outdoors.

11. Never locate fireplace where it may fall into a bathtub or

otherwater container.

12. Do not install the fireplace directly on carpet or a similar

surface which may restrict air circulation beneath the unit.

13. Do not run the cord under carpeting. Do not cover cord

with throw rugs, runners, or the like.Arrange cord away from

trafficarea and where it will not be tripped over.

14. Do not locate the heater immediately below a fixed

socket-outlet.

15.To disconnect the fireplace, turn the controls off, then

removethe plug from theoutlet.

16. Do not insert or allow foreign objects to enter any

ventilation or exhaust opening as this may cause an electric

shock or fire, or damage to the heater.

17.Although this unit is of zero clearance design, to prevent a

possible fire, do not block air intake or exhaust in any

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER

SERVICEABLE PARTS INSIDE

manner. Do not use on soft surfaces, like a bed, where

openingsmay become blocked.

18.All electrical heaters have hot and arching or sparking

parts inside. Do not use in areas where gasoline, paint, or

flammable liquids are used or stored or where the unit will be

exposedto flammable vapors.

19. Do not modify the electric fireplace. Use it only as

described in this manual.Any other use not recommended by

the manufacturer may cause fire, electric shock or injury to

persons.

20.Avoid the use of an extension cord. Extension cords may

overheat and cause a risk of fire. If you must use an

extension cord, the cord shall be No. 16AWG minimum size

and rated not less then 1875 watts.

21. Do not burn wood or other materials in the electric

fireplace.

22. Do not strike the fireplace glass.

23.Always use a certified electrician should new circuits or

outletsbe required.

24.Alwaysuse properlygrounded, fused and polarized

outlets.

25.Disconnect all powersupply before performing any

cleaning,maintenance or relocation of theunit.

26. When transporting or storing the unit and cord, keep in a

dry place, free from excessive vibration and store so as to

avoiddamage.

SAVE THESE INSTRUCTIONS

NOTE: Proceduresand techniques that areconsidered

importantenough to emphasize.

CAUTION: Proceduresand techniques which, if notcarefully

followed, will result in damage to the equipment.

WARNING: Procedures and techniques which, if not

carefully followed, will expose the user to the risk of fire,

serious injury, illness or death.

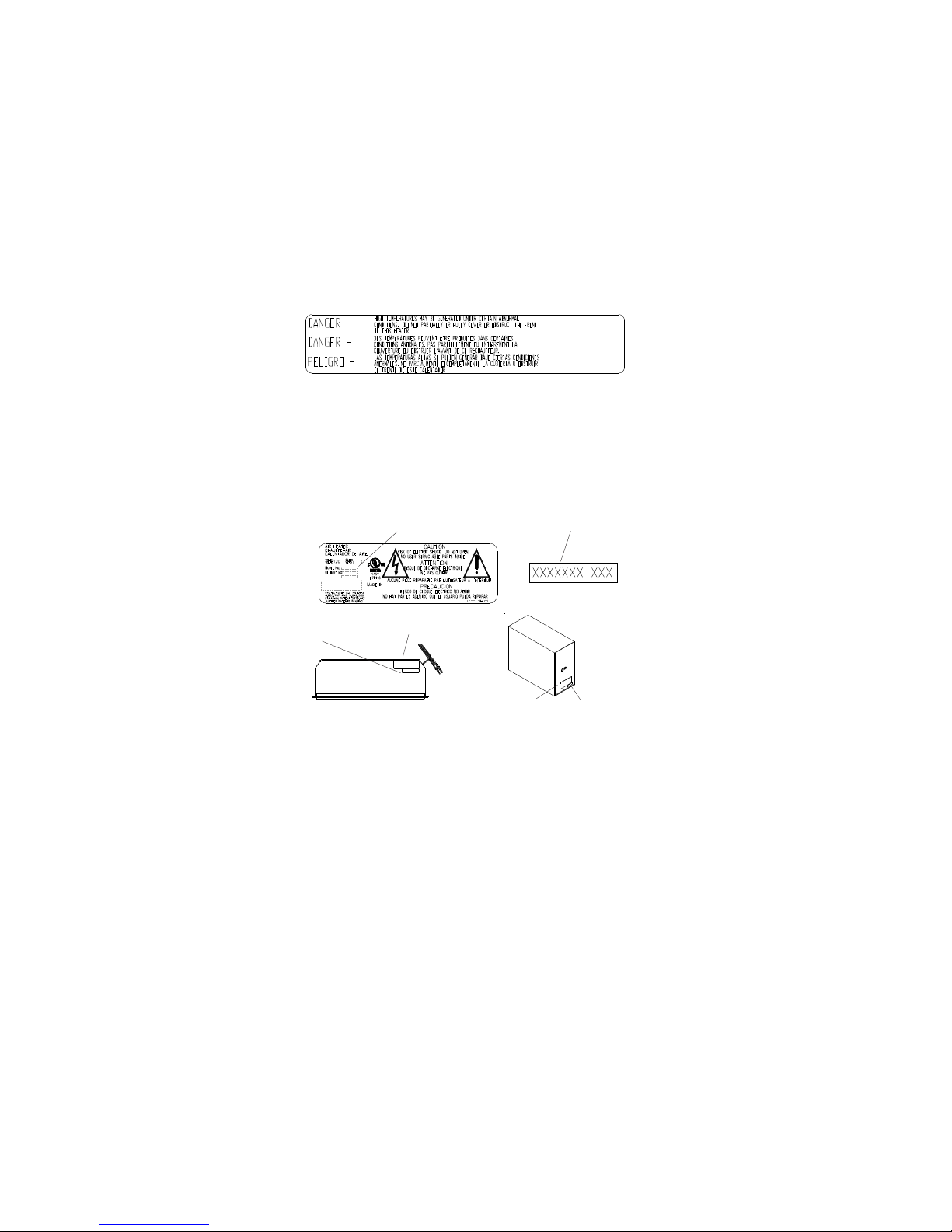

ModelNumber

Warning Label

Important Instructions

Ifyou have anyquestions regarding ourproducts please have

theproduct model numberand serial numbersavailable upon

calling Dimplex customer service or technical support. To

locate the model and serial number labels see below. Record

themodel number,serialnumber on the front cover of this

manualfor futurereference.

SerialNumber

ModelNumber

Serial

Number

Serial

Number

Firebox Carton

WARNING

Ensure the power cord is not installed so that it is pinched or

against any sharp edges and ensure that the power cord is

storedor secured to avoid tripping or snagging to reduce the

risk of fire, electric shock or injury to persons. Electrical

outlet wiring must comply with local building codes and other

applicable regulations to reduce the risk of fire, electric shock

and injury to persons.

Do not attempt to wire your own new outlets or circuits. To

reduce the risk of fire, electric shock or injury to persons,

always use a licensed electrician.

Site Selection and Preparation

This section provides instructions for selecting a location and

preparing the site to install the fireplace into your Dimplex

mantelsurround.

1. Select a suitable location that is not susceptible to

moistureand is away fromdrapes, furniture and high

traffic.

2. For ease of electrical hook up you may wish to locate

the fireplace near an existing outlet. (refer to NOTE 1)

3. Store the fireplace in a safe dry and dust free

location.

CAUTION

Clearancefor air circulationbeneath the fireplaceis provided

bytwo spacers. DO NOTINSTALL FIREPLACE DIRECTLY

ONCARPETOR SIMILAR SURFACESWHICH MAY

RESTRICTAIRCIRCULATION. Ifinstallingthe fireplace ina

carpetedarea, place a one-piece, solidflat surface under the

fireplace. Ensure that all feet rest securely on this surface.

NOTE

Thedimensions of the fireplaceare 27.35" wideX 23.465"

highX 8.75" deep. The fireplace does notrequire any

additionalventing.

Fireplace Installation

Install the fireplace assembly into the mantel. (refer to mantel

assemblyinstructions)

NOTE

A15AMP, 120 VOLTcircuit is required. Adedicated circuit is

preferred but not essential in all cases. Adedicated circuit

will be required if after installation the circuit breaker trips or

fuse blows on a regular basis when the heater is operating.

Additional appliances on the same circuit may exceed the

currentrating of the circuit breaker.

IMPORTANT

If not using a Dimplex mantel, the fireplace must be installed

inan enclosure with the followingMINIMUM dimensions.

New Wall Construction

1. Although this unit is of zero clearance design, select

a suitable location that is not susceptible to moisture

andis away from drapes,furniture and high traffic.

2. Place the fireplace in the desired location to see how

it will look in the room.

3. Mark the desired location on the floor.

4. Use studs to frame an opening of 26.75" wide X 23"

highX 9" deep.

26.75”

23”

9”

Option #1

Thepower cord can be runfrom behind the trim andalong

the wall to an outlet near the fireplace.

Option #2

A new outlet can be installed inside the framing

construction.

Plug the unit into a 15Amp/120Volt outlet. If the cord

does not reach, you may use an

extension cord rated for a minimum of 1875 watts.

Existing Fireplace:

1. Sealall drafts and vents witha non-fibrous insulation

materialto prevent any chimneydebris from falling

onto the fireplace. Do not install into an existing

fireplace that is prone to dampness.

2. Capthe top of the chimneyflue to prevent rain from

entering.

3. Plan your electric power supply.

4. Thepower cord can runalong the front ofthe hearth

to an outlet near the fireplace.

CAUTION

Clearancefor air circulation beneath thefireplace insert is

providedby two spacers.DO NOT INSTALL THE

FIREPLACE INSERT DIRECTLYON CARPET OR SIMILAR

SURFACES WHICH MAYRESTRICT AIR CIRCULATION. If

installing the fireplace in a carpeted area, place a one-piece,

solid, flat surface under the fireplace insert. Ensure that all

three of the insert’s feet rest securely on this surface.

For Bathroom Use

If this unit is installed in a bathroom it must be protected by a

GFI receptacle or circuit. If receptacle is used it must be

readily accessible. To prevent electrical shock this unit is an

electrical appliance that is not watertight and must be

installed as to prevent water from entering unit. This must be

installedaway from showers, tubs, etc. Never locate fireplace

where it may fall into a bathtub or other water container. High

temperaturesmay be generatedunder certainabnormal

conditions. Do not partially or fully cover or obstruct the front

ofthis heater.

Resetting the Temperature Cutoff Switch

This unit is equipped with a thermostat which controls the

temperatureof the room by turningthe heater on and off.

AEBCD

Operation

Electric Fireplace Manual Control

Themanual controls for the fireplace are behind the access

panel located at the bottom of the fireplace.

A. Three position ON/OFF switch

The switch has two ON positions marked with Iand II

The Iposition is for manual operation.

In this position the built-in remote control is bypassed.

The II position is for operating the unit with the provided

remote control.

When in II position the unit is operated with the ON and

OFF buttons of the remote control.

When the switch is in the center position the unit is off.

B. Flame Action Control

Turn the flame action control knob to adjust the flame

speed to the desired level.

C. Flame Brightness Control

Turn the flame brightness control knob to increase or

decrease the brightness of the flame

and embers.

D. Heater ON/OFF Switch

The heater on/off switch supplies power to the heating unit

when main on/off switch (A) is on.

E. Heater Thermostat Control

To adjust the temperature to your individual requirements,

turn the thermostat control

clockwise all the way to turn on the heater. When the room

reaches the desired temperature, turn the thermostat

knob counter clockwise until you hear a click. Leave in this

position to maintain the room temperature at its setting.

For additional heat, turn clockwise

until you hear the click again and the heater will turn on. To

turn the heater off, rotate the knob fully counter clockwise.

Otros manuales para DF2608

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de Dimplex

Dimplex

Dimplex DFR2651L Manual de usuario

Dimplex

Dimplex Cassette 500 Retail Optimyst Manual de usuario

Dimplex

Dimplex Revillusion RBF30C-AU Manual de usuario

Dimplex

Dimplex SP16 Manual de usuario

Dimplex

Dimplex ELGAR EGR20 Manual de usuario

Dimplex

Dimplex MULTIFIRE DF3015 Manual de usuario

Dimplex

Dimplex TANGO TNG20 Manual de usuario

Dimplex

Dimplex Optiflame Electric Fireplace Manual de usuario

Dimplex

Dimplex BLF7451-INT Manual de usuario

Dimplex

Dimplex Somerley SOM20 Manual de usuario

Dimplex

Dimplex ELECTRALOG DF203A Manual de usuario

Dimplex

Dimplex PF2325 Manual de usuario

Dimplex

Dimplex CHERITON COAL Manual de usuario

Dimplex

Dimplex STOCKBRIDGE SKG20BL Manual de usuario

Dimplex

Dimplex Revillusion RLG20 EU Manual de usuario

Dimplex

Dimplex THWG XLF50 Manual de usuario

Dimplex

Dimplex RLG20 Manual de usuario

Dimplex

Dimplex RANA LED Manual de usuario

Dimplex

Dimplex Pro Series Manual de usuario

Dimplex

Dimplex 3-STEP Optimyst Manual de instrucciones

Dimplex

Dimplex CDFI500P Manual de usuario

Dimplex

Dimplex Featherston GDS26L5-1152LR Manual de usuario

Dimplex

Dimplex DCF44GS Manual de usuario

Dimplex

Dimplex SP120SP220 Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
