OWNER’S MANUAL

Tower Fan

MODEL: DCTFTC108

Version 1.0 2016

READ AND SAVE THESE INSTRUCTIONS

Attention: Pictures in the IM are for reference only.

If the supply cord is damaged, it must be replaced by the manufacturer or its

service agent or a similarly qualified person in order to avoid a hazard.

Indoor use only.

To protect against the risk of electrical shock, do not immerse the unit, cord

or plug in water or any other liquid.

This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have supervision or instruction concerning

the use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance

shall not be done by children without supervision. Young children should be

supervised to ensure that they do not play with the appliance.

Unplug the appliance from the outlet when it is not in use or before cleaning.

When the fan is assembled, the rotor blade guard should not be taken off

again.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other

household wastes. To prevent possible harm to the environment or human

health from uncontrolled waste disposal, recycle it responsibly to promote the

sustainable reuse of material resources. To return your used device, aplease

use the return and collection systems or contact the retailer where the

product was purchased.

Read Rules for Instructions and Safe Operationscarefully.

CAUTION

WARNING

Never insert fingers, pencils, or any other object through the grille

when fan is running.

Disconnect fan when moving from one location to another.

Be sure fan is on a stable surface when operating to avoid

overturning.

DO NOT use fan in window, rain may create electrical hazard.

Household use only.

RULES FOR SAFE OPERATION

INSTALLATION INSTRUCTIONS

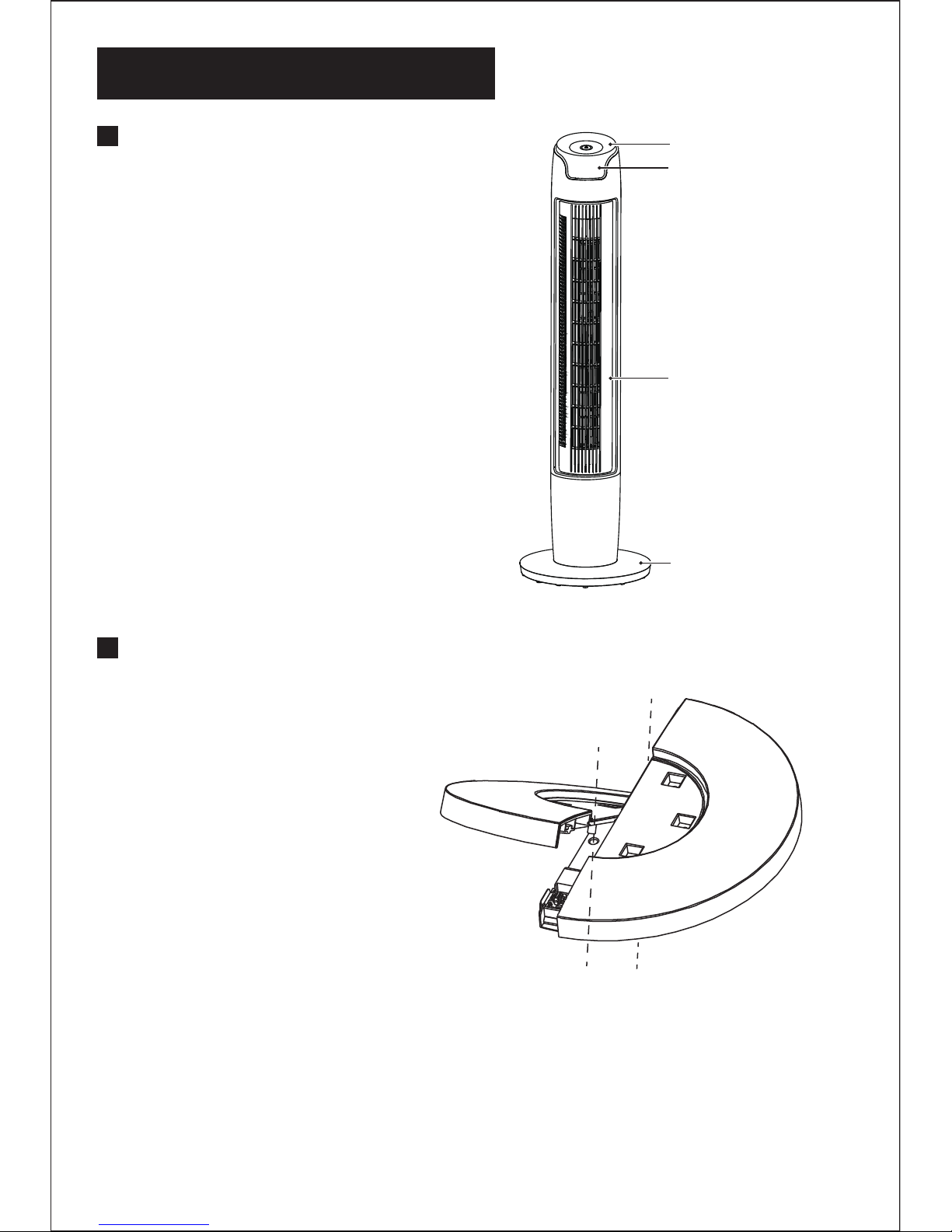

Name of components

Base

Body

Display window

Control panel

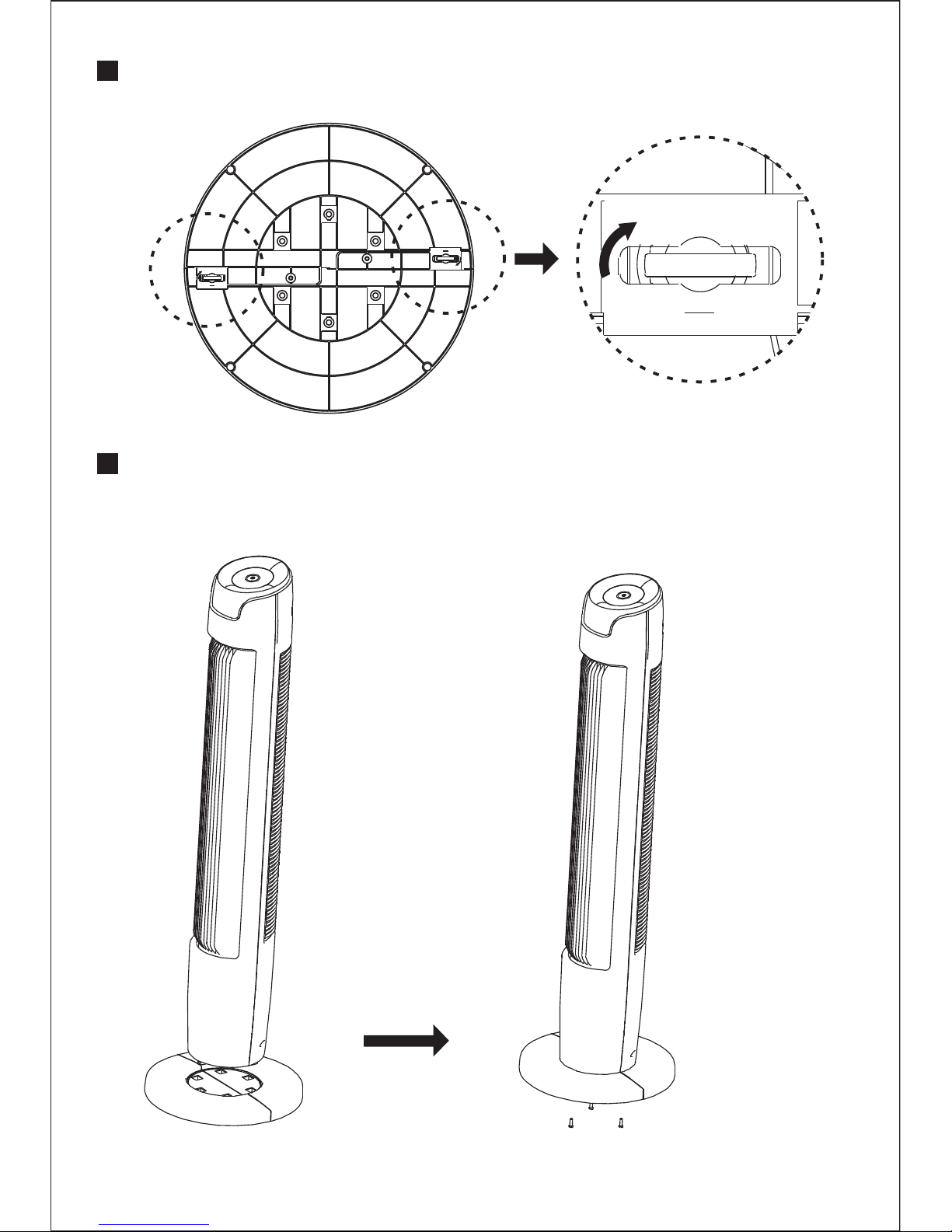

Align the column in the middle of the

pedestal with the hole and turn to fit

Turn the arrows of the two rotary knobs about 90°

Assemble the pedestal and body.

Align the three screws with corresponding hole

locations and screw tightly.

Press a key on the unit to activate a corresponding function.

For instance:

1. Press “+” or “-” Key to adjust 6 speeds of air flow.

(Note: Sleeping winds and natural winds function only can adjust 3

speeds of air flow.)

2. Press “ ”Key, through the "+", "-" to adjust time:

3. When the fan is on, press the “ ” key to time the fan to shut down

after 0.5-12 hours.

4. In stand-by mode, you can pre-set the fan to start in 0.5-12 hours.

5. Press “ ”Key to switch between Normal, Natural and Sleep

Functions.

6. Press “ ”Key：Press this key after activating the fan to toggle the

operation between Swing and Fixed Direction.

Display window

Timer

Normal wind

Swing

Natural wind

Sleep wind

Control panel

TIMER

MODE

SPEED/TIMER

OSC

ON/OFF

Instructions for operation of body

OPERATING INSTRUCTION

Remote Control

KEY INSTRUCTION

” ON/OFF KEY

1. “

The “

” key is for switching on the fan .The fan will

start in normal wind mode.

Press the “ ”key if the fan needs to be switched off.

2. “ ” SPEED KEY

When the fan has started, press this key repeatedly, the fan will

work with “1-2-3” circulatory.

3. “ ” TIMER KEY

Press this timer key repeatedly to set the time for air delivery.

Increase in increments up to "1-2-3……12" hours.

4. “ ” OSC KEY

After the fan has started, press this key to select oscillation mode.

The lights on the display will indicate fan oscillation mode.

5. “ ” MODE KEY

Press this key to select mode. The sequence for modes is normal,

natural and sleep when this key is repeatedly pressed. The light will

indicate mode state.

BATTERIES

(battery not included in the packing)

1. Slide the battery compartment Cover.

2. Insert the batteries, and make sure that

the batteries are placed as shown in the

right.

3. Slide back the battery cover.

NOTES: Use size “AAA” manganese or

alkaline batteries. Do not use

rechargeable batteries.

BATTERY WARNING AS BELOW

1. Do not dispose of batteries in fire, batteries

may explode or leak.

2. Do not mix old and new batteries.

3. Do not mix alkaline, standard (carbon-zinc) or

rechargeable (nickel-cadmium) batteries.

REMOTE CONTROLLER OPERATION

Point the remote controller at the receptor on the body of the fan and

press the desired button. The remote controller will work at distances of

up to roughly five meters and an angle of 30 degrees included between

the right and left from the receptor. The batteries must be removed from

the remote controller before it is scrapped and disposed of safely.

OVERHEAT PROTECTION OF THE MOTOR

The windings of the motor have a thermal-fuse that burns out and

switches the fan off if the motor overheats. Temperature of the motor will

no longer go up so that the plastic parts of the fan aren't subjected to

deformation or be burned by the overheating motor from any unexpected

reason.

CLEANING

1. Be sure to unplug from the electrical supply source before

cleaning.

2. Plastic parts should be cleaned with a soft cloth moisten with

mild soap. Thoroughly remove soap film with dry cloth.

DISPOSAL：Do not dispose of electrical appliances as unsorted

municipal waste, use separate collection facilities. Contact you

local government for information regarding the collection systems

available. If electrical appliances are disposed of in landfills or

dumps, hazardous substances can leak into the groundwater and get into

the food chain, damaging your health and well-being.

Rated voltage: 220-240V~ 50Hz

Rated power: 45W

Protection class: II

The fan requires little maintenance. Do not try to fix it by yourself.

Refer it to qualified service personnel if service is needed.

Before cleaning and assembling the fan must be unplugged.

To ensure adequate air circulation to the motor, keep vents at the rear

of the motor free of dust. Do not disassemble the fan to remove dust.

Please wipe the exterior parts with a soft cloth soaking a mild

detergent.

Do not use any abrasive detergent or solvents to avoid scratching the

surface.

Do not use any of the following as a cleaner: gasoline, thinner,

bending.

Do not allow water or any other liquid into the motor housing or interior

parts.

MAINTENANCE INSTRUCTION
