Dimen C190S Manual de usuario

Stereoscopic 2D/3D Switchable LCD Display

User’s Manual

C190S

Contents

CHAPTER 1

Before You Start

Important Advice............................................................................................................... 1

Product Features.............................................................................................................. 2

2D/3D Switchable Monitor................................................................................. 2

3D Formats........................................................................................................ 2

User Oriented System....................................................................................... 2

CHAPTER 2

Set Up

Safety................................................................................................................................ 3

Power Source.................................................................................................... 3

Installation......................................................................................................... 4

Operation........................................................................................................... 5

Included Parts.................................................................................................................... 6

Identifying Parts................................................................................................................. 7

Front................................................................................................................... 7

Rear................................................................................................................... 8

Installation......................................................................................................................... 9

Power Cord........................................................................................................ 9

Analog RBG Cable Connection......................................................................... 10

DVI Cable Connection....................................................................................... 11

Checking the Connection.................................................................................................. 12

Comparison of 2D and 3D Mode....................................................................................... 13

CHAPTER 3

2D Mode

Adjustments in 2D Mode................................................................................................... 14

Change of Input Channel................................................................................... 14

Automatic Screen Control.................................................................................. 14

Navigating the MENU........................................................................................ 14

Brightness.......................................................................................................... 15

Contrast............................................................................................................. 15

Color.................................................................................................................. 16

Image Type Mode.............................................................................................. 16

Screen Control................................................................................................... 17

Reset to Factory Setting.................................................................................... 17

CHAPTER 4

3D Mode

Viewing Angles in 3D Mode............................................................................................... 18

Switching to the 3D Mode.................................................................................................. 18

Frame Sequential Format.................................................................................. 19

Side-Field Format.............................................................................................. 19

Sub-Field Format............................................................................................... 19

Interlaced Stereo Format................................................................................... 19

Reverse Function.............................................................................................................. 20

Adjustments in 3D Mode.................................................................................................... 20

Selecting a 3D Format........................................................................................ 20

Brightness.......................................................................................................... 21

Contrast.............................................................................................................. 21

Subfield Adjustments.......................................................................................... 21

Contents I

CHAPTER 5

3D Graphic Card

Settings

Graphic Card Installation for 3D Games............................................................................ 22

Stereo Properties............................................................................................... 23

Advanced Stereo Properties.............................................................................. 25

Stereo Setup and Test....................................................................................... 26

CHAPTER 6

Miscellaneous

Troubleshooting................................................................................................................ 27

Product Specifications...................................................................................................... 29

Customer Service............................................................................................................. 30

Recycling.......................................................................................................................... 30

Appendix

Explanations of 3D Image Formats................................................................................... 31

Frame Sequential Format.................................................................................. 31

Side-Field Format.............................................................................................. 31

Sub-Field Format............................................................................................... 32

Interlaced Stereo Format................................................................................... 32

Contents

Before you start 1

CHAPTER Before You Start

Important Advice

■To view real 3D, specific stereoscopic 3D content has to be used! Normal 2D content will not

be displayed as real 3D on our monitors!

■Please set the resolution of your PC to 1280x1024. Only with this resolution you will be able

to view correctly in 3D mode!

■Please be aware of the following guidelines for viewing in 3D mode:

Model C190S (glasses-free)

Ideal viewing distance: 80 +/- 12 cm

Ideal viewing angle: there are 3 sweet spots with ideal viewing results, the best one

directly centered in front of the display, and one each on the left and right side of this

position. If you move further away from the center, there will be more sweet spots, however

the 3D quality decreases. Each sweet spot has a tolerance of +/- 2°. All in all there is a

good viewing result for 55° in front of the display. A good way to find the right position is to

sit in front of the display and move your head very slowly left and right until you have a

perfect 3D result.

■Please run the Intro-Demo-Disc first!!!

■On the disc you will find 3D content that can show you the possiblities that our monitors can

offer you. Simply insert the DVD into your PC, the DVD will start automatically. Install the

included Codecs first, so that all included file formats can be displayed correctly.

■General warnings:

cEpilepsy warning: Some people are susceptible to epileptic seizures or loss of

consciousness when exposed to certain flashing lights or light patterns in everyday life.

Such people may have a seizure while watching images or playing other content on our

monitors as well. If you experience symptoms such as blurred vision, disorientation, or

any involuntary movement or convulsion, immediately discontinue use and consult

your doctor.

dProlonged viewing of 3D images might cause dizziness or nausea symptoms with some

people. After using the monitor for a specific time, please rest your eyes.

ePlease make sure to read the manual carefully before using the monitor.

Product Features

Our Dimen monitors are 2D/3D switchable LCDs that can display 3 dimensional images

without additional hardware or software. The 2D mode is suitable for regular uses, such as

internet surfing or word processing. The 3D mode is for 3D games, 3D movies or any other

3D content.

▒2D/3D Switchable Monitor

■Switch between 2D mode and 3D mode simply by the push of one button.

▒3D Formats

■Our displays support 4 different 3D formats.

■The stereo image format can be changed simply by the push of a button.

■Supported formats: Interlaced Stereo, Frame Sequential, Sub-Field, Side-Field

▒User Oriented System

■In order to give the user the ideal solution for his/her needs, Dimen offers both glasses type

and non-glasses type 3D stereoscopic LCDs in different sizes.

■Dimen offers models with different input options, so that the user is able to connect to

different kinds of image generating devices, such as DVD Players or Camcorders.

Chapter 1

CHAPTER Set Up

Safety

Please read the following safety instructions carefully! They are designed to help prevent

damage to property and harm to the user.

▒Power Source

■The monitor should be installed near an easily accessible outlet!

■Please use the monitor only with the indicated voltage. Disregard may cause electric shock

and damage to the monitor.

■In case of thunder and lightning, please take out the power cord and signal cable. There is

a danger of electric shock or fire.

■Use only the power adapter that came with your display. Using adapters with different

specifications will cause monitor damage, and might cause fire or electric shock.

■Do not touch the power plug with wet hands. This might cause an electric shock.

■When the monitor is not used for a long time, please take out its power cord.

■When disconnecting the power cord, please pull the plug, not the cord. Be careful not to

bend the power cord unreasonably or damage it by heavy or sharp objects.

■While using the monitor, do not separate the power cord. Damage of the monitor might be

caused by an electric shock.

■Do not use voltage beyond 110～220V. This product is laid out to be used with voltage

between 110～220V.

Set up 3

▒Installation

■Do not install the monitor in places that are subject to extreme temperatures, for example

close to an electric heater or in direct sunlight. This might cause an electric shock, fire,

malfunction or a deformation of the monitor.

■Do not push or scratch the monitor. Do not put heavy objects on it. This might cause a

deformation of the monitor or a panel malfunction.

■Do not leave the power cord or any other cable in a position that might cause a person to

stumble over it. This might cause electric shock, fire, product damage and injury.

■Keep the display away from sources of liquids and moisture. Also keep it at a location with

minimum dust. If you detect smoke emission, an unusual noise or smell, please take out the

power cord and call our service center.

■If the monitor has been dropped or the case is otherwise damaged, please turn off the

power and take out the power cord. Call our service center for further instructions.

■Do not put any metal or inflammable objects into the monitor. This might cause electric

shock, fire and injury. When foreign objects are inside of the product, please take out the

power cord and call our service center.

■When installing the monitor, make sure to keep it away from the wall more than 10cm for

ventilation purposes. Do not cover the ventilation system in any other way. An increase of

the temperature inside the monitor may cause a transformation of the monitor or fire.

■Please place the monitor on a flat and safe surface to avoid falling down of the product.

■Do not install the display near any equipment that generates a strong magnetic field, such

as televisions or other household appliances. This might have an effect on the monitors

function.

■When moving the monitor, please turn off the power first.

■Before moving, all cables must be separated.

■While moving, be careful to avoid major impacts to the monitor.

■Please keep the box in which the product was delivered. In case of moving, please re-use

this packaging to protect the monitor from outside impacts.

■Please always hold the monitor with two hands, with the panel facing to the front. If the

monitor has been dropped accidentally, please call our service center. Damages might

cause an electric shock and fire.

Chapter 2

▒Operation

■Never remove the housing from the display. Refer servicing and repairs to qualified

personnel. Opening the product might cause electric shock or fire.

■Do not sprinkle water directly onto the monitor or use flammable materials, such as thinner

or benzene, when cleaning.

■Don’t let water enter the product.

■For cleaning the surface of the panel, please take out the power cord and wipe it with a soft

dry cloth to prevent scratching. Avoid using wet materials.

■To protect your eyesight, we recommend taking a break frequently, at least 5 minutes for

every hour of monitor use.

■Do not scratch the surface of the monitor with sharp objects such as nails, pencils or pens.

This might damage the product.

■Please keep an appropriate distance from the screen. Prolonged use with insufficient

distance might adversely affect your eyesight. In 3D mode, an appropriate distance is about

60 cm.

■To reduce fatigue, a comfortable and natural position in front of the monitor is

recommended.

■Prolonged viewing of 3D images might cause dizziness or nausea symptoms with some

people. After using for a specific time, please turn off the monitor to rest your eyes.

Set up 5

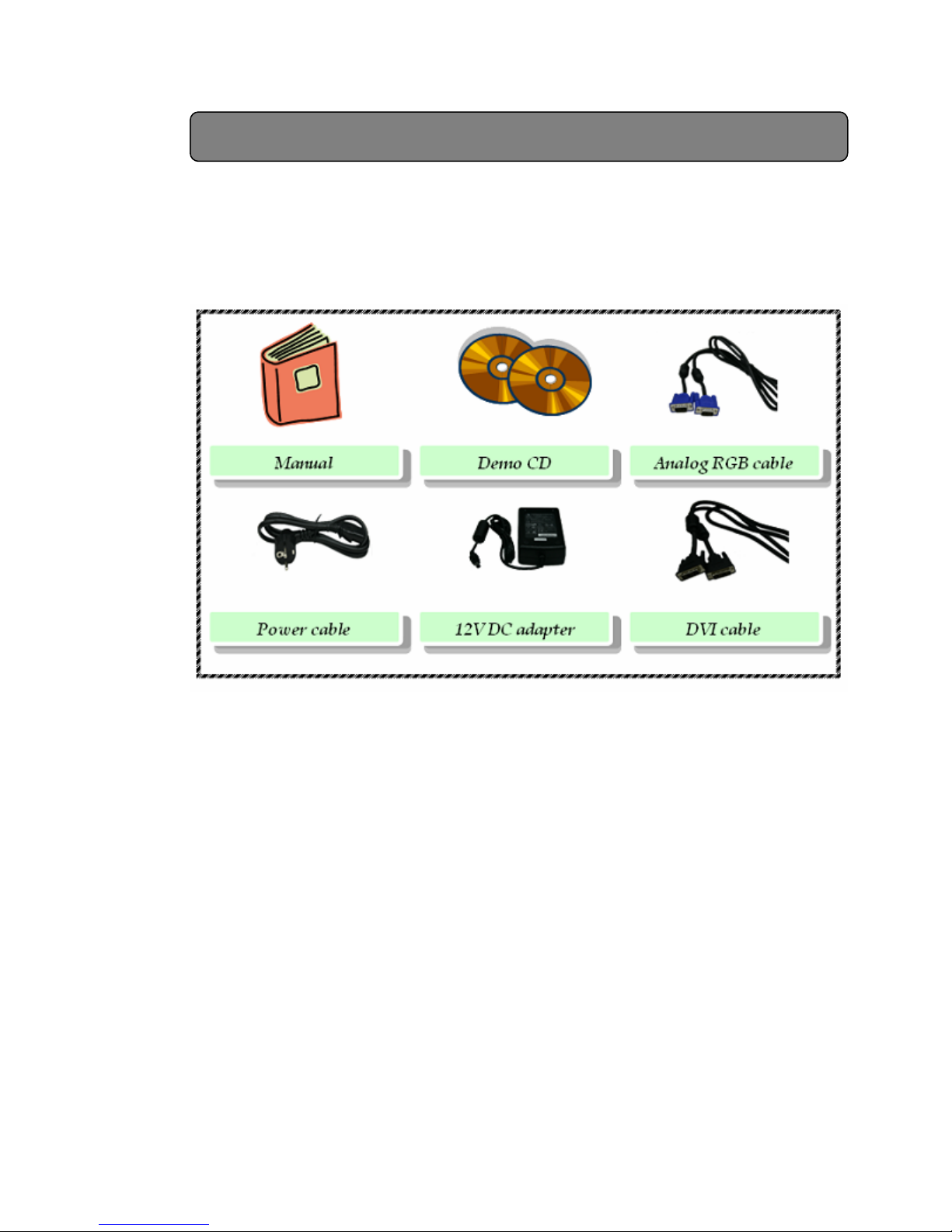

Included Parts

■After opening the box please check whether the following items are included.

■Each item might look different from the image shown.

Chapter 2

Identifying Parts

▒Front

321

456

1switch between 2D and 3D mode

22D mode: Auto function, 3D mode: Reverse function

3enter OSD menu, move between sub-menus

4decrease selected value in OSD menu

5increase selected value in OSD menu

6Power on/off

Set up 7

Tabla de contenidos

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
