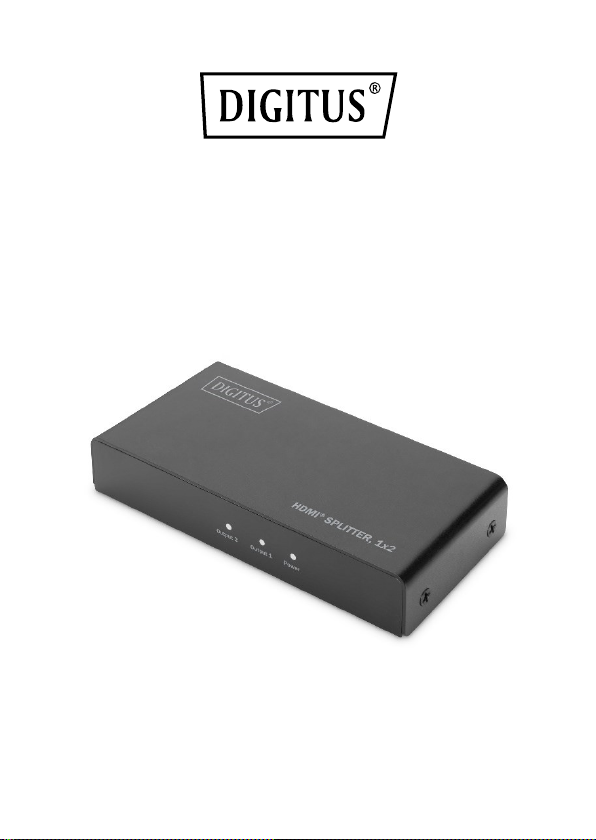

Digitus DS-45324 Manual de usuario

HDMI® Splitter, 1x2,

4K / 60 Hz with Downscaler

Quick Installation Guide

DS-45324

What’s included

Main unit

Power adapter

Ports and Interfaces

ON/OFF: Power on/off Button

INPUT: HDMI Input port

DC/5V: DC 5V Input

OUTPUT 1-2: HDMI Output 1-

2 LED Indicator

OUTPUT 1-2: HDMI Output 1-2

port

POWER: Power LED

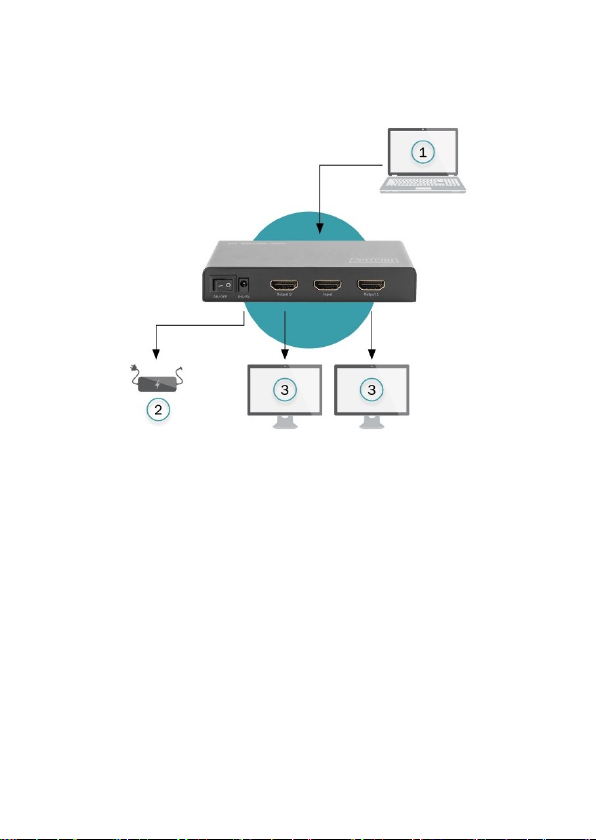

Connection Diagram

(1) HDMI® Source

(2) Power Adapter

(3) HDMI® Display 4K/60Hz

Introduction

The DIGITUS® high-performing splitter splits your HDMI device’s

audio and video signals on up to two screens, TVs or projectors with

a resolution of UHD 4K / 60 Hz. Additionally, HDR, HDCP 2.2 and 3D

are supported - also a total width of 18 Gbps for fluent playback in

excellent quality. The integrated Downscaler supports the output of

4K contents on Full HD displays. Additionally, a 4K as well as a Full HD

display can be operated simultaneously. Thanks to its Auto-EDID

function, the splitter automatically recognizes the connected displays

- no manual settings required.

Features

•Support downscale function means the product can downscale

the input 4K resolution to 1080p by the FHD (1080p) displays and

4K resolution to the 4K displays simultaneously.

•Support full 3D video format

•Support high resolution up to 4K@60Hz

YUV 4:4:4

•Support HDCP 2.2 and HDCP 1.4

•Support High Dynamic Range (HDR) video

•Support 600MHz/6Gbps per channel (18Gbps all channels)

bandwidth

•Support 12bit per channel (36bit all channels) deep color

•Support uncompressed audio such as LPCM

•Support compressed audio such as DTS, Dolby Digital (including

DTS-HD Master Audio™ and Dolby TrueHD)

Note:

The downscaler function only support the 4K@60Hz 4:4:4 and 4:2:0

(HDR 10) signal downscaler to 1080p signal, or there will not have

picture output to the FHD TV and normal picture to 4K HDR

supported TV simultaneously.

Specification

Input Ports

1x HDMI

Output Ports

2x HDMI

Vertical Frequency Range

50/60 Hz

Video Amplifier Bandwidth

6.0 Gbps/600MHz per channel (18

Gbps all channels)

Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p, 576p,720p,1080p, 4K@24/30

Hz, 4K@50/60 Hz

Operating Temperature

0°C to 70°C

Storage Humidity

5% to 90% RH

non-condensation

Power Supply

5V DC

Power Consumption (Max)

Dimension(LxWxH)

115 x 52 x 18 mm

Net Weight

164g

Material

Metal

Note: Specifications are subject to change without notice

Power Information

Value and precision

Power adapter brand

Shenzhen Keyu Power Supply

Technology Co., Ltd.

Model identifier

KA1201A-0502000EU

Input voltage

AC, 100-240V

Input AC frequency

50-60 Hz

Output voltage

DC, 5V

Output current

Output power

10W

Average active efficiency

79%

Efficiency at low load (10 %)

69%

No-load power consumption

0.1W

Troubleshooting

Problems

Causes

Solutions

Power light is off

and product is not

working

Is the power adapter

properly connected

and the power on/off

button is on

Please check if the power

adapter is connected

properly and switch on

the power on/off button

Screen splash

HDMI cable may not

be HDMI 2.0

specification or the

cable is too long

Please use the standard

HDMI 2.0 cable, the input/

output cable length does

not exceed 5M 4K/60Hz

4:4:4, 4K@30Hz/1080p

can reach 10M to 10M

No picture out

only sound out or

output pink screen

Maybe the displays

can’t support the

resolution or the

HDCP

Change a lower resolution

of the input HDMI signal

to check whether this

issue or not; if not, maybe

the customer should

change a non-HDCP input

source or HDCP compliant

displays or devices

No picture out to a

FHD TV when

connecting a

4K@60Hz source,

and have normal

picture to the 4K

HDR supported TV

at the same time

Maybe the

downscaler function

can`t support the

input signal, such as

4K@60Hz 4:2:2 HDR

signal(Dolby Vision)

or when connect one

FHD TV with a fixed

4K@60Hz output

device

The downscaler function

only support the 4K@60Hz

4:4:4 and 4:2:0 (HDR 10)

signal downscaler to

1080p signal, or there will

not have picture output to

the FHD TV, the customer

need change a supported

downscaler signal input.

Dolby is a trademark of Dolby Laboratories.

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or registered

trademarks of HDMI Licensing Administrator, Inc. in the United

States and other countries.

All other trademarks, registered trademarks, or service marks are the

property of their respective owners.

Hereby Assmann Electronic GmbH, declares that the Declaration of

Conformity is part of the shipping content. If the Declaration of

Conformity is missing, you can request it by post under the below

mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
