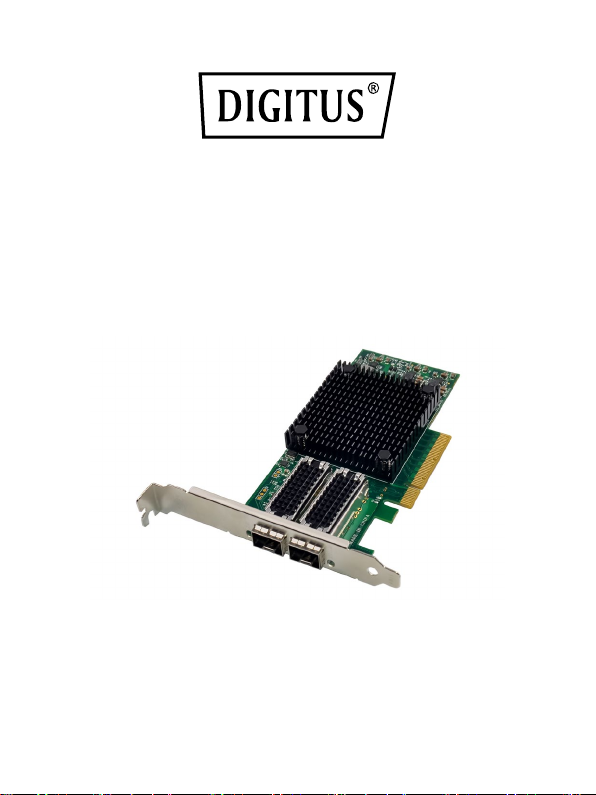

Digitus DN-10180 Manual de usuario

Dual-Port 25G SFP28

Adapter

Quick Installation Guide

DN-10180

Table of Contents

1. Introduction ..................................................................... 2

2. Package Contents ............................................................. 4

3. Specification ..................................................................... 4

4. System Requirements ...................................................... 5

5. Hardware Installation....................................................... 5

6. Install Drivers and Software ............................................. 6

1. Introduction

Introducing the DN-10180 - a high-performance network interface

card that is designed to provide reliable and efficient network

connectivity for your server or workstation. This card is fully

compliant with PCI Express Specification Revision 3.0, 1.1, and 2.0,

and supports link rates of 2.5, 5.0, or 8.0GT/s at x8.

The DN-10180 features auto-negotiation capabilities that allow it to

operate at x8, x4, x2, or x1, making it compatible with a wide range

of devices. It also supports MSI/MSI-X mechanisms for efficient

interrupt handling and dual-Port 25G, 10G, or 1Gb/s SFP+

connectivity for flexible network deployment.

This network interface card is designed to support a wide range of

industry standards, including IEEE802.3by, 25G supporting all FEC

modes, IEEE802.3az Energy Efficient Ethernet, IEEE802.3ap based

auto-negotiation and KR startup, and IEEE802.3ad, IEEE802.1ax,

IEEE802.1Q, IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb,

IEEE802.1Qbg, IEEE1588V2.

The DN-10180 also supports jumbo frame support up to 9.6KB,

independent NC-SI SMBus interface, independent stand-by and

wake-on-Lan signals, hardware-based reliable transport, collective

operation offloads, and PeerDirect RDMA (aka GPUDirect

communication acceleration).

Other key features of the DN-10180 include 64/66 encoding,

extended reliable connected transport, dynamically connected

transport, RDMA over Converged Ethernet (RoCE), TCP/UDP/IP

stateless offload, LSO.LRO. checksum offload, and hardware offload

of encapsulation and decapsulation of NVGRE and VXLAN overlay

networks.

This network interface card also supports SR-IOV, Multi-function,

Enhanced QoS, VMware support, and up to 256 virtual functions and

8 physical functions per port. It offers guaranteed QoS for VMs and is

compatible with OpenMPI, IBM PE, OSU MPI, and Intel MPI

protocols.

The DN-10180 is designed to support remote boot over Ethernet,

iSCSI, PXE, and UEFI and is compatible with a wide range of operating

systems, including FreeBSD, Linux 5.x and above, VMware

5.5/6.0/6.5/6.7, Windows Server 2008/2012/2016/2019, and

Win7/Win8/Win8.1/Win10 32 or 64bit.

Overall, the DN-10180 is a high-performance network interface card

that offers reliable and efficient network connectivity for your server

or workstation. It is designed to meet the demands of modern data

centers and is compatible with a wide range of devices and operating

systems.

2. Package Contents

•1x PCIe x8 Mellanox Connectx-4 Dual-Port 25G SFP+ adapter

•1x User’s Manual

•1x CD Driver

•1x Low profile bracket

3. Specification

•Compliant with PCI Express Specification Revision 3.0,1.1 and

2.0,2.5, 5.0, or 8.0GT/s link rate x8

•Auto-negotiates to x8, x4, x2, or x1

•Support for MSI/MSI-X mechanism

•Supports dual-Port 25G,10G, or 1Gb/s SFP+

•IEEE802.3by,25G supporting all FEC modes, IEEE802.3az

Energy Efficient Ethernet, IEEE802.3ap based auto-negotiation

and KR startup.

•Support Standards IEEE802.3ad, IEEE802.1ax, IEEE802.1Q,

IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg,

IEEE1588V2

•Jumbo frame support 9.6KB

•Independent NC-SI SMBus interface

•Independent stand-by and wake-on-Lan signals

•Collective operation offloads

•PeerDirect RDMA (aka GPUDirect communication acceleration)

•64/66 encoding

•Extended Reliable connected transport

•Dynamically connected transport

•RDMA over Converged Ethernet (RoCE)

•TCP/UDP/IP stateless offload

•LSO.LRO. checksum offload

•Hardware offload of encapsulation and decapsulation of NVGRE

and VXLAN overlay networks.

•SR-IOV, Multi-function, Enhanced QoS, VMware support

•SR-IOV up to 256 virtual functions

•SR-IOV up to 8 physical functions per port

•Guaranteed QoS for VMs

•OpenMPI, IBM PE, OSU MPI, Intel MPI protocol support

•NC-SI over MCTP over SMBus and NC-SI over MCTP over

PCIe-Baseboard Management Controller interface

•Remote boot over Ethernet, iSCSI, PXE, and UEFI

•Supports Operation Systems: FreeBSD, Linux5.x and above,

VMware5.5/6.0/6.5/6.7, Windows server2008/2012/2016/2019,

win7/win8/win8.1/win10 32 or 64bit.

4. System Requirements

•FreeBSD, Linux, VMWare ESXi

•Win-server2008 R2/ Win-server2012 R2/ Win-server2016/

Win-server2019

•Windows: 8/8.1/10 32/64bit

•One available PCI Express x8/x16 slot

5. Hardware Installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCIe x4/x8/X16 slot.

4. To install the card, carefully align the card’s bus connector with

the selected PCIe slot on the motherboard. Push the board down

firmly.

5. Replace the slot bracket’s holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

6. Install Drivers and Software

Windows Operating Systems

You must have administrative rights to the operating system to

install the drivers.

1. insert the CD driver bound with Mellanox network driver into

your CD-ROM drive.

2. if the Found New Hardware Wizard screen is displayed,

click Cancel.

3. select a driver based on the system type:

for Windows Server type: (Assume that D):

“D:\NIC Drivers\Mellanox\ConnectionX-4\Windows Server”

for Windows type: (Assume that D):

“D:\NIC Drivers\Mellanox\ConnectionX-4\Windows Client”

4. Double click the driver corresponding to the system.

5. Follow the instructions in the install wizard to finish it.

Installing Linux Drivers from Source Code

1. Download and expand the base driver tar file.

2. Compile the driver module.

3. Install the module using the mod probe command.

4. Assign an IP address using the ipconfig command.

Function

controller MELLANOX ConnectX-4 LX

Fibre Media

25G SFP+, 25GDAC, 25GAOC, 10GSFP+,

10G DAC, 10G AOC,1G SFP+

Fiber type

25G BASE-SR, 25GBASE-LR, 10GBASESR,

10GBASE-LR, SFP+, COPPER

Connect type PCIE3.0 X8

Operation

Systems

Windows8.1

Windows10

Windows Server2003/2003 R2

Windows Server2008/2008 R2

Windows Server2012/R2

Windows Server2016/R2

Windows Server2019/R2

Windows Server2022/R2

Ubuntu 14.04 or later

Sles12 sp2 or later

REHL/CentOS7.2 or later

Oracle Linux 7.8 or later

OpenEULER 20.03

KYLIN 10

Fedora 32

Euler0s 2.0 SP5/SP8/SP9

Debian 9.11/9.13/10.5/10.8

BCLINUX7.5 OR later

Stable kernel version 3.x,4.x or later

VMware ESX/ESXi 5.X,6.X or later

Port type Dual- Port 25G SFP28 connecter

Each Port

transmit speed

1/10/25Gbps

Ethernet power

management

yes

Standards

IEEE802.3by 25Gbase-SR,25Gbase-LR,

25Gbase-ER

IEEE802.3ae 10GBase-SR 10Gbase-LR,

10Gbase-ER,10Gbase-ZR

IEEE802.3aq 10Gbase-LRM

IEEE802.1Q,802.1P VLAN tags and priority

IEEE802.1Qbb priority flow control

IEEE802.1Qbg

IEEE1588V2

PXE/UEFI support YES

ISCSI support yes

VMDs, SR-IOV

support

yes

TCP/IP Sec offload YES

IPv4, IPv6 Support yes

Jumbo frame size 9.6KB

Network I/O

Virtualization

VXLAN, Geneve, NVGRE, ISER,

Operation

temperature

0o~55oC (32oF or 131oF)

Storage

temperature

-40~ 70oC (-40oF or 158oF)

Relative humidity 5~90 non-condensing relative humidity

Hereby ASSMANN Electronic GmbH declares that the Declaration of

Conformity is part of the shipping content. If the Declaration of

Conformity is missing, you can request it by post under the below

mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
