Digitus DA-70830 Manual de usuario

Package Contents:

- 1 x USB 2.0 VGA Adapter

- 1 x Driver/Manual CD

- 1 x Quick Installation Guide

User Manual

DA-70830

Quick installation

Follow these steps to quickly install your new USB 2.0 VGA Adapter:

NOTE:

Do not plug the USB 2.0 VGA adapter into the system before the driver is finished installing.

1. Insert the driver/manual CD and follow the instructions.

2. Make sure to restart the computer.

3. Turn on your 2nd monitor and connect it to the adapters.

4. Plug the adapter into an available USB 2.0 port.

5. After complete, you should see the extended display on the 2nd monitors.

See Appendix for detail instruction of the driver installation, Frequently Asked Questions and

Troubleshooting Tips sections for additional help.

Display Utility

After the driver is installed, a utility will appear in

the lower right taskbar. This utility allows you to

quickly change the settings and resolution for your

USB 2.0 VGA Adapter. Access the menu by right

clicking on the icon.

Support Function :

1. Primary

2. Extended

3. Mirror

Support Resolution :

Resolution Color Bits

1280 * 1024 8 , 16

1280 * 768 8 , 16 , 32

1152 * 864 8 , 16 , 32

1024 * 768 8 , 16 , 32

800 * 600 8 , 16 , 32

640 * 480 8 , 16 , 32

USB-VGA (Primary)

Make the USB 2.0 VGA Adapter the

main display adapter in the system.

The system’s main display adapter

(and monitor) will automatically switch

to being the secondary display adapter

and act as the extended desktop.

Note: Some display utility and drivers

that ship with AGP and built-in display

adapters will prevent this option from

working on some systems.

You can disable the other utility

(usually found in the same toolbar

located on the bottom right hand

corner) to make this function work

properly.

USB-VGA (Extended)

By default, your USB 2.0 VGA

Adapter will extend your Windows

desktop.

You can change the relative

position of this extension under

the Display Properties.

See instructions located later in

the manual.

Mirror

Your USB 2.0 VGA Adapter will

mirror your Windows desktop.

You can see the same desktop

image in another monitor.

USB-VGA (Off)

This option disables the USB 2.0 VGA Adapter on the

system.

USB 2.0 VGA Adapter Properties

To access the Display Properties for the USB 2.0 VGA Adapter, go to “Control Panel” and

double click on the “Display” icon. Select the “Settings” tab.

Click on the “Display” pull down menu and select the “USB 2.0 VGA DEVICE”.

From here, you can change the resolution and color depth as desired.

Click “OK” to apply the settings.

You can also make these changes using the USB 2.0 VGA Adapter utility.

Virtual Repositioning Your Displays

On the Settings tab of your Display Properties, click and drag the appropriate monitor icon

(labeled 1 or 2) to the desired position. For example, the secondary display can be

dragged to the left of the primary display, allowing it to be virtually on the left. Click OK or

Apply to save the changes.

Appendix --- Driver Installation Procedure

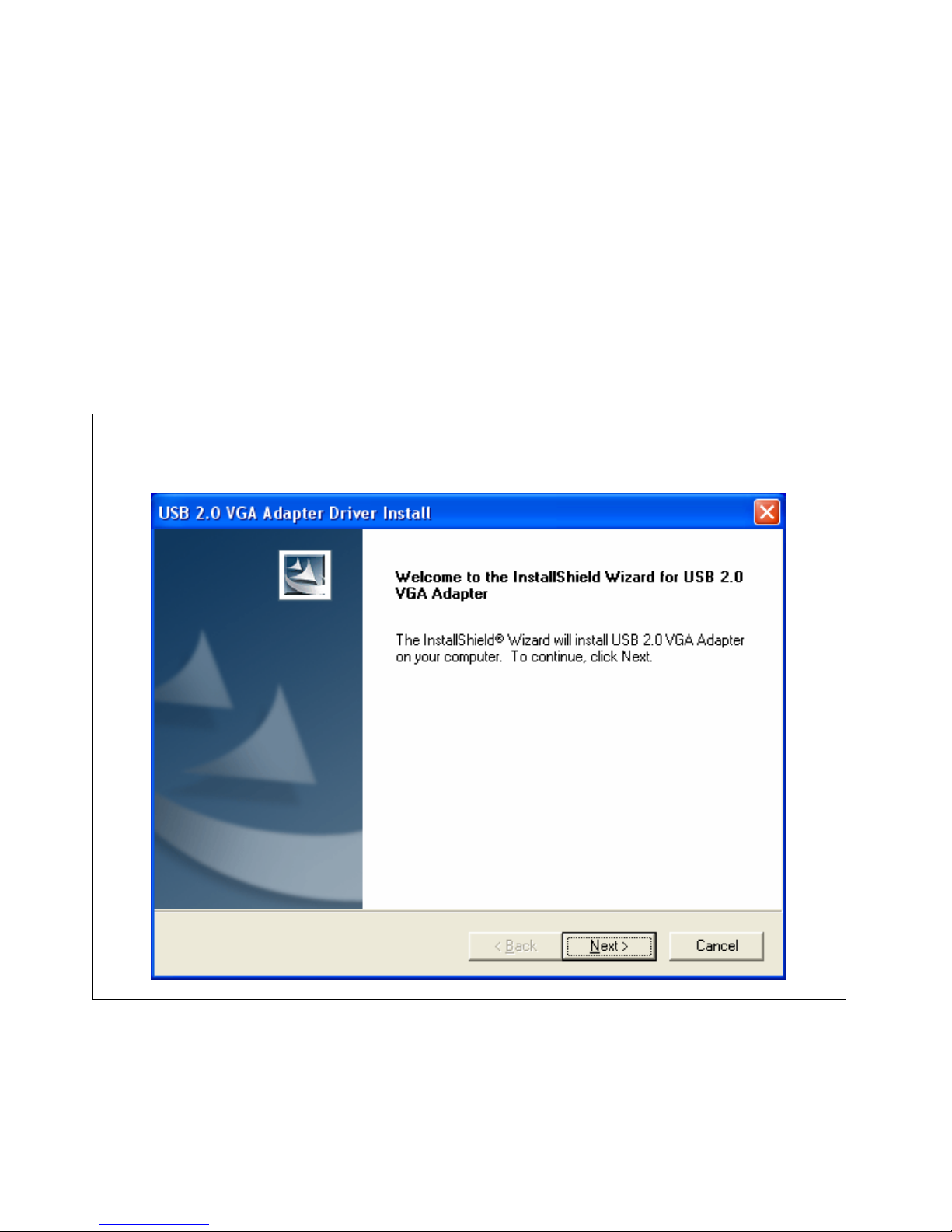

step 1 : Execute the Setup.exe from the CD driver, and click “ Next “.

Step 2 : Click “ Next “.

Step 3 : Select “Yes, I want to restart my computer now.” Click “ Finish “.

To make sure the “ USB 2.0 VGA” device has been installed successfully. Please

move the cursor to “ Start ”

Æ”Control Panel”

Æ”Performance and Maintenance”

Æ”System Properties”

Æ”Hardware”

Æ”Device Manager”.

Then , please double click “Display adapters”, it will show 2 new directions.

ÎUSB2.0 VGA DEVICE (DISPLAY)

ÎUSB2.0 VGA DEVICE (Mirror)

Then , plug-in the USB-VGA adapter, please double click “Universal Serial Bus

controllers”, it will show 1 new directions > ( USB2.0 VGA DEVICE (USB)

UV icon for utility.

Frequently Asked Questions (FAQ)

Q: Why can I not make the USB 2.0 to VGA Adapter the primary display?

A: Some video cards ship their product with a utility that prevent other video cards from

being set as the primary card. Check the bottom right hand corner taskbar for the utility.

Disable the utility before switching our adapter to be the primary display.

Q: Why will my DVD player not work when I move it over to the extended display?

A: Some DVD playback software packages do not support playing on a second display

adapter of any kind.

Q: How come my video will not play on Media Player if I move it over to the extended

desktop?

A: Check that you have moved the Media Player window completely over to the second

screen.

Q: Why does my mouse not move pass the right side of the screen as it should on

extended desktop?

A: Check the display settings and make sure that your display number ‘2’ is on the right

side of display number ‘1’. You can rearrange how Windows treats each display in relation

to each other in the Display Properties Settings.

Q: There are lines running horizontally up and down my screen.

A: This is due to a low refresh rate setting. You can change this in the Display Properties

Settings Advanced Monitor. Make sure you select the USB 2.0 VGA Device first and

not set the refresh rate higher than what your monitor can support. This may damage your

monitor. You can also try to reset/refresh/resynchronize your monitor.

Q: Direct3D does not work?

A: This is a current limitation of the adapter. Please check for driver updates in the future

to add support for this. If your application requires this, please use the main display

adapter.
