DWC-P336PARAMW

Parapet mount bracket for white IP PTZ cameras

Quick Start Guide

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday

digital-watchdog.com

NOTE: Download all your support materials and tools in one place.

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in the ‘Search by Product’ search bar. Results

for applicable part numbers will populate automatically based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

WHAT’S IN THE BOX

1x Teﬂon tape 12x hex screws (M10x30)

3x nuts (M6) 12x nuts (M10)

3x wrench screws (M6x30) 12x spring washers (M10)

1x hex Allen wrench (2.5) 12x ﬂat washers (M10)

1x hex Allen wrench (5) 1x quick setup guide

Quick Start Guide

Rev Date: 01/20

Copyright © Digital Watchdog. All rights reserved.

Speciﬁcations and pricing are subject to change without notice.

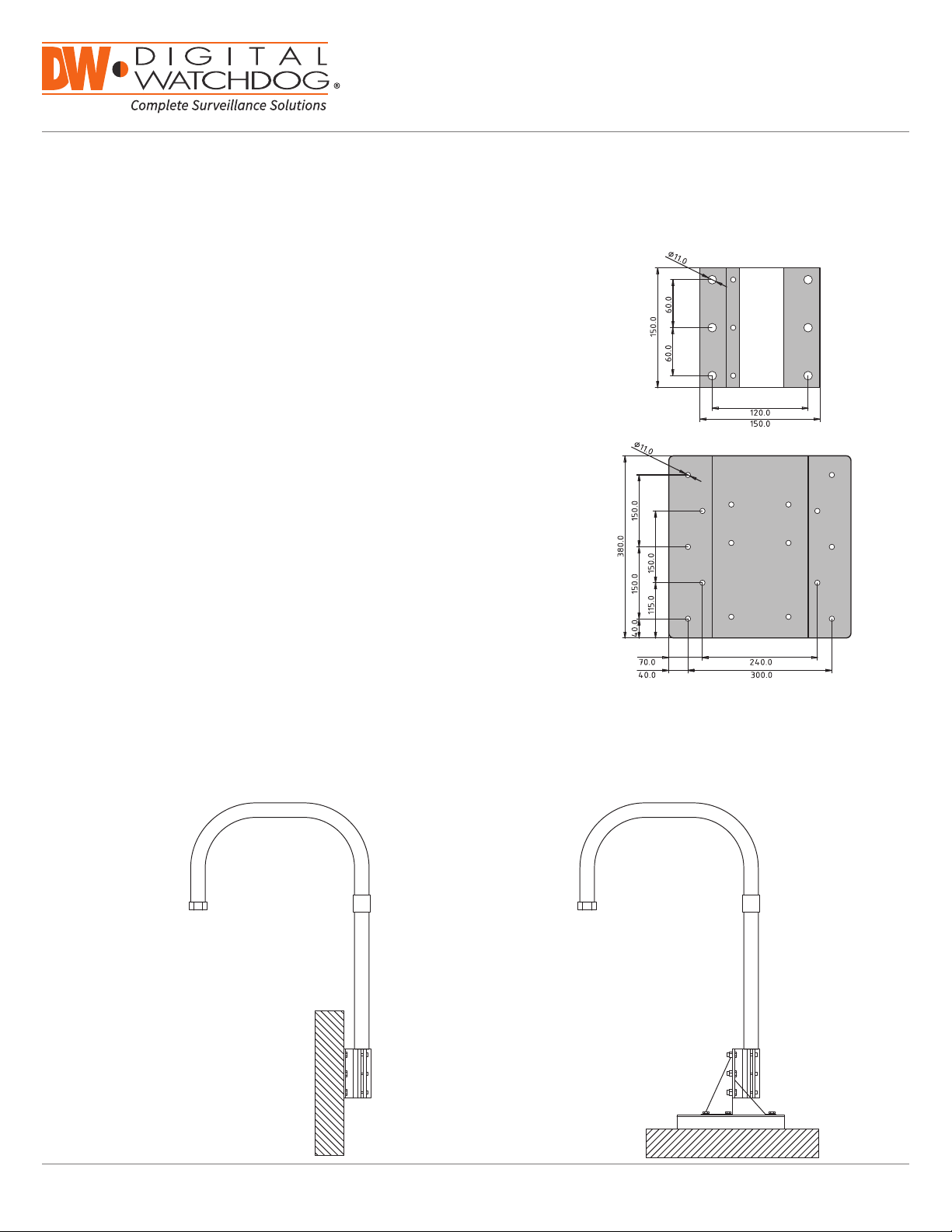

INSTALLING THE MOUNTING ACCESSORY

Roof mount installationParapet mount installation

Before the installation

1. The hardware necessary to install the mount depends on your installation

requirements.

2. The mount has pre-drilled holes for use with 3/8-16 (M10) type hardware

(recommended). Use as many of the mounting holes as possible.

3. Multiple fastening positions facilitate mounting ﬂexibility. For a roof or

parapet installation, mount the camera using a minimum of ﬁve fasteners

on each side of the mounting plate.

4. Adding a sealant around the bolt holes between the mount and mounting

surface can prevent damage from water leakage

5. Be sure that the mount is installed in a location that can support the load.

All mounting hardware must have a minimum pullout strength of 600 lb

(272 kg) per bolt.

6. When mounting to wood, use screws long enough to penetrate at least

2.5” (64 mm).

7. When mounting to a steel structure, drill holes according to the

mounting pattern.

8. When mounting to masonry or concrete, use lead anchors or expansion

bolts installed according to the manufacturer’s instruction.

9. Run all necessary cabling to the location selected for the installation. Pass

the cables through the mount’s pole and connect to the camera as needed.

Mount hole size: inch (mm)
