Digital Touch Systems TILTED TABLE KIT Manual de usuario

Touch Screen Kiosk

TILTED TABLE KIT

Assembly instructions

-2-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

Cover tray

Parts:

Screen

Top pan

Tilt brackets

Base

Legs

Hardware Included:

Tools needed:

#2 Philips Head Screwdriver

¼-20x1” Countersunk Machine Screw x6

¼-20x1” Panhead Machine Screw x8

10-32 x 1/4” Panhead Machine Screw x2

M6x40 Panhead Machine Screw x4

-4-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

Step 1 Attach Base to the Legs using the 6 ¼-20 x6 undercut screws provided.

Baseplate

Legs

-5-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

Step 2 Attach the Tilt brackets to the Top pan by using 4of the ¼-20 panhead

screws provided.

Top pan

Tilt bracket

-6-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

Step 3 Run HDMI, Monitor Power, and USB cables out from the PC tray through

the center hole and then out through the cutout on the side of the tray

as illustrated by the arrows #1. The main power cable will need to be run

through the Tilt bracket and into the PC tray as shown by the arrows #2.

Monitor

Power CableHDMI CableUSB Cable

Top pan

Tilt bracket

Main

Power Cable

-7-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

Step 4 Install the Top pan to the Screen using the 4 M6 machine screws. There are

4 cut outs in the PC tray to allow access for this process. Make sure to install

the wire cut out of the Top pan in the direction of the I/O’s on the Screen as

seen in the illustration below.

Top pan

Screen

-8-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

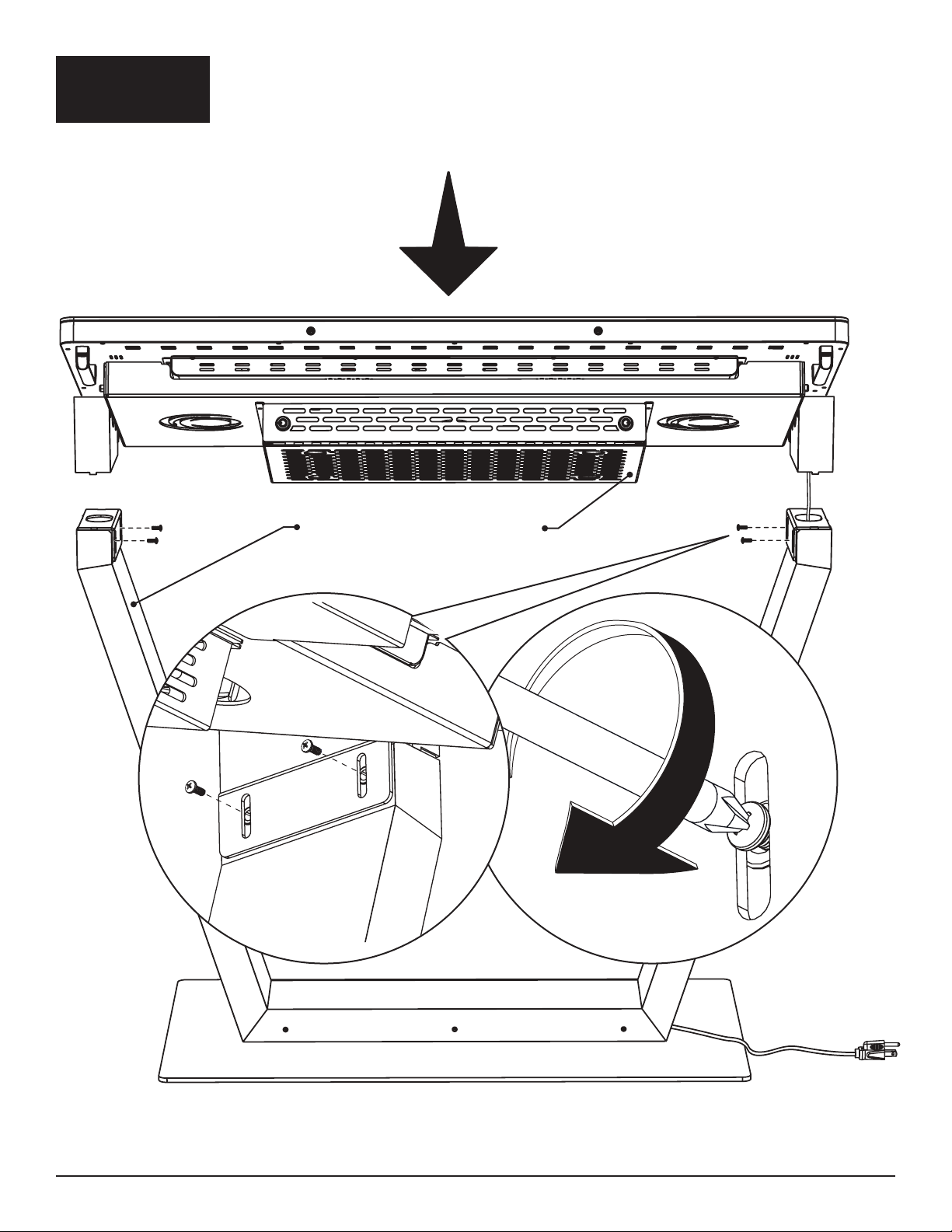

Step 5 With 2 people attach the Screen, Top pan, and Tilt assembly to the Legs and

Base by resting the assembly onto the Legs and installing the remaining 4

¼-20 pan heads onto either side of the Legs as shown in the illustration.

Legs Top pan

-9-Tilted Table Kit- Assembly Instructions DigitalTouch Systems

Once everything is connected properly, please test the touch screen to make

sure everything is fully functional. Now you’re ready to install the Cover tray,

which will cover up any exposed cables after all cable management has been

done & everything has been tested completely.

Line up the cable Cover tray with the two holes on the Top pan.

For the three holes on the opposite side of the tray, you will use the three screws on the back of

the Screen that line up with these holes. Please remove these three screws from the back of the

screen BEFORE installing this part.

The side of the tray that is secured to the Top pan will be installed using the two size 10-32 x 1/4

inch screws. Install the two screws on the side that is secured to the Top pan ﬁrst, then install the

three screws on the side of the tray that is secured to the back of the Screen.

Cover tray

Step 6

support@digitaltouchsystems.com digitaltouchsystems.com1(512) 600-0461
