Upgrade Instructions

Order Number: EK–VSAXP–UP. A01

VAXstation VLC to

DEC 3000 Model

300/300L AXP

MLO-010693

Can Cannot

Upgrade Upgrade

Expansion SZ03

Boxes: SZ12

SZ16

Hard Disks: RZ23L RZ57

RZ24L

RZ24*

RZ25*

RZ26*

RZ55*

RZ56*

RZ58*

Removable TZK10 RX23

Media:* TZ30 RX33

TLZ04

TLZ06

RRD42

RX26

Memory

Option: None

* Available only in expansion boxes

Options You Can Upgrade

Can Cannot

Upgrade Upgrade

Monitors VRC16-Cx/Hx VR262-Ax

VRM17-Ax/Hx VR290-Dx

VR319-Dx** VR297-Dx

VR320-Dx** VR299-Dx

VRT16-Hx** VRT16-Dx

VRT19-Hx** VRT19-Dx

VRT13

VR319-Cx

VR320-Cx

Input

Devices: VSxxx-AB

VSxxx-AA

VSxxx-FA

VSxxx-JA

VSxxx-GA

LK401

LK201

Ethernet

Adapter: DECXM-AA

** Available only on the Model 300.

Options You Can Upgrade

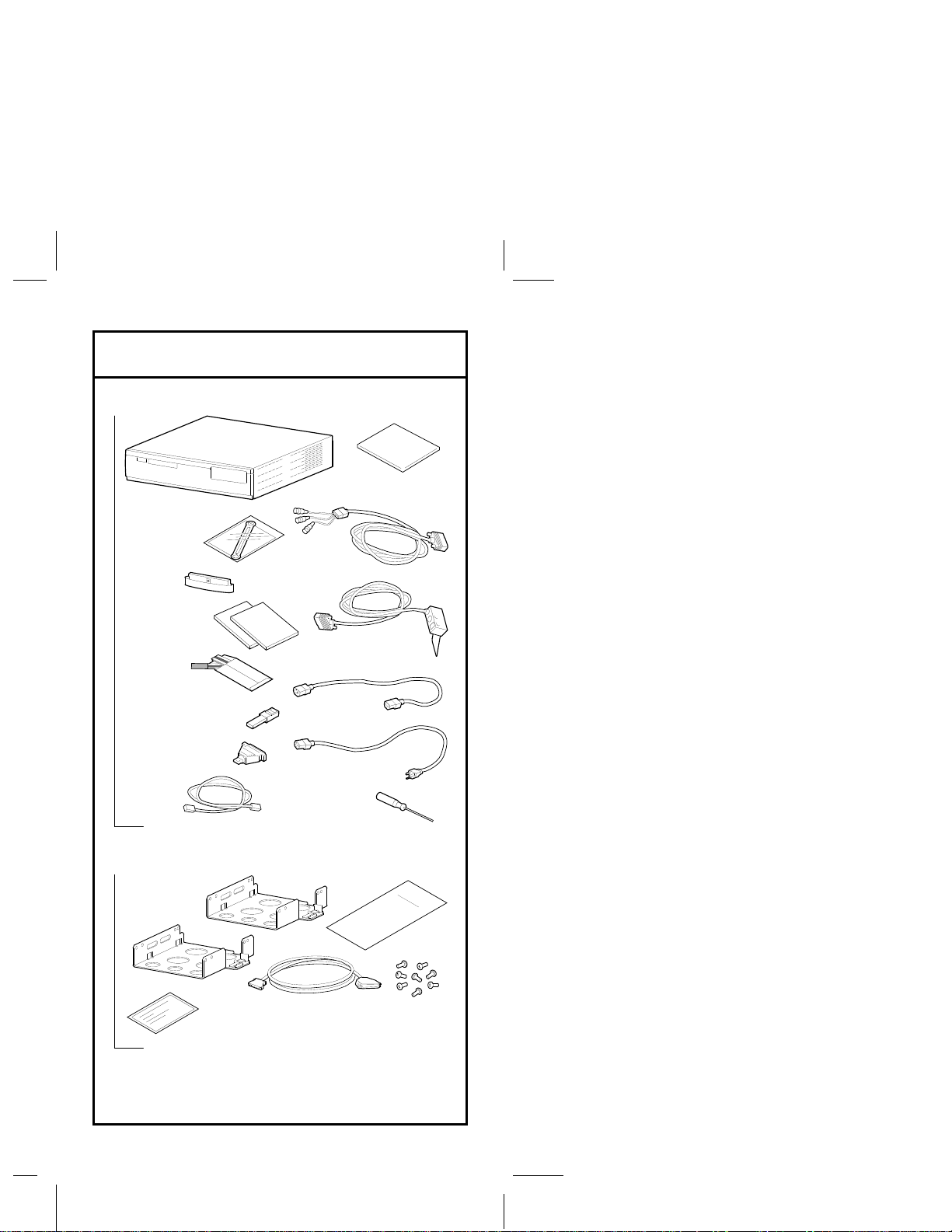

Check the Box Contents

Monitor

Video Cable

Antistatic

Wrist Strap

Mousepad

Monitor

Power Cord

System Power

Cord

Screwdriver

System Unit

Documentation

Modem Loopback

Connector

10BASE-T Loopback

Connector

SCSI

Terminator

Universal

Strain Relief

Strap

Keyboard/Mouse

Extension Cable

System Kit:

Network

Cable

Accessory Kit:

MLO-010694

Screws (8)

Mounting

Brackets (2)

xxxxxxx

xxxxxxxxxxx

xxx

Upgrade

Card

Return

Address

Label External

SCSI Cable

If your DEC 3000 system has factory-

installed drives, check the SCSI ID settings

on the drives you are upgrading.

To find out the SCSI ID settings on your

VAXstation drives, enter these commands:

•To shut down your system software:

$ SYS$SYSTEM:SHUTDOWN

•To show the drives and their SCSI ID

settings: >> SHOW CONFIG

A screen similar to this will display:

Write your system drive names and SCSI ID

settings here:

Check the SCSI ID Settings

>>> SHOW CONFIG

KA48-A V1.3-343-V4.0

08-00-2B-1D-28-6C

8MB

DEVNBR DEVNAM INFO

------ ------ --------------------------------

1 NVR OK

LR - 8 PLN FB - 5.2

3 DZ OK

4 CACHE OK

8MB = S0/1=0MB, S2/3=0MB, S4/5=0MB

6 FPU OK

7 IT OK

8 SYS OK

9 NI OK

10 SCSI OK

5-RX26 6-INITR

11 AUD OK

>>>

2 LCG OK

5 MEM OK

MLO-010730

SCSI

ID Numbers

1. Turn off the VAXstation system unit by

pressing O on the On/Off switch.

Caution: After you turn off the system,

wait 15 seconds before

unplugging the power cord.

2. Unplug all the cables.

3. To open the cover, press firmly on

the latches located on the side of the

system unit.

•Push the latches in and up until the cover

releases.

•Pull the cover up and off.

Caution: You may damage the equipment

if you do not wear an antistatic

wrist strap when working inside

the system unit.

Turn Off/Open the VAXstation

MLO-010695

Latches

Your VAXstation may have an RZ23L or an

RZ24L fixed disk drive installed.

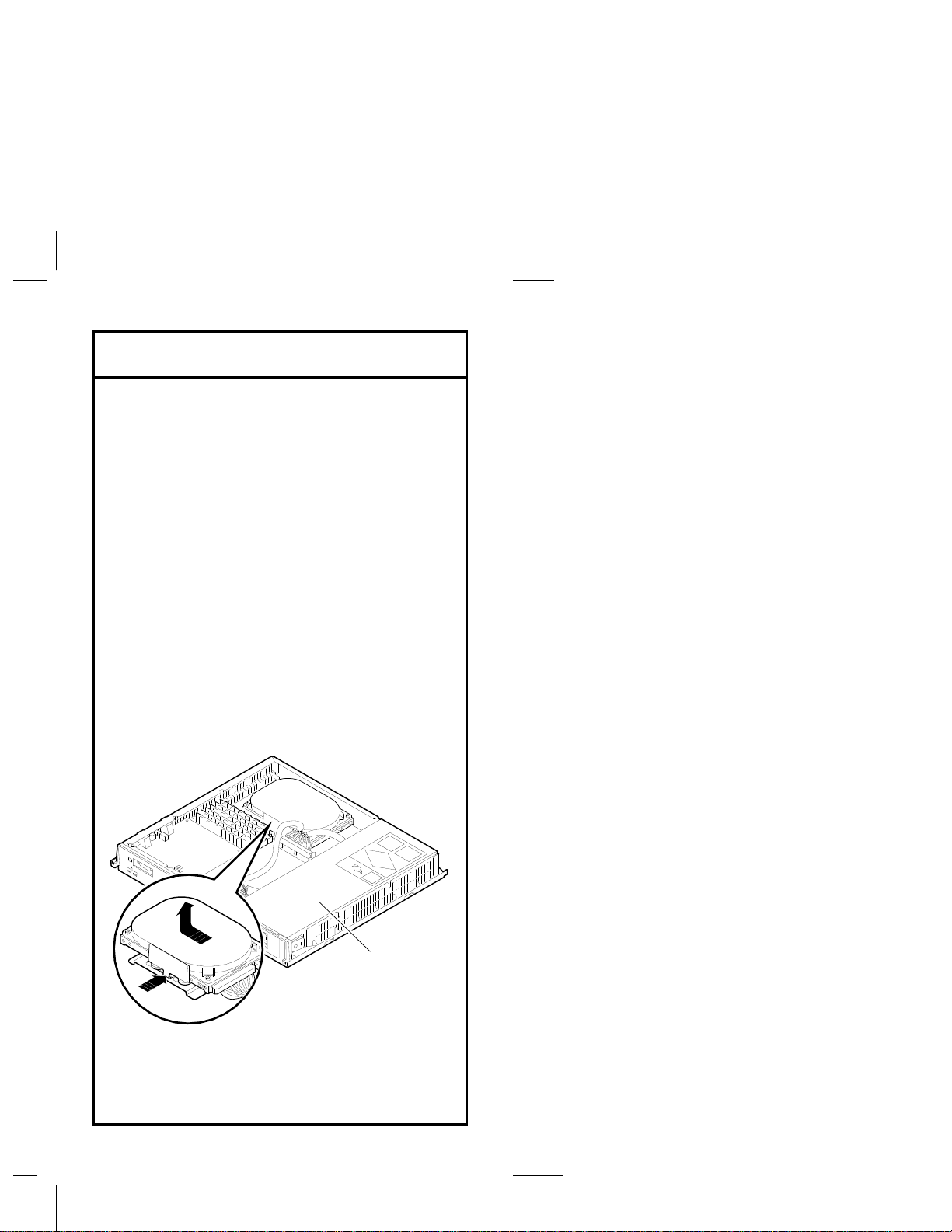

4. Locate the small metal clip attached to

the disk mounting bracket.

•Push in on the metal clip to unlock the

bracket, then slide the drive away from

the power supply.

•Remove the drive from the system unit.

•Disconnect the SCSI and power cable

connectors from the drive.

5. Remove the drive bracket and clip by

using a Phillips screwdriver to remove

the rubber feet.

Remove/Prepare the Disk Drive

MLO-010696

Power

Supply

You need change a SCSI ID setting only if

two or more drives have the same setting.

Check the SCSI ID setting for the VAXsta-

tion drives, which you noted previously. If

you need to change a SCSI ID on a drive

that is not covered here, see the DEC 3000

Model 300/300L AXP System Hardware

Reference Guide.

RZ23L Drive SCSI ID Settings:

Set the SCSI ID on the Drives

MLO-010587

SCSI

Settings:

E2 E1

RZ24L Drive SCSI ID Settings:

Set the SCSI ID on the Drives

MLO-010732

SCSI

Settings:

A0 A1 A2

If you are upgrading an RZ23L or RZ24L

drive from a VLC to a DEC 3000 300/300L,

you must put the drive into either of the

brackets included in your accessory kit.

•Stand the bracket on its side with the

sliding latch up. Place the drive in the

bracket with the connectors facing you,

as shown below.

•Attach the two screws on each side of

the drive bracket.

Insert a Drive Into a Bracket

MLO-010844
