Digisol DG-SC3610W Manual de usuario
TM
DG-SC3610W
Wireless IP Surveillance Pan/Tilt Camera
Quick Installation Guide
V1.1
2011-05-09
Copyright © 2011. All rights reserved.
Company has an on-going policy of upgrading its products and it may be possible that
information in this document is not up-to-date.
Please check with your local distributors for the latest information.
No part of this document can be copied or reproduced in any form without written consent
from the company.
2
Trademarks:
TM
DIGISOL is a trademark of Smartlink Network Systems Ltd. All other trademarks are the
property of the respective manufacturers.
Package Contents
The following items should be present in your package:
DG-SC3610W Wireless IP Surveillance Pan/Tilt Camera
Switching power adapter (12V DC, 1A)
Antenna
Camera mounting kit
Installation software CD (includes User Manual and Utility )
Patch cord (1 No.)
Make sure that the package contains above items. If any of the listed items is damaged or
missing, please contact your retailer immediately.
3
Thank you for purchasing DIGISOL DG-SC3610W Wireless IP Surveillance Pan/Tilt
Camera. DG-SC3610W is a Megapixel IP Camera with H.264 compression, IR LED and
microphone. The Pan/Tilt function allows the camera to monitor a much larger and wider
area. Day/Night function with the IR LEDs allows the camera to operate effectively in low
light environment. The wireless function makes DG-SC3610W very versatile for
installations. This camera is an ideal solution for monitoring wide area on a 24X7 basis.
Product Overview
System Requirements
The following system requirements are recommended
CPU: 2.0Ghz or above (2.4GHz plus processor with 1GB memory and a 256MB video
card is required for multiple camera viewing and recording in IP Surveillance)
Memory Size: 512MB and VGAcard resolution: 1024 x 768 or above
Notebook or desktop PC with network adapter (wired)
Windows 2000/XP with SP2/Vista/7 Operating System
Aweb browser
AC power socket (100 – 240V, 50/60Hz)
4
Product Overview

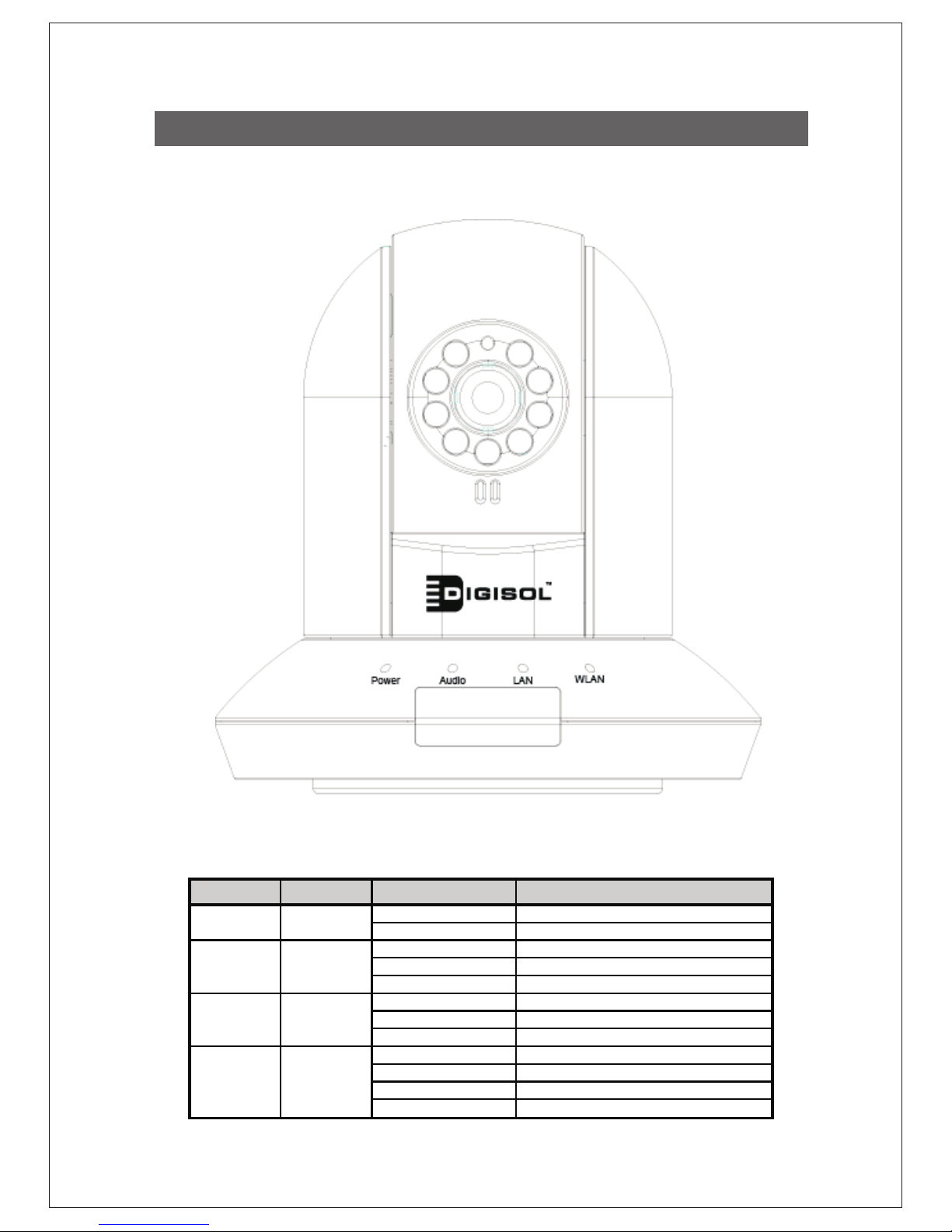

After installing the IP surveillance camera, you can verify its status from
the LED indicators on the front panel as shown below.
Front View
DG-SC3610W has one 10/100Mbps RJ-45 port which can be connected to LAN or PC for
viewing the camera.
LED Name LED Color Light Status Description
OFF Camera is not powered
ON Camera is powered ON
OFF Audio function is disabled
ON Audio function is enabled
Flash Two way audio
OFF LAN port not in use
ON LAN port in use
Flash Transferring data
OFF Wireless LAN not in use
ON Wireless LAN in use
Flash at low speed Waiting for WPS connection from AP
Flash Transferring data
Power
Audio
LAN
WLAN Green
Green
Green
Green
Interface Description
5
Rear View
Interface Description
Power Connects to power source
WPS Setup secure Wireless using WPS
SD HC SD High Capacity card holder
Audio Out Connects to external speakers
LAN Connects to local network
6
Rear View
Camera installation - Hardware
Connect the Ethernet cable to your local area network, and the other end to the LAN
port of DG-SC3610W.
Plug the power adapter to power outlet, and connect the power connector to the
to the power jack located at the back Panel of the IP camera.
Note: It is highly recommended to use the power adapter shipped with the Camera,
do NOT use any other power adapter from any sources.
7
Rear View
Place the IP camera at a secure place, and point the camera to the place you
wish to monitor. If you wish to mount the camera on the ceiling or wall, please
use the tripod connector (located at the bottom of the camera, as shown below) to
mount the camera.
Connect the antennas to the antenna base (located at the back panel of the
camera)
8
The “Autorun.exe” program should be executed automatically. If not, run “Autorun.exe” manually from
“Autorun” folder in the CD.
The Installation Wizard show’s four selection, select the program you want to install or click “Exit” to
install the program later. Select “Install Administrator Utility” for detecting and configuring the IP
Camera.
Camera installation - Software
Insert the Setup CD into your CD-ROM drive of notebook/desktop computer.
When clicked on ''Install Administrator Utility'' the following window appears, click 'Next' to
continue with the installation.
9
You can specify the destination folder of software installation else you can just use the
default folder option which appears, click 'Next' to continue with installation..
10
If you need installation program to create a desktop icon or a quick launch icon then
select the check box for “Create a desktop icon” and “Create a Quick Launch icon”
then click 'Next' to continue with the installation.
Following screen lists the summary of all options chosen up till now, if everything is
correct then click 'Install' to start the installation process, or click 'Back' to go back to
previous step to modify installation settings.
