Digi Connect ME 9210 Guía de aplicación

DigiConnectWi‐ME®9210and

DigiConnectME®9210

HardwareReference

90001247_C

5/23/2012

 2

Digi, Digi International, the Digi logo, a Digi International Company, Digi Connect, Digi Connect Wi-ME and Digi Connect

ME 9210, ConnectCore, NET+ and NET+OS are trademarks or registered trademarks of Digi International, Inc. in the

United States and other countries worldwide. All other trademarks are the property of their respective owners.

All other trademarks mentioned in this document are the property of their respective owners.

Information in this document is subject to change without notice and does not represent a commitment on the

part of Digi International.

Digi provides this document “as is,” without warranty of any kind, either expressed or implied, including, but

not limited to, the implied warranties of fitness or merchantability for a particular purpose. Digi may make

improvements and/or changes in this manual or in the product(s) and/or the program(s) described in this manual

at any time.

This product could include technical inaccuracies or typographical errors. Changes are periodically made to the

information herein; these changes may be incorporated in new editions of the publication.

 3

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

About This Document

Scope of the Reference Manual

The purpose of this document is to enable developers to integrate the Digi Connect Wi-ME and Digi

Connect ME 9210 embedded modules with other devices, enabling these devices to make use of the

module’s rich networking features.

Note:

Unless mentioned specifically by name, the products will be referred to as the

embedded modules or modules. Individual naming is used to differentiate product

specific features.

Related Documentation

See the NS9210 Hardware Reference for information on the NS9210 chip.

Support Information

To get help with a question or technical problem or make comments and recommendations about

Digi products and documentation, use the following contact information.

General Customer Service and Support

Digi International

11001 Bren Road East

Minnetonka, MN 55343

U.S.A.

United States: 1 877-912-3444

Other Locations: 1 952-912-3444

www.digi.com/support/eservice/

eservicelogin.jsp

 4

Contents

About This Document ................................................................................................................3

Related Documentation....................................................................................................3

Support Information.........................................................................................................3

Chapter 1: Contents..............................................................................................................4

Chapter 2: About the Embedded Modules .........................................................................6

Overview..........................................................................................................................6

Types of Modules.............................................................................................................7

Connectors: Power and Device Interface.........................................................................9

Connectors: Ethernet Interface.......................................................................................11

Connectors: Antenna......................................................................................................12

Module LEDs.................................................................................................................13

Chapter 3: About the Development Board .......................................................................14

Overview........................................................................................................................14

Basic Description ...........................................................................................................15

Port Descriptions............................................................................................................17

Connectors and Blocks...................................................................................................20

Switches and Push Buttons.............................................................................................25

Development Board LEDs .............................................................................................26

Power Jack P15 ..............................................................................................................28

Test Points......................................................................................................................29

Chapter 4: Programming Considerations.........................................................................30

Overview........................................................................................................................30

Module Pinout................................................................................................................31

Reset...............................................................................................................................33

Memory..........................................................................................................................34

Appendix A: Module Specifications....................................................................................35

Network Interface...........................................................................................................35

Serial Interface ...............................................................................................................36

Data Rates (bps) .............................................................................................................36

DC Characteristics..........................................................................................................36

 5

Power Management........................................................................................................38

Thermal Specifications...................................................................................................39

Mechanical .....................................................................................................................40

Bar Code.........................................................................................................................41

Dimensions.....................................................................................................................41

Recommended PCB Layout...........................................................................................47

Antenna Information ......................................................................................................48

RF Exposure Statement..................................................................................................50

Safety Statements...........................................................................................................50

Appendix B: Certifications..................................................................................................51

FCC Part 15 Class B.......................................................................................................51

Industry Canada..............................................................................................................53

Declaration of Conformity .............................................................................................53

International EMC Standards.........................................................................................55

Appendix C: Sample Application: PoE Power Supply......................................................57

Appendix D: Sample Application: TTL Signals to EIA-232.............................................60

 6

About the Embedded Modules

CHAPTER 1

Overview

The Digi Connect Wi-ME 9210 and Digi Connect ME 9210 b/g/n is a fully customizable and secure

802.11b/g/n wireless embedded module that provides integration flexibility in a variety of

connection options. Built on the new Digi NS9210 processor in combination with a 802.11b/g/n Wi-

Fi radio, it is pin-compatible with the existing Digi Connect Wi-ME 7520 and Digi Connect ME

7520 802.11b module allowing customers to easily migrate to the next-generation version of the

product.

The Digi Connect ME 9210 is an ultra-compact embedded module based on Digi’s powerful 75

MHz NS9210 processor. It allows customers to implement the next generation of leading network-

enabled products and maintains full form factor and pin-compatibility with the existing Digi

Connect ME family.

The NS9210 processor provides a host of features such as an ARM926EJ-S core running at speeds

from 75-150MHz, on-chip AES encryption engine, one PIC, a serial port, SPI and I2C interfaces,

PWM, and others. Most importantly, it is a “drop-in” replacement for the NS7520, which means that

is the ideal upgrade vehicle to deliver a next-generation design.

The integrated FIM on the NS9210 processor offer interface flexibility allowing the modules to

provide high performance interface functionality and unique software-driven configuration

flexibility by dynamically loading software support for application specific interfaces, e.g. UART,

CAN, USB device, 1-Wire, SDIO, and others.

The Digi Connect Wi-ME 9210 and Digi Connect ME 9210 embedded module offers freedom and

flexibility of professional embedded software development provided by the easy-to-use, cost-

effective and complete Digi JumpStart Kits™.

From medical systems to building control and industrial automation, in virtually any application

where embedded device connectivity over a wireless network is needed, embedded modules are the

ideal choice, delivering high-performance functionality.

Note:

Unless mentioned specifically by name, the products will be referred to as the embedded

modules or modules. Individual naming is used to differentiate product specific features.

This chapter provides information about the modules hardware and contains the following topics:

"Types of Modules" on page 7

"JTAG Jumper" on page 11

"Connectors: Antenna" on page 12

"Module LEDs" on page 13

 7

Types of Modules

There are two types of modules. One module utilizes Digi Plug-and-Play Firmware, while the

second is customizable with the option to develop a firmware application in NET+OS. If you are

developing your firmware application in NET+OS, you will be using a module with a JTAG

interface.

Note:

JTAG is a commonly used term that is also referred to as IEEE 1149.1, an industry standard

test protocol. JTAG is an abbreviation for the European Joint Test Action Group, which

invented the first versions of the IEEE 1149.1 interface. The JTAG interface, along with the

other development tools, enables you to download, run and debug programs on the module.

The following figures show the two types of modules.

Note:

-S: No JTAG for use with Digi Plug-and-Play Firmware

-C: No JTAG for use with custom NET+OS applications

-JT: With JTAG for use with custom firmware development

Digi Connect Wi-ME 9210 Modules

Model Description Figure

DC-WME-Y402-JT

DC-WME-Y413-

LX-JT

Used for development

purposes only

JTAG interface

DC-WME-Y402-C

DC-WME-Y413-S

DC-WME-Y413-LX

No JTAG interface

Ordered

independently for use

in your

implementation.

 8

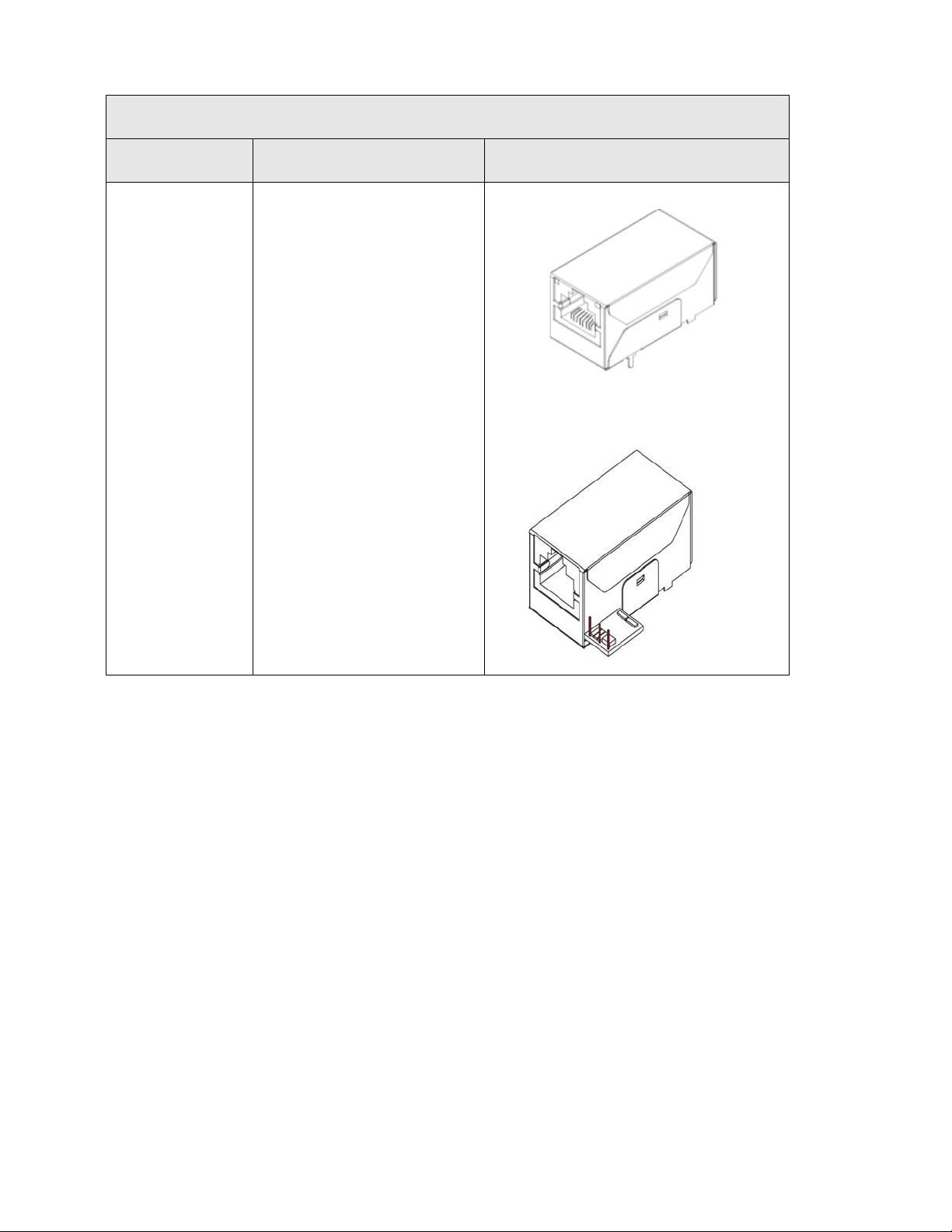

Digi Connect ME 9210 Modules

Model Description Figure

JTAG

DC-ME-Y401-JT

DC-ME-Y402-JT

DC-ME-Y402-LX-

Non-JTAG

DC-ME-Y401-C

DC-ME-Y402-C

DC-ME-Y402-LX

DC-ME-Y402-S

DC-ME-Y413-LX

JTAG interface

Ordered

independently for use

in your

implementation

 9

Connectors: Power and Device Interface

Power and Device Interface Connector

Viewed from bottom of the module:

Module Front

ME 20 Pin

Connector

Wi-ME 14 Pin

Connector

Wi-ME Pin 2

ME Pin 1 ME Pin 2

ME Pin 19 ME Pin 20

Wi-ME Pin 1

Bottom View

Power and Device Interface Connector Pin Assignments

Signal

DescriptionME Wi-ME

Pin # Function Pin # Function

1 VETH+ —

ME: Power Pass-Thru+

Wi-ME: Position Removed

2 VETH- — ME: Power Pass-Thru-

Wi-ME: Position removed

3-6 — — Position removed

7 RXD 1 RXD Receive Data (Input)

8 TXD 2 TXD Transmit Data (Output)

9 RTS 3 RTS Request to Send (Output)

10 DTR 4 DTR

Data Terminal Ready (Output)

11 CTS 5 CTS Clear to Send (Input)

12 DSR 6 DSR Data Set Ready (Input)

 10

Note:

The development board provides connectors for an optional PoE application kit.

Note:

Any pins not used should be left floating.

Note:

See "Module Pinout" on page 31 for detailed IO configuration information.

13 DCD 7 DCD

Data Carrier Detect (Input)

14 /RESET 8 /RESET Reset

15 +3.3V 9 +3.3V Power

16 GND 10 GND Ground

17, 18 — 11, 12 —

Not accessible with Digi Plug-and-Play

Firmware. If using a development kit, see

"Module Pinout" on page 31 for detailed IO

configuration information.

19 — 13 — Reserved. Do not connect.

20 /INIT 14 /INIT Software Reset

Power and Device Interface Connector Pin Assignments

Signal

DescriptionME Wi-ME

Pin # Function Pin # Function

Otros manuales para Connect ME 9210

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de Digi

Digi

Digi ConnectCore 8X SBC Pro Guía rápida de usuario

Digi

Digi Connect ME Manual de usuario

Digi

Digi CM Manual operacional

Digi

Digi Edgeport 21 Manual de usuario

Digi

Digi Connectware CM Manual de usuario

Digi

Digi Connect EZ Mini Manual de usuario

Digi

Digi Digi CM 8 Manual de usuario

Digi

Digi One SP Manual de usuario

Digi

Digi ConnectCore 93 Guía rápida de usuario

Digi

Digi Opengear OPERATIONS MANAGER 2200 Manual de usuario

Digi

Digi Digi CM 32 Manual de usuario

Digi

Digi NetSilicon Connectware Connect Series Manual de usuario

Digi

Digi ConnectCore 6 Guía rápida de usuario

Digi

Digi ConnectPort X2e ZB Manual de usuario

Digi

Digi Connect ME Guía rápida de usuario

Digi

Digi ConnectCore 6 Plus Guía rápida de usuario

Digi

Digi XPress Manual de usuario

Digi

Digi Connect ME Guía de aplicación

Digi

Digi XBee DigiMesh Manual de usuario

Digi

Digi Connect WAN Series Manual de usuario

Digi

Digi WB-10 Manual de usuario

Digi

Digi Connect ES 4 SB Manual de usuario

Digi

Digi NS9750 Guía de aplicación

Digi

Digi XBee DigiMesh Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
