Diesse VES-MATIC 20 Manual de usuario

DIESSE DIAGNOSTICA SENESE S.P.A.

VES-MATIC 20

VES-MATIC 20 PLUS

Service Manual

Release 1.00 - English

Automatic instrument for the determination of the erythrosedimentation rate (ESR)

(patent pending)

The information contained in this manual can be subject to modification without notice. Any of the parts of this manual can

be reproduced in any way or media electronic or mechanical, for any use, without the written authorisation of Diesse

Diagnostica Senese S.p.a.

TABLE OF CONTENTS

1. VES MATIC 20 / VES MATIC 20 PLUS

INTERVENTION PROCEDURES (TROUBLE SHOOTING) ............................................p.5

1.1. Approach to the VES MATIC 20 / VES MATIC 20 PLUS instrument

1.2. Analysis of the faults

1.2.1. The instrument does not switch on

1.2.2. The instrument switches on / Self test

1.2.3. The instrument switches on / Display

1.2.4. The instrument switches on / Printer

1.2.5. The instrument switches on / Check Device

2. PROCEDURE TO DISMOUNT

THE ROTATION MOTOR GROUP - SAMPLE HOLDER PLATE.................................p.11

3. PROCEDURE TO REASSEMBLE

THE ROTATION MOTOR GROUP - SAMPLE HOLDER PLATE.................................p.12

4. PROCEDURE TO CALIBRATE THE VES MATIC 20 / 20 PLUS INSTRUMENT

FOLLOWING DISMOUNTING OR FOLLOWING A PERIODICAL CHECK-UP ......p.13

5. PROCEDURES TO FOLLOW FOR INTERVENTIONS ON THE DIFFERENT

MODULES ................................................................................................................................p.19

5.1. SERVICE MANUAL THE POWER SUPPLY MODULE...................................................p.19

5.1.1. General

5.1.1.1. Aim

5.1.1.2. Applicability

5.1.2. Relative documentation

5.1.3. Relative instrumentation

5.1.4. Trouble shooting

5.1.4.1. Description of the module

5.1.5. Flow Chart no. 2

5.1.6. Access to the module

Appendix A: Examination of the faults

5.2. SERVICE MANUAL CPU MODULE ...................................................................................p.33

5.2.1. General

5.2.1.1. Aim

5.2.1.2. Applicability

5.2.2. Relative documentation

5.2.3. Relative instrumentation

5.2.4. Trouble shooting

5.2.4.1. Description of the module

5.2.5. Flow Chart no. 3

5.2.6. Access to the module

Appendix B: Examination of the faults

5.3. SERVICE MANUAL DISPLAY/KEYBOARD MODULE..................................................p.47

5.3.1. General

5.3.1.1. Aim

5.3.1.2. Applicability

5.3.2. Relative documentation

5.3.3. Relative instrumentation

5.3.4. Trouble shooting

5.3.4.1. Description of the module

5.3.5. Flow Chart no. 4

5.3.6. Access to the module

Appendix C: Examination of the faults.

5.4. SERVICE MANUAL PRINTER INTERFACE MODULE .................................................p.59

5.4.1. General

5.4.1.1. Aim

5.4.1.2. Applicability

5.4.2. Relative documentation

5.4.3. Relative instrumentation

5.4.4. Trouble shooting

5.4.4.1. Description of the module

5.4.5. Flow Chart no. 5

5.4.6. Access to the module

Appendix D: Examination of the faults.

5.5. SERVICE MANUAL MOTORS AND CONTROLS BOARD MODULE .........................p.73

5.5.1. General

5.5.1.1. Aim

5.5.1.2. Applicability

5.5.2. Relative documentation

5.5.3. Relative instrumentation

5.5.4. Trouble shooting

5.5.4.1. Description of the module

5.5.5 Flow Chart no. 6

5.5.6. Access to the module

Appendix E: Examination of the faults.

Appendix F: CONNECTION TO A HOST COMPUTER AND SPECIFICATIONS OF THE

COMMUNICATIONS PROTOCOL FOR VES-MATIC 20 / VES MATIC 20 PLUS

Appendix G: CONNECTION OF A BARCODE READER TO INSTRUMENTS OF THE VES LINE

Appendix H: FIRMWARE UPGRADE FOR THE VES MATIC 20 AND VES MATIC 20 PLUS

INSTRUMENT

Appendix I: LAYOUT FOR ELECTRONIC CONTROL BOARD AND SCHEMATICS

1. VES MATIC 20 / VES MATIC 20 PLUS - INTERVENTION PROCEDURES

(TROUBLE SHOOTING)

Before performing any type of intervention on the instrument:

a) SWITCH OFF THE ON/OFF SWITCH ON THE VES MATIC INSTRUMENT.

b) DISCONNECT THE INSTRUMENT FROM THE POWER SUPPLY IN ORDER TO

AVOID ANY RISK OF CONTACT WITH ELECTRICAL OR MECHANICAL PARTS

UNDER LINE VOLTAGE.

IF THESE BASIC RULES ARE NOT FOLLOWED, THE MANUFACTURER OF THE

VES MATIC 20 / VES MATIC 20 PLUS INSTRUMENT WILL ACCEPT NO

FURTHER RESPONSABILITY.

1.1. APPROACH TO THE VES MATIC 20 / VES MATIC 20 PLUS INSTRUMENT

1. Observe the recommendations reported in paragraph 1.

2. Open the outer covering of the instrument.

3. Gain access to the module of interest, as described in the procedures reported

hereafter (see Flow Chart no. 1).

Flow-chart n°1

VES MATIC 20

VES MATIC 20 PLUS

Type of Fault

Analisys of

fault

Dissasembly of the module

(Dismounting Procedures)

Intervention on the Module of

Interest (Trouble Shooting)

Reassembly of the Module of

Interest

(

Reassembly Procedures

)

Retesting of the Module of

Interest

(Calibration Procedures)

1.2. ANALYSIS OF THE FAULTS

The faults reported in the following paragraphs make reference to the Trouble Shooting

procedures described for the individual modules, in order to demonstrate the type of

approach to follow in these situations.

1.2.1. The instrument does not switch on

a) Check that the mains power supply is working.

b) Check the power cable.

c) Check the fuses at the back of the instrument.

d) Check the ON/OFF switch on the back of the instrument.

e) Check the Power supply module (see procedure regarding Power supply).

1.2.2. The instrument switches on / Self Test

The instrument is switched on but the Self-Test is performed incorrectly, gives Error

codes, or is not performed at all.

a) The Self-Test is not performed

Check that the cover is closed - Close the cover.

Check the I/O board (see 5.5. procedure).

Check the CPU board (see CPU procedure).

b) The Self-Test is performed incorrectly - Error codes are visualized.

During the Self-Test the following Error Messages may appear on the display:

1) Error reading Error in reading of the Motor

Error in reading of the Home sensor (see 5.5. procedure)

Check the Home Sensor (see 5.5. procedure).

Check the Motors and Controls Board (see 5.5. procedure).

2) Error plate The sample plate holder does not move up and down

Check the UP/DOWN Sensor controlling the plate position (see 5.5. procedure)

Check the cabled Motor-reducer (see 5.5. procedure)

Check the Motors and Controls Board (see 5.5. procedure)

3) Error Mixing The Sample holder plate does not rotate

Check the Plate Motor (see 5.5. procedure)

Check the Plate Home Sensor (see 5.5. procedure)

Check the Home sensor stirrup (see 5.5. procedure)

Check the Motors and Controls Board (see 5.5. procedure)

4) Check Device exhausted The Check Device is not working

Check the Check Device (see 5.5. procedure)

Check the Motors and Controls Board (see 5.5. procedure)

1.2.3. The unit is on/display

a) The display visualizes but does not illuminate (backlighting )

b) The display does not visualize but illuminate

c) The display does not visualize and does not illuminate

d) The display visualize but the data can not be entered with the keyboard

See Display/Keyboard module procedure (5.3.).

1.2.4. The instrument switches on / Printer

a) The paper is not fed in; the printer does not print.

b) The paper advances but the printer does not print.

c) The printer prints but the paper does not advance correctly.

d) The printer prints in the compressed form.

e) The printer prints the wrong characters (see Printer procedure 5.4).

1.2.5. The instrument switches on / Check Device

a) The Check Device does not charge

Check that the Check Device is inserted correctly:

- Switch off the instrument

- Insert a new Check Device in the Check Device holder with the label facing the

operator (see operator manual, Check device procedure)

- Switch on the instrument.

If all is KO, check the Motors end Controls Board (see 5.5. procedure).

EXPLODED VIEW AND PART LIST TABLE

033

034

035

081

161

046

044

045

095

157

084

159

043

158

160

042

156

041

065

154

155

039

151

095

150

149

037

149

082

038

153

095

152

064

036

040

066

083

037

085

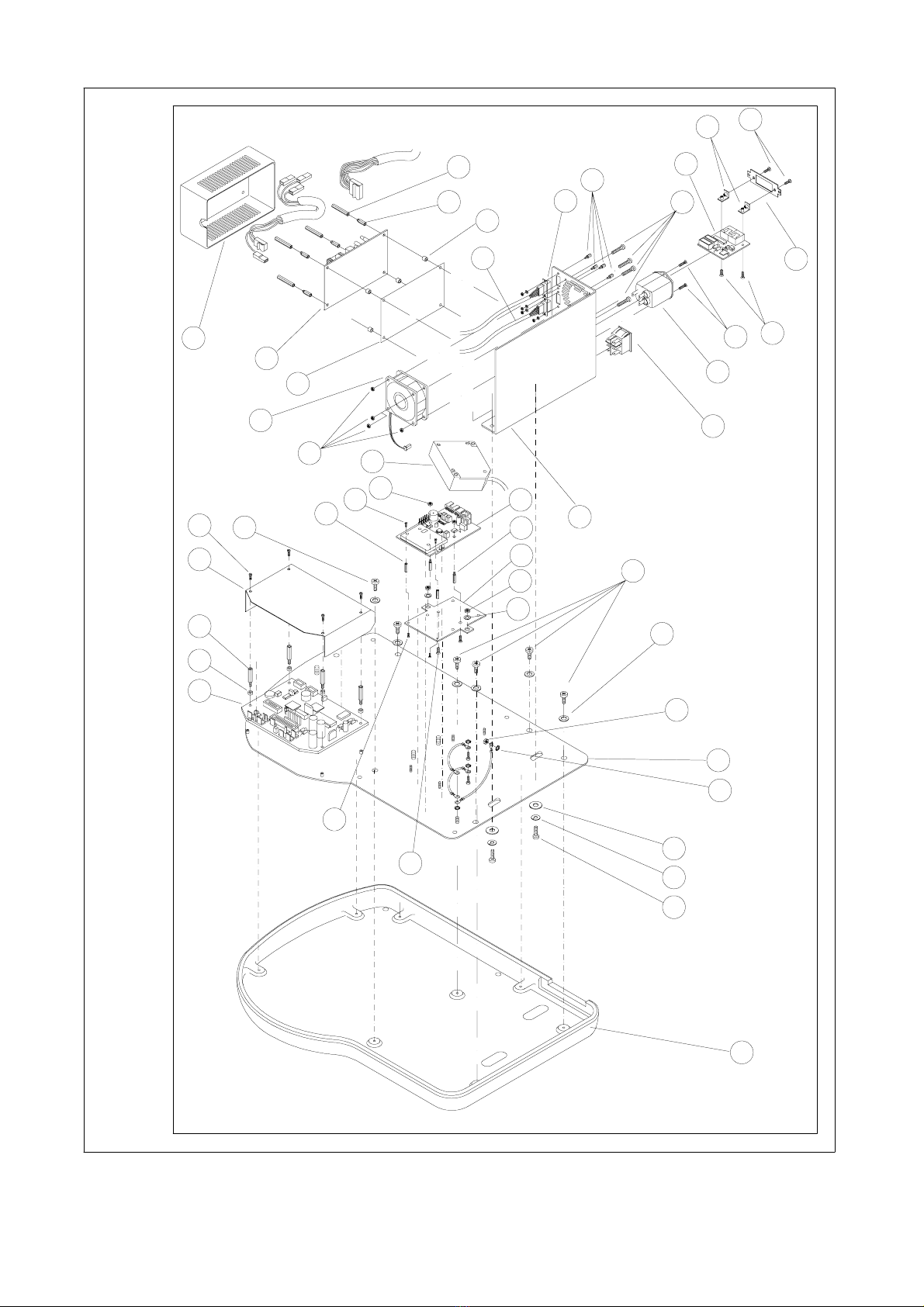

Esploso Meccanica V ES-M A TIC 20 New - Pag.1/4

093

001

072

002

092

054

093

003

104

005

103

073

074

105 106

056

008 109

108

107

090

091

075

053

006

203

094

097

202 007

100

101

102

096

047

048

049

050

051

052

055

092

104

094

099

137

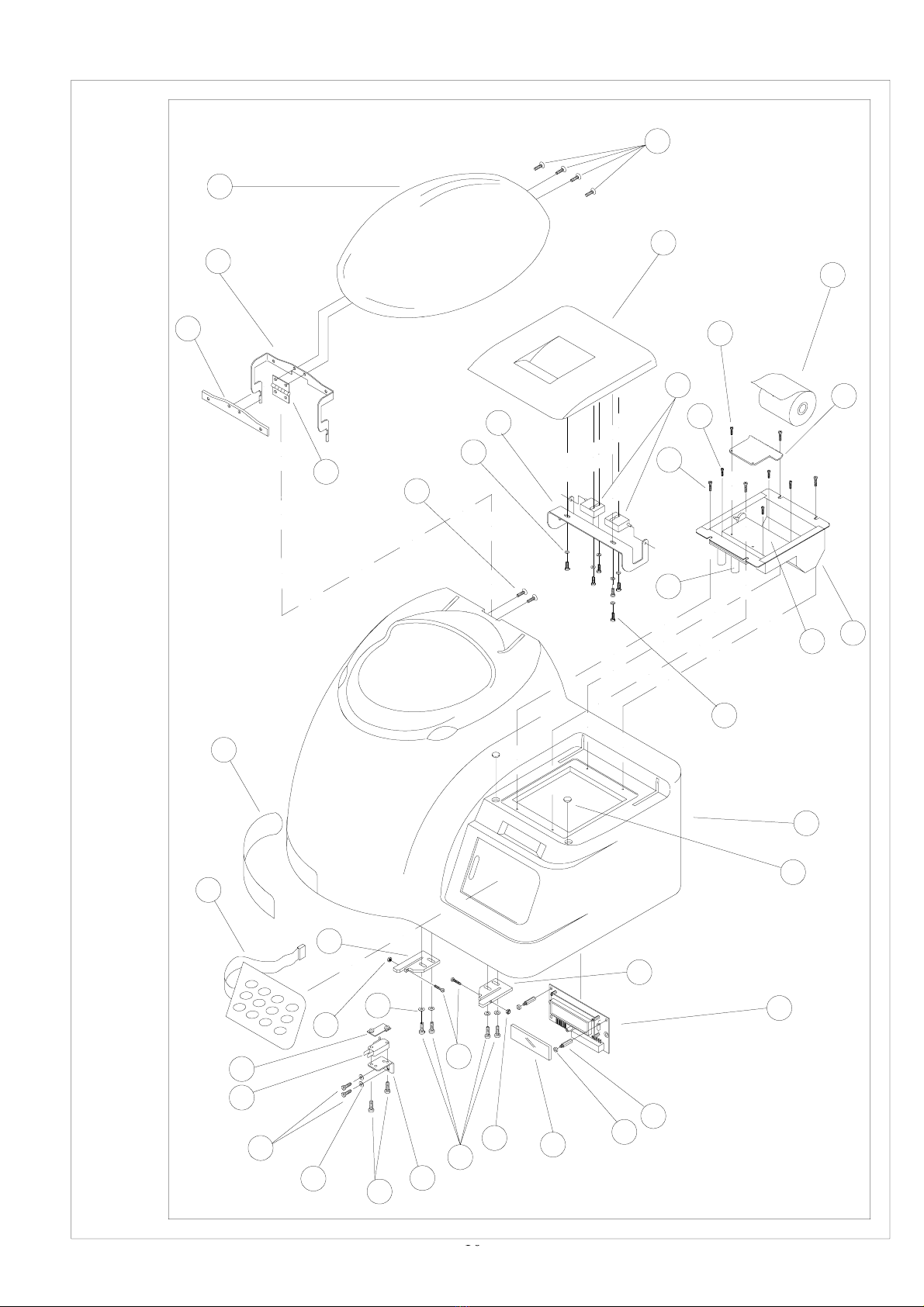

Esploso Meccanica V ES-M A TIC 20 New - Pag.2/4
