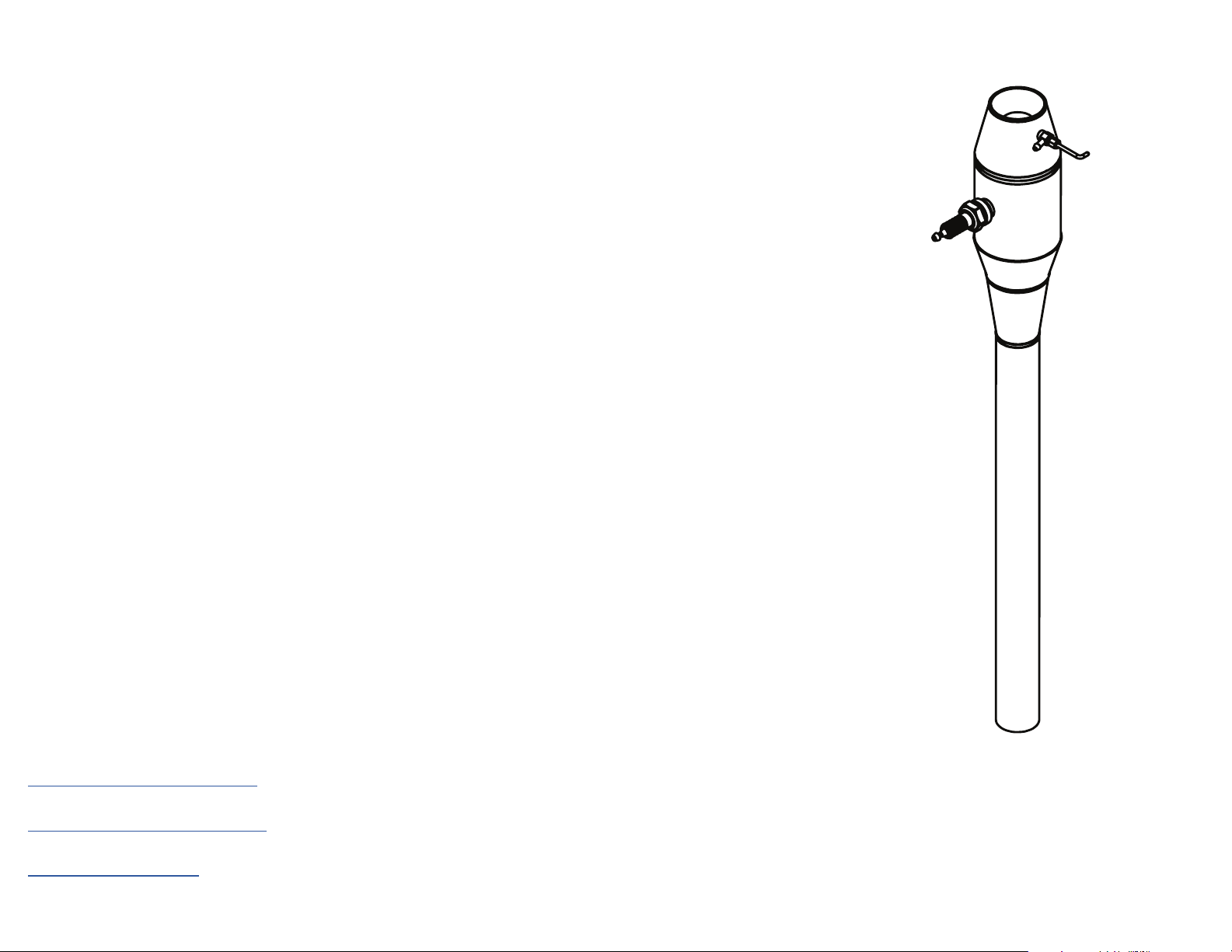

Power Supply
Assembly
8/9
Cut two portions of the Electrical Wire at
arms length.
You should be left with three length of
Electrical Wire.
Grab the long Electrical Wire.
Use a Wire Connector to attach one
end of the Long Electrical Wire to
the GREEN wire on the Spark Plug.
Connect the other end of the Long
Electrical Wire to the GREEN tab on
the Battery.
Grab the second Short Electrical Wire.
Press the BLUE tab on the rear of the
Power Controller and insert the Short
Electrical Wire into the hole.
Leave the other end of this wire dangling.
PARTS LIST
12’ of Electrical Wire
After Cutting
Short (3 feet) x 2
Long (6 feet) x 1
Wire Connectors
Power Controller
Spark Plug
Battery
TOOL LIST
Wire Stripper
Wire Cutter
Grab one Short Electrical Wire and the
Power Controller.
Press the RED tab on the rear of the
Power Controller and insert one end of
the Short Electrical Wire into the hole that
opens up.
Use a Wire Connector to attach the other
end of the same Short Electrical Wire to
the RED wire on the Spark Plug.
Grab the dangling wire.
Connect the wire to the BLUE tab
on the Battery.
Use the Wire Stripper to remove roughly a
fingers width of the plastic insulator on all
the ends of the Electrical Wires.
NOTE
Two wires should be arms length.
(Short Electrical Wire)
One wire should be roughly double the
length of the smaller wires.
(Long Electrical Wire)
TIP
To do this lift the tab on the battery
and insert the Electrical Wire into
the hole.
Press down on the tab until you hear
a “click”.
TIP
To attach two wires with a Wire
Connector.
1. Pinch the ends of both wires
together and place the Wire
Connector over the top of them.
2. Twist the Wire Connector
clockwise.
INSTRUCTIONS
