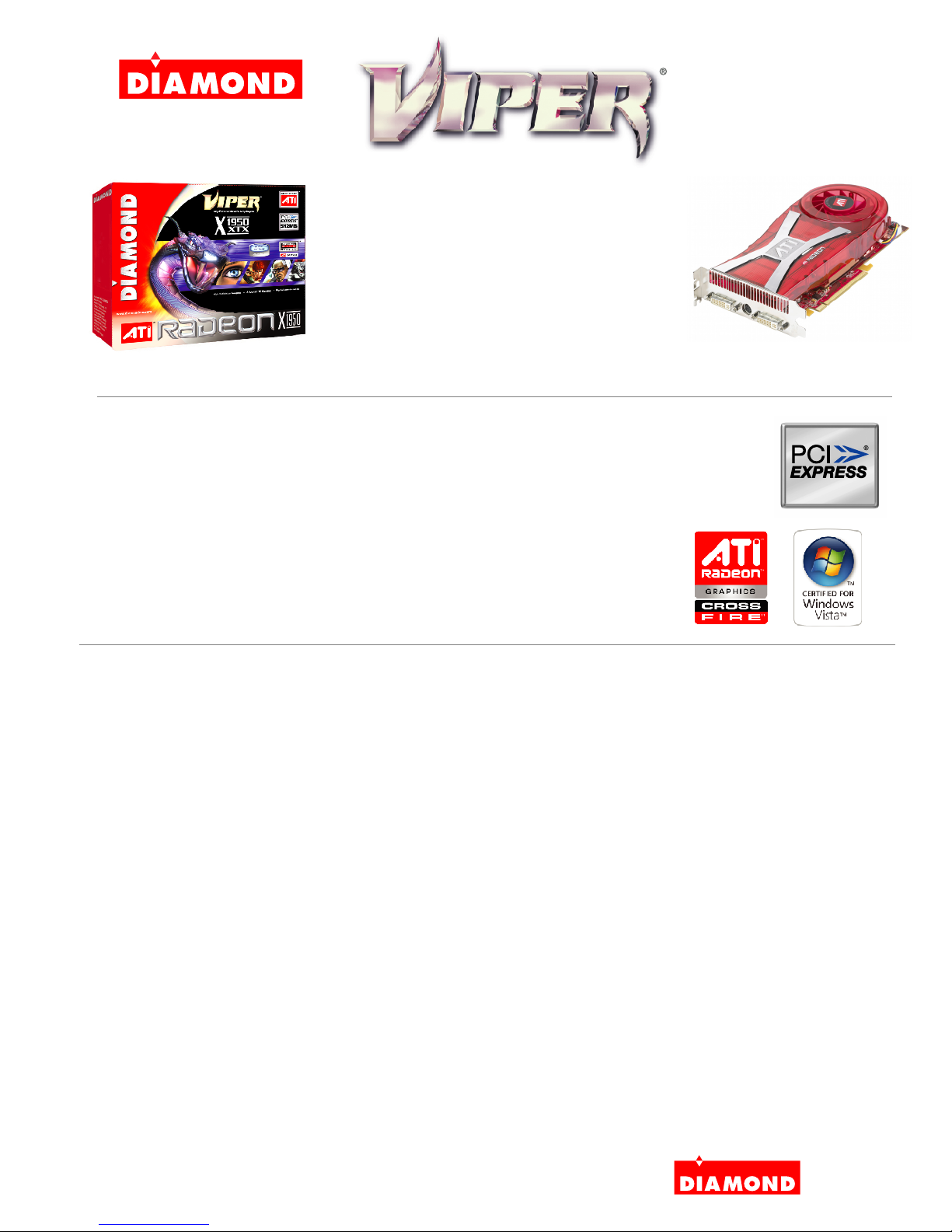

Diamond Multimedia Radeon X1950XTX Guía de instalación

X1950XTX512PCIE

9650 DeSoto Ave

Chatsworth, CA 91311

Tel: (818) 534-1414

Fax: (818) 773-9619

www.diamondmm.com

Featuring:RADEONTM X1950XTX

Memory: 512MB

Slot Type: PCIE

With:  Dual DVI (Dual Link) /

  HDTV / D-Sub /ViVo

Viper X1950XTX

The World Fastest Graphics Card

Overview

THE GAME IS ON!

With the Radeon® X1950 series, your graphics performance will never be compromised. Imagine games

with hyper realistic light blooms, lifelike skin textures, and silky smooth hair. Now imagine the non-stop

action packed gaming on a CrossFire™ platform – the only choice for hardcore gamers. That’s what it’s like

with the Radeon X1950, ATI’s fastest and most flexible 3D processor. All gaming, all the time. Radeon®

graphics. Never comprise.

AVIVOTM

•Video and Display Perfection

•True-to-Life Image Reproduction

•Sharp video and photos, smooth video playback

•Universal connectivity for TVs and display

SPECIFICATIONS

• GPU: ATI Radeon®X1950XTX

• Bus Type: PCI-Express x16

• Memory Support: 512MB GDDR4

• Memory Interface: 256 bit

• Core Clock Speed: 650 MHz

• Memory Speed: 2.0 GHz

• Shader Units: 48

• Geometry Pipelines: 16

• Peak Pixel Fill Rate: 10.4 Gpixels/sec

• Peak Vertex Throughput: 1300

• Peak Memory Bandwidth: 64.0 GB/s

• API Support: DirectX¨ 9.0, OpenGL

FEATURING

• 90 Nanometer Technology

• 48 pixel shader processors

• 384 million transistors on 90nm

• 8 vertex shader processors

• 256-bit 8-channel GDDR4 memory  

 interface

• Lightning fast memory clock speeds

• High Dynamic Range (HDR) rendering

• Support for Microsoft®DirectX®9.0 & 

 Shader Model 3.0

• AVIVO and 3D excellence

• CATALYST Software Drivers

• Simultaneously drive 2 High Resolution 

 panels

• HDTV Support

System Requirements

• Intel®Pentium®4 or AMD®Athlon®64 FX CPU's

• CPU running at 2.4 GHz or higher

• 550-Watt power supply or greater, 30 Amps on 12 volt rail  

 recommended (assumes fully loaded system)

 *1100 Watt ATX 2.0 or higher required for use with crossfire not included

• PCI Express compliant power supply required.

 Connect directly to the power supply with a 6 pin

 PCI Express power connector

• Super VGA or DVI-I compatible monitor

• Microsoft Windows®XP, XP 64, 2000, MCE

• PCI Express X16 compliant slot

• CD-ROM or DVD-ROM drive

• 512MB system RAM minimum

• 480MB available hard disk space

Package Includes:

• Quick Install Guide

• Software: ATI CATALYST, Diamond Tools, DVD Playback

• Component-out cable adapter

• 9-pin S-Video/composite VIVO

• 6-inch S-Video cable

• 6-inch composite cable

• 2 x DVI-to-VGA adapter

Catalyst, CrossFire, HyperMemory, and Radeon are trademarks of Advanced Micro Devices, Inc.. All other trademarks are property of their respective owners.
