DF ROBOT 4Drawing Manual de usuario

[ ]

4Drawing - Interactive Electronics Frame User

Manual

LeoYan @ DFRobot

6/18/2014

DFRobotAll Rights Reserved CC BY-NC 3.0 CN P a g e | 2

Table of Contents

Preliminary Assembling............................................................................................................. 3

1Preparation........................................................................................................................ 3

2Making the Frame ............................................................................................................. 4

3Hanging the Frame ............................................................................................................ 5

4Choosing hanging position: ............................................................................................... 5

5Electronic Setup................................................................................................................. 6

6Installing SMT Modules ..................................................................................................... 7

Further Steps........................................................................................................................... 11

1Audio Interactions ........................................................................................................... 11

2Ambient Light Interaction................................................................................................ 12

Controlling & Programing........................................................................................................ 14

1Plug & Play....................................................................................................................... 14

2Graphical Programming................................................................................................... 15

3Freestyle .......................................................................................................................... 20

Precautions：

A. This product contains small parts, not suitable for children under 6 years old and use.

B. This product is not waterproof and moistureproof function, please keep or use in a dry environment! Not

heavy can be stacked on top.

C. This product uses the USB or supporting the battery box power supply, the use of other power supply if the

above 5.5V may cause permanent damage to the products controller.

DFRobotAll Rights Reserved CC BY-NC 3.0 CN P a g e | 3

Preliminary Assembling

1Preparation

1) 4DrawingKit Parts List

You’ll be able to get this kit via DFRobot Online Store or resellers. In this kit you’ll find:

Parts/Compon

ents

Introduction

Amo

unt


“Palette”

Controller

Based on Atmega32U4,

compatible with Arduino

LED Module

LED: Redx2, Greenx2,

Orangex2, Bluex2, Whitex2;

GNDx1

PIR Motion

Sensor

Detects whether a human

has moved in or out of the

sensors range

Front Frame

Front frame

Back Frame

Back frame

LED Cardboard

Holder

Inner cardboard in the

frame，it is use to hold LEDs

and etc.

Cardboard

Corner

Footpad for LED Cardboard

Holder

Aluminum Foil

278mm (L) 193mm (W)

Aluminum Foil for GND

Aluminum Foil

Sticker

84x conductive 20mm x

4mm Aluminum Foil Sticker

Micro USB

Battery Box

3x AA Batteries

Cable Set

22-24x Wires with DuPont

Head (15cm):

M/M：Red、Yellow，Blue.

Each about 5x;

F/M：Red、Yellow、Blue. Each

about 3x

Traceless Wall

Hook

For hanging

Push Pin

For marking

Masking Tape

1cm wide

Stick Glue

Stick glue

Contour

Contour drawing

DFRobotAll Rights Reserved CC BY-NC 3.0 CN P a g e | 4

Drawing

Frame Dimension：352x274x30mm

Canvas Dimension：A4 （210 x 297mm）or 12 x 9inch（228.6 x 304.8mm）

Frame Window Dimension：287 x 200mm（smaller than A4）

Frame Material：Paperboard, corrugated paperboard

Power Supply：3xAA or micro-USB

Battery Life：30 days with AA batteries（In standby mode, all modules will shut down automatically

except zone W.）

LED Module Interface：4 Channel 40Ma I/O Interface（Zone Z），4 Channel 500mAOutputInterface(Zone

Extension Interface：4 Channel 3PIN for Sensor/Actuator（Zone S）/1 Channel UART/1 Channel I2C

Wakeup Interface：1 Channel 3PIN for Sensor (Zone W）

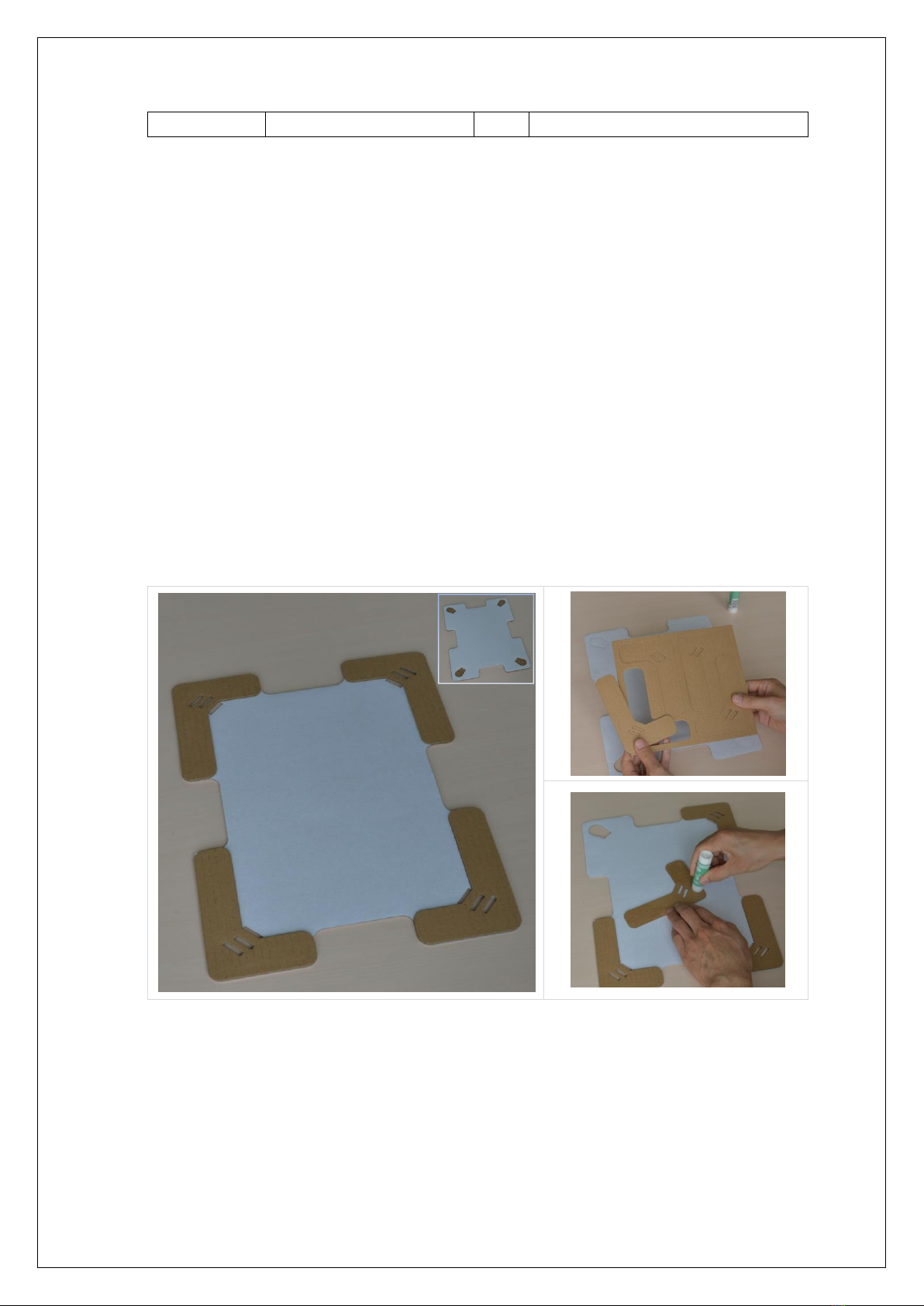

2Making the Frame

1）Making Frame Holder: glue the Cardboard Corners onto the LED Cardboard Holder

2）Making the pillars of Back Frame: fold to stand, then glue and keep till dry

front

back

DFRobotAll Rights Reserved CC BY-NC 3.0 CN P a g e | 5

3) Making the Front Frame: remove the dentate cover, separate carefully with knife or tear apart

Now you should have a paper frame ready!

3Hanging the Frame

1) Choosing hanging position: 4drawing can be hanged vertically or laterally. Locate the nails

with hollow area in the back of frame box, as shown in figure

DFRobotAll Rights Reserved CC BY-NC 3.0 CN P a g e | 6

2) Hammer the Traceless Wall Hook and hang the frame onto wall.

Now you have a way of showing off your paintings!

4Electronic Setup

1.1 Wiring the Modules

1）Insert batteries into battery box

2）Connect battery box with micro USB port on Palette

3）Connect PIR Motion Sensor with Zone W on Palette

1.2 Placing the Modules

1）Place the battery box in the middle of Back Frame, reinforce with sticky tape

2）Place the Palette Controller on one side

3）Place the PIR Motion Sensor onto the elliptic hole on the Back Frame, reinforce with tape

DFRobotAll Rights Reserved CC BY-NC 3.0 CN P a g e | 7

5Installing LED Modules

1.1 Installing LEDs

1）Fix the aluminum foil, if too large use scissors to cut to paper size (aluminum foil for circuit

"GND")

2）Fixing painting to Frame Holder: It support A4 and 9 "x 12" two paper specifications of the

installation; If painting is smaller than A4 size, can use A4 hollow out worked on ways to use.

3）Placing the LEDs, make a small hole on the planned area, and mark it for later use.

DFRobotAll Rights Reserved CC BY-NC 3.0 CN P a g e | 8

4）Stick the LEDs with Aluminum Foil Sticker onto the foil

1.2 Connecting LED Modules

DFRobotAll Rights Reserved CC BY-NC 3.0 CN P a g e | 9

1）Switch to “MAKE” on the Palette Controller, place the Frame Holder into frame box

2）Connect “-” in Zone Y with GND module, and place them in properly. This will connects the

foil with “GND” on the Palette controller.

3）Connect the first LED in cascade to Zone X or Zone Z accordingly, and wire them together. In

the demo, two red LEDs are grouped together, others will be grouped randomly.

4）Put wires in order and reinforce with sticky tape.

5）After testing, switch to “RUN” on Palette controller.

Now you will have a blinking drawing!
